Taifun

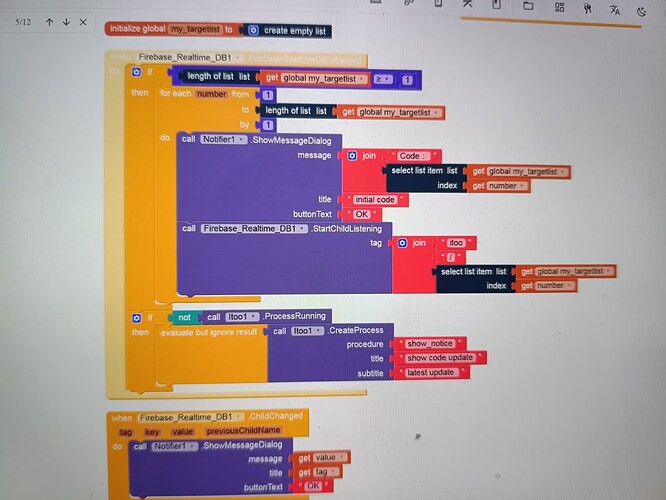

Thank you , here is the blocks let the foreground work and listening the childtag's update from firebase

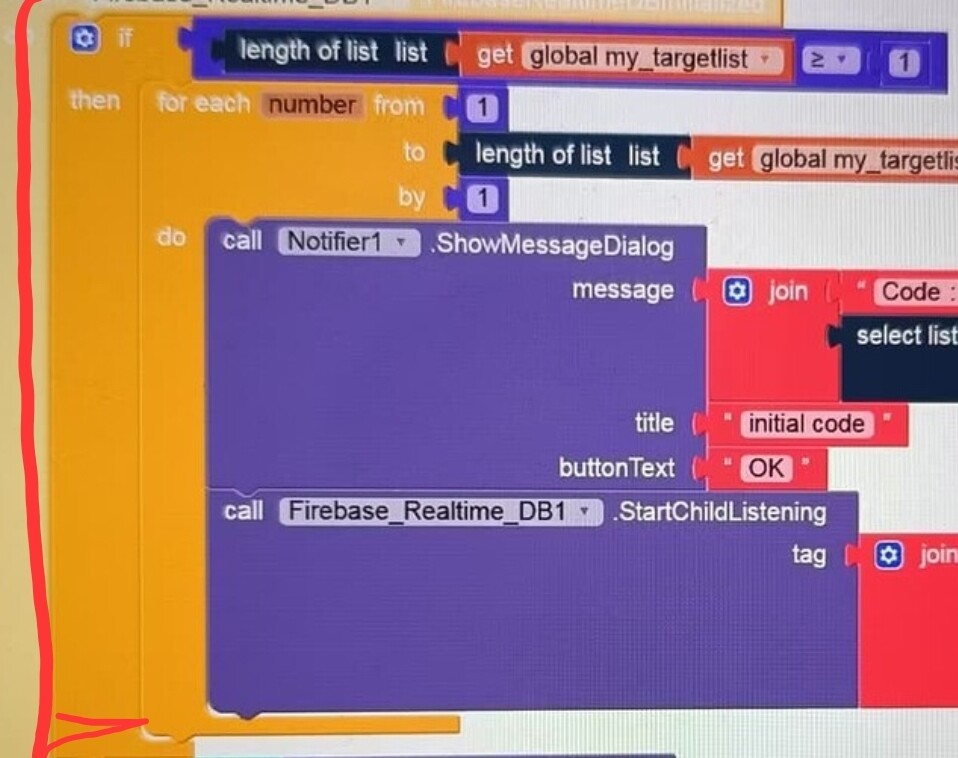

Try to put these blocks
into your main procedure show_notice and create an event handler for Firebase_Realtime_DB1_ChildChanged
Taifun

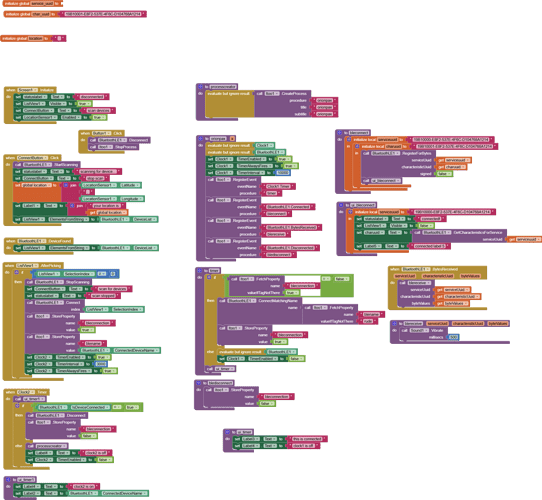

heres the logic:
- the app initialises

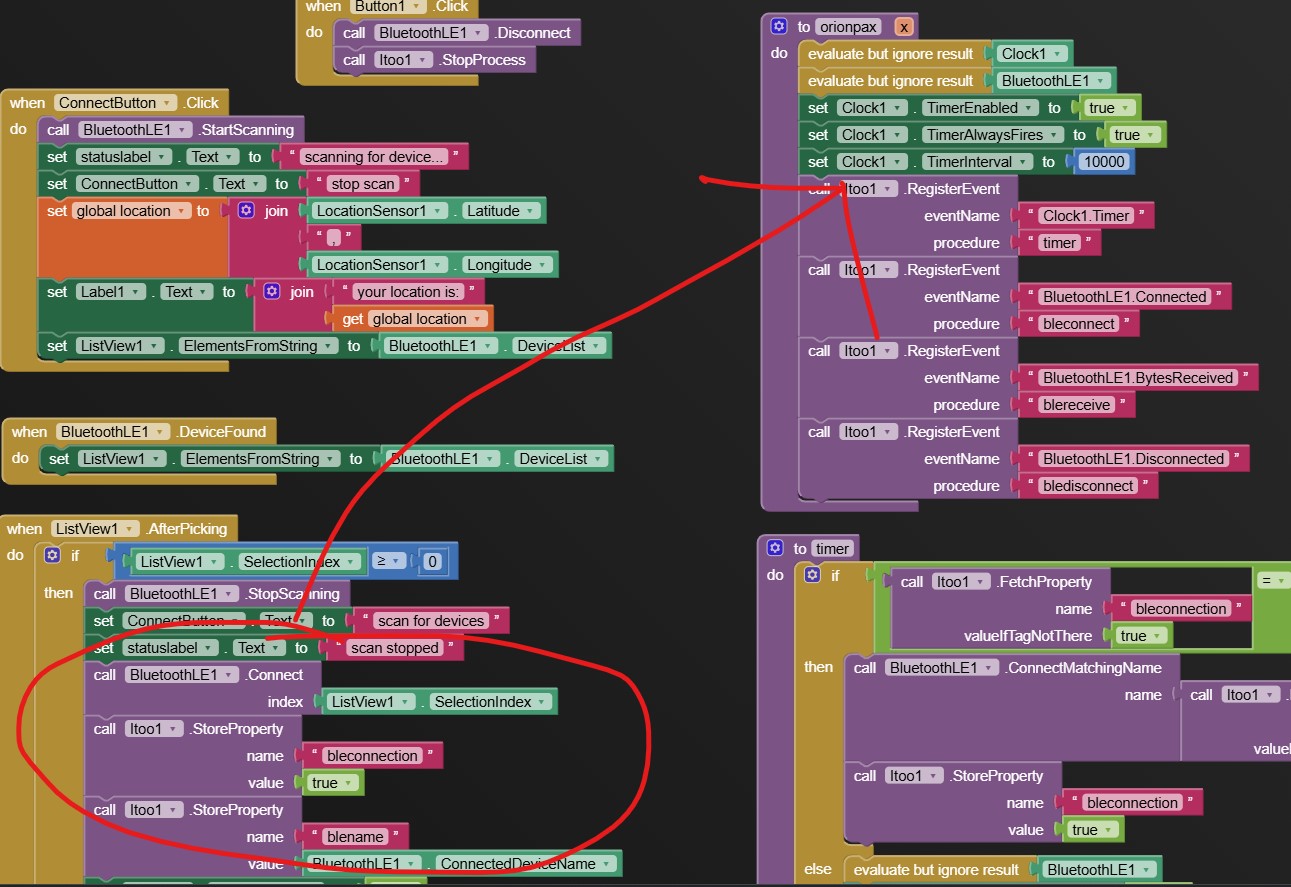

- connect button is pressed, and with listpicker, bluetooth device is connected to the phone which starts a process.
- i saw somewhere that i shouldnt start a bluetooth connection on foreground and then use it in the background, but start the connection in the bg itself if i want to use it there, so i started an event of clock1.timer that disconnects the device once, and then reconnects it while launching two other events .
the problem is- itoo does launch the process named orionpax but i dont think itoo recognises and reacts to the registerevent blocks as i cant see the device being disconnected anyhow which is the first if statement in the clock block.
what am i doing wrong and what can i do to mend it?
(also, even without the alarm loop, it wasnt registering the bleconnect and blereceive blocks at all.)
You forgot to start the clock for background processing
Btw. What is the purpose of your background processing if the only thing you are doing is updating the user interface? Which means, only if your app is in the foreground something is happening (after you fixed the bug)
Taifun
...wait how does one do that? i thought clock1.timerenabled in the listpicker was the way to start the clock for bg processing. i didnt know there was a different way of starting the clock.
ah these set of blocks essentially are highlighted part of the bigger issue im facing with another app. im just using the ui components for now to check for bugs.
it works as it should without itoo this way

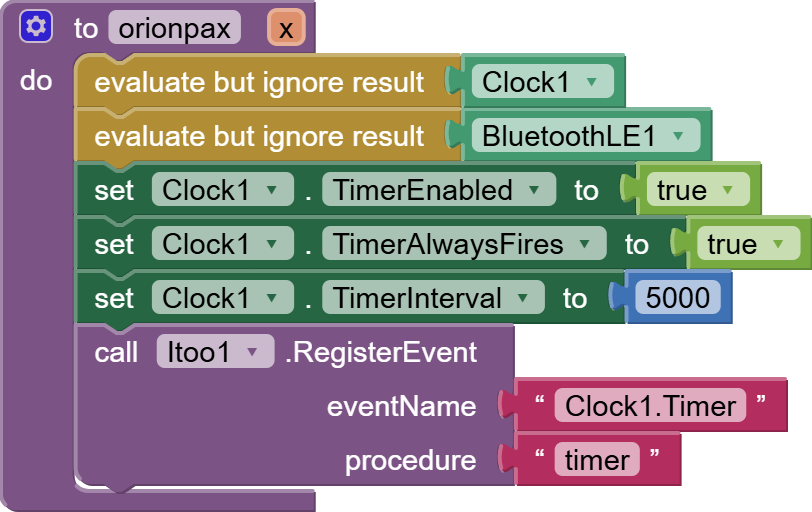

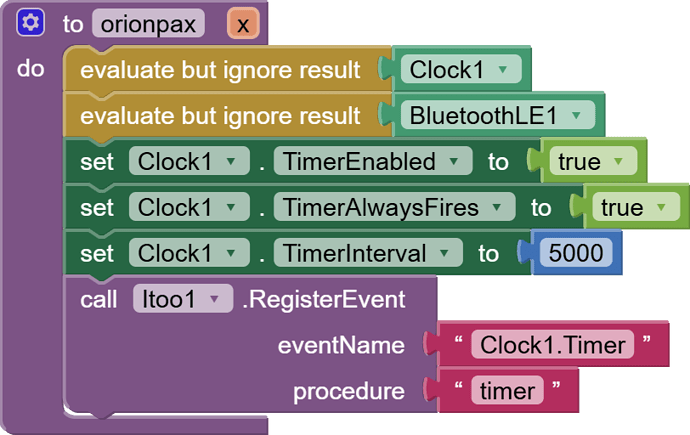

Start the clock in your main procedure orionpax
For debugging let me recommend logcat
Taifun

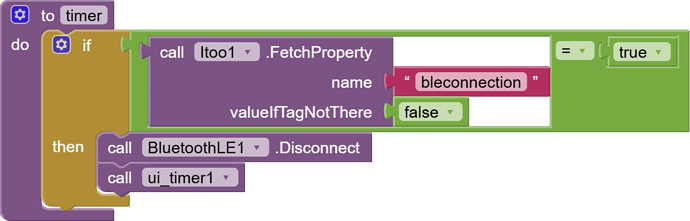

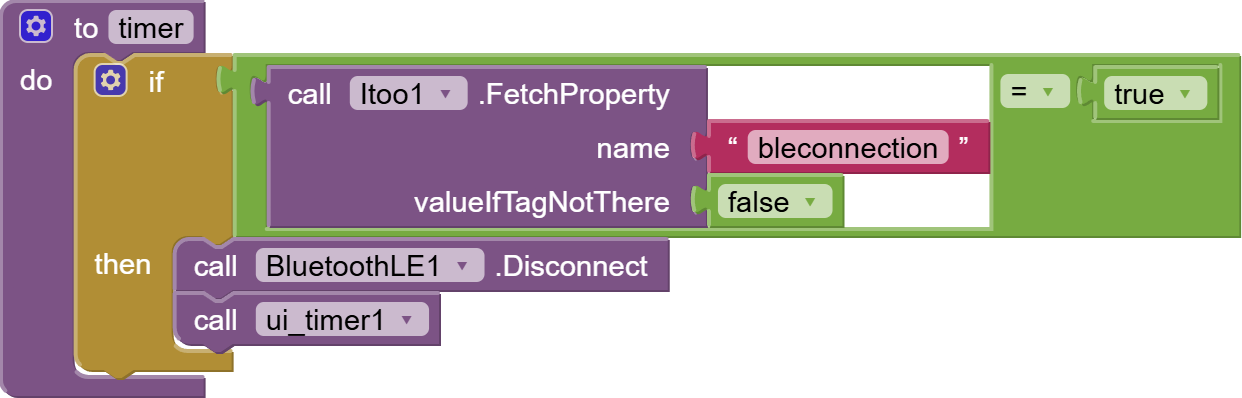

yes i did that, and now i have realised that itoo can NOT perform "call BluetoothLE1.Disconnect." somehow thats in the timer procedure.
i tried to create a loop where the timer disconnects the device but then it doesnt disconnect at all, thereby causing more issues in the latter parts of the blocks.
using the same disconnect block in the button1 works as intended, but somehow when its under a procedure itoo is running, it doesnt seem to work.
update: i think the issue is im connecting the device on foreground and then using the disconnect in the background.
probably would need another small clock that runs in foreground itself that disconnects the device and starts the process i believe.
Do the Connect also in main procedure orionpax
Yes
Taifun
yes, i did that and connected the device in bg using itoo and ran the connected and byte received command and everything works as it should.

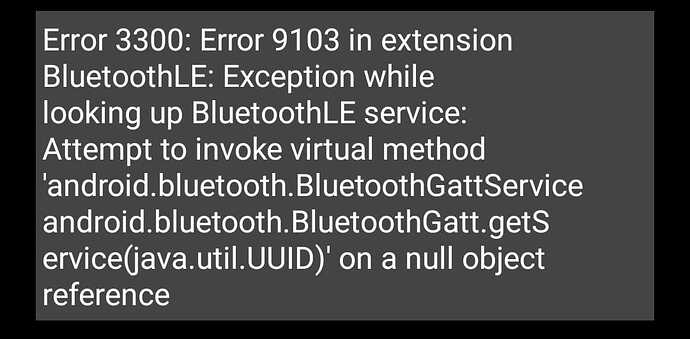

just a problem tho, i dont understand what this error means. it comes up when the the device is connected using connectwithmatchingname block in bg

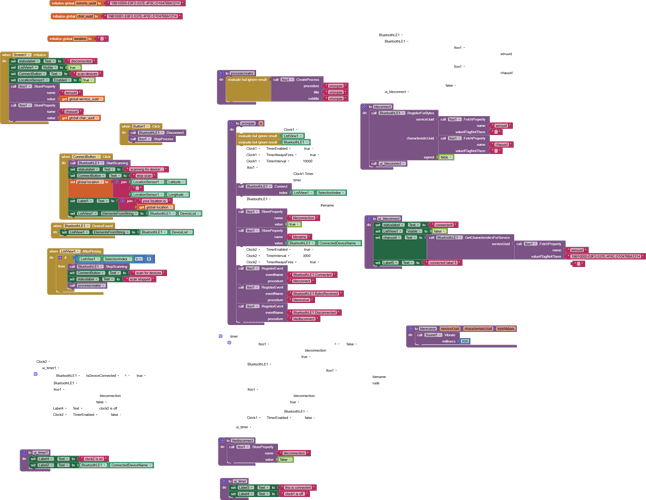

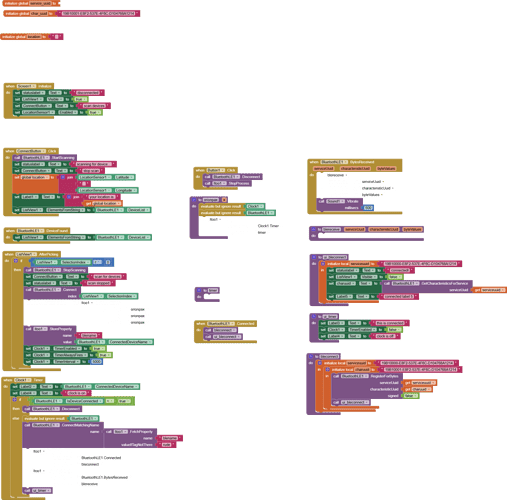

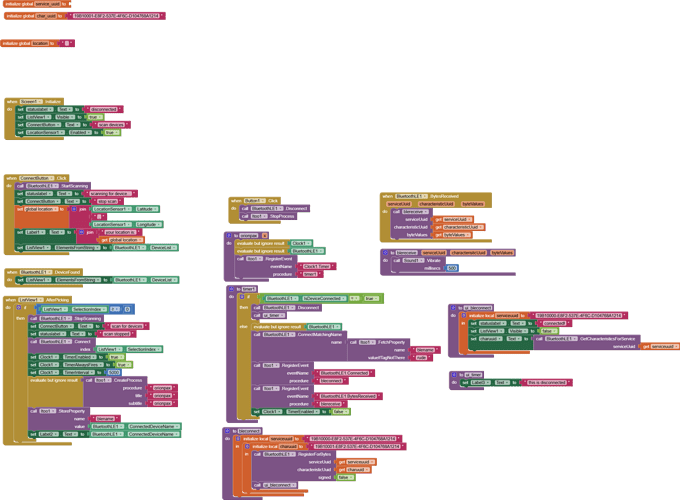

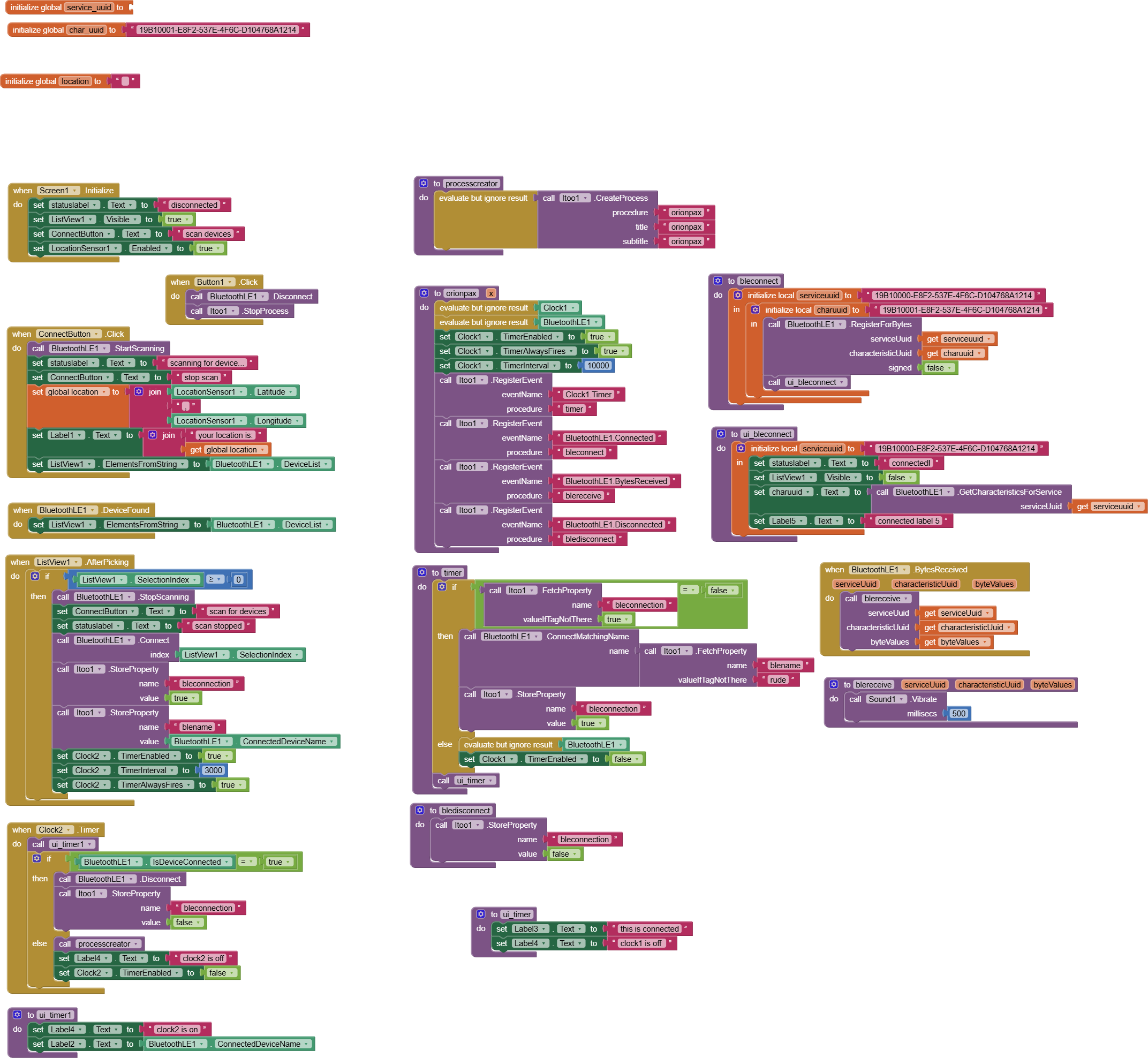

here is the working blockline.
the "set charuuid.text to" block in the ui_bleconnect doesnt seem to work.
neither does the disconnect button work as "disconnect cant be called before you are connected, whereas my device indeed IS connected, and responds with a small vibration when bytes are received.
Sure but even so, shouldn't reconnecting it again after getting the name, by running the timer procedure in the bg do the same?
I'll try what instruction you gave me with image for now.
You will have it running twice in this case
You do not want this
Taifun

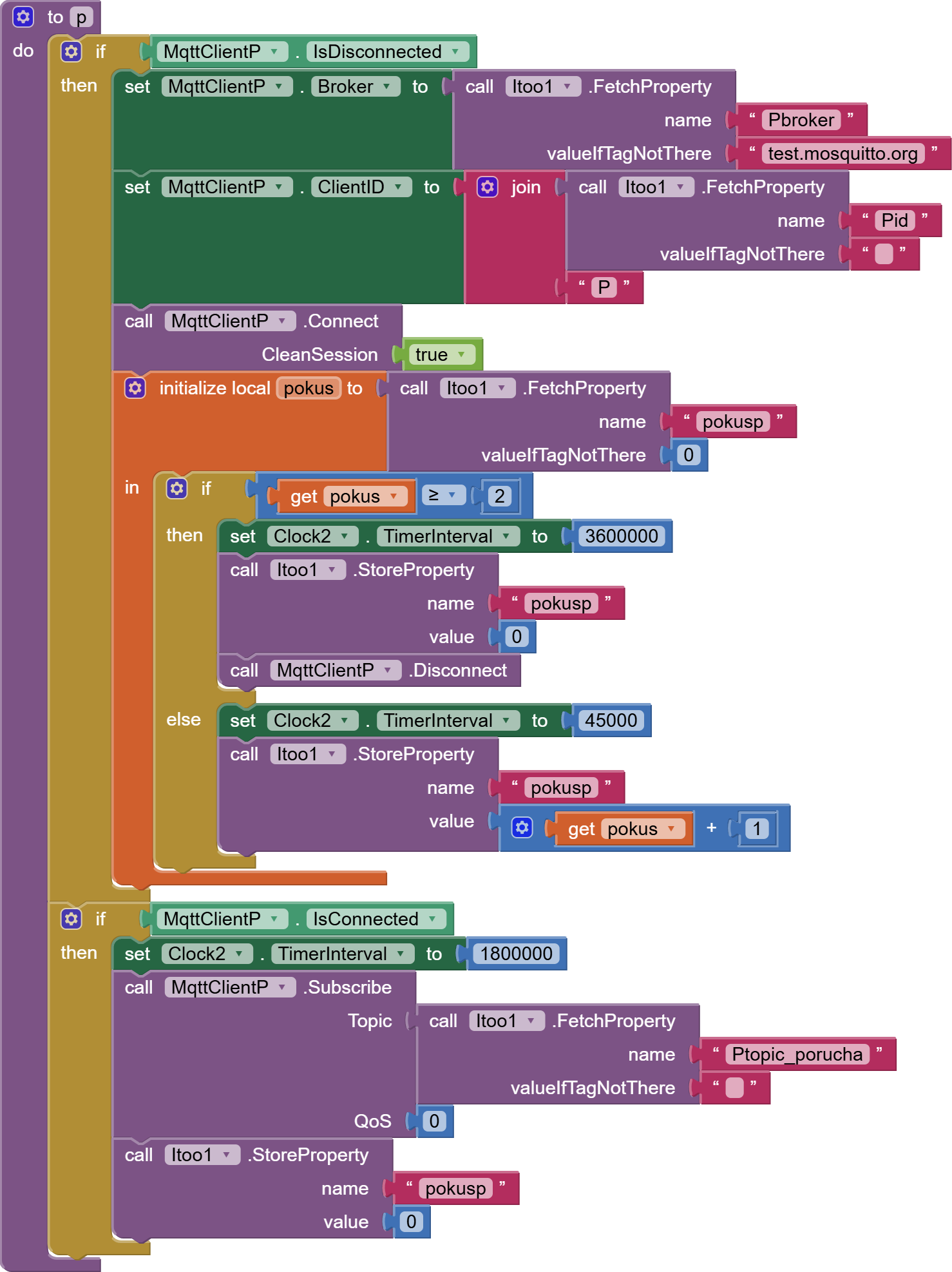

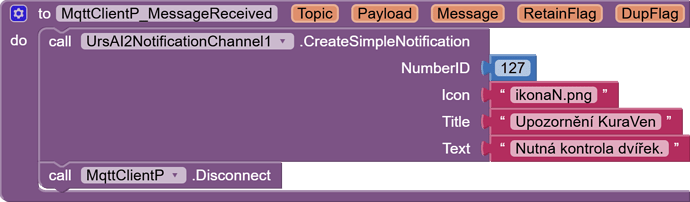

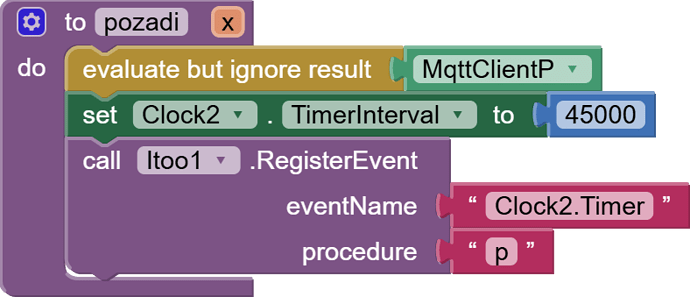

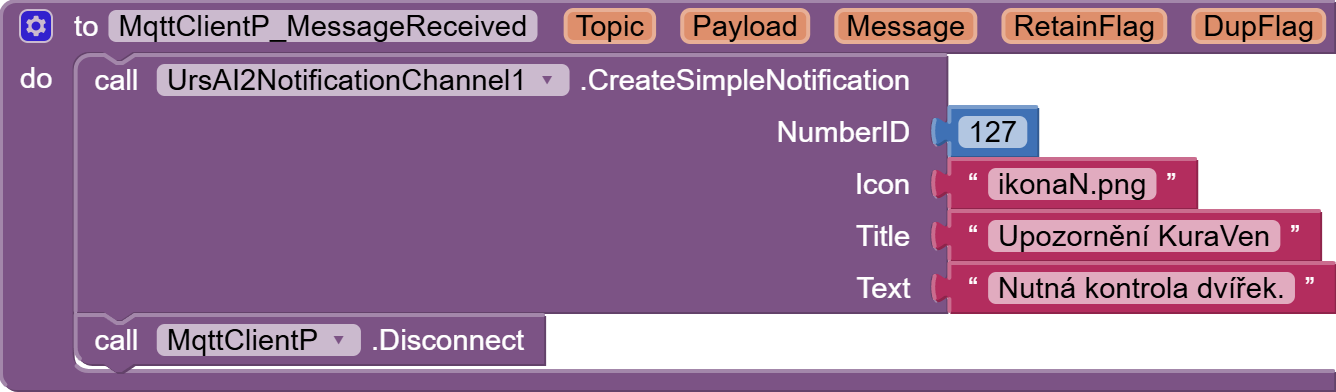

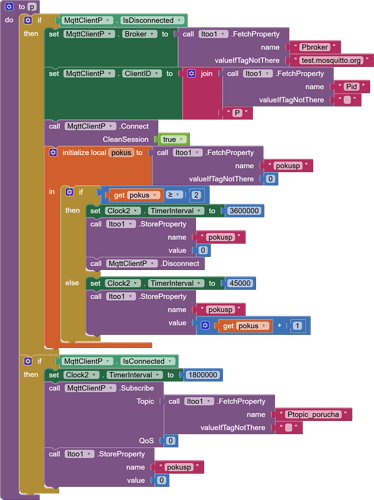

I have problem with the code. The code is function but unstable and I dont know, where is problem. Please help
That's a wild guess and I do not think so
You can easily create a test project and add some debug statements to proof, that this is not the case
Can you elaborate? Probably your background process sometimes does not continue after waiting 30min ot 1 hour and the Android operating system is terminating your process?

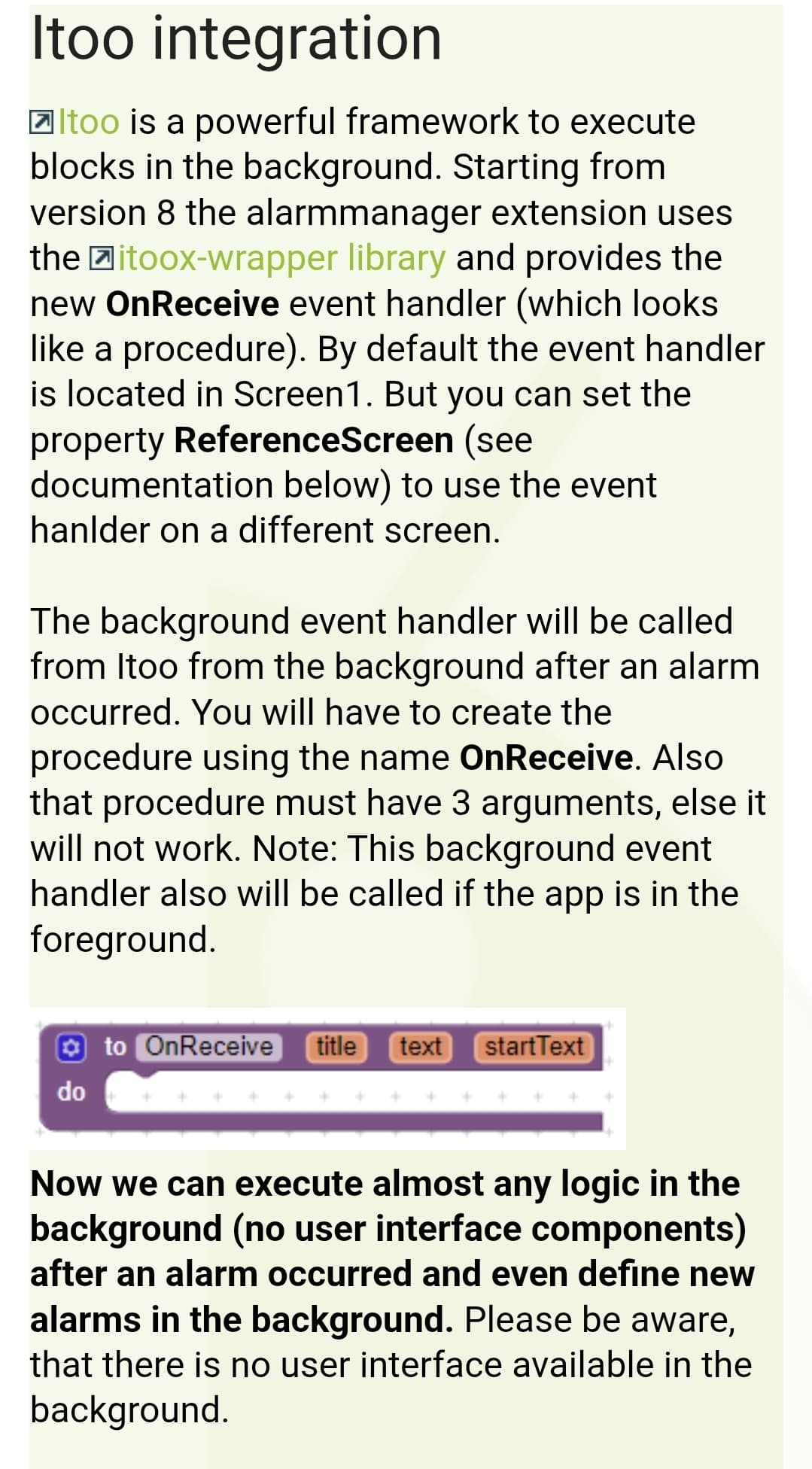

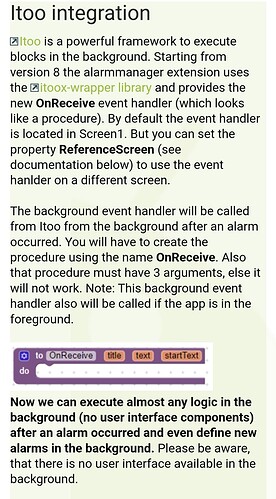

If you want do do something regularly after a given time (in your case after 30min/1h) usually you use the alarmmanager functionality. My alarmmanager extension is able to do some processing after a given time in the background App Inventor Extensions: Alarm Manager | Pura Vida Apps
Taifun
1 Like
Thanks, You mean than your extesion will be used in Itoo?
No, it's the other way around, my extension will use itoo functionality, Itoo X Framework: Virtual App Inventor environment for Background execution - #2 by Kumaraswamy
Taifun

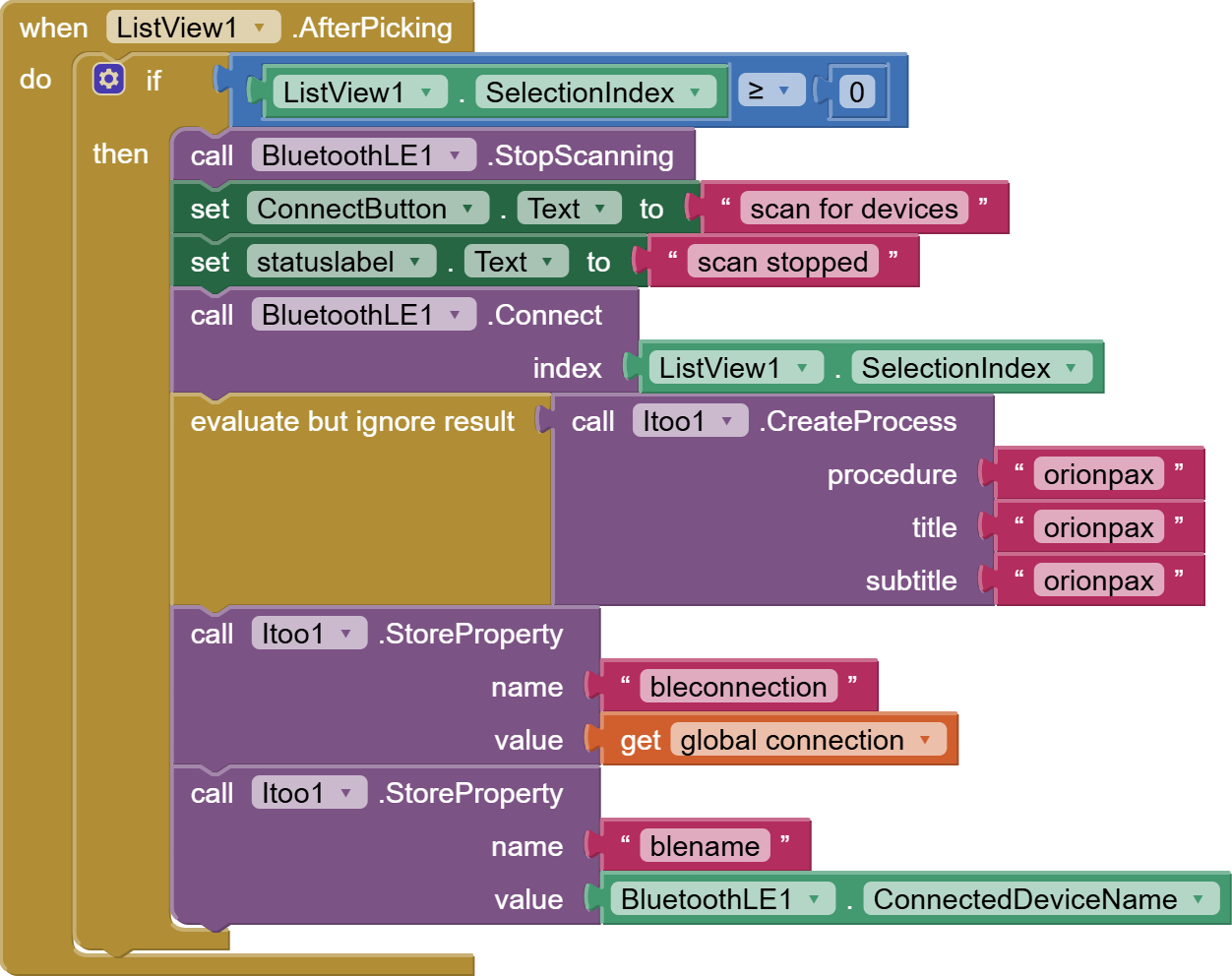

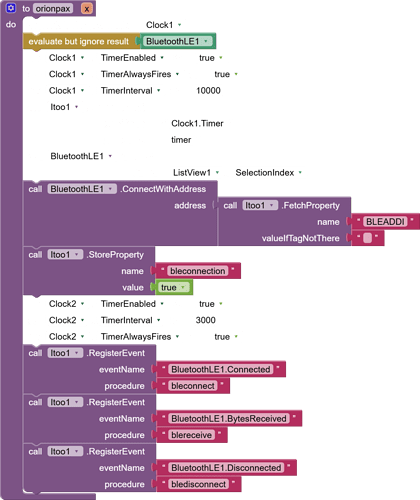

when i do this, nothing happens, the device does not get connected because im guessing itoo processes cant read the listview1.selectionindex and act upon it. i also added a evaluate but no result of listview1 but still nothing happens.
- the list view shows both the address and devices name so i cant use listview1.selection and store it via storeproperty block
No? Why not? Don't you think it would probably be a good idea to share your updated blocks?
Taifun
I did a search for you in the itoo thread and found the following BLE example for you
And another example
Don't hesitate to search yourself, too...
Taifun

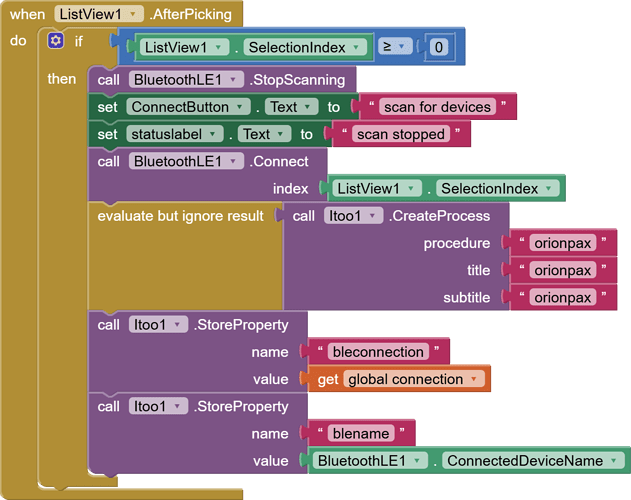

yeah sorry i was about to, so

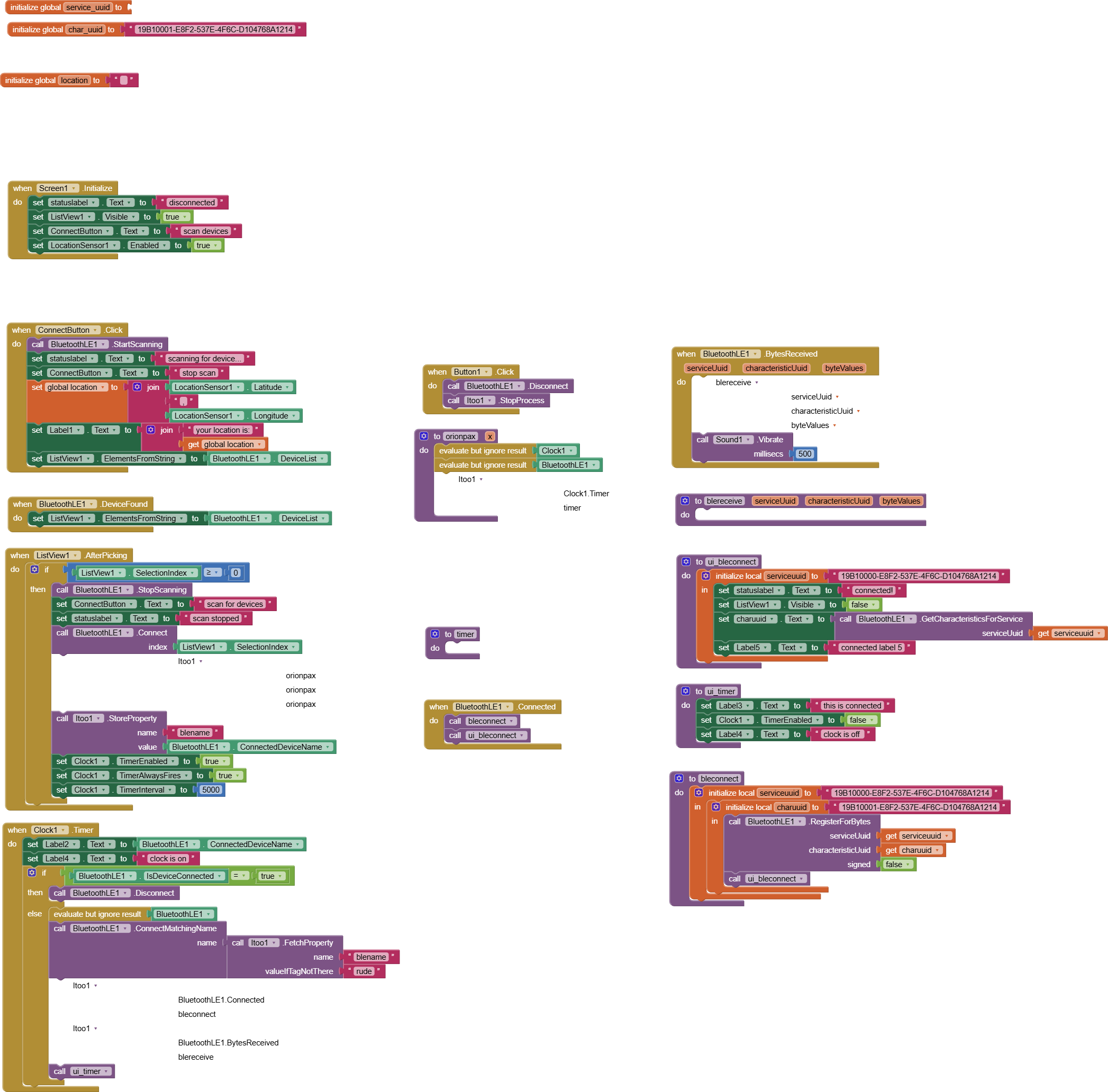

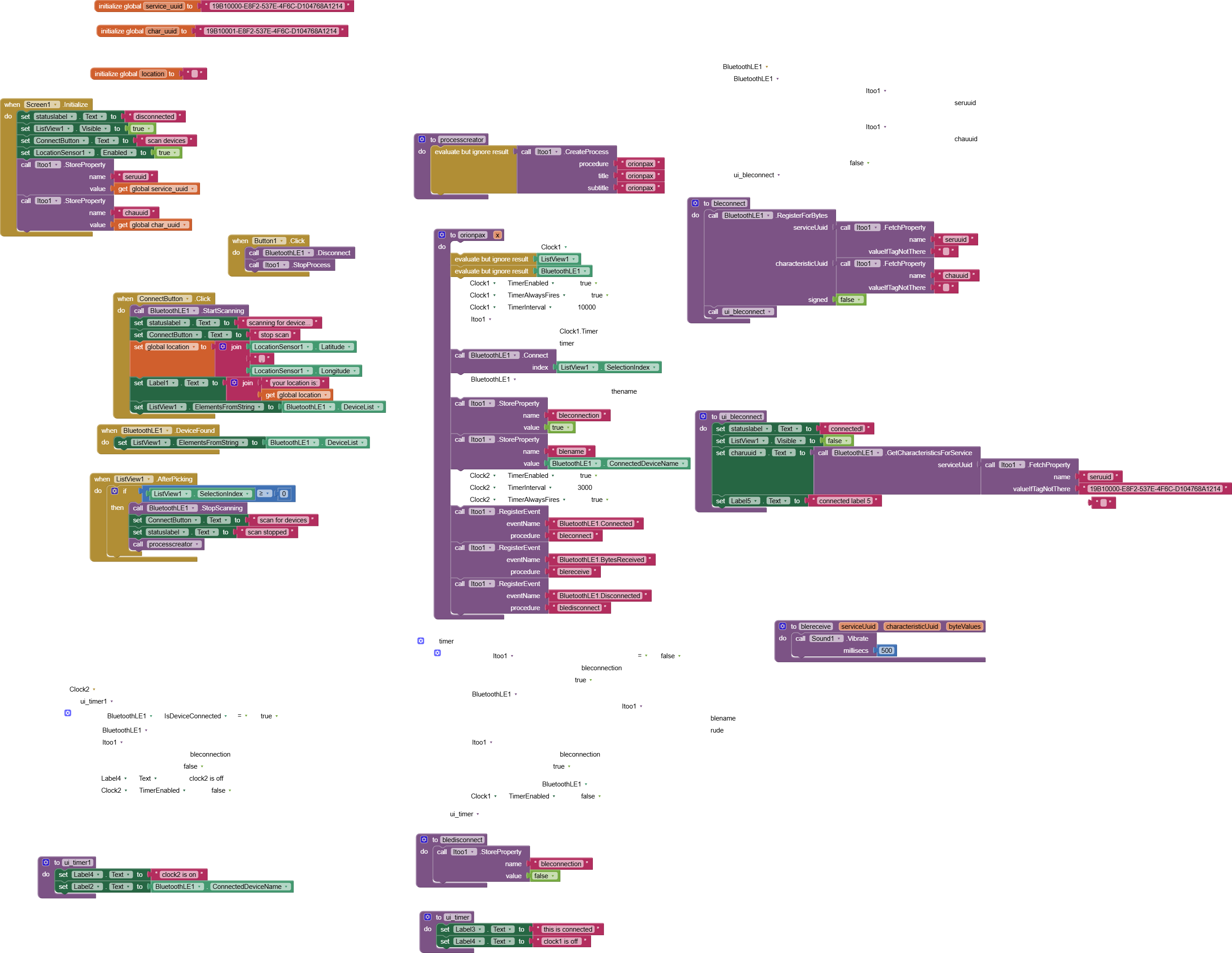

i removed all the timers in order to narrow things down.
and when i run this, nothing really happens, the device does not show signs of connecting at all.
well as the listview contains both- the address and the name, i cannot use connectmatchingname or the connectwithaddress block, i would probably need to create a way to save both to utilise them into the itoo procedure blocks.
also, when i directly hardcode it to my devices name using connectmatchingname, this still pops up
the one below this one is completely hardcoded and what i wanna do is use the listview for connecting the device.

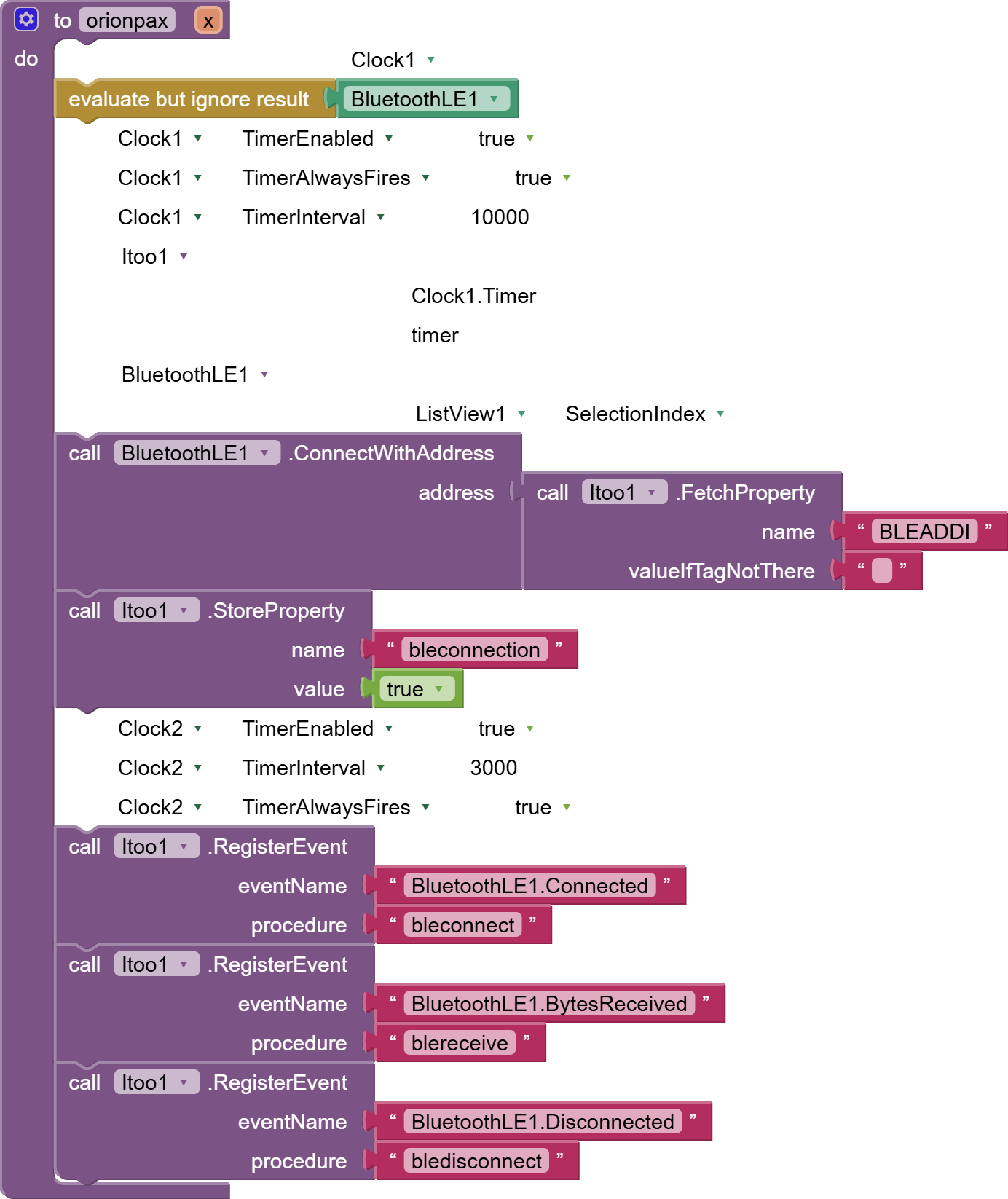

UPDATE:

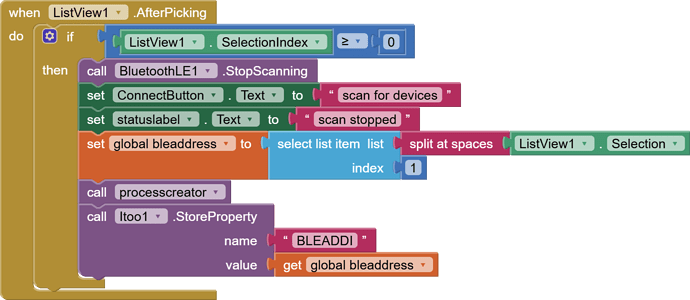

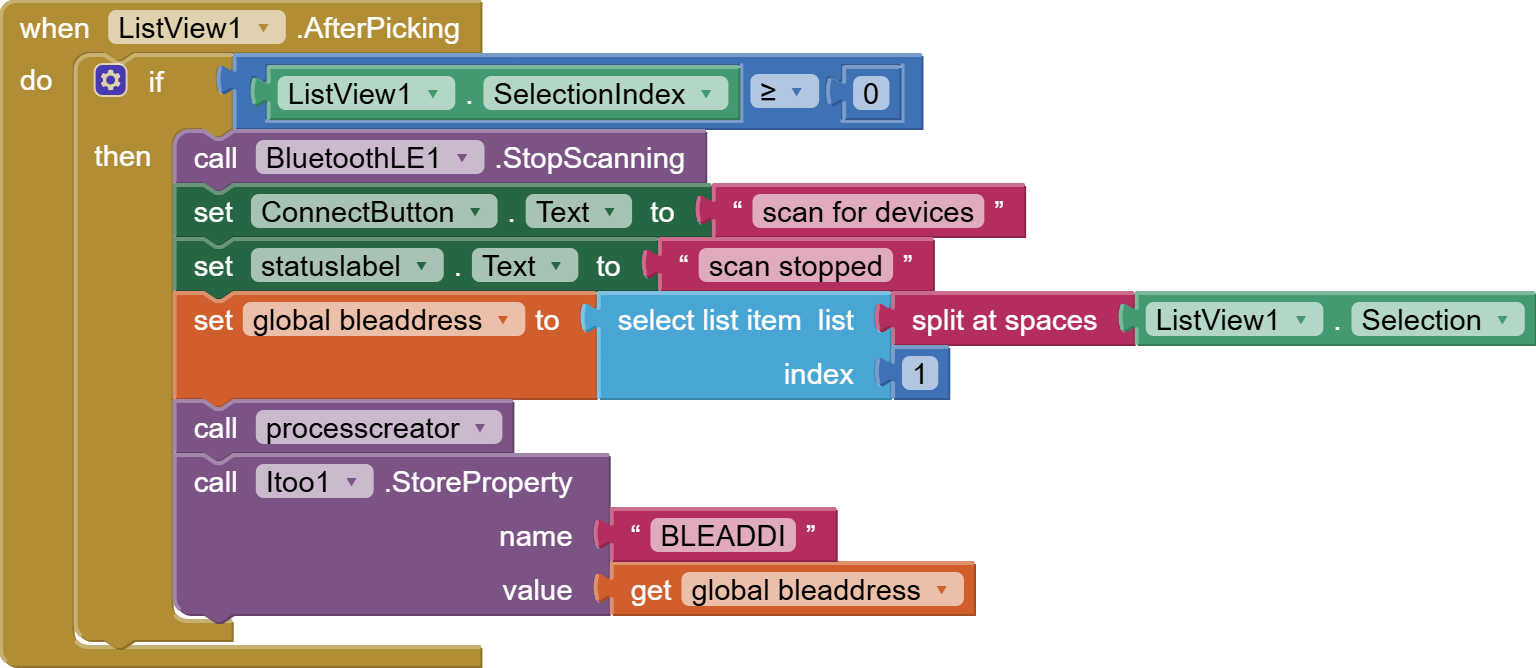

for this, i got the address from the listview and saved it using storeproperty block

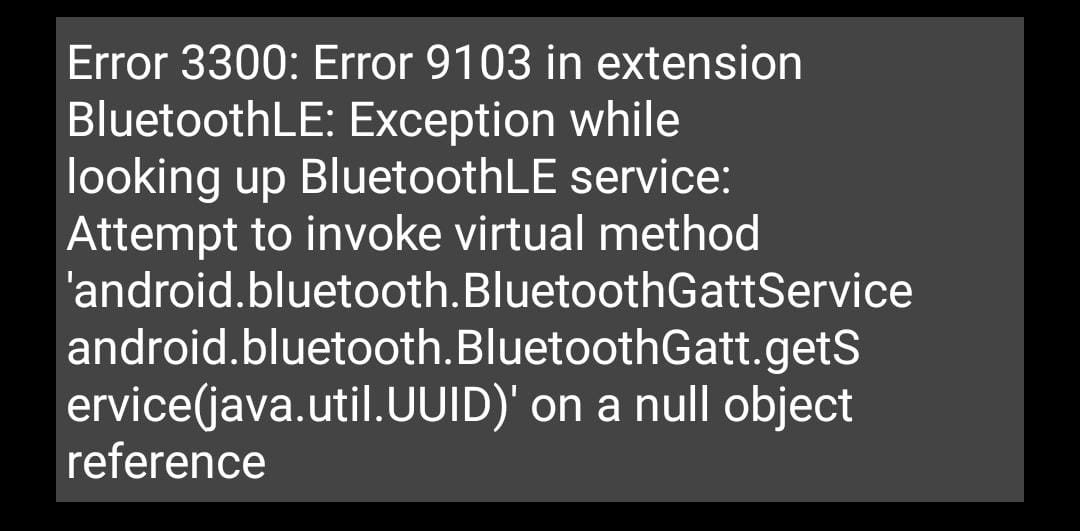

but the error 3300 still persists and i dont understand why.
(The device still vibrates for 0.5s as thats what i allowed it to do in bytesreceived blocks so that means that the device IS connected)
