BLE broadcast Bytes

[ABG]

Here is a cleaner way to populate a ListView from a TinyDB (written before I read your last post)

BLE_Reader (2).aia (201.6 KB)

Regarding timestamp collection, you need yet another TinyDB instance and NameSpace, with bib number as tag and timestamp as value. You would need to capture the time of the start of the race too, to translate arrival timestamps into minutes and seconds.

Pull in the Clock component from Sensors and use SystemTime (milliseconds from 1970) for your stored values. They are database friendly numbers and math-friendly too. The Clock component has lots of formatting blocks.

Faq Section: Clock

Tutorials: Guide - How to Use the Clock - Alaqmar Bohori datetime formats Samples: Countdown timers How to get UTC with datetime format Z Multi-day timer display - Ergin UTC ISO 8061 to standard time - Michael_Barbone Advanced: How to keep app running after screen goes off - Taifun An Instant is not a Duration is not a milliseconds - ABG, TimAI2, Anke You can't store Instants in TinyDB - @Taifun Advanced DayLight Savings Time Time Zone Investigations How does AI2 know my Time Zo…

[ABG]

@Johan_Jacobs

NOw, I have a second screen, that start scan again, this time it should check the recieved device (could be the MAC or name or both?) against the DB, and if found, then add to the list, with a timestamp.
I have no clue how to do that

Before I jump into your new code, there is something nagging at me I would like you to resolve with actual experiment.

The Device List - Does it shrink and grow as devices leave and return, or is it cached, available to speed up connection attempts?

Also, where will be the user of the app when the race starts?

• At the finish line, away from all the racers, or
• In their midst, awash in Devices?

Might need a bit of record keeping to detect runners falling off the Device list at the start of the race, then reappearing later for the finish? Perhaps count how many reappearances on the Device list, for laps around the track, if circular?

[ABG]

This will only show arrivals of new devices, as detected during a race.

Times are logged as HH:MM:SS values, along with bib numbers (if available, otherwise devices)

I copied over from Screen1 the TinyDB instance that stores the bib number values for device tags.

BLE_Reader_1.aia (206.1 KB)

All the action happens in the Device Found event.

I am unable to test this.

P.S. I used the device address as the default for the TinyDB bib number lookup, just to prove I was capturing new arrivals.

You might want to restrict logging to the Elements only to devices that return a bib number, using a different (not found) default and an enclosing if/then test on the TinyDB value.

Otherwise, the app would record arrivals of random people in the finish line crowd.

P.P.S. You could also add yet another TinyDB Namespace, mapping bib numbers to people names. That's more user friendly.

[ABG]

I just got a good look at your device list in a prior post.

The devices end in a negative two digit number.

I suspect that is the signal strength of the device in decibels.

That number might change as the device approaches and departs, causing the app to regard it as different devices.

To handle that possibility, split each device at '-' and just take item 1 of the resulting list.

Do that in both screens, where you fill the TinyDBs and where you do the lookups.

[ABG]

I have added signal strength omission to the app, but am unable to download .aia files now.

Windows 10 MS Defender just decided that the aia files have a virus.

So here are block images.

[ABG]

To work around Microsoft Defender's sudden allergy to the BLE extension, here are draggable png downloads of my latest changes, thanks to the AI2Helper browser addon.

Screen1:

RaceTimer blocks:

(I am awash in technical debt.)

[Johan_Jacobs]

Good morning, Thanks, this is realy really helpfull. Will work through this today.
I am really grateful!
I dont have the AI2Helper, so will just redo all

[Johan_Jacobs]

The changes make sense, end does help. SOmehow the timer dont run. (Fixed - just add Timer enabled)

So when tested, screen 2 should list should only show the devices saved in the TinyDB saved in screen 1

Also, by using the MAC adress, it might not work - and have to use only the Advertiser names. Everytime a participant stop and start his brodcast, the MAC adress change. But the Device bluetooth name stays the same. SO ive changed the Devicelist to AdvertiserNames

Attached th AIA
BLE_Reader_3.aia (206.8 KB)

[ABG]

Here's an Advertiser Name based version, allowing only registered Advertisers to be logged.

Hope the Advertiser names are unique and available for all runners!
BLE_Reader_3 (1).aia (207.5 KB)

The MINUS function subtracts a list from another, like in set theory.
I had it in one of my list block collections.

I also expanded registration validation to cover all cases .

[Johan_Jacobs]

Tested quickly, but am at a race currently. working good. The next challenge for me is to now on page 2 to scan all the time when started, and not just a scan period. Also monitor the selected devices, and if they are not in the list anymore, it should be available to log their time again once they are in range. This is basically to be able to scan bibs doing laps.

[ChrisWard]

The Bluetooth name can be the Bib number. That will reduce the amount of interaction required between apps. If there was only one athlete BLE might be good enough for the task

Another issue you have to solve is keeping the Apps on for a prolonged time (not to mention potential weather issues).

I think ultimately you are going to have to ditch the smartphones and apps and look into a sensors + mini computer solution. Sorry for the doom and gloom.

[ABG]

Scan in the clock timer.

Keep lists of runner arrivals, by runner bib.

[ABG]

@Johan_Jacobs

to be able to scan bibs doing laps.

Here are changes to record lap times by bib.
(I leave it to you to figure out how to keep those Device Found events triggering with incoming advertiser names, probably by adding a Clock Timer for that)

BLE_Reader_3.aia (207.9 KB)
(Changes made in the RaceTimer Screen)

Yet another TinyDB instance, mapping bib numbers into lists of arrival times

Clearing the arrival times db at race start

Logging arrivals during the race and loading the ListView, one Element per bib:

[Johan_Jacobs]

Good morning, thanks for all the help!
I did not had any luck with teh testing - somehow when I stop scanning on Page 1 after assigning the bib no's, and switch to Page 2 for timekeeping, the assigned bib no's dont pick up. Only when I keep scanning on page 1, then page 2 work. and dont know how the Page 2 read the Page 1 DB?
Also, when on page 2, the timing page, when on I simulate the race, when the bluetooth is out of range and within range again, it does not log the new time.

[ABG]

@Johan_Jacobs

work. and dont know how the Page 2 read the Page 1 DB?

Check the different TinyDB namespaces contents.

Here is a List Picker that will let you select databases and browse them, by NameSpace:

BLE_Reader_3.aia (210.1 KB)

This will let you see where data is being lost or never acquired.

By now, you should be familiar with the purpose and content of each database.

[ABG]

@Johan_Jacobs

when on I simulate the race, when the bluetooth is out of range and within range again, it does not log the new time.

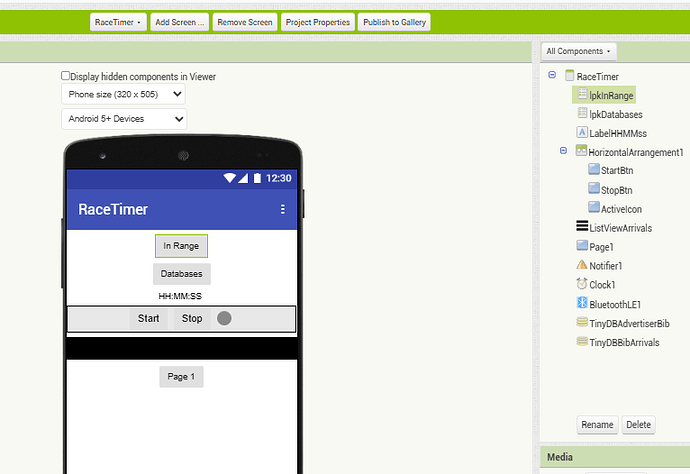

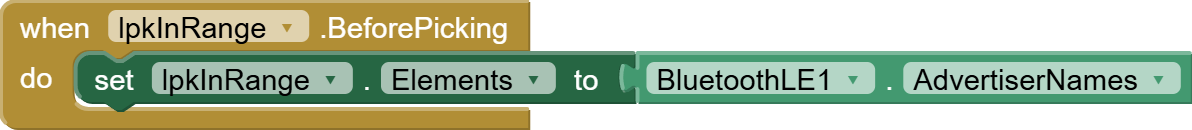

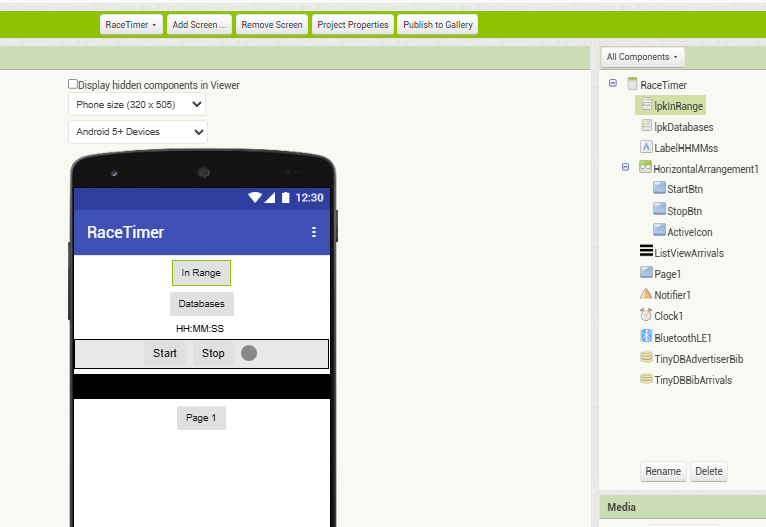

This new list picker will let you ask to see what advertisers are in range during the race.
BLE_Reader_3 (2).aia (210.2 KB)

It should help see if runners fall off the advertiser list when out of range.

[Johan_Jacobs]

Thanks will test a bit later. Really appreciate all teh help!

[Johan_Jacobs]

Ok, So, I have played around with teh ESP32 version, and it might be a better reader solution. (some tests worked great)
however, the broadcasting app sometimes loose focus (or stop and start) broadcasting when screen is off. is there a way to keep it broadcasting in the background even when screen is off?

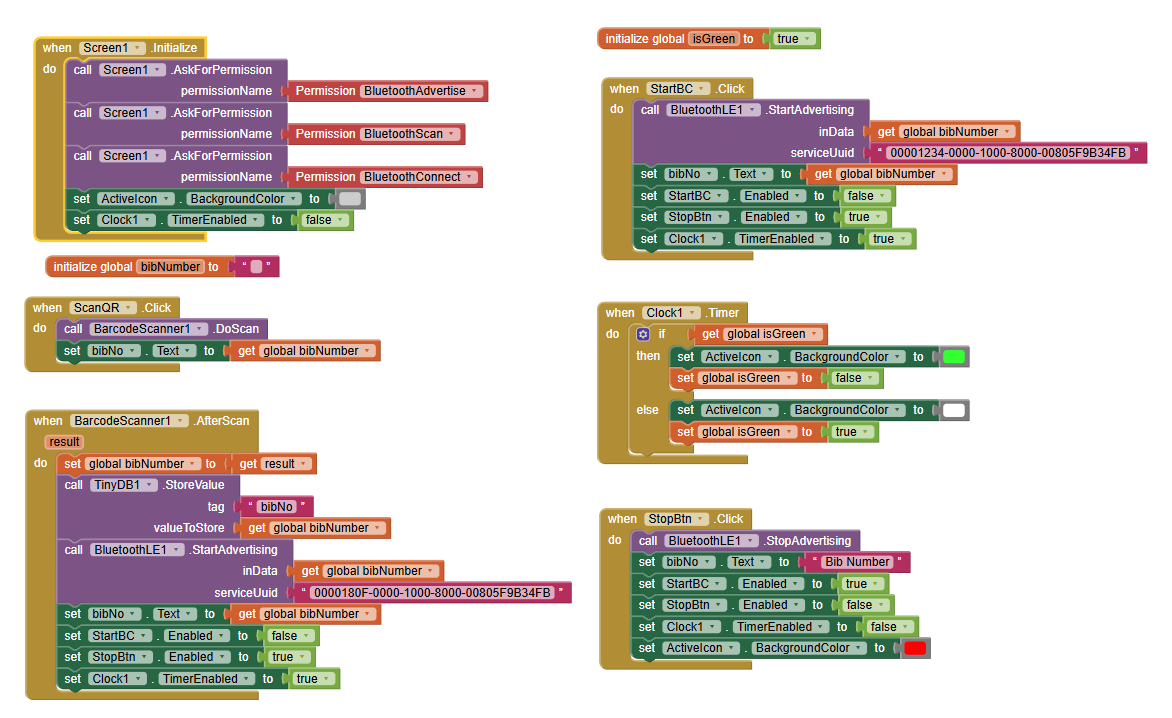

TimeToken.aia (223.8 KB)

[ABG]

Background processing is beyond my AI2 experience.

You might need an extension for that, which I don't follow.

[Taifun]

@Johan_Jacobs

is there a way to keep it broadcasting in the background even when screen is off?

Search the itoo thread

Open Source • Background Tasks: Itoo

I did a search for you in the itoo thread and found the following BLE example for you And another example Don't hesitate to search yourself, too... Taifun

Taifun
