ESP32. MQTT. Broker. Publish. Subscribe. ThingSpeak

[Juan_Antonio]

7.- App on/off LED12 and LED14 of ESP32. App checks status LED12 and LED14.

p117B_mqtt_Extension_Btn_LED.aia (74.8 KB)

• App Publish boton12 and boton14, and on/off LED12 and LED14
• ESP32 Subscripted to boton12 and boton14 Publish status LEDs

Broker: broker.hivemq.com
Port: 1883

App Inventor Publish: juan/boton12
App Inventor Publish: juan/boton14
App Inventor Subscribe: juan/led12_status
App Inventor Subscribe: juan/led14_status
App Inventor Subscribe: juan/led12_led14_status

ESP32 Publish: juan/led12_status
ESP32 Publish: juan/led14_status
ESP32 Publish: juan/led12_led14_status
ESP32 Subscribe: juan/boton12
ESP32 Subscribe: juan/boton14

// Juan A. Villalpando.
// http://kio4.com/arduino/117_Wemos_MQTT.htm

//#include <ESP8266WiFi.h> // Para el ESP8266
#include <WiFi.h> // Para el ESP32
WiFiClient WIFI_CLIENT;
#include <PubSubClient.h>
PubSubClient MQTT_CLIENT;

const char* ssid = "Nombre_Red_WiFi";
const char* password = "Clave_Wifi";

#define LED12 12 // LED12 ESP32
#define LED14 14 // LED14 ESP32
String LED12_status = "- ? -";
String LED14_status = "- ? -";
String LED12_LED14_status = "- ? -";

void setup() {
  pinMode(LED12, OUTPUT);
  pinMode(LED14, OUTPUT);
  Serial.begin(115200);
  delay(10);
  Serial.println();
  Serial.print("Connecting with ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}

Serial.println("");
Serial.print("WiFi conected. IP: ");
Serial.println(WiFi.localIP());

// Setting Callback.
  MQTT_CLIENT.setCallback(callback);
}

// What to do when it receives the data.
void callback(char* recibido, byte* payload, unsigned int length) {
  Serial.print("Message received: ");
  Serial.print(recibido);
  Serial.print("   ");

  for (int i=0;i<length;i++) {
    char receivedChar = (char)payload[i];
    Serial.println(receivedChar);
  if (receivedChar == '1') {digitalWrite(LED12, HIGH);}
  if (receivedChar == '2') {digitalWrite(LED12, LOW);}
  if (receivedChar == '3') {digitalWrite(LED14, HIGH);}
  if (receivedChar == '4') {digitalWrite(LED14, LOW);}

    if (digitalRead(LED12) == HIGH) {LED12_status = "LED12 ON";} else {LED12_status = "LED12 OFF";}
    if (digitalRead(LED14) == HIGH) {LED14_status = "LED14 ON";} else {LED14_status = "LED14 OFF";}
    LED12_LED14_status = LED12_status + " and " + LED14_status;
  }
}

void loop() {
  if (!MQTT_CLIENT.connected()) {
    reconnect();
  }

  // PUBLISH topic.
// Convierte el entero a char. Debe ser char.
char led12_st[10];
char led14_st[10];
char led12_led14_st[25];
LED12_status.toCharArray(led12_st, 10);
LED14_status.toCharArray(led14_st, 10);
LED12_LED14_status.toCharArray(led12_led14_st, 25);

MQTT_CLIENT.publish("juan/led12_status", led12_st);
  delay(1000);
MQTT_CLIENT.publish("juan/led14_status", led14_st);
  delay(1000);
MQTT_CLIENT.publish("juan/led12_led14_status", led12_led14_st);
  delay(1000);

  MQTT_CLIENT.loop(); // Check Subscription.

}

// Reconecta con MQTT broker
void reconnect() {
MQTT_CLIENT.setServer("broker.hivemq.com", 1883);
//MQTT_CLIENT.setServer("mqtt.eclipse.org", 1883);
MQTT_CLIENT.setClient(WIFI_CLIENT);

// Trying connect with broker.
while (!MQTT_CLIENT.connected()) {
Serial.println("Trying to connect with Broker MQTT.");
MQTT_CLIENT.connect("JuanAntonio"); // it isn't necessary..
MQTT_CLIENT.subscribe("juan/boton12"); // HERE SUBSCRIBE.
MQTT_CLIENT.subscribe("juan/boton14"); // HERE SUBSCRIBE.

// Wait to try to reconnect again...
delay(3000);
}

Serial.println("Conectado a MQTT.");
}

[Juan_Antonio]

8.- App Inventor Publish a text.

p117B_mqtt_Extension_Texto.aia (73.5 KB)

• App Publish a text: “Set LED12 ON”, “Set LED12 OFF”,…

// Juan A. Villalpando.
// http://kio4.com/arduino/117_Wemos_MQTT.htm

//#include <ESP8266WiFi.h> // Para el ESP8266
#include <WiFi.h> // Para el ESP32
WiFiClient WIFI_CLIENT;
#include <PubSubClient.h>
PubSubClient MQTT_CLIENT;

const char* ssid = "Nombre_Red_Wifi";
const char* password = "Clave_Wifi";

#define LED12 12 // LED12 ESP32
#define LED14 14 // LED14 ESP32
String message = "";

void setup() {
  pinMode(LED12, OUTPUT);
  pinMode(LED14, OUTPUT);
  Serial.begin(115200);
  delay(10);
  Serial.println();
  Serial.print("Connecting with ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}

Serial.println("");
Serial.print("WiFi conected. IP: ");
Serial.println(WiFi.localIP());

// Setting Callback.
  MQTT_CLIENT.setCallback(callback);
}

// What to do when it receives the data.
void callback(char* recibido, byte* payload, unsigned int length) {
  Serial.print("Message received: ");
  Serial.print(recibido);
  Serial.print("   ");
  message = "";
  for (int i=0;i<length;i++) {
    message += (char)payload[i];
  }
   Serial.println(message);
   if (message == "Set LED12 ON") {digitalWrite(LED12, HIGH);}
   if (message == "Set LED12 OFF") {digitalWrite(LED12, LOW);}
   if (message == "Set LED14 ON") {digitalWrite(LED14, HIGH);}
   if (message == "Set LED14 OFF") {digitalWrite(LED14, LOW);}
}

void loop() {
  if (!MQTT_CLIENT.connected()) {
    reconnect();
  }

  // PUBLISH topic.
  // Does not Publish.

  MQTT_CLIENT.loop(); // Check Subscription.

}

// Reconecta con MQTT broker
void reconnect() {
MQTT_CLIENT.setServer("broker.hivemq.com", 1883);
//MQTT_CLIENT.setServer("mqtt.eclipse.org", 1883);
MQTT_CLIENT.setClient(WIFI_CLIENT);

// Trying connect with broker.
while (!MQTT_CLIENT.connected()) {
Serial.println("Trying to connect with Broker MQTT.");
MQTT_CLIENT.connect("JuanAntonio"); // it isn't necessary..
MQTT_CLIENT.subscribe("juan/boton12"); // HERE SUBSCRIBE.
MQTT_CLIENT.subscribe("juan/boton14"); // HERE SUBSCRIBE.

// Wait to try to reconnect again...
delay(3000);
}

Serial.println("Conectado a MQTT.");
}

[Juan_Antonio]

9.- App Publish and moves a Servo in ESP32.

p117B_mqtt_Extension_Servo.aia (73.6 KB)

• Publish juan/mensaje = “increases” —> increases grado +5
• Publish juan/mensaje = “decreases” —> decreases grado -5
• Publish juan/mensaje = 90* —> Move Servo to those position

// Juan A. Villalpando.
// http://kio4.com/arduino/117_Wemos_MQTT.htm

//#include <ESP8266WiFi.h> // Para el ESP8266
#include <WiFi.h> // Para el ESP32
WiFiClient WIFI_CLIENT;
#include <PubSubClient.h>
PubSubClient MQTT_CLIENT;

const char* ssid = "Nombre_Red_Wifi";
const char* password = "Clave_Wifi";

// Servo.
#include <Servo.h>
Servo myservo;
#define servoPin  27 // El servo en pin 27
int grado = 90;
String message = "";

void setup() {
  Serial.begin(115200);
  delay(10);
  myservo.attach(servoPin);
  Serial.println();
  Serial.print("Connecting with ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}

Serial.println("");
Serial.print("WiFi conected. IP: ");
Serial.println(WiFi.localIP());

// Setting Callback.
  MQTT_CLIENT.setCallback(callback);
}

// What to do when it receives the data.
void callback(char* recibido, byte* payload, unsigned int length) {
  Serial.print("Message received: ");
  Serial.print(recibido);
  Serial.print("   ");
  message = "";
  for (int i=0;i<length;i++) {
    message += (char)payload[i];
  }
   Serial.println(message);
   if (message == "increases") {grado = grado + 5; myservo.write(grado);}
   if (message == "decreases") {grado = grado - 5; myservo.write(grado);}
   if (message.indexOf("*") != -1)  { // if message contain *
   message = message.substring(0, message.length() - 1); // Delete last char *
   grado = message.toInt();
   myservo.write(grado);
   }
}

void loop() {
  if (!MQTT_CLIENT.connected()) {
    reconnect();
  }

  // PUBLISH topic.
  // Does not Publish.

  MQTT_CLIENT.loop(); // Check Subscription.

}

// Reconecta con MQTT broker
void reconnect() {
MQTT_CLIENT.setServer("broker.hivemq.com", 1883);
//MQTT_CLIENT.setServer("mqtt.eclipse.org", 1883);
MQTT_CLIENT.setClient(WIFI_CLIENT);

// Trying connect with broker.
while (!MQTT_CLIENT.connected()) {
Serial.println("Trying to connect with Broker MQTT.");
MQTT_CLIENT.connect("JuanAntonio"); // it isn't necessary..
MQTT_CLIENT.subscribe("juan/mensaje"); // HERE SUBSCRIBE.

// Wait to try to reconnect again...
delay(3000);
}

Serial.println("Conectado a MQTT.");
}

• It is convenient that the Servo is powered by an external power supply.

[Juan_Antonio]

10.- Mobile chat.

p117B_mqtt_Extension_Chat.aia (73.8 KB)

• This is a similar chat with CloudDB or FireBaseDB.

oooooooooooooo000oooooooooooooo

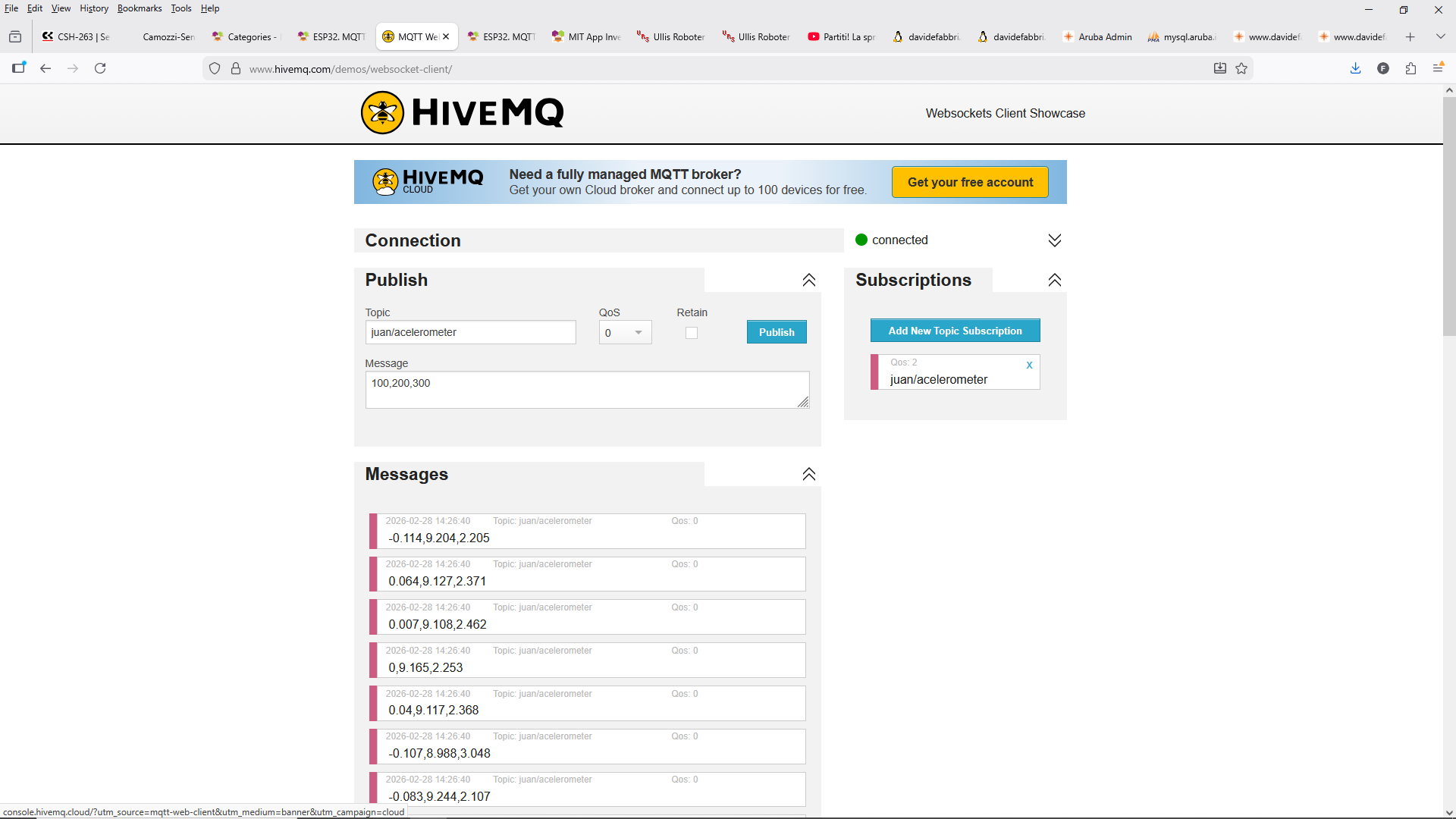

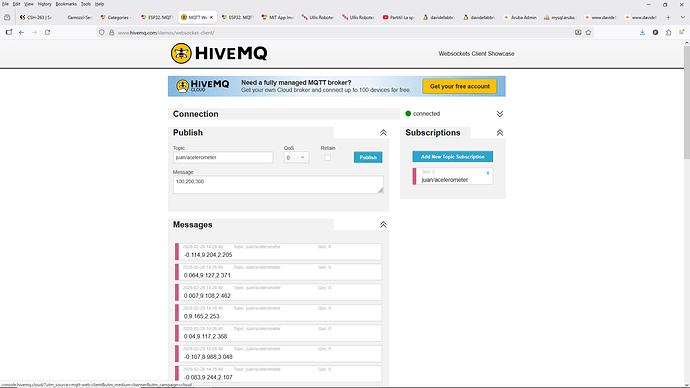

• You can also send messages online.
  http://www.hivemq.com/demos/websocket-client/

[Juan_Antonio]

11.- ThingSpeak Broker. ESP32 uploads random numbers to ThingSpeak.

• It is necessary to register with an email account: ThingSpeak.
• For users of the free option, the message update interval limit remains limited at 15 seconds.
• New Channel.
  Field1 = aleatorio.

• ESP32 generates a random number every 15 seconds and uploads it to ThingSpeak.

• Library ThingSpeak.

• Sketch / Include Library / Manage Libraries… ThingSpeak




// Juan A. Villalpando.
// http://kio4.com/arduino/117_Wemos_MQTT.htm

// #include <ESP8266WiFi.h> // Para ESP8266
#include <WiFi.h> // Para ESP32
WiFiClient WIFI_CLIENT;
#include <ThingSpeak.h>

const char* ssid = "Nombre_de_tu_Red_Wifi";
const char* password = "Clave_Wifi";

unsigned long Channel_ID = 746330;
const char * WriteAPIKey = "SVRKZNDDNS9TÑÑÑÑ";
unsigned long tiempo_actual = 0;

void setup() {
  Serial.begin(115200);

  WiFi.mode(WIFI_STA);
  ThingSpeak.begin(WIFI_CLIENT);

  Serial.println();
  Serial.print("Connecting with ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
  delay(500);
  Serial.print(".");
  }

  Serial.println("");
  Serial.print("WiFi conected. IP: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  if((millis()-tiempo_actual)>= 16000){ // Each 16 seconds upload.
          int alea = random(0,90);
          tiempo_actual = millis();
          // Send alea to field1.
          int x = ThingSpeak.writeField(Channel_ID, 1, alea, WriteAPIKey);
          if(x == 200){ Serial.println("Upload correct: " + String(alea));}
          else{ Serial.println("Upload failed: " + String(alea)); }
  }
}

[Juan_Antonio]

12.- From App Inventor on/off a Lamp in ThingSpeak.

Remember: updates are every 15 seconds or more.

• This example does not use ESP32.

• Channel Settings / Field2 --> lamp
• Add Widgets --> Lamp

[Juan_Antonio]

13.- App Inventor sends a number to ThingSpeak and gets last value. WebViewer.

Remember: updates are every 15 seconds or more.

p117_thingspeak_valor.aia (3.2 KB)

• Create field3.


• App Inventor sends values to field3.




• Get last value:
  https://api.thingspeak.com/channels/746330/fields/field3/last

• Show WebViewer:
  https://thingspeak.com/channels/746330/charts/1?&results=60&dynamic=true

• Show all data in Json:
  https://api.thingspeak.com/channels/746330/feeds.json

• Show 6 last data in Json:
  https://api.thingspeak.com/channels/746330/feeds.json?results=6

• Show all data field1 in Json:
  https://api.thingspeak.com/channels/746330/fields/1.json

[Juan_Antonio]

14.- App Inventor Publish, sends values by Extension to ThingSpeak.

• Now with extension.
• Subscribe doesn’t work for me.

Subscribe: channels/Channel ID/subscribe/fields/field1/ReadAPIKey

Publish: channels/Channel ID/publish/fields/field1/WriteAPIKey

last value: https://api.thingspeak.com/channels/746330/fields/field1/last

[Juan_Antonio]

15.- Others Dashboards.

https://mydevices.com/cayenne/signup/

https://accounts.adafruit.com/settings/profile

http://www.hivemq.com/demos/websocket-client/

• MQTTLens Google Chrome Web Store

• If you are a fan of Raspberry Pi, install mosquitto broker.
  https://randomnerdtutorials.com/how-to-install-mosquitto-broker-on-raspberry-pi/

• http://kio4.com/raspberry/16_mosquitto.htm

[Luciano_De_Leon_Mene]

great job
muy buena explicacion de todo, hice unas pruebas con cloudmqtt con un wemos d1 esp8266 y funciona perfecto todo.
la extension es muy buena.
gracias por toda la informacion.

[Juan_Antonio]

16.- Basic example of Subscribe and Publish to HiveMQ.

Normally MQTT is used in IoT, example: a sensor in a hardware sends a short message to a Broker and in real time an app receives it, or an app sends a short message to a Broker and this information is received by a hardware that performs a certain function.

We are going to see a basic example of Publish and Subscribe in the HiveMQ Broker.
We will not use hardware, only the application and the Broker.

• Do this example! No registration required.

https://www.hivemq.com/

p117B_mqtt_Extension_Hivemq.aia (73.6 KB)

[Juan_Antonio]

17.- Example with Slider.

p117Bi_mqtt_Extension_Hivemq_Slider.aia (83.7 KB)

• We create the same Topic in Publish and Subscriptions: juan/Slider




• We set two Sliders, Publish and Subscribe the same topic: juan/Slider




• The first Slider sends the information directly. The second Slider uses the SliderTools extension and will send the value when "TouchUp".

• The information will travel in "go and return".


• We observe that the information "sends" and "receives" quite fast.

• Extension SliderTools by @WatermelonIce
  [FREE / Open Source] SliderTools - Bit of useful feature for sliders

[Juan_Antonio]

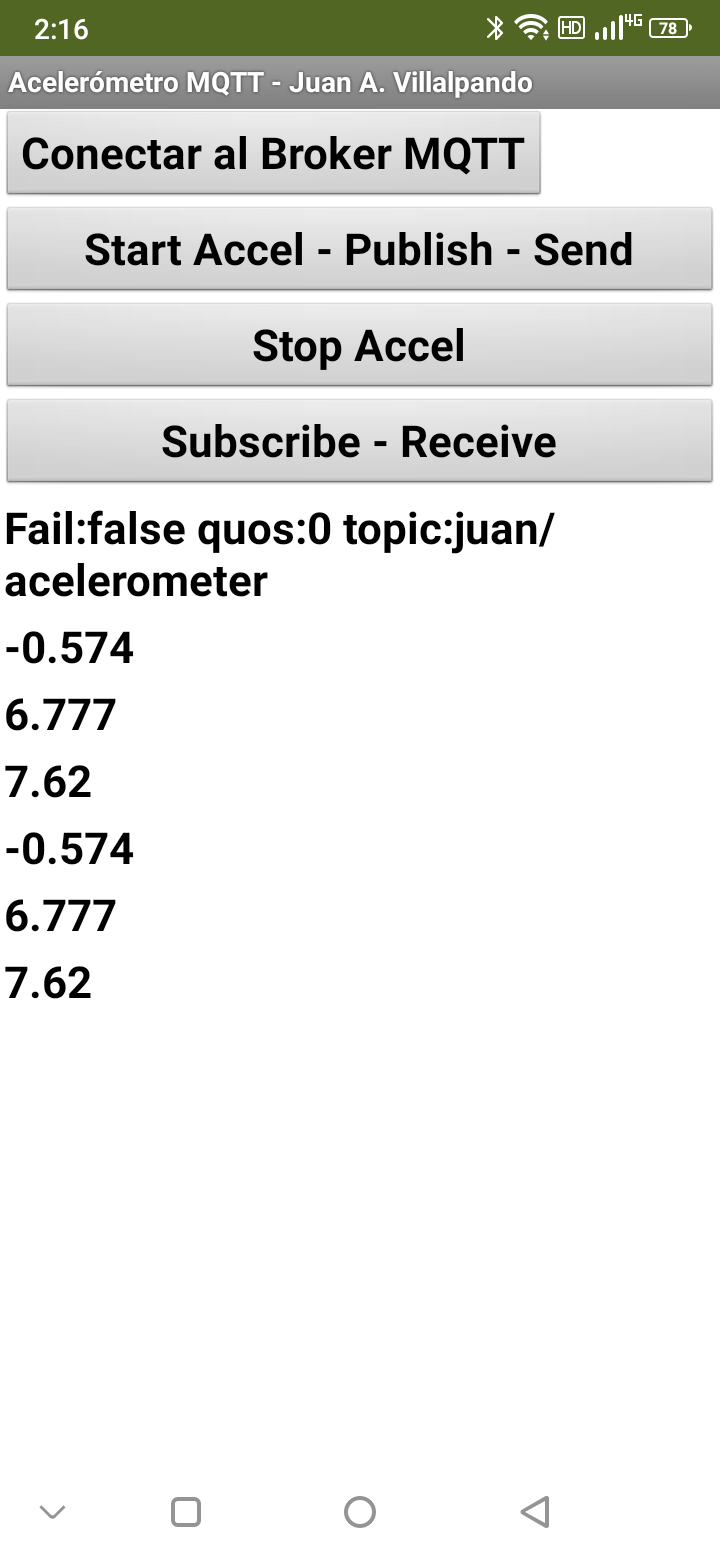

18 .- AccelerometerSensor Publish and Subscribe x, y, z. Send and receive the three variables. HiveMQ.

p117B_mqtt_Extension_Hivemq_Acele.aia (72.0 KB)

AcceleratorSensor "Publish" in HiveMQ xAccel,yAccel,zAccel with topic: juan/acelerometer
and "Subscribe" juan/acelerometer, receive: xAccel,yAccel,zAccel

[frdsir777]

why port at hivemq not same with port at mit app?
if i write at hivemq, host : broker.hivemq.com. , at mit app must be broker: broker.hivemq.com . it right?

the topic at publish should be title that my project right?

[Juan_Antonio]

https://www.hivemq.com/public-mqtt-broker/

[Moh_Khafil_A]

please help me how to get updated data on mqtt server
Hello friend I'm studying the mqtt protocol
my project is to turn the room lights on and off with every button publish and subscribe
publish to send data values and subscribe to receive data but there is a problem when the application is disconnected with the subscriber data broker not being successfully updated
if anyone in the mqtt extension can request a request to the broker to update the missed data, I really need advice. thanks

I use the following extension
Ullis Roboter Seite/AI2 MQTT

[TIMAI2]

@Moh_Khafil_A

You have posted the same on Kodular Community. Are you working with Kodular or App Inventor ?

[Moh_Khafil_A]

sorry I just want to receive input and suggestions from different forums , because the two platforms are almost the same implementation . is this against the rules? thanks

[TIMAI2]

You didn't answer my question...

[ABG]

FAQ Section: Web Services Examples

AudD® Music Recognition API - Peter Bar Code File Generation - Amerkashi Check Web Connection - Sivagiri, Imagnity, Taifun Check Web Connection - vknow360 Collect Data via DeviceHub.net API - Timothy Woo cURL to blocks automatic generator - Jerin_Jacob Display a Web Page with a button click Facebook Login Extension - mirxtrem_apps Firebase: with the Web Component - Secure Rules - TimAI2 Google Analytics Google Apps Script via V8-Engine Extension - cttricks Google Books API- JSOn - Saj…
