hello i have problem with my mit app where the bluetooth is cannot connect to my esp32..it say error 507:unable to connect.is device turn on?here is the bluetooth part and my mit file...before this it working but now it suddenly not working ...please help me...what wrong with mit code block
FWAS_Transmitter (1).aia (102.9 KB)

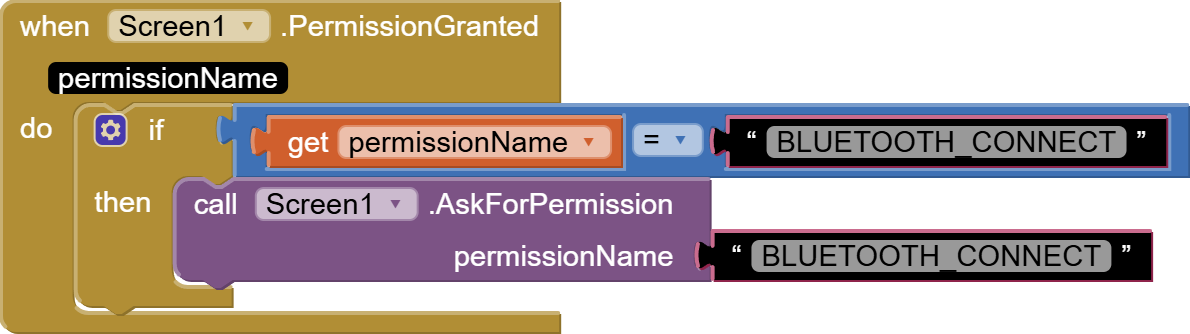

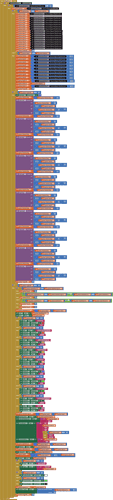

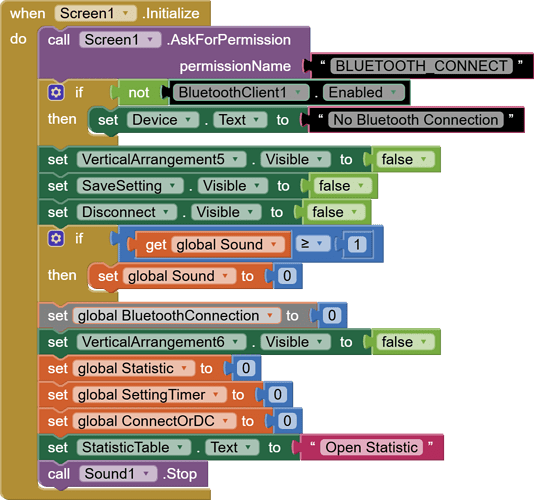

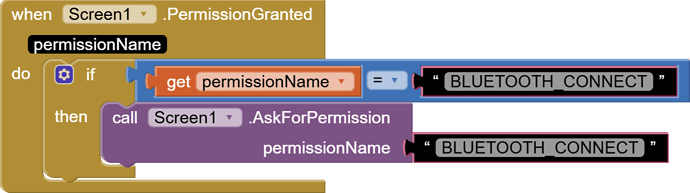

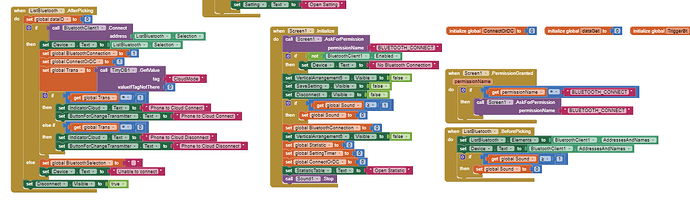

I opened your project, did a Cleanup Blocks, and used the Ctrl-F search facility to do a grand tour of blocks containing the word BlueTooth.
Here are some fishy things I found:

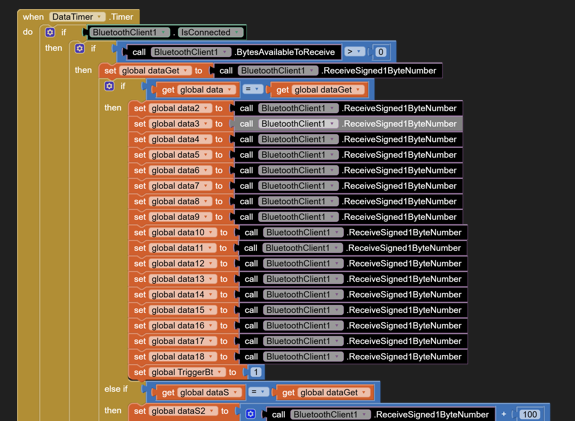

You test for at least 1 byte of data available in the buffer.
Then you ask for a bunch of bytes, one at a time.
Asking for a byte that isn't yet there locks up the app until one arrives.
If you are sending bunches of bytes, it would be good to know how many bytes per bunch and ask for all the bytes at once on a list.
This is a good time to learn how to work with lists.
Read a starter article in
P.S. Maybe also post your sketch, so we can see what's in all those bytes?
For the hardware mavens on this board reading this thread on your phone, here's your sketch inline:
#include <WiFi.h>
#include <WiFiMulti.h>
#include <WiFiClientSecure.h>
#include "EEPROM.h"
#include "BluetoothSerial.h"
#if CONFIG_FREERTOS_UNICORE
#define ARDUINO_RUNNING_CORE 0
#else
#define ARDUINO_RUNNING_CORE 1
#endif
#define EEPROM_SIZE 64
#define sirenPin 32
#define redPin 33
#define yellowPin 25
#define fanPin 26
// internal temp
#ifdef __cplusplus
extern "C" {
#endif
uint8_t temprature_sens_read();
#ifdef __cplusplus
}
#endif
uint8_t temprature_sens_read();
//-------
//Bluetooth
String device_name = "ESP32-BT";
#if !defined(CONFIG_BT_ENABLED) || !defined(CONFIG_BLUEDROID_ENABLED)
#error Bluetooth is not enabled! Please run `make menuconfig` to and enable it
#endif
#if !defined(CONFIG_BT_SPP_ENABLED)
#error Serial Bluetooth not available or not enabled. It is only available for the ESP32 chip.
#endif
BluetoothSerial SerialBT;
//----------------------------------
WiFiMulti wifiMulti;
const char *host = "script.google.com";
//Spreadsheet script ID
String SCRIPT_ID = "AKfycbySEzQApEul18-cAI5-vMOrqbM4l8qOOgGEbWOXHfkO6F3Jvq-W77uQcdipulEOB7m0";
const int httpsPort = 443;
WiFiClientSecure client;
// Define tree tasks
void Task01(void *pvParameters);
void Task02(void *pvParameters);
void Task03(void *pvParameters);
//ultrasonic
#define echoPin 5
#define trigPin 18
int IDDevice = 0; //--------------------------------------------------------ID HERE
const int ledBoard = 2;
//#define voltageSensingPin 27
// defines variables
//int codeVersion = 6; // <<<<<< for major update mcm tambah eeprom library
int codeVersion = 7;
int tempIntFix = 0;
//history==> 0= original, 1= tambah penggunaan location epprom, 2= location epprom history, 3= internal heat sensor, 4= warning red and yellow lamp, 5=Perluasan sensor, 6=IoT spreadsheet
long duration;
byte dataread, data2read;
int countEeprom = 199, timingCountEeprom = 180, dataToEeprom; //3 minit = 180sec
int FirstApproveCode, SecondApproveCode = 103, IDDeviceTemp = 0;
int distance, distanceControl, constrainError, tempInternal, tempActivation = 28, fanDelay = 4, constrainPeak = 1, constrainGap = 1, eepromread, fanControl = 0, firstWarningLight = 0, secondWarningLight = 0, alarmSound = 0, alarmTimingOff = 0, alarmTimingOffSecToMin = 0, statisticCycleLimit = 0, statisticSend, statisticJob = 0, distanceControlReset, distanceC[11], ResetZeroPoint;
int countstart = 0, warningLVL, yellowLVL, redLVL, pointHourSave[8], flipBT = 0;
int ledPulse = 0, ledPulse2 = 0, distanceEdit, distanceControlEdit, disCDifference, disC01 = 0, disC02 = 0, LastConstrainChange = 0;
int lifePulse = 1, indicatorAcc = 10;
int caa = 1, cbb = 1, ccc = 0, cdd = 0, cee = 0, cff = 0, cgg = 0, chh = 0, cii = 0, cjj = 0, ckk = 0; //a,b are variables to store sensor values
float R1 = 30000.0, R2 = 7500.0, vKeluar = 0.0, voltageSensor = 120.0;
int voltageSensingGet = 0;
int wifiRestartTimer = (60 * 3), wifiTimer = 10, SerialSwitchListen = 0; //in saat >> for minit = 60*29
int eepromAread01, eepromAread02;
int dcount = 0, BluetoothToWifiCountDown = 30, OnBluetooth = 0;
int DisconnectWifiClient = 0, dalamMinit = 15, dalamMinitSet = 12, switchProcess = 0, TimerProcess = 6, TimerProcessRun = 2, HoldProcess = 0;
void setup() {
Serial.begin(115200);
delay(500);
EEPROM.begin(EEPROM_SIZE);
delay(200);
SerialBT.begin(device_name); //Bluetooth device name
pinMode(ledBoard, OUTPUT); //ledBoard
pinMode(trigPin, OUTPUT); // Sets the trigPin as an OUTPUT
pinMode(echoPin, INPUT); // Sets the echoPin as an INPUT
//output
pinMode(sirenPin, OUTPUT);
pinMode(redPin, OUTPUT);
pinMode(yellowPin, OUTPUT);
pinMode(fanPin, OUTPUT);
digitalWrite(sirenPin, LOW);
digitalWrite(redPin, LOW);
digitalWrite(yellowPin, LOW);
digitalWrite(fanPin, LOW);
//pinMode(voltageSensingPin, INPUT);//voltage sensing
digitalWrite(ledBoard, HIGH);
//SETUP WIFI CONNECTION
WiFi.mode(WIFI_STA);
wifiMulti.addAP("Wifi1", "Pass1"); //edit Wifi and pass to add access wifi
//wifiMulti.addAP("Wifi2", "Pass2");
//wifiMulti.addAP("Wifi3", "Pass3");
//wifiMulti.addAP("Wifi4", "Pass4");
//wifiMulti.addAP("Wifi5", "Pass5");
//>>-Serial.println("Connecting Wifi...");
if (wifiMulti.run() == WL_CONNECTED) {
Serial.println("");
Serial.println("WiFi connected");
Serial.println("IP address: ");
Serial.println(WiFi.localIP());
delay(200);
//digitalWrite(ledBoard, HIGH);
delay(300);
//digitalWrite(ledBoard, LOW);
//>>-Serial.print(".");
}
delay(2000);
xTaskCreatePinnedToCore(
Task01, "Task 01" // A name just for humans
,
3072 //1024 // The stack size can be checked by calling `uxHighWaterMark = uxTaskGetStackHighWaterMark(NULL);`
,
NULL // Task parameter which can modify the task behavior. This must be passed as pointer to void.
,
1 // Priority
,
NULL // Task handle is not used here - simply pass NULL
,
1 //core run
);
xTaskCreatePinnedToCore(
Task02, "Task 02" // A name just for humans
,
3072 // The stack size can be checked by calling `uxHighWaterMark = uxTaskGetStackHighWaterMark(NULL);`
,
NULL // Task parameter which can modify the task behavior. This must be passed as pointer to void.
,
2 // Priority
,
NULL // Task handle is not used here - simply pass NULL
,
1 //core run
);
xTaskCreatePinnedToCore(
Task03, "Task 03" // A name just for humans
,
29696 // The stack size can be checked by calling `uxHighWaterMark = uxTaskGetStackHighWaterMark(NULL);`
,
NULL // Task parameter which can modify the task behavior. This must be passed as pointer to void.
,
3 // Priority
,
NULL // Task handle is not used here - simply pass NULL
,
0 //core run - Wifi fokus
);
eepromAread01 = byte(EEPROM.read(0));
eepromAread02 = byte(EEPROM.read(2));
Serial.println(eepromAread01);
Serial.println(eepromAread02);
//eeprom setup
//if (eepromAread01 == 102 && eepromAread02 == codeVersion) {
if (eepromAread01 == 103 && eepromAread02 == codeVersion) {
FirstApproveCode = byte(EEPROM.read(0));
ResetZeroPoint = (EEPROM.read(1)) + (EEPROM.read(15));
warningLVL = byte(EEPROM.read(3));
tempActivation = byte(EEPROM.read(12));
redLVL = byte(EEPROM.read(13));
yellowLVL = byte(EEPROM.read(14));
IDDevice = (byte(EEPROM.read(16)) * 100) + byte(EEPROM.read(17));
Serial.println("EEPROM Read");
} else {
EEPROM.write(2, codeVersion); //version update
//EEPROM.write(0, 102);
EEPROM.write(0, 103);
EEPROM.write(1, 80); //zero range sensor
EEPROM.write(15, 99); //zero range sensor
EEPROM.write(3, 50); //warning level
EEPROM.write(13, 45); //red level
EEPROM.write(14, 40); //yellow level
EEPROM.write(16, 0); //data id dpn
EEPROM.write(17, IDDevice); //data id
EEPROM.write(12, 28); //fan
EEPROM.commit(); //commit save
FirstApproveCode = byte(EEPROM.read(0));
ResetZeroPoint = (EEPROM.read(1)) + (EEPROM.read(15));
warningLVL = byte(EEPROM.read(3));
redLVL = byte(EEPROM.read(13));
yellowLVL = byte(EEPROM.read(14));
IDDevice = (byte(EEPROM.read(16) * 100)) + byte(EEPROM.read(17));
Serial.println("EEPROM Write");
}
// for (int i = 0; i < EEPROM_SIZE; i++)
// {
// Serial.print(i); Serial.print(" "); Serial.print( byte(EEPROM.read(i))); Serial.println(" ");
// }
// Serial.println();
//
digitalWrite(ledBoard, LOW);
}
void loop() {
//delay(10000); // While not being used yield the CPU to other tasks
}
void Task01(void *pvParameters) { // This is a task.
for (;;) {
if (TimerProcessRun <= 0) {
/*if (ledPulse==0)
{
delay(200);
//voltage sensor
voltageSensingGet = analogRead(voltageSensingPin);
//vKeluar = (voltageSensingGet*3.3)/4095.0;
//voltageSensor = (vKeluar / (R2/(R1+R2)));
voltageSensor = float(map(voltageSensingGet, 0, 1123, 0, 506))/100;
Serial.print(voltageSensingGet);
Serial.print(" ");
Serial.println(voltageSensor);
delay(200);
//------
ledPulse=1;
}
else
{*/
delay(1000);
// internal temp
Serial.print("Temperature: ");
tempInternal = int((temprature_sens_read() - 32) / 1.8);
Serial.print(tempInternal);
Serial.println(" C");
//------
//ledPulse=0;
delay(1000);
//}
TimerProcessRun = TimerProcess;
} else {
digitalWrite(trigPin, LOW);
delayMicroseconds(2);
// Sets the trigPin HIGH (ACTIVE) for 10 microseconds
digitalWrite(trigPin, HIGH);
delayMicroseconds(10);
digitalWrite(trigPin, LOW);
// Reads the echoPin, returns the sound wave travel time in microseconds
duration = pulseIn(echoPin, HIGH);
// Calculating the distance
distance = (duration * 0.0343) / 2; // Speed of sound wave divided by 2 (go and back)
if (distance >= 350) {
distance = 350;
}
}
if (countstart <= 2) {
} else {
}
distanceC[10] = distanceC[9];
distanceC[9] = distanceC[8];
distanceC[8] = distanceC[7];
distanceC[7] = distanceC[6];
distanceC[6] = distanceC[5];
distanceC[5] = distanceC[4];
distanceC[4] = distanceC[3];
distanceC[3] = distanceC[2];
distanceC[2] = distanceC[1];
distanceC[1] = distanceC[0];
distanceC[0] = distance;
//from loop -- for Bluetooth
if (SerialBT.available() > 0) {
dataread = SerialBT.read();
if (dataread == 1) //reset position
{
ResetZeroPoint = map(distanceControl, 0, 400, 400, 0);
countstart = 0;
} else if (dataread == 2) //addsetlvl
{
if (warningLVL <= 199) {
warningLVL++;
}
} else if (dataread == 3) //subsetlvl
{
if (warningLVL >= 5) {
warningLVL--;
}
} else if (dataread == 4) //addsetlvl5
{
if (warningLVL <= 194) {
warningLVL = warningLVL + 5;
}
} else if (dataread == 5) //subsetlvl5
{
if (warningLVL >= 11) {
warningLVL = warningLVL - 5;
}
} else if (dataread == 6) //SaveSetting
{
Serial.println(ResetZeroPoint);
EEPROM.write(3, warningLVL); //warning level
EEPROM.write(1, ResetZeroPoint / 2);
EEPROM.write(15, ResetZeroPoint / 2);
EEPROM.write(12, tempActivation); //fan
EEPROM.write(13, redLVL); //red level
EEPROM.write(14, yellowLVL); //yellow level
IDDeviceTemp = IDDevice / 100;
EEPROM.write(16, IDDeviceTemp); //IDdepan
EEPROM.write(17, IDDevice - (IDDeviceTemp * 100)); //IDbelakang
EEPROM.commit(); //commit save
} else if (dataread == 7) //OpenStatistic
{
statisticJob = 2;
} else if (dataread == 8) //CloseStatistic
{
statisticJob = 0;
} else if (dataread == 9) //FanAdd
{
if (tempActivation <= 89) {
tempActivation++;
}
} else if (dataread == 10) //FanSub
{
if (tempActivation >= 2) {
tempActivation--;
}
} else if (dataread == 11) //SirenWarningOff
{
if (alarmTimingOff <= 60) {
alarmTimingOff = 62;
} else if (alarmTimingOff >= 61) {
alarmTimingOff = 0;
}
} else if (dataread == 12) //addredLVL
{
if (redLVL <= 199) {
redLVL++;
}
} else if (dataread == 13) //subredLVL
{
if (redLVL >= 4) {
redLVL--;
}
} else if (dataread == 14) //addredLVL5
{
if (redLVL <= 194) {
redLVL = redLVL + 5;
}
} else if (dataread == 15) //subredLVL5
{
if (redLVL >= 11) {
redLVL = redLVL - 5;
}
} else if (dataread == 16) //addyellowLVL
{
if (yellowLVL <= 199) {
yellowLVL++;
}
} else if (dataread == 17) //subyellowLVL
{
if (yellowLVL >= 3) {
yellowLVL--;
}
} else if (dataread == 18) //addyellowLVL5
{
if (yellowLVL <= 194) {
yellowLVL = yellowLVL + 5;
}
} else if (dataread == 19) //subyellowLVL5
{
if (yellowLVL >= 11) {
yellowLVL = yellowLVL - 5;
}
} else if (dataread == 20) //IDadd100
{
if (IDDevice <= 9899) {
IDDevice = IDDevice + 100;
}
} else if (dataread == 21) //IDadd5
{
if (IDDevice <= 9994) {
IDDevice = IDDevice + 5;
}
} else if (dataread == 22) //IDadd
{
if (IDDevice <= 9998) {
IDDevice++;
}
} else if (dataread == 23) //IDsub
{
if (IDDevice >= 1) {
IDDevice--;
}
} else if (dataread == 24) //IDsub5
{
if (IDDevice >= 6) {
IDDevice = IDDevice - 5;
}
} else if (dataread == 25) //ID to zero
{
if (IDDevice >= 1) {
IDDevice = 0;
}
} else if (dataread == 50) //wifi reset
{
} else if (dataread == 30) //request saat
{
if (BluetoothToWifiCountDown >= 1) {
OnBluetooth = 1; //bluetooth send
BluetoothToWifiCountDown = 30; //reset wifi countdown
}
}
dataread = 0;
}
//end loop
dcount++;
//Serial.print(dcount);
delay(100);
//int uxHighWaterMark = uxTaskGetStackHighWaterMark(NULL);
//Serial.println(uxHighWaterMark);
}
}
void Task02(void *pvParameters) { // This is a task.
for (;;) {
//Serial.println(" 1 Saat ---------------- >");
distanceControl = (distanceC[0] + distanceC[1] + distanceC[2] + distanceC[3] + distanceC[4] + distanceC[5] + distanceC[6] + distanceC[7] + distanceC[8] + distanceC[9]) / 10;
constrainError = distanceControl;
distanceControlEdit = (map(distanceControl, 0, 400, 240, 0)) - ResetZeroPoint;
disC02 = disC01;
disC01 = distanceControlEdit;
disCDifference = disC01 - disC02;
if (countstart <= 2) {
countstart++;
}
if (BluetoothToWifiCountDown >= 1) {
BluetoothToWifiCountDown--;
Serial.print("Cdown ");
Serial.println(BluetoothToWifiCountDown);
} else {
}
if (BluetoothToWifiCountDown == 72) //active bluetooth time
{
//OnBluetooth=1;
}
if (BluetoothToWifiCountDown == 7) //diactivated bluetooth and close
{
//OnBluetooth=0;
SerialBT.flush();
SerialBT.disconnect();
SerialBT.end(); //perlu sebab nnti fungsi wifi x function dan error
delay(1000);
//btStop();
}
if (BluetoothToWifiCountDown == 2) //active wifi
{
//setupWifi();
}
//BT Serial send
if (OnBluetooth == 1) {
SerialBT.flush();
delay(200);
SerialBT.write(FirstApproveCode); //first approve code ---- 1 no mapping
if (distanceControlEdit >= 201) {
SerialBT.write(100); //level water
SerialBT.write(100); //level water
} else if (distanceControlEdit >= 100 && distanceControlEdit <= 200) {
SerialBT.write(99); //level water
SerialBT.write(distanceControlEdit - 99); //level water
} else if (distanceControlEdit >= -100 && distanceControlEdit <= 99) {
SerialBT.write(distanceControlEdit - 1); //level water
SerialBT.write(1); //level water
} else {
SerialBT.write(-102); //level water
SerialBT.write(1); //level water
}
}
if (countstart <= 2) {
if (OnBluetooth == 1) {
SerialBT.write(1);
SerialBT.write(10);
}
} else {
if (OnBluetooth == 1) {
SerialBT.write(disCDifference); //Acceleration
}
if (distanceControlEdit >= yellowLVL && distanceControlEdit >= redLVL && distanceControlEdit >= warningLVL) {
//Serial.println(" !!!! Warning Level");//indicator display
alarmSound = 1;
secondWarningLight = 1;
firstWarningLight = 1;
if (OnBluetooth == 1) {
SerialBT.write(11);
}
} else {
if (distanceControlEdit >= warningLVL) {
alarmSound = 1;
} else {
alarmSound = 0;
}
if (distanceControlEdit >= redLVL) {
secondWarningLight = 1;
} else {
secondWarningLight = 0;
}
//bypass redLVL and Alarm
if (disCDifference >= 9) //("sub function >>>> Increase Danger Fast");
{
//alarmSound=1;
secondWarningLight = 1; //red
}
if (distanceControlEdit >= yellowLVL) {
firstWarningLight = 1;
} else {
firstWarningLight = 0;
}
//indicator only--------------------------------------------------------
if (disCDifference <= -7) {
//Serial.println(" <<<- Decrease Extream Fast");
indicatorAcc = -3;
} else if (disCDifference >= -6 && disCDifference <= -5) {
//Serial.println(" <<-- Decrease Fast");
indicatorAcc = -2;
} else if (disCDifference >= -4 && disCDifference <= -2) {
//Serial.println(" <--- Decrease");
indicatorAcc = -1;
} else if (disCDifference >= -1 && disCDifference <= 1) {
//Serial.println(" --|-- Normal");
indicatorAcc = 10;
} else if (disCDifference >= 2 && disCDifference <= 4) {
//Serial.println(" >--- Increase");
indicatorAcc = 1;
} else if (disCDifference >= 5 && disCDifference <= 6) {
//Serial.println(" >>-- Increase Fast");
indicatorAcc = 2;
} else if (disCDifference >= 7 && disCDifference <= 8) {
//Serial.println(" >>>- Increase Extream Fast");
indicatorAcc = 3;
} else if (disCDifference >= 9) {
//Serial.println(" >>>> Increase Danger Fast");
indicatorAcc = 4;
}
if (OnBluetooth == 1) {
SerialBT.write(indicatorAcc);
}
}
}
if (OnBluetooth == 1) {
//warning level
if (warningLVL >= 201) {
SerialBT.write(100); //level water
SerialBT.write(100); //level water
} else if (warningLVL >= 100 && warningLVL <= 200) {
SerialBT.write(99); //level water
SerialBT.write(warningLVL - 99); //level water
} else if (warningLVL >= -100 && warningLVL <= 99) {
SerialBT.write(warningLVL - 1); //level water
SerialBT.write(1); //level water
} else {
SerialBT.write(-102); //level water
SerialBT.write(1); //level water
}
}
if (OnBluetooth == 1) {
SerialBT.write(tempInternal + tempIntFix);
}
if (tempInternal >= tempActivation) {
fanDelay = 5;
}
if (fanDelay >= 1) {
fanDelay--;
//digitalWrite(4, HIGH);//low == on fanPin
digitalWrite(fanPin, HIGH); //low == on
if (OnBluetooth == 1) {
SerialBT.write(2);
}
} else {
//digitalWrite(4, LOW);//high == off
digitalWrite(fanPin, LOW); //high == off
if (OnBluetooth == 1) {
SerialBT.write(1);
}
}
if (OnBluetooth == 1) {
SerialBT.write(tempActivation + tempIntFix);
}
if (OnBluetooth == 1) {
//redLVL
if (redLVL >= 201) {
SerialBT.write(100); //level water
SerialBT.write(100); //level water
} else if (redLVL >= 100 && redLVL <= 200) {
SerialBT.write(99); //level water
SerialBT.write(redLVL - 99); //level water
} else if (redLVL >= -100 && redLVL <= 99) {
SerialBT.write(redLVL - 1); //level water
SerialBT.write(1); //level water
} else {
SerialBT.write(-102); //level water
SerialBT.write(1); //level water
}
//yellowLVL
if (yellowLVL >= 201) {
SerialBT.write(100); //level water
SerialBT.write(100); //level water
} else if (yellowLVL >= 100 && yellowLVL <= 200) {
SerialBT.write(99); //level water
SerialBT.write(yellowLVL - 99); //level water
} else if (yellowLVL >= -100 && yellowLVL <= 99) {
SerialBT.write(yellowLVL - 1); //level water
SerialBT.write(1); //level water
} else {
SerialBT.write(-102); //level water
SerialBT.write(1); //level water
}
IDDeviceTemp = IDDevice / 100;
SerialBT.write(IDDeviceTemp); //iddpn
SerialBT.write(IDDevice - (IDDeviceTemp * 100)); //id
}
if (ledPulse == 0) {
if (ledPulse2 == 0) {
ledPulse2 = 1;
} else {
ledPulse2 = 0;
}
}
//Pulse 1 2 1 2 for indication status
if (OnBluetooth == 1) {
if (ledPulse2 == 0) {
SerialBT.write(1);
} else {
SerialBT.write(2);
}
//voltage sensor
SerialBT.write(voltageSensor);
OnBluetooth = 0; //for final
}
//end data send
Serial.print("yellowLVL= ");
Serial.print(yellowLVL);
Serial.print(" ");
Serial.print("redLVL= ");
Serial.print(redLVL);
Serial.print(" ");
Serial.print("warningLVL= ");
Serial.println(warningLVL);
Serial.print("tempInternal= ");
Serial.print(tempInternal);
Serial.print(" ");
Serial.print("tempActivation= ");
Serial.print(tempActivation);
Serial.print(" ");
Serial.print("alarmSound= ");
Serial.println(alarmSound);
Serial.print("distanceControl= ");
Serial.print(distanceControl);
Serial.print(" ");
Serial.print("distanceControlEdit= ");
Serial.print(distanceControlEdit);
Serial.print(" ");
Serial.print("ResetZeroPoint= ");
Serial.print(ResetZeroPoint); //ResetZeroPoint
Serial.print(" ");
Serial.print("constrainGap= ");
Serial.println(constrainGap);
//gap control --distanceControl --constrainGap
LastConstrainChange = disCDifference;
//alarmSound=0;
//secondWarningLight=0;
//firstWarningLight=0;
// pinMode(sirenPin, OUTPUT);
// pinMode(redPin, OUTPUT);
// pinMode(yellowPin, OUTPUT);
// pinMode(fanPin, OUTPUT);
alarmTimingOffSecToMin++;
if (alarmTimingOffSecToMin >= 60) {
if (alarmTimingOff <= 60) {
alarmTimingOff++;
}
alarmTimingOffSecToMin = 0;
}
if (alarmSound == 1) {
digitalWrite(sirenPin, HIGH);
/*if (alarmTimingOff <= 14) //----- 15 minit
{
digitalWrite(sirenPin, HIGH); //low == on
} else if (alarmTimingOff == 15) {
digitalWrite(sirenPin, LOW); //high == off
} else if (alarmTimingOff == 20) {
digitalWrite(sirenPin, HIGH); //low == on
} else if (alarmTimingOff == 23) {
digitalWrite(sirenPin, LOW); //high == off
} else if (alarmTimingOff == 30) {
digitalWrite(sirenPin, HIGH); //low == on
} else if (alarmTimingOff == 33) {
digitalWrite(sirenPin, LOW); //high == off
} else if (alarmTimingOff == 40) {
digitalWrite(sirenPin, HIGH); //low == on
} else if (alarmTimingOff == 43) {
digitalWrite(sirenPin, LOW); //high == off
} else if (alarmTimingOff == 50) {
digitalWrite(sirenPin, HIGH); //low == on
} else if (alarmTimingOff == 53) {
digitalWrite(sirenPin, LOW); //high == off
} else if (alarmTimingOff >= 60) {
alarmTimingOff = 62;
digitalWrite(sirenPin, LOW); //high == off
}*/
} else {
alarmTimingOff = 0;
alarmTimingOffSecToMin = 0;
digitalWrite(sirenPin, LOW); //high == off
}
if (secondWarningLight == 1) {
digitalWrite(redPin, HIGH); //ON
} else {
digitalWrite(redPin, LOW); //OFF
}
if (firstWarningLight == 1) {
digitalWrite(yellowPin, HIGH); //ON
} else {
digitalWrite(yellowPin, LOW); //OFF
}
// //wifi control auto timer reset
// wifiTimer--;
// if (wifiTimer==4)
// {
// digitalWrite(12, LOW);
// }
// if (wifiTimer<=0)
// {
// digitalWrite(12, HIGH);
// wifiTimer=wifiRestartTimer;
// }
// //Serial.println(wifiTimer);
dcount = 0;
delay(1000);
//int uxHighWaterMark = uxTaskGetStackHighWaterMark(NULL);
//Serial.println(uxHighWaterMark);
}
}
void Task03(void *pvParameters) { //wifi fokus
// This is a task.
for (;;) {
//lifePulse 0 1 0 1
if (lifePulse == 1) {
//digitalWrite(ledBoard, HIGH);
lifePulse = 2;
} else {
lifePulse = 1;
//digitalWrite(ledBoard, LOW);
}
if (TimerProcessRun >= 1) {
TimerProcessRun--;
}
dalamMinit--;
caa = IDDevice; //id
if (dalamMinit <= 0) {
Serial.println("Cloud Send 1 minit");
cbb = 3; //lifePulse
dalamMinit = dalamMinitSet;
} else {
cbb = lifePulse; //lifePulse
Serial.println("Cloud Send 5 sec");
}
ccc = distanceControlEdit; //waterLVL
cdd = disCDifference; //acceration
cee = indicatorAcc; //indicator
cff = warningLVL; //warningLVL
cgg = redLVL; //redLVL
chh = yellowLVL; //yellowLVL
cii = tempInternal; //heatNow
cjj = 120; //voltageSensor
ckk = tempActivation; //heatSet
if (countstart <= 2) {
} else {
if (BluetoothToWifiCountDown <= 1) //active wifi
{
if (wifiMulti.run() == WL_CONNECTED) {
Serial.println("");
Serial.println("WiFi connected");
Serial.println("IP address: ");
Serial.println(WiFi.localIP());
}
sendCloudData(caa, cbb, ccc, cdd, cee, cff, cgg, chh, cii, cjj, ckk); //This function uploads data to Google Sheets
}
}
delay(5000);
// int uxHighWaterMark = uxTaskGetStackHighWaterMark(NULL);
// Serial.println(uxHighWaterMark);
}
}
void sendCloudData(int caa, int cbb, int ccc, int cdd, int cee, int cff, int cgg, int chh, int cii, int cjj, int ckk) {
if (wifiMulti.run() != WL_CONNECTED) {
//>>-Serial.println("WiFi not connected!");
DisconnectWifiClient++;
if (dalamMinit <= 2) {
dalamMinit = 2;
}
if (DisconnectWifiClient >= 9) {
ESP.restart();
}
//delay(1000);
} else {
client.setInsecure();
digitalWrite(ledBoard, HIGH);
//>>-Serial.print("Connecting to ");
//>>-Serial.println(host);
if (!client.connect(host, httpsPort)) { // HTTPS Connection pada Port
//>>-Serial.println("Connection failed");
DisconnectWifiClient++;
if (dalamMinit <= 2) {
dalamMinit = 2;
}
if (DisconnectWifiClient >= 9) {
ESP.restart();
}
return; //Stop Process jika connection failed
} else { //in connection
DisconnectWifiClient = 0;
//IDDevice
String aa = String(caa);
String bb = String(cbb);
String cc = String(ccc);
String dd = String(cdd);
String ee = String(cee);
String ff = String(cff);
String gg = String(cgg);
String hh = String(chh);
String ii = String(cii);
String jj = String(cjj);
String kk = String(ckk);
String url = "https://script.google.com/macros/s/" + SCRIPT_ID + "/exec?val0=" + aa + "&val1=" + bb + "&val2=" + cc + "&val3=" + dd + "&val4=" + ee + "&val5=" + ff + "&val6=" + gg + "&val7=" + hh + "&val8=" + ii + "&val9=" + jj + "&val10=" + kk;
//>>-Serial.print("Requesting URL: ");
//>>-Serial.println(url);
client.print(String("GET ") + url + " HTTP/1.1\r\n" + "Host: " + host + "\r\n" + "User-Agent: BuildFailureESP32\r\n" + "Connection: close\r\n\r\n");
//>>-Serial.println("Request sent");
digitalWrite(ledBoard, LOW);
client.stop(); //DISCONNECT HTTPS Connection
}
}
}
This scheme is a three ring circus, coordinating Google Scripts that are triggered from the sketch, BlueTooth traffic between the sketch and the app, and an app that talks BlueTooth to the sketch and deals with the Google Sheet.
I'm not a sketch expert.
But I notice your sketch is different from others I've seen in its event loops.
Usually I see a simple void loop with delays or clock checking, handling input and output.
Your sketch, however, has an empty void loop(), supplemented by what appear to be specially named Task01, Task02,... procedures.
This a complex juggling act.
Where did you get all this?
Things that can stop working on their own:
Aside from my earlier observations, which still need to addressed, I'm stumped.
i get this from my lecturer .this is for my project. i need to enhanced this mit by add 2 features that is battery status and camera live streaming...this project already working but it suddenly not working even though it was okay before.
tq for your help and advice i will try to look up for your suggestion
