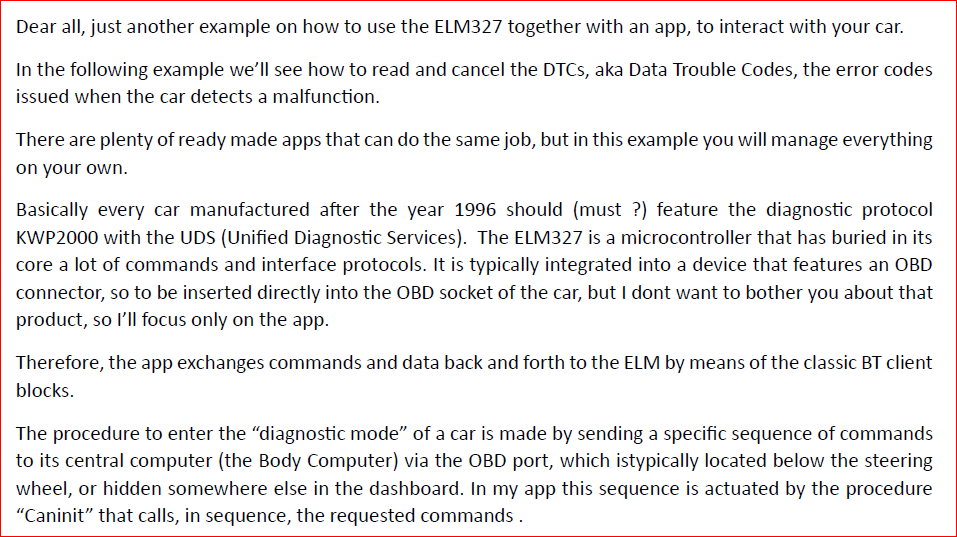

Dear all, please forgive me if the post is a "collage" of subsequent pictures, but this is the easiest way, for me, to post a long story with pictures. In any case everything is also attached as a pdf. If somebody is interested in this example, after having had a quick sight to the post, can read the more comfortable pdf.
Enjoy !
Here below you can find annexed
- the .aia,
- the .txt,
- the .ino (super simple Arduino UNO code +HC05,acting as simulator of an OBDII device connected to a car's ECU).
- the pdf of the above description
iQDashboard.aia (2.5 MB)

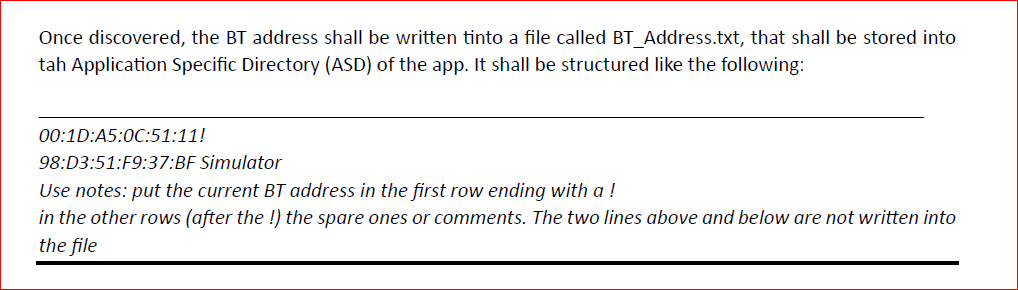

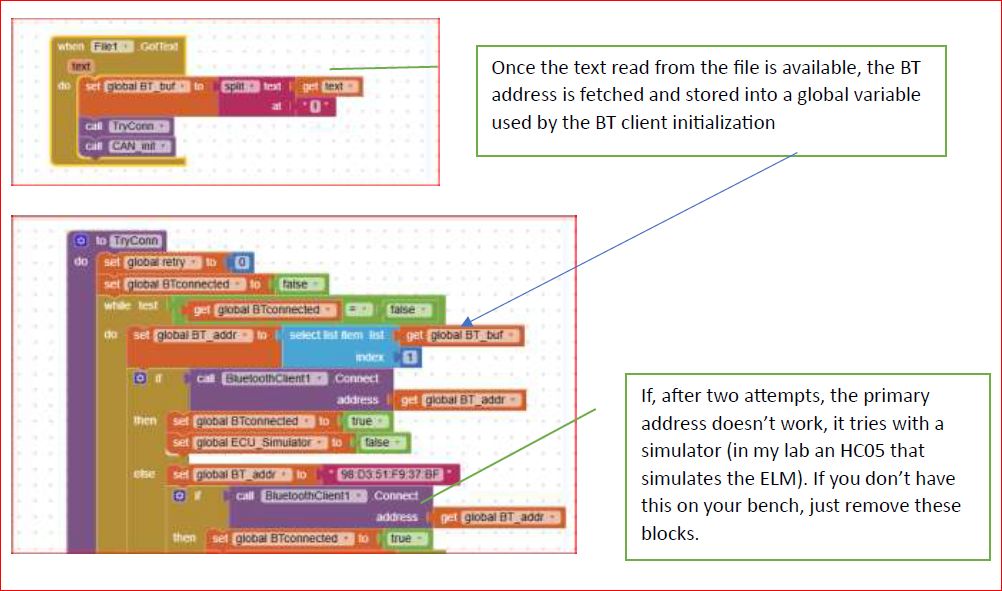

BT_Address.txt (197 Bytes)
Simulatore_OBD.ino (4.5 KB)
descrizione.pdf (495.5 KB)
Enjoy!

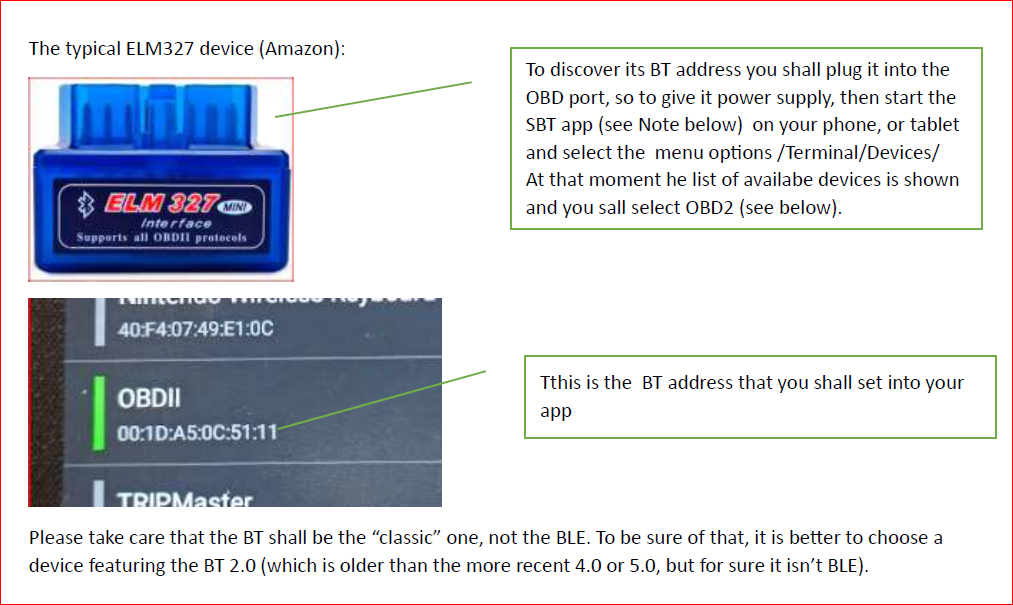

Edit : It's not worth saying, but it's better to say it...the BT device shall be recognized and paired to the phone before it can work. And BT and Geolocalisation permissions shall be granted, as well...but this is an "old story"...

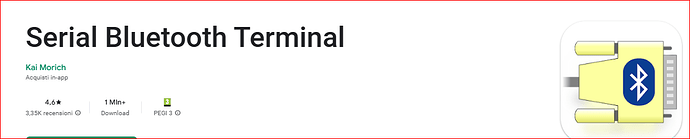

EDIT : I've also forgotten to say that SBT is the free app Serial Bluetoot Terminal, that can be downloaded free from the playtore. Sorry my 67 winters are heavy to load ....
