My complementary and triadic color calculator doesn't work, need help

[brickwall]

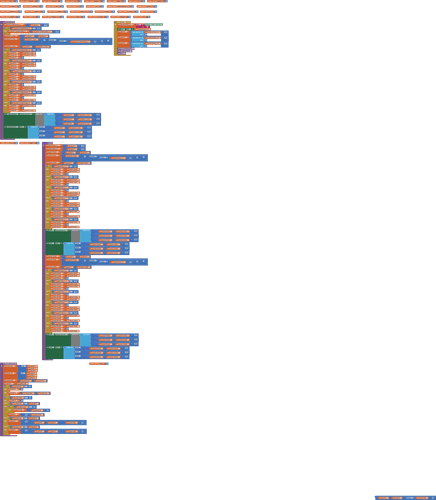

these are the blocks.

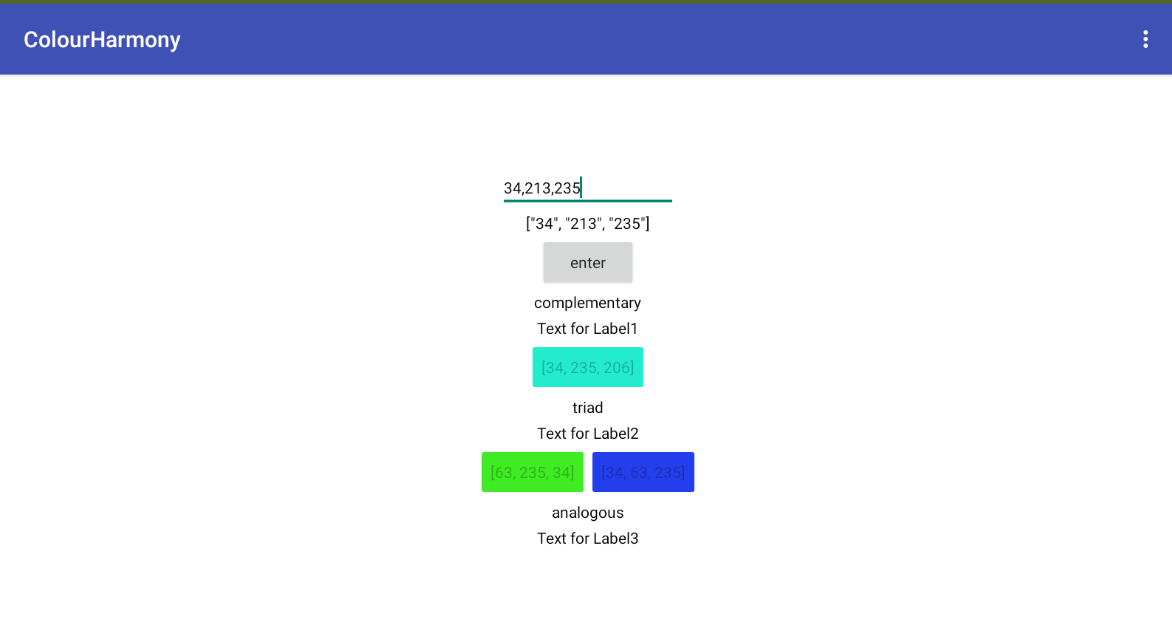

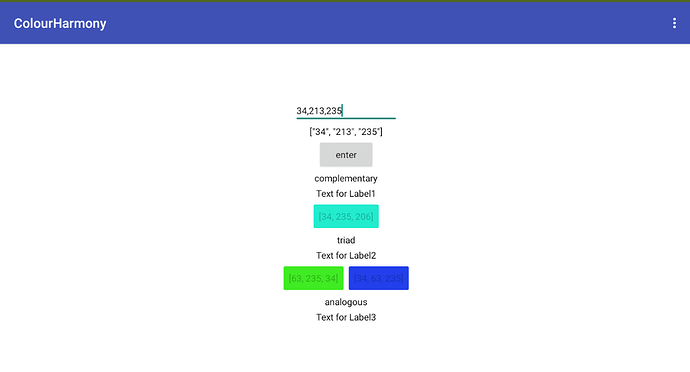

this is an example of the app. When i input an RGB, the colors that output is clearly not a complementary colour of the original RGB. Blocks included above

please help ive been at this for hours and can’t figure out whats wrong for the life of me

thanks

[ABG]

Export and upload the aia file for us?

Also, post a link to an explanation of what you are trying to do.

[brickwall]

basically the functions convert the rgb input into hsv, complementary and triad function then converts the hsv into the respective complementary(1) and triadic colors (2) and converting it back to rgb for the make a color block for the bg colour of the button.

[brickwall]

Triadic and complementary colour calculator

colourharmony.aia (15.7 KB) functions convert the rgb input into hsv, complementary and triad function then converts the hsv into the respective complementary(1) and triadic colors (2) –> converts it back to rgb for the make a color block for the bg colour of the button (sorry for broken english it isn’t my first language)

[Usane]

That aia file is empty.

[brickwall]

colourharmony.aia (15.7 KB)
functions convert the rgb input into hsv, complementary and triad function then converts the hsv into the respective complementary(1) and triadic colors (2) –> converts it back to rgb for the make a color block for the bg colour of the button

(sorry for broken english it isn’t my first language)

[Usane]

It is still empty. Contains only 2-3 blocks.

[Boban]

Try the second screen.

[TIMAI2]

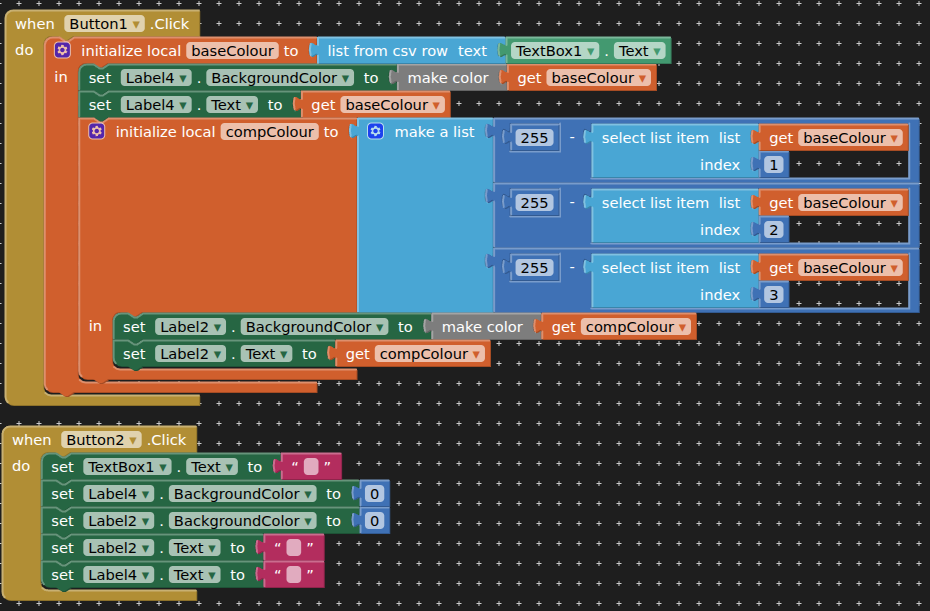

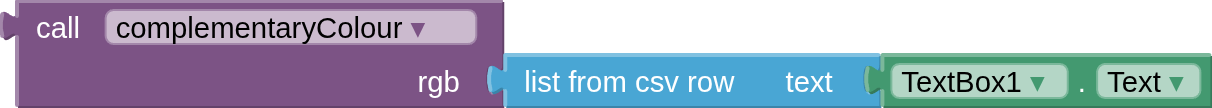

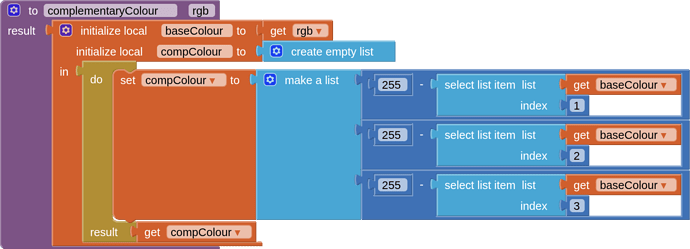

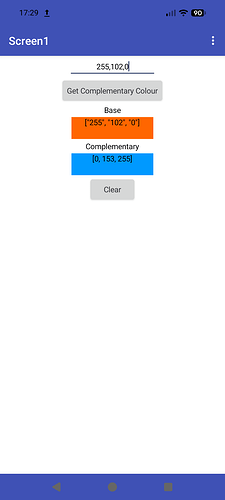

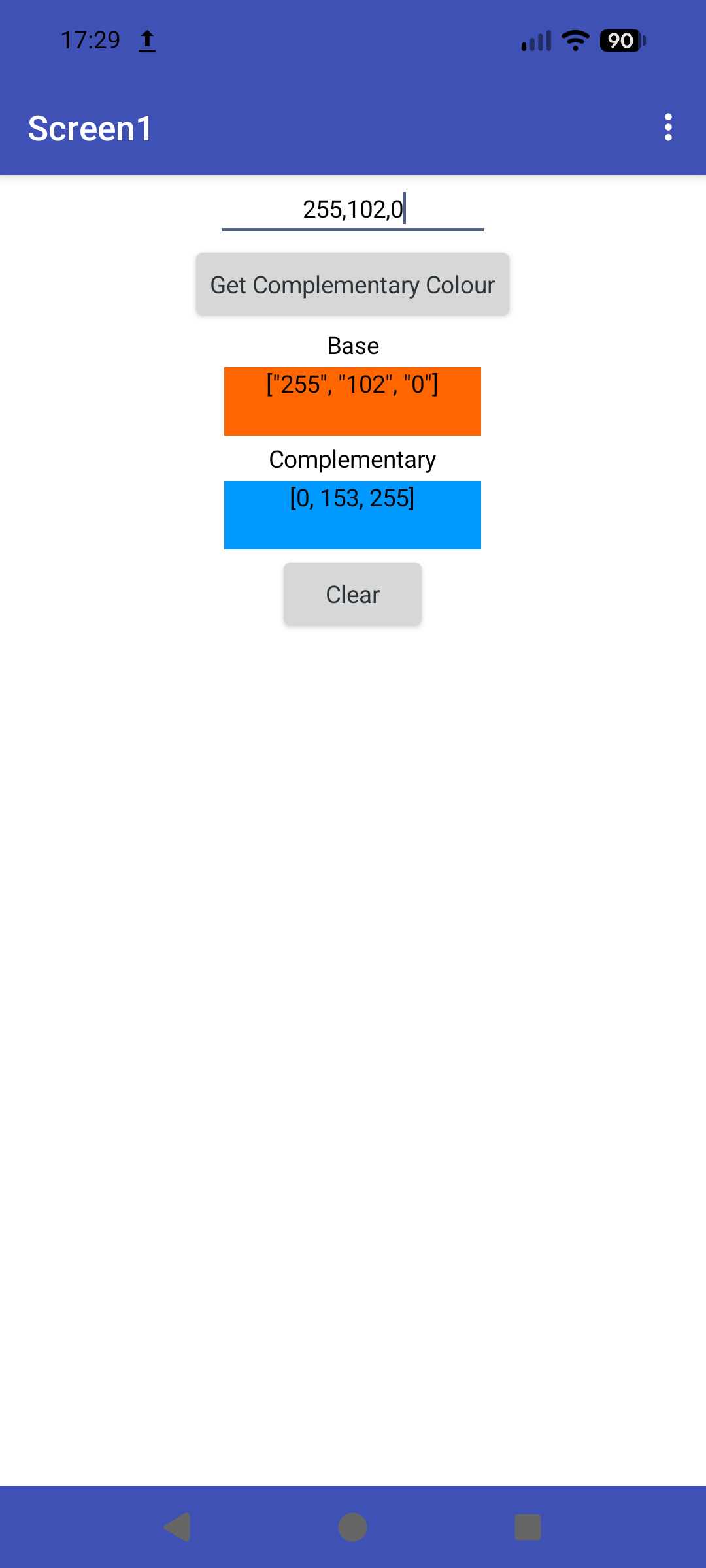

For starters your complementary colour calculator could be simpler:

[TIMAI2]

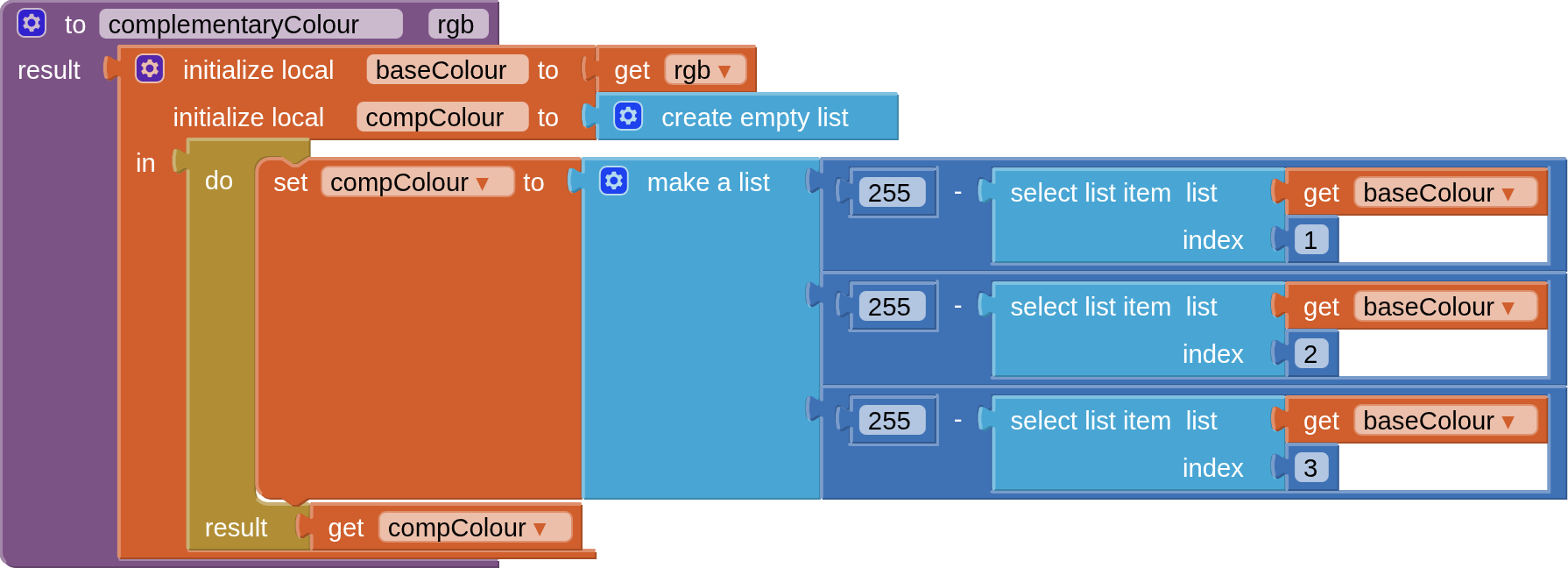

Here the above as a procedure

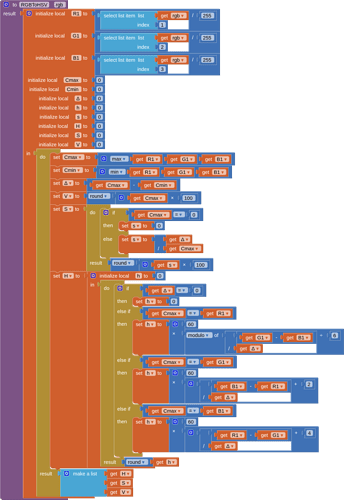

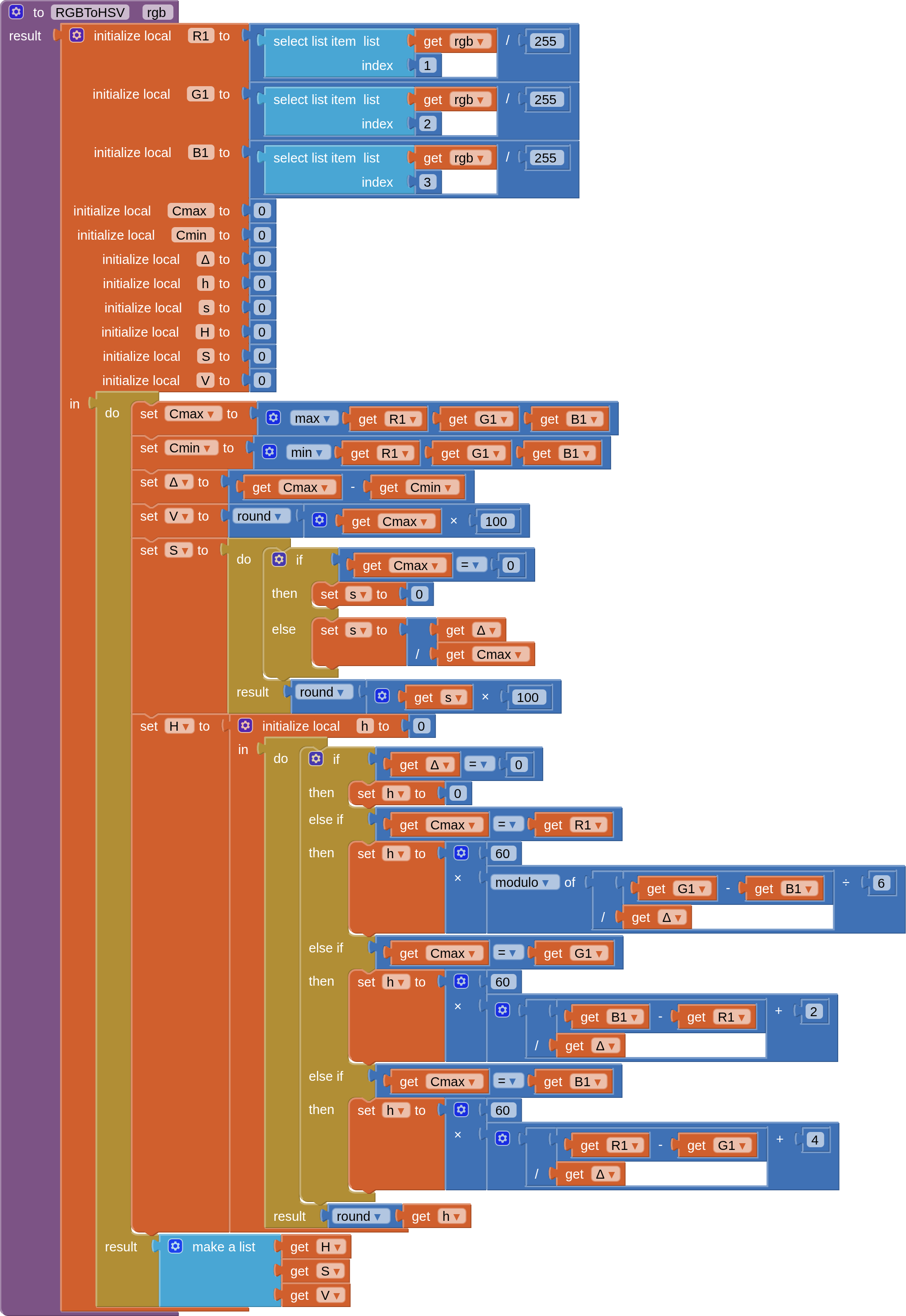

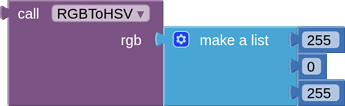

and an RGB to HSV convertor procedure

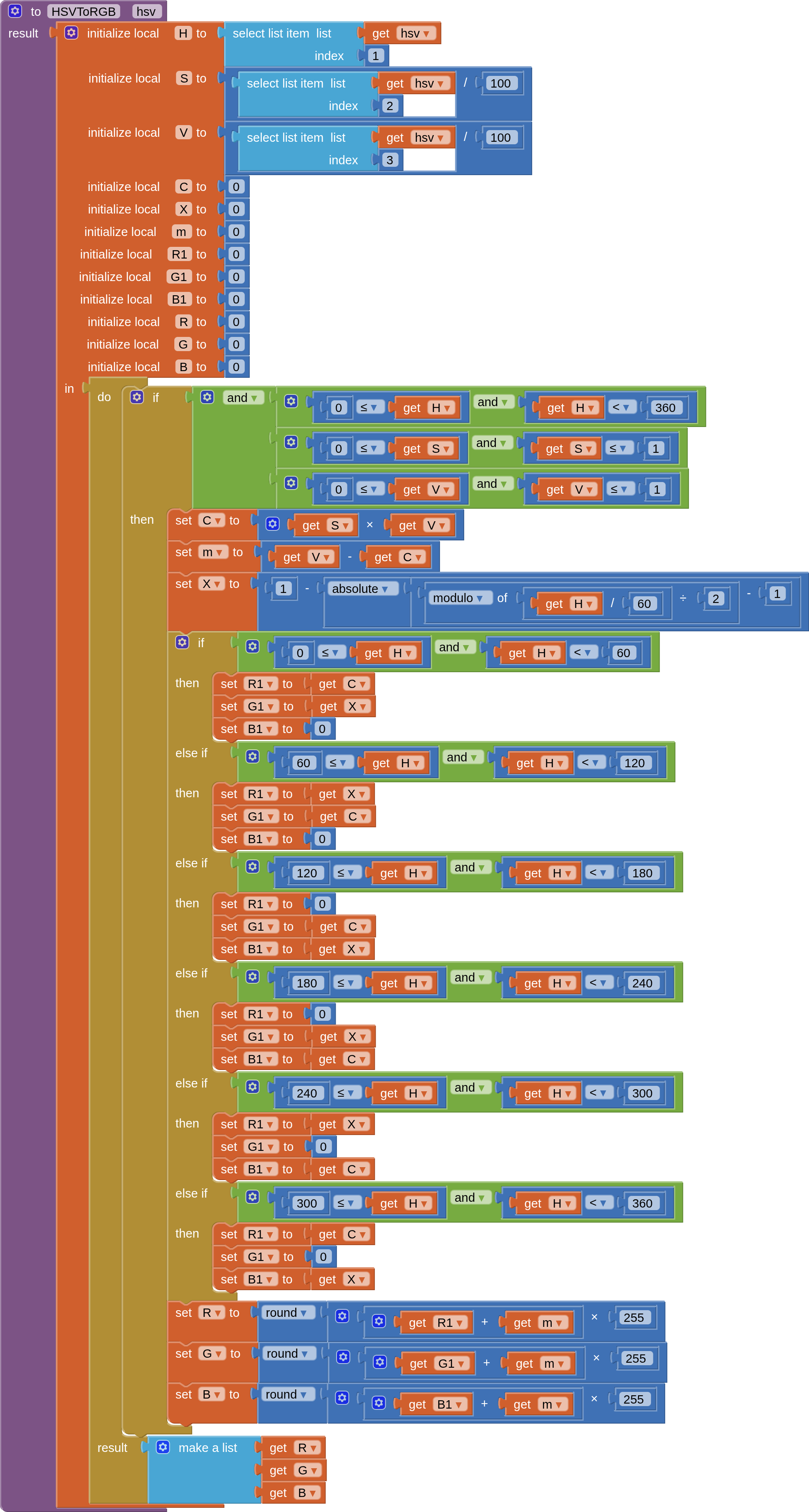

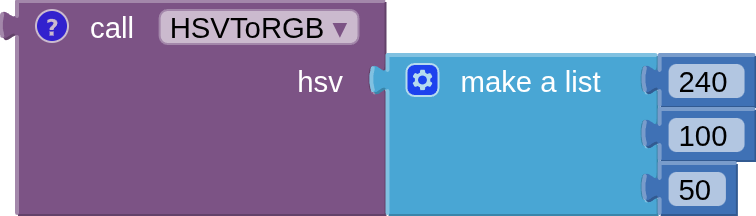

and an HSV to RGB convertor procedure

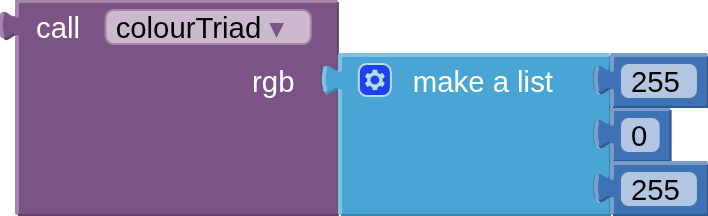

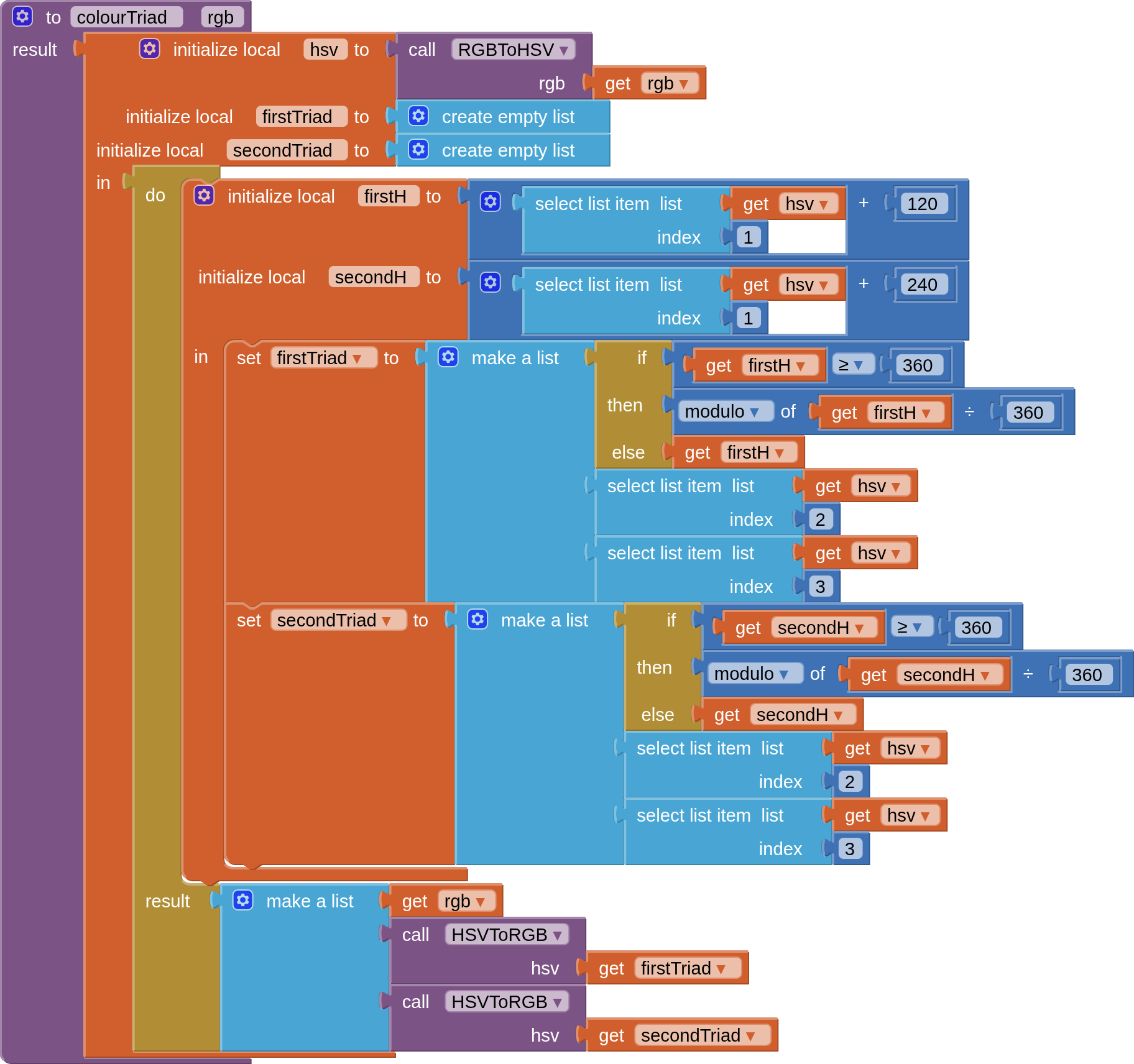

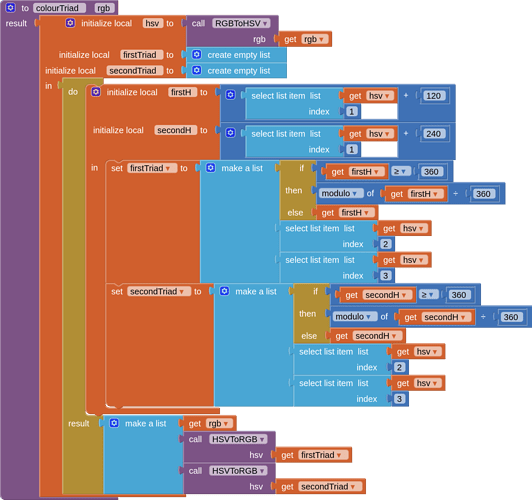

Finally a procedure, using the two procedures above for HSV, to generate RGB values for ttriadic colours:

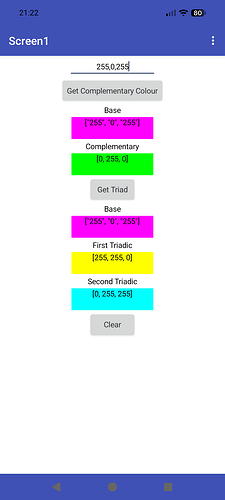

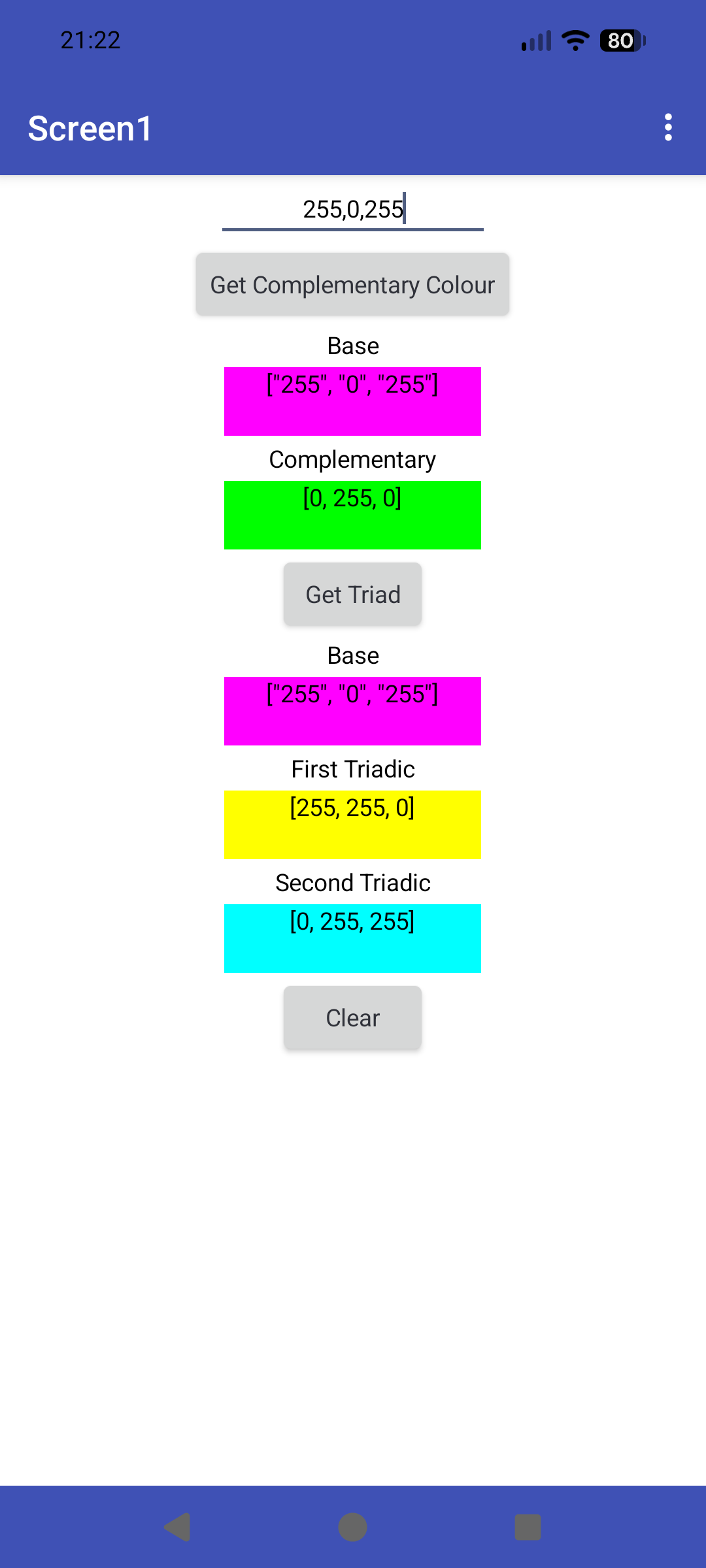

and to round things off, an aia that generates the complementary and triad of colours:

compTriad.aia (12.9 KB)

[brickwall]

Holy cow
tysm!

[TIMAI2]

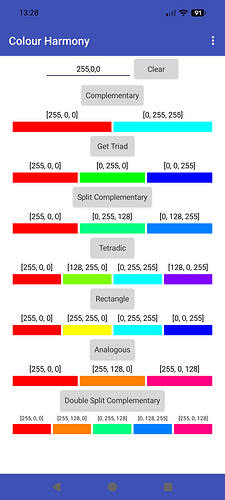

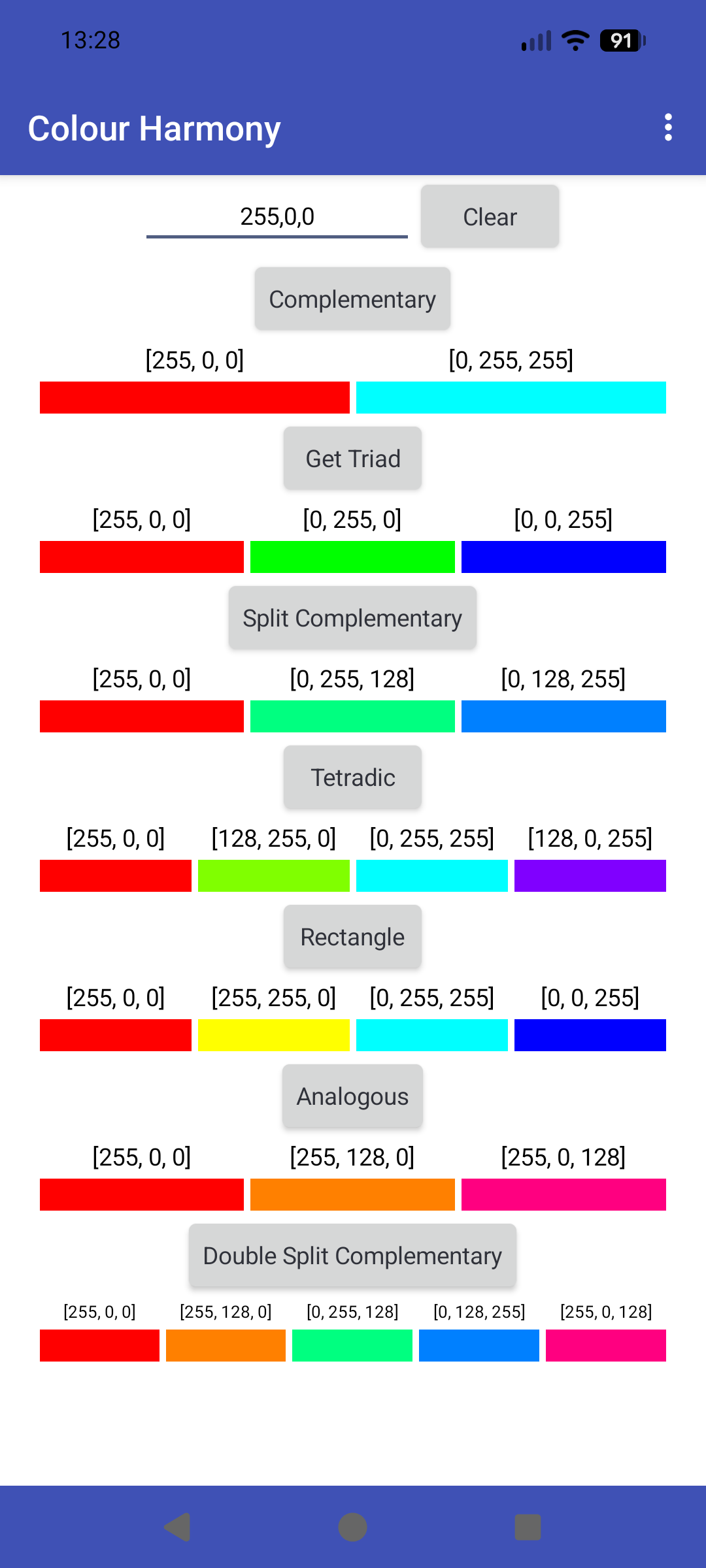

This was of interest to me, so I got a bit carried away...

colourHarmony.aia (27.1 KB)

ref

[ABG]

(added to FAQ)

FAQ Section: Colours

Colored text in an HTML Label - @Anke Colour Codes - MIT Colour Codes Android and HTML - TimAi2 Sample color match game - @ABG 12/2025 Use modulo 2^32 when comparing colors - Red_Panda Sample Color Pickers - @Nick68 Image Color Manipulation in JavaScript Using Base64 Extension - @Juan_Antonio Aug 2021 Complementary and HSV Colour Conversions - @TIMAI2 Mar 2026

[Usane]

Was only one screen. But does not matter now. @TIMAI2 has already gave him the solution.

[TIMAI2]

@Usane

Was only one screen.

Nope, definitely two screens

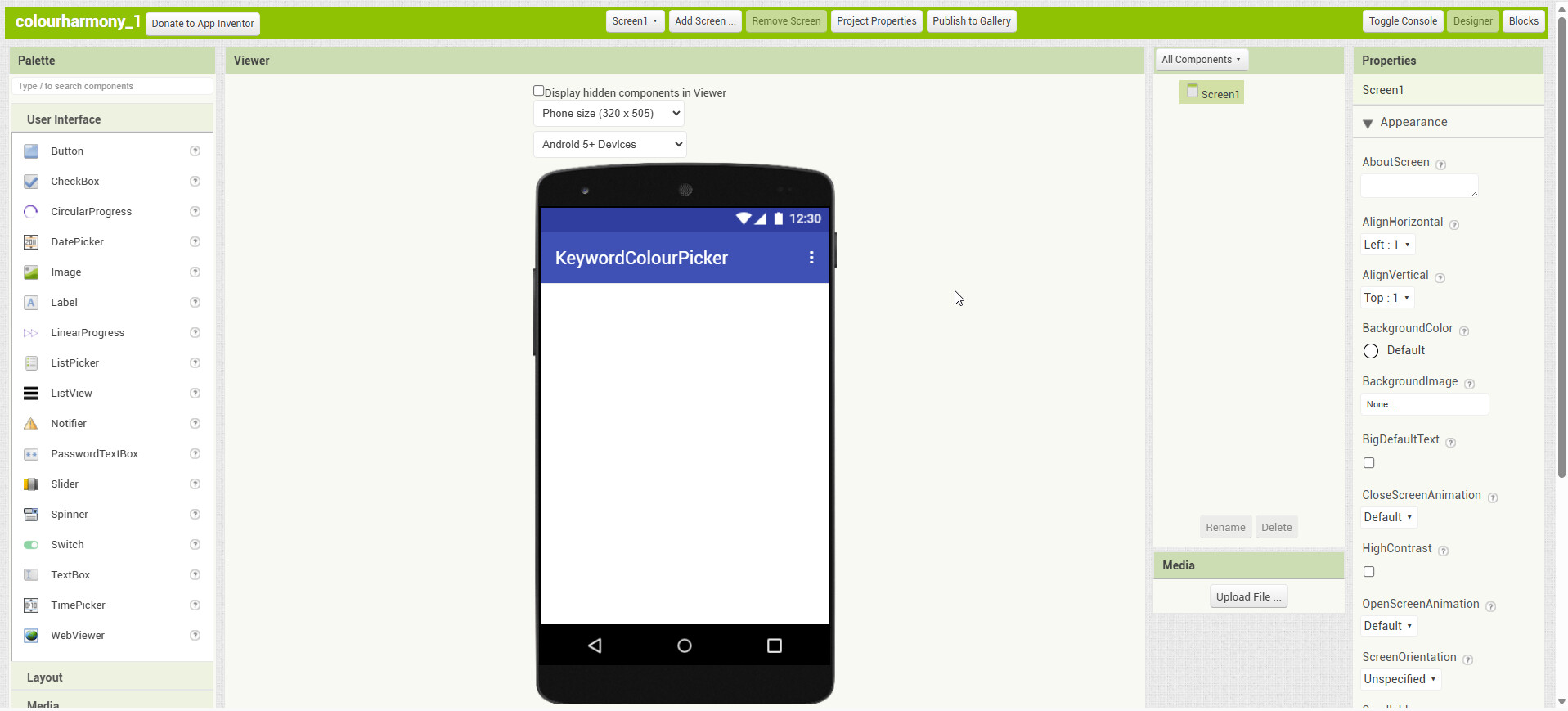

[Usane]

This is what the aia file loads for me. Chrome.

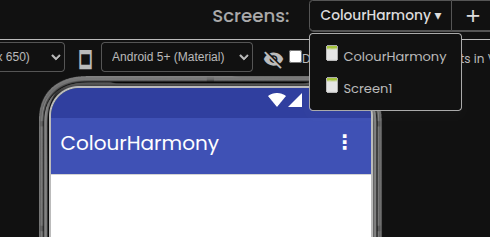

[TIMAI2]

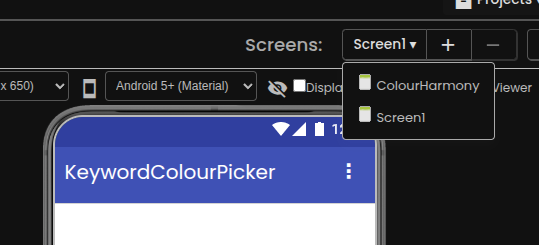

With two screens

[Usane]

You are right. I haven’t got used to the new menu yet. It used to show it on the side menu in all components as well. Well, it shows I do not use physical screens :)
