Help with Image Generation using Gemini API and Base64 (Extension KIO4_Base64)

[ANGEL_GABRIEL_NORIEG]

Hello everyone!

I am developing an AI assistant app called Clyborg. Previously, I had an issue with dictionary parsing for text responses, and thanks to this community, I solved it (here is the link to my previous post

Now, I am trying to take the next step: Image Generation.

My app uses the Gemini API to send a prompt. I want the AI to return an image of "Clyborg" (my character) based on the user's input. Since Gemini returns a JSON response, I am trying to extract the Base64 string and convert it into a file using the KIO4_Base64 extension to display it in an Image component.

The problem: Currently, nothing is happening. The image doesn't load, or the file is not being created correctly. I suspect it could be the way I'm asking Gemini for the Base64 (the prompt) or how I am handling the file path within the extension

[Taifun]

Do you get a reasonable result in the GotText event?

Also what is the result in the GotFile event?
Remember how to debug in App Inventor...

Alternatively try

Base64 Tools - five little ones ;)

These three simple individual extensions are already rolled into Juan's Base64 extension, but I believe it may be useful to some to have access to individual functions for specific needs.... There is now a fourth little one, not included in Juan's extension, for the Canvas ImageSprite. There is now a fifth one, for converting binary files to and from base64 Image To/From Base64 This extension has two functions, the first will convert whatever image is in an image component to a base64 string…

Taifun

[ANGEL_GABRIEL_NORIEG]

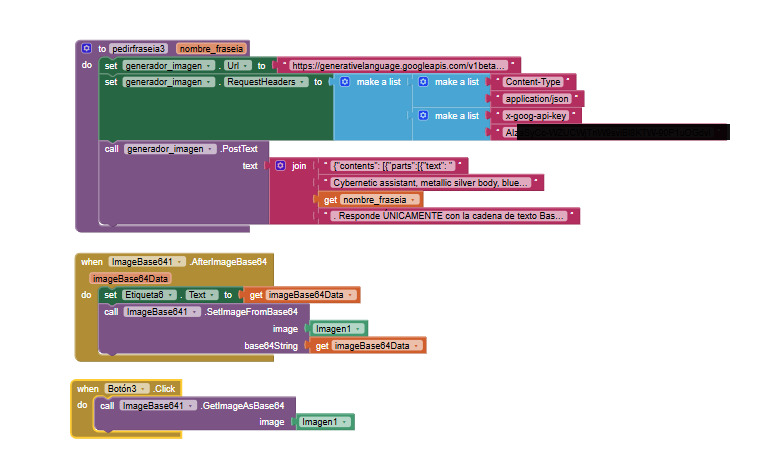

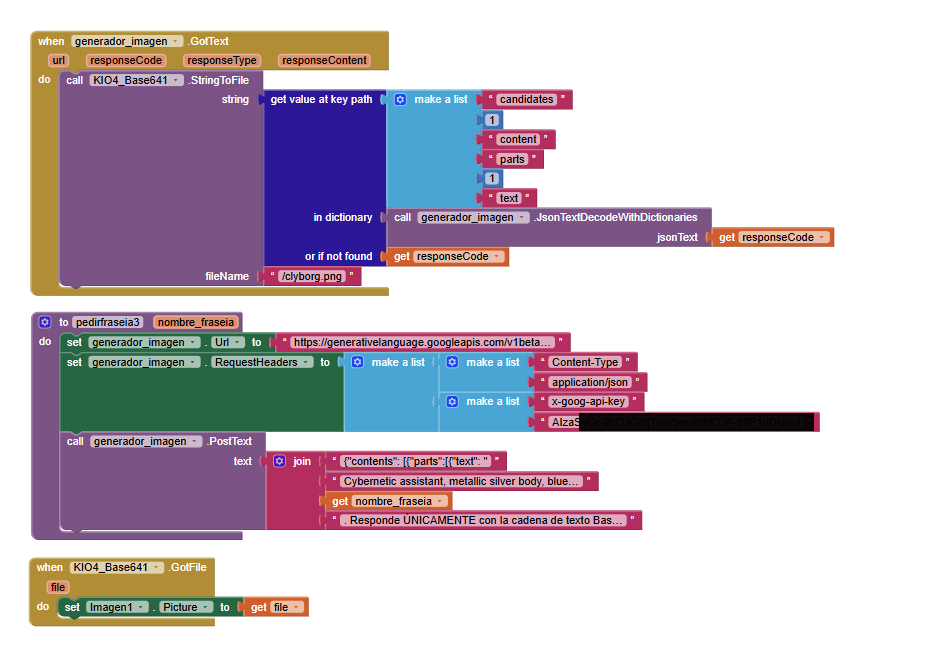

I checked the post you sent me and tried to follow those steps. Am I on the right track or is there something else I should be doing? haha

[Taifun]

Are you sure you understand what you are doing?

Assuming you get a reasonable result in the Web GofText event, you would use method SetInageFromBase64 there together with your base64 string

You forgot to answer

@Taifun

Do you get a reasonable result in the GotText event?

Also what is the result in the GotFile event?

Taifun

[TIMAI2]

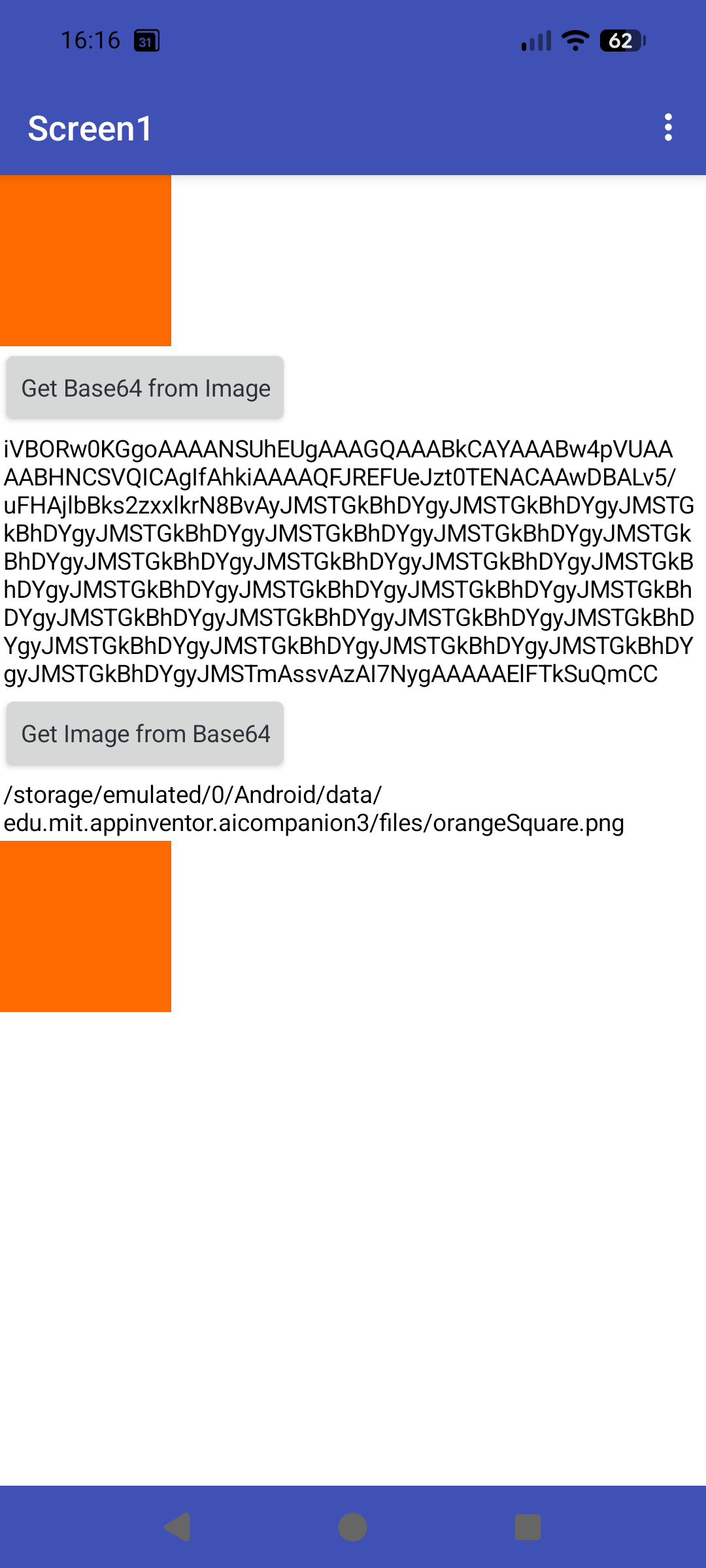

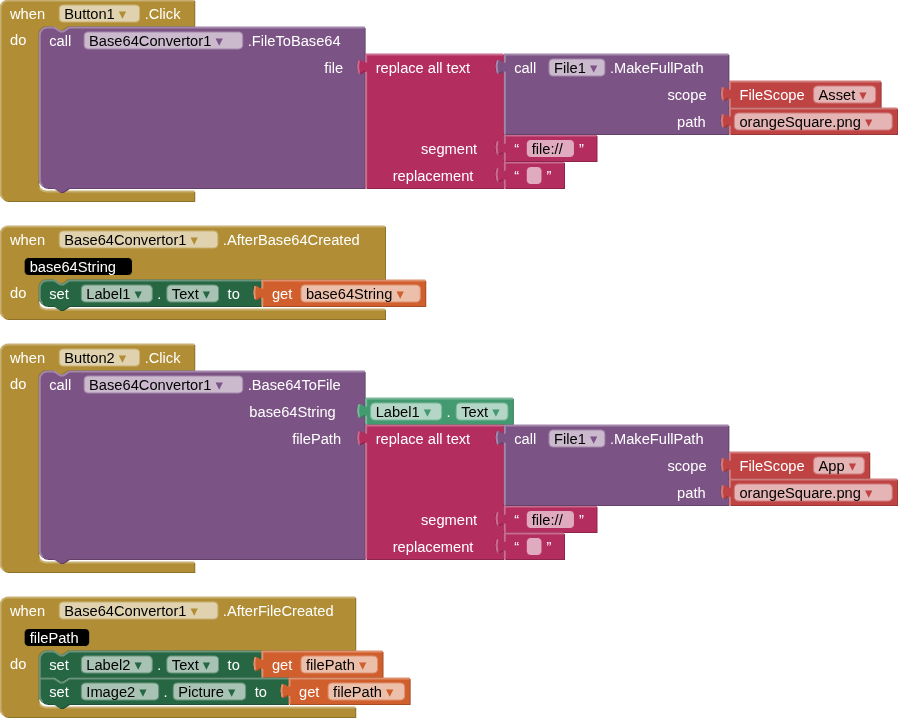

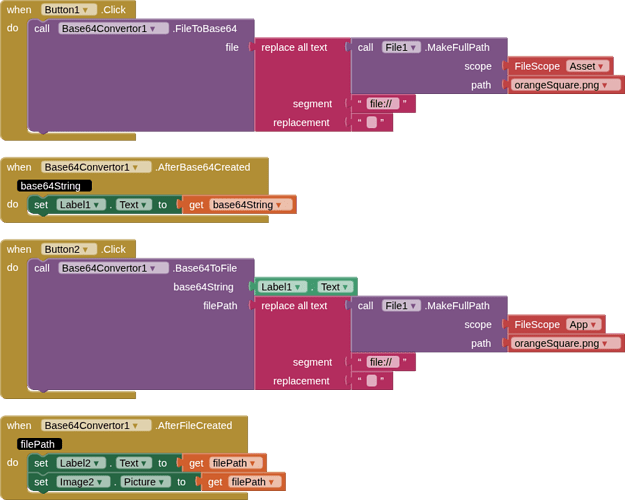

This might help explain the values required.

Uses this base64 extension:

Metricrat AI2 Extensions

Note that the base64 string is just that, there is no datauri prefix.
