[Free] CompCreator - create component dynamically

no, the 'any checkbox.changed' block will remains even if you delete all chwckbox from designer.

Ah ok I see. Will try that.
Didn't know, I'm just starting out with AI2 :grin:


This circled item is just an index in the list of checkboxes.

If you look at my first image here above, how would I use the any checkbox block then instead?

are you trying to get a list of all checkbox which are selected?
save all checkbox in a list when created.
Inside any checkbox.changed event to loop this list to check which is selected.

Thanks Kevin, was just trying this :+1:

Finally got it working with "any checkbox.changed"!
Many thanks Kevin!

I also discovered that if there is too much code on a screen, it starts to get hick-ups.
Variables (filled with a loop) are not complete and stuff.
Kept getting that error that it tried to select list item 7 in a list of 6, while I was sure that it was a list of 8. (I printed the list in a label)
When I split the page in two, the error disappeared!
So probably that was also the issue with the OnClick event in your extension not working because of the heavy code.
It was a long night :yawning_face:

please post a demo aia which reproduce this error, so that I can debug.
Thanks.

As long as the code is short enough, your OnClick works just fine.
It was only when I put it inside my main app, which worked fine before, that the problems began.
So I can't reproduce this error because the little test app worked.
Bottom line is that there is probably nothing wrong with your extension.
Maybe you can use the OnCLick event inside one of your BIG apps to see what happens?

I'm using this block:

compcr1

template:

{
    "$components": [{
            "$Name": "HorizontalArrangementROW",
            "$Type": "HorizontalArrangement",
            "$Version": "4",
            "AlignHorizontal": "3",
            "AlignVertical": "2",
            "BackgroundColor": "&H00FFFFFF",
            "Width": "-2",
            "Uuid": "-95254511",
            "$Components": [{
                    "$Name": "LabelDateTime",
                    "$Type": "Label",
                    "$Version": "5",
                    "HasMargins": "False",
                    "Width": "-1030",
                    "Text": "{1}",
                    "Uuid": "2105571632"
                }, {
                    "$Name": etc.
                    ...
                    ...

It are HorizontalArrangements with labels for each row,
which produces this:

compcr2

As you can see, the padding in the HorizontalArrangements is big and I would like them smaller.
I suppose that this can not be changed in the template because there is no such setting in the properties?
compcr3

Setting the Height pixels does it, but I'm afraid that this will cause problems on different devices.

note sure what width -1030 returns ?

Try putting the margins to true and set Width to -2 (or try -1) for your labels

Width -1030 is 30%.
Unchecking "HasMargins" for the labels does take away the margins but the padding inside the HorizontalArrangements stays the same (big)

Not seeing the same issue, just using components:

[edit]
You should use widthPercent:30 see below

there is no widthPercent in template i think. Width:-1030 means widthpercent

1 Like

But -1030 is what I get after copy/paste?!
And setting labels width to -1 or -2 is not an option because each row has different data (different length of texts) and then the columns will not align.

Playing around with a test piece now, will try different things and let you know, but thanks already.

You didn't show that in your example data :wink:

which padding are you talking about? white space on left? or the gray/ black bar?

if you are talking about white space on left, maybe the percentage sum is not 100%?

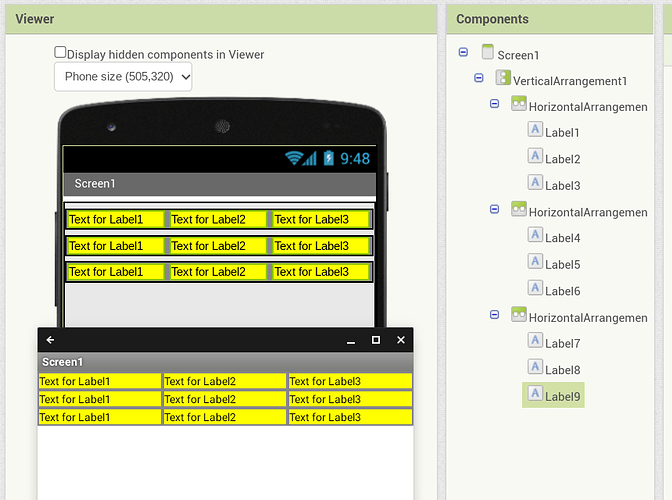

Seems to work OK when building with blocks....


@Kevinkun padding between the gray bars (vertically)

@TIMAI2 Wow, will give that a try.
Will call that procedure after the rows and labels have been created.
Although, I'm using a template to build the rows and all properties have already been set in the template, so I'm expecting no change.

Strange though that your screen looks different than mine with the same properties settings.

Tried everything, but to no avail.
Only thing that works is setting the Height of row to 35px.


But these blocks are useless because I can do that already in the template.

It would be really great if in AI2 if there would be a property "padding" for various elements.
