OpenAI Agent Extension for MIT App Inventor

`🧩 OpenAIAgent`

An extension for MIT App Inventor 2.
OpenAI Responses API with RAG, Conversations and Streaming (Updated)

Extension Details

GitHub Repository: https://github.com/iagolirapasssos/OpenAI-Agent-Extension

Related Project: The AIA model (App Inventor project) used for the chatbot interface is available at https://github.com/iagolirapasssos/Chat-Flow - you can download and import this complete chat application as a starting point for your projects!

Technical Specifications

Package: com.iagolirapassos.openaiagent
Size: 109.29 KB
Minimum API Level: 14 (Android 4.0+)
Built & documented using: FAST v5.5.0

Overview

The OpenAI Agent extension allows you to integrate OpenAI's powerful AI models into your MIT App Inventor projects. With this extension, you can:

Chat with AI models like GPT-5, GPT-4.1, and o3-mini
Enable streaming responses for real-time AI interaction
Use persistent conversations to maintain chat history
Add custom instructions to guide the AI's behavior
Use RAG (Retrieval Augmented Generation) with vector stores to make the AI answer questions based on YOUR documents (PDFs, Word files, text files, etc.)

Quick Start with Example Project

Want to see a working example? Download the complete chat application from Chat-Flow GitHub and import the .aia file into MIT App Inventor. This gives you a fully functional chatbot that you can customize!

Getting Started

1. Prerequisites

An OpenAI API key (get one at platform.openai.com)
MIT App Inventor project
For RAG: Documents you want the AI to learn from (PDF, TXT, DOCX, etc.)

2. Installation

Download the OpenAIAgent.aix extension file from the GitHub Releases
In your App Inventor project, go to Extensions → Import Extension
Select the downloaded .aix file
The extension will appear in the Palette under "Not visible"

Creating and Training Your Vector Store (RAG)

RAG (Retrieval Augmented Generation) lets your AI answer questions based on specific documents you provide. Here's how to set it up:

Step 1: Prepare Your Documents

Supported formats: PDF, TXT, DOCX, PPTX, Excel, images (text extraction)
Good for: Company manuals, study materials, personal notes, research papers
File size: Up to 512 MB per file

Step 2: Create Vector Store on OpenAI Platform

Method A: Using OpenAI Platform Website

Go to platform.openai.com
Log in with your OpenAI account
Click on "Assistants" in the left sidebar
Click the "+ Create" button
In the new assistant page:
- Give it a name (e.g., "My Knowledge Base")
- Click on "Add" under "Files"
- Upload your documents (PDF, TXT, etc.)
Wait for files to process (green checkmark = ready)
Important: Copy the Vector Store ID from the URL or details:
- It looks like: vs_123abc456def789...
- You'll use this ID in your app

Method B: Using OpenAI API (Programmatic)

If you prefer code or have many files:

# Python example - run this once to create vector store
import openai

client = openai.OpenAI(api_key="your-api-key")

# Step 1: Upload files
file1 = client.files.create(
    file=open("manual.pdf", "rb"),
    purpose="assistants"
)

file2 = client.files.create(
    file=open("notes.txt", "rb"),
    purpose="assistants"
)

# Step 2: Create vector store
vector_store = client.vector_stores.create(
    name="My Documents",
    file_ids=[file1.id, file2.id]
)

print(f"Vector Store ID: {vector_store.id}")  # Copy this!

Step 3: Test Your Vector Store

Before using in App Inventor, test in OpenAI Playground:

Go to OpenAI Playground
Select "Assistants" mode
Choose your assistant with the vector store
Ask questions about your documents
Verify AI answers correctly using your files

Step 4: Use in Your App

In your MIT App Inventor blocks:

when Screen1.Initialize
    set OpenAIAgent.ApiKey to "sk-...your-api-key..."
    set OpenAIAgent.VectorStoreId to "vs_123abc..."  # Your vector store ID

Properties Reference

Designer Properties (Set in Designer Tab)

Property	Type	Default	Description
ApiKey	string	`""`	Your OpenAI API key
Model	string	`"gpt-5"`	AI model to use
VectorStoreId	string	`""`	Vector Store ID for RAG
Instructions	string	`""`	System instructions for the AI
StreamingEnabled	boolean	`false`	Enable streaming responses
ConversationId	string	`""`	Conversation ID for persistent chats
MaxOutputTokens	integer	`4096`	Maximum response length
Temperature	float	`1.0`	Creativity control (0.0-2.0)

Setter Properties (Set in Blocks)

Property	Type	Description
ApiKey	text	OpenAI API Key
Model	text	Model ID (e.g., gpt-5, gpt-4.1, o3-mini)
VectorStoreId	text	Vector Store ID for RAG (file search)
Instructions	text	System instructions for the model
StreamingEnabled	boolean	Enable streaming responses
ConversationId	text	Conversation ID for persistent conversations
MaxOutputTokens	number	Maximum output tokens
Temperature	number	Sampling temperature (0-2)

Getter Properties (Read in Blocks)

Property	Returns	Description
ApiKey	text	Get current OpenAI API Key
Model	text	Get current model ID
VectorStoreId	text	Get current Vector Store ID
Instructions	text	Get current system instructions
StreamingEnabled	boolean	Check if streaming is enabled
ConversationId	text	Get current conversation ID
MaxOutputTokens	number	Get maximum output tokens setting
Temperature	number	Get current temperature setting
CurrentResponseId	text	Get response ID from last call

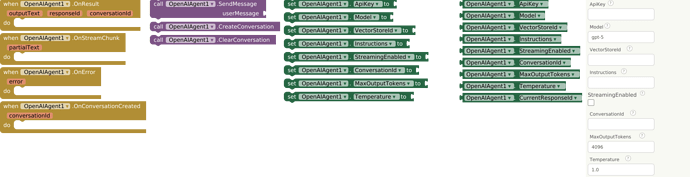

Methods (Functions)

1. SendMessage

Send message to OpenAI Responses API

Parameter	Type	Description
userMessage	text	Your question or prompt for the AI

Example:

call OpenAIAgent.SendMessage text = "Hello, how are you?"

2. CreateConversation

Create a new persistent conversation

Example:

call OpenAIAgent.CreateConversation

3. ClearConversation

Clear the conversation ID

Example:

call OpenAIAgent.ClearConversation

Events

1. OnResult

Trigger: Final complete response received from OpenAI

Parameter	Type	Description
outputText	text	Full AI response text
responseId	text	Unique ID for this response
conversationId	text	Conversation ID (may be new)

Example:

when OpenAIAgent.OnResult(outputText responseId conversationId)
    set LabelResponse.Text to outputText

2. OnStreamChunk

Trigger: Partial chunk received during streaming response

Parameter	Type	Description
partialText	text	Piece of AI response

Example:

when OpenAIAgent.OnStreamChunk(partialText)
    set LabelResponse.Text to join(LabelResponse.Text partialText)

3. OnError

Trigger: API error occurred during request

Parameter	Type	Description
error	text	Error message

Example:

when OpenAIAgent.OnError(error)
    show alert error

4. OnConversationCreated

Trigger: New conversation created

Parameter	Type	Description
conversationId	text	New conversation ID

Example:

when OpenAIAgent.OnConversationCreated(conversationId)
    set LabelConvID.Text to conversationId

Complete RAG Example App

Using the Example Project

The easiest way to get started is to download the Chat-Flow .AIA project which includes:

A beautiful chat interface
Streaming responses
Conversation management
Ready-to-use blocks

Step-by-Step Setup (From Scratch)

1. Design Your Screen:

Add TextBox (rename to TextBoxQuestion) for user questions
Add Button (rename to ButtonAsk) to send questions
Add Label (rename to LabelAnswer) to show responses
Add Label (rename to LabelStatus) for status messages

2. Initialize Extension:

when Screen1.Initialize
    set OpenAIAgent.ApiKey to "sk-...your-api-key..."
    set OpenAIAgent.VectorStoreId to "vs_123abc..."  # Your vector store ID
    set OpenAIAgent.StreamingEnabled to true
    set OpenAIAgent.Instructions to "Answer questions based only on the provided documents. If you don't know, say so."
    set LabelStatus.Text to "Ready. Ask about your documents!"

3. Handle Asking Questions:

when ButtonAsk.Click
    if TextBoxQuestion.Text = ""
        show alert "Please enter a question"
    else
        set LabelAnswer.Text to ""
        set LabelStatus.Text to "Thinking..."
        call OpenAIAgent.SendMessage text = TextBoxQuestion.Text
    end if

4. Handle Responses:

when OpenAIAgent.OnStreamChunk(partialText)
    set LabelAnswer.Text to join(LabelAnswer.Text partialText)

when OpenAIAgent.OnResult(outputText responseId conversationId)
    set LabelStatus.Text to "Done!"
    # Optional: Save conversationId if you want to continue later

5. Handle Errors:

when OpenAIAgent.OnError(error)
    set LabelStatus.Text to join("Error: " error)
    show alert error

Practical RAG Use Cases

1. Company FAQ Assistant

Upload: Employee handbook, policy documents, FAQ sheets
Ask: "What is our vacation policy?" or "How do I request equipment?"

2. Study Assistant

Upload: Textbook PDFs, lecture notes, research papers
Ask: "Explain photosynthesis" or "What are Newton's laws?"

3. Personal Knowledge Base

Upload: Meeting notes, project docs, personal journals
Ask: "What did we decide in last week's meeting?" or "What are my project deadlines?"

4. Customer Support Bot

Upload: Product manuals, troubleshooting guides, warranty info
Ask: "How do I reset my device?" or "Is this covered by warranty?"

Troubleshooting RAG

Problem: AI doesn't use my documents

Solutions:

Verify Vector Store ID is correct
Check files are processed (green checkmark in OpenAI)
Test in OpenAI Playground first
Add to Instructions: "Use the provided documents to answer"

Problem: "File search failed" error

Solutions:

Check API key has access to Assistants feature
Verify vector store exists in your account
Files may be too large - split into smaller files

Problem: Slow responses

Solutions:

Reduce file count (optimize to essential documents)
Use smaller files
Increase timeout in your app if needed

Best Practices for Vector Stores

Document Preparation:

Clean text: Remove scanned images (use OCR first)
Chunk wisely: 1-5 pages per file works well
Name clearly: "Sales_Process_v2.pdf" not "document1.pdf"
Organize: Group related documents together

Optimizing Performance:

Start small: Test with 1-2 documents first
Use relevant files: Remove unrelated content
Update periodically: Recreate vector store when documents change
Monitor costs: Vector storage has separate pricing

Testing Your Setup:

Basic test: Ask about specific content you know is in documents
Edge test: Ask about topics NOT in your documents
Comparison: Test with/without vector store enabled

Cost Considerations

What Costs Money:

API calls: Per token usage (input + output)
Vector storage: Monthly fee per GB stored
File processing: One-time cost when uploading

Cost-Saving Tips:

Delete unused vector stores
Compress documents before uploading
Use only necessary pages/sections
Monitor usage in OpenAI dashboard

Updating Your Knowledge Base

When your documents change:

Go to OpenAI Platform → Assistants
Select your assistant
Remove old files, add new ones
Wait for processing
Important: Your Vector Store ID stays the same!

Or create a new vector store and update the ID in your app:

when ButtonUpdateKnowledge.Click
    set OpenAIAgent.VectorStoreId to TextBoxNewVectorStoreID.Text
    show alert "Knowledge base updated!"

Need Help?

Common Issues and Fixes:

Problem	Likely Cause	Solution
"API Key not configured"	Forgot to set API key	Set `ApiKey` property
No document answers	Wrong Vector Store ID	Verify and copy correct ID
Slow streaming	Network issues	Check internet, reduce file size
Error 429	Too many requests	Add delay between questions

Getting Support:

Check GitHub: Visit OpenAI Agent Extension GitHub for updates and issues
Use Example: Start with the Chat-Flow example to ensure proper setup
Test first: Always test in OpenAI Playground
Check logs: Use OnError event to see details
Simplify: Remove vector store to test basic chat

Files

AIX: com.iagolirapassos.openaiagent.aix (109.3 KB)
AIA: BibliaSagradaIADemo.aia (633.7 KB)

Congratulations!

You now have a powerful AI assistant that can:

Answer questions based on YOUR specific documents
Remember conversations
Respond in real-time with streaming
Follow your custom instructions

Pro Tip: Download the example Chat-Flow project to get a head start with a beautiful, working chat interface!

Start with simple documents and questions, then expand as you get comfortable. Your AI-powered app is ready to go!

Version: 13
Package: com.iagolirapassos.openaiagent
Minimum API: 14 (Android 4.0+)
GitHub: https://github.com/iagolirapasssos/OpenAI-Agent-Extension
Example Project: https://github.com/iagolirapasssos/Chat-Flow
Built with: FAST Extension Builder

Note: OpenAI API usage is billed separately. Check OpenAI Pricing for current rates.
