SchulteTable is a fast-paced cognitive training application built on MIT App Inventor.

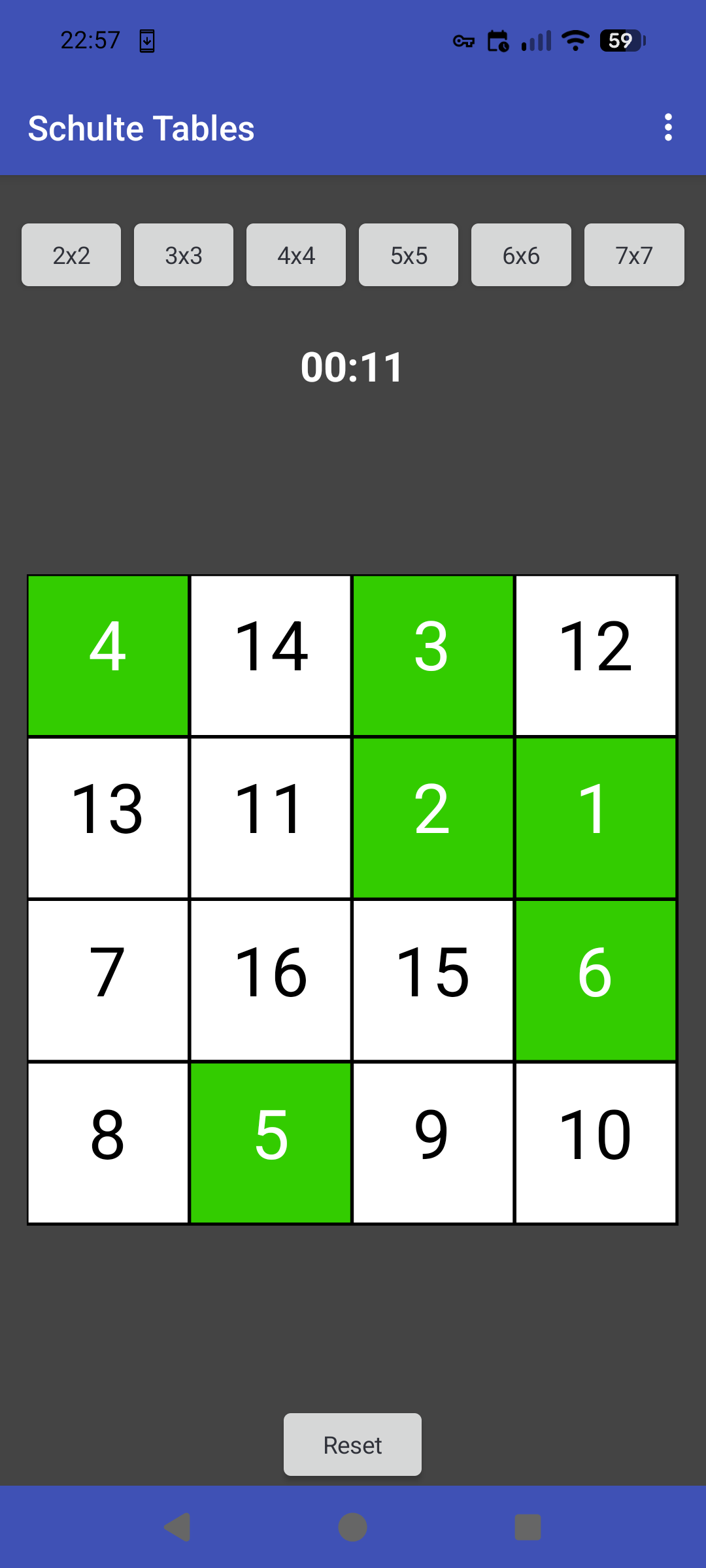

Demo

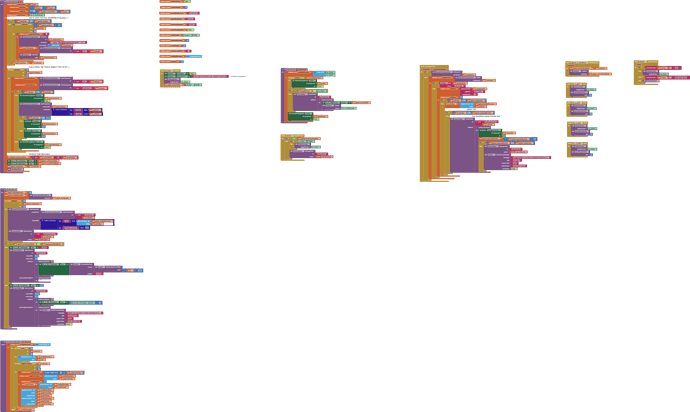

All Blocks

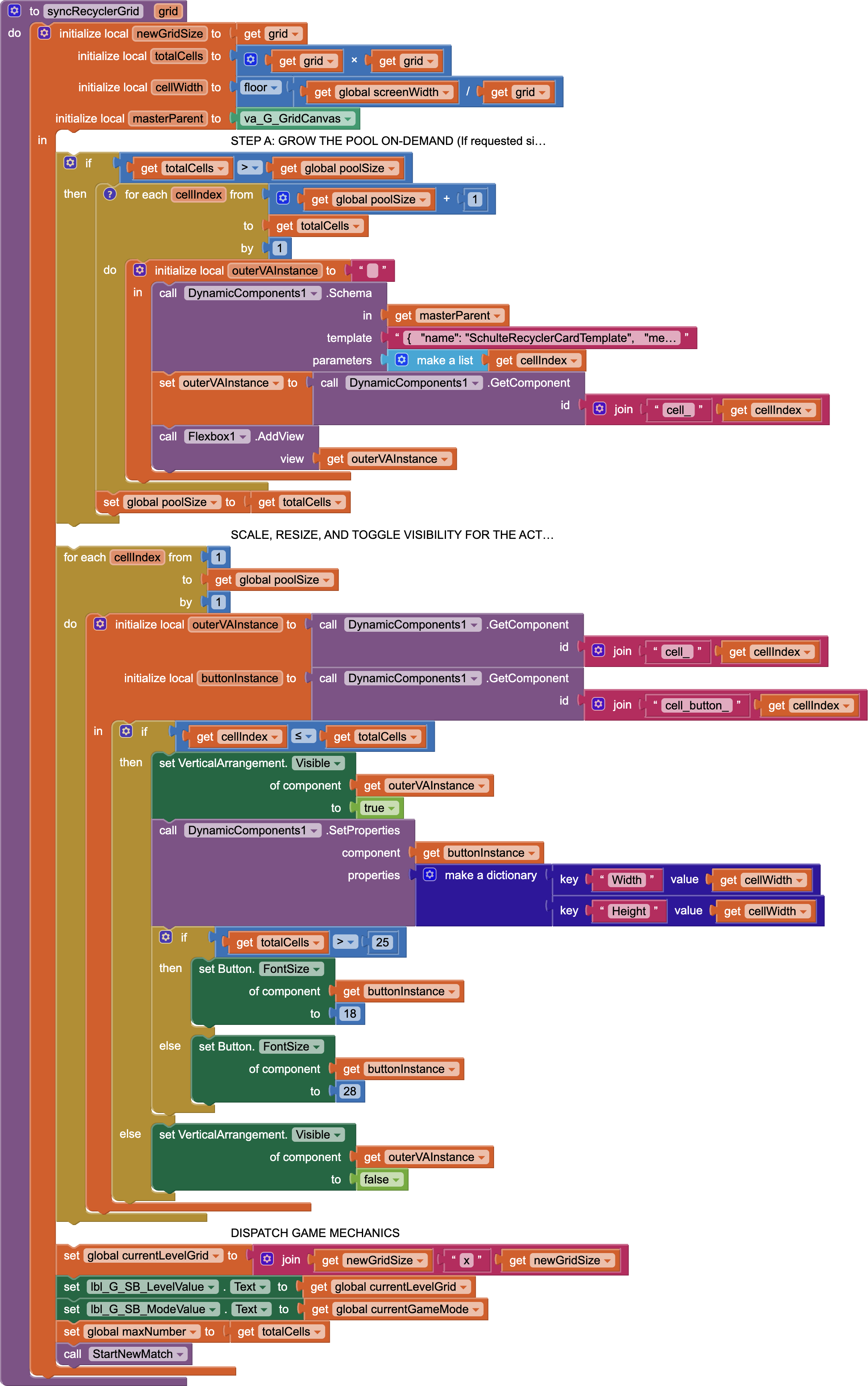

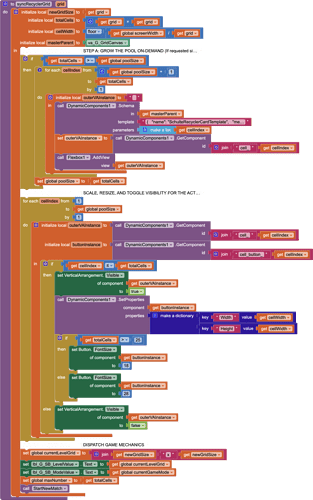

syncRecyclerGrid (Dynamic Recycler Allocation):
Generates structural layout instances on-demand, recycling existing nodes and updating layout dimensions smoothly without rebuilding views.
[Request Grid Size: N×N]
│
▼
┌───────────────────────────────────────┐
│ STEP A: Dynamic Pool Validation │
│ Is Total Cells > Global Pool Size? │
└──────────────────┬────────────────────┘
├─► YES: Instantly inflate missing nodes using schemas.
└─► NO : Skip inflation (Saves CPU cycles).
│
▼
┌───────────────────────────────────────┐
│ STEP B: Structural Hydration & Sizing │
│ Loop through Global Pool Size │
└──────────────────┬────────────────────┘
├─► Index <= Total Cells ──► Set Visible = True, Compute Flex Width/Height
└─► Index > Total Cells ──► Set Visible = False (Soft-delete to pool)

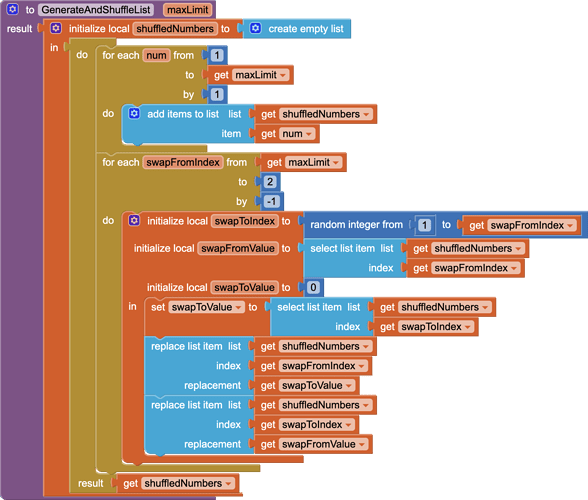

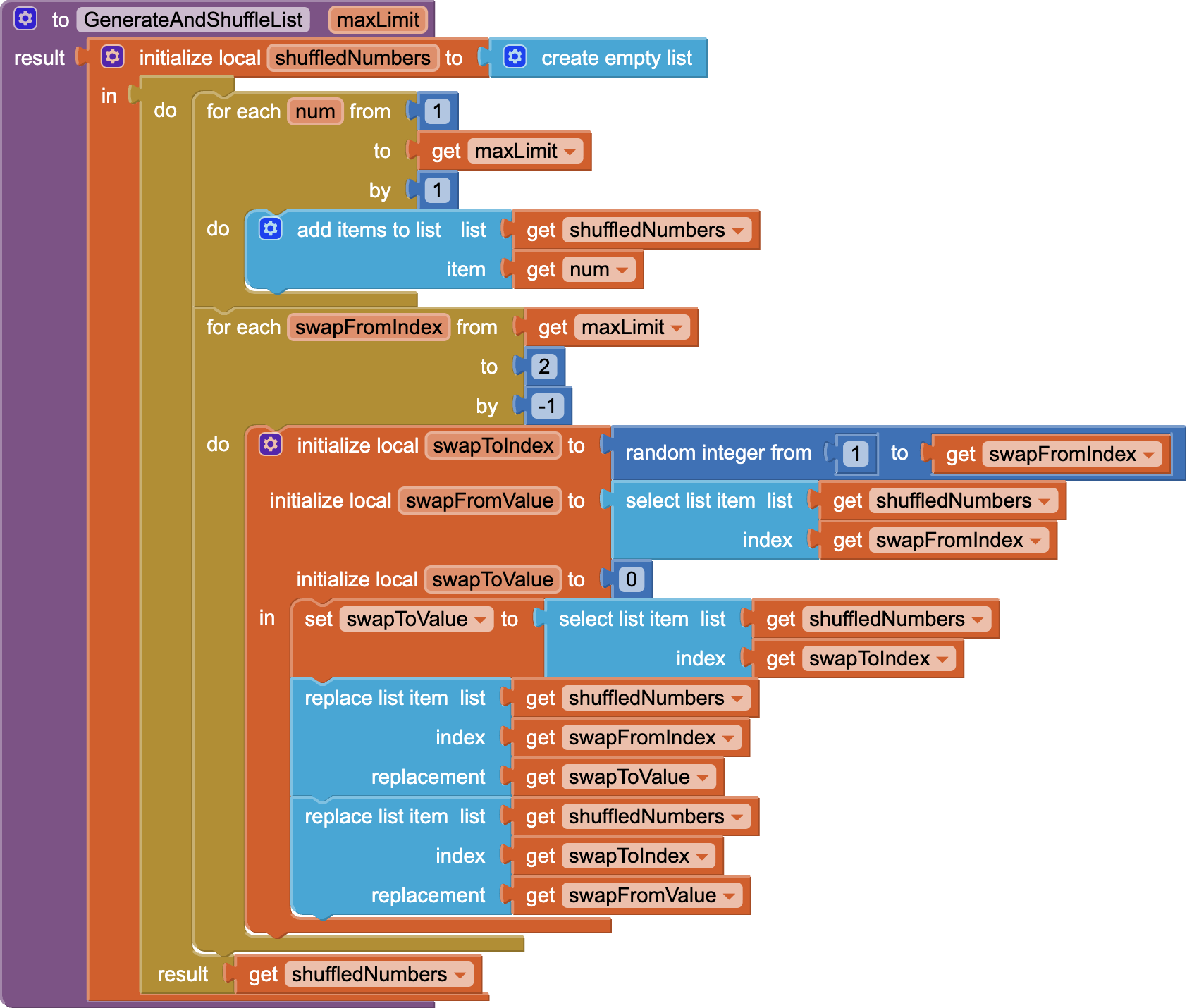

GenerateAndShuffleList:
Handles data generation and randomizes elements in memory without creating duplicate lists.
========================================================================
PHASE 1: LINEAR SEQUENCE GENERATION
========================================================================
[ Create Empty List ] ───► Loop from 1 to maxLimit (Step +1)
│
▼
Resulting 'shuffledNumbers' List:
┌───┬───┬───┬───┬───┬───────┬───┐
Index (1-based)│ 1 │ 2 │ 3 │ 4 │ 5 │ ... │ N │
├───┼───┼───┼───┼───┼───────┼───┤
Stored Value │ 1 │ 2 │ 3 │ 4 │ 5 │ ... │ N │
└───┴───┴───┴───┴───┴───────┴───┘
(Allocated once, perfectly ordered)
========================================================================
PHASE 2: IN-PLACE FISHER-YATES SHUFFLE
========================================================================
The loop sets 'swapFromIndex' at the end of the list (N) and steps
backward down to 2 (Step -1).
EXAMPLE SNAPSHOT: Loop is currently at Index 5 (swapFromIndex = 5)
Step A: Roll a random integer from 1 to 5.
Let's say 'swapToInIndex' rolls a 2.
Step B: Extract values into temporary local memory registers.
┌──────────────────────────────────────────────┐
│ • swapFromValue = List[5] (Value: 5) │
│ • swapToValue = List[2] (Value: 2) │
└──────────────────────────────────────────────┘
Step C: Perform the atomic index swap.
┌───────────────────────────────┐
│ [2] is written to Index 5 │
▼ │
┌───┬───────┬───┬───┬───────┐ │
Index │ 1 │ 2 │ 3 │ 4 │ 5 │ │
├───┼───────┼───┼───┼───────┤ │
Value │ 1 │ 2 │ 3 │ 4 │ 5 │ │
└───┬───────┴───┰───┴───────┘ │
│ ┃ │
│ ┗━━━━━━━━━━━━━━━━━━━━━━━━┛
└───────────────────────────────────┐
▼
[5] is written to Index 2
State After Single Swap:
┌───┬───────┬───┬───┬───────┐
│ 1 │ 5 │ 3 │ 4 │ 2 │ <─── Index 5 is now locked!
└───┴───────┴───┴───┴───────┘ The loop decrements to Index 4.
Asynchronous Guarded Lifecycle Loop
StartNewMatch & when any Button.Click
Runs isolated game timer threads and introduces non-blocking debounced interaction filters (GuardGate) to eradicate race conditions and double-click registration bugs.

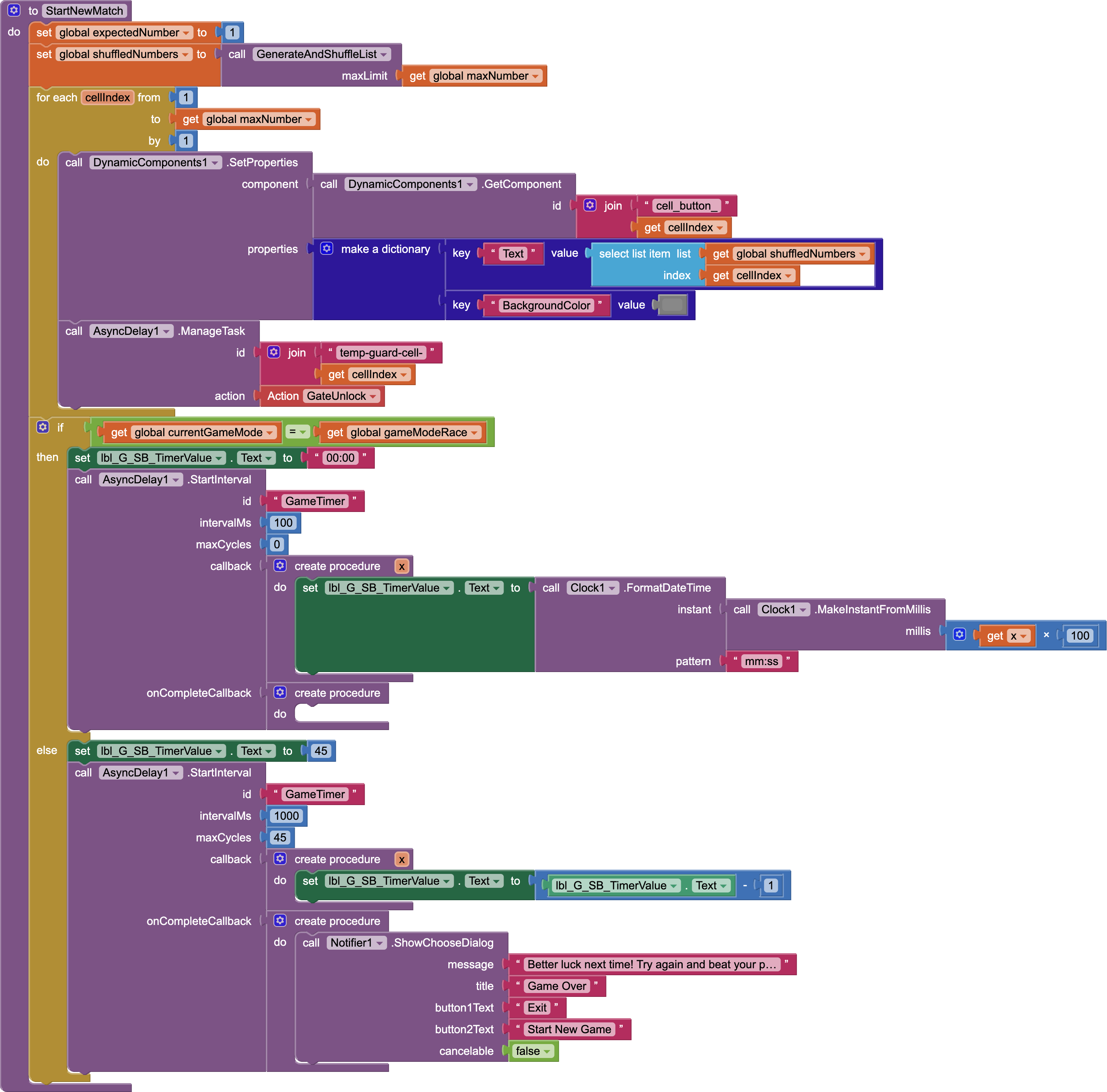

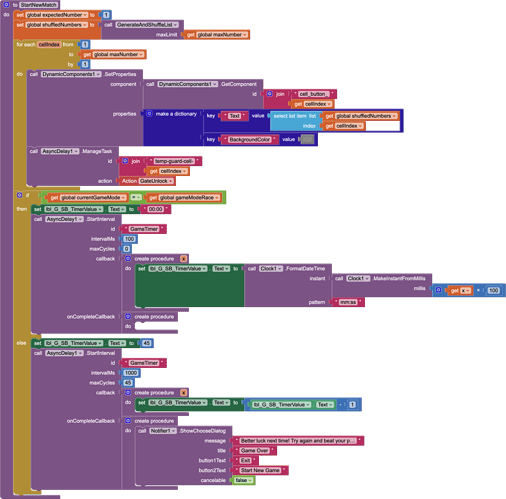

MATCH INITIALIZATION
================================================================================
MATCH INITIALIZATION (StartNewMatch)
================================================================================
[ Trigger StartNewMatch ]
│
▼
Initialize Tracking Pointer (expectedNumber = 1)
Map Shuffled Numerical Values onto UI Grid Buttons
│
▼
Is Game Mode set to 'Race Mode'?
│
┌─────────┴─────────┐
▼ YES ▼ NO (Survival Mode)
┌─────────────────┐ ┌───────────────────────────┐
│ Reset to "00:00"│ │ Reset to "45" │
│ Async Timer: │ │ Async Timer: │
│ Ticks @ 100ms │ │ Ticks @ 1000ms (Max 45) │
└────────┬────────┘ └─────────────┬─────────────┘
│ │
▼ ▼
[Compute & Render] [Decrement Display Counter]
mm:ss on Main Thread Loop complete -> Run Game Over
Architectural Optimization: AsyncDelay vs. Native Clock
Used AsyncDelay extension instead of heavy native Clock components, ensuring smooth performance and preventing UI thread blocking during rapid grid updates.
Dual-Mode Interval Routing
By moving away from standard monolithic millisecond counters, the app isolates two distinct interval engines utilizing the same background execution thread wrapper (id: "GameTimer").
1.
Race Mode (Time Attack)
Ticks every 1,000ms (1 second) to compute and display a classic Minutes:Seconds elapsed timer.
2.
Survival Mode (45s Countdown)
Ticks every 100ms (tenths of a second) to maintain high-precision countdown tracking, rendering fractional seconds (Minutes:Seconds.Tenths) smoothly without dropping frames.
// Clean lifecycle termination when the final matching sequence is met:
CALL AsyncDelay.ManageTask(id: "GameTimer", action: "IntervalCancel")

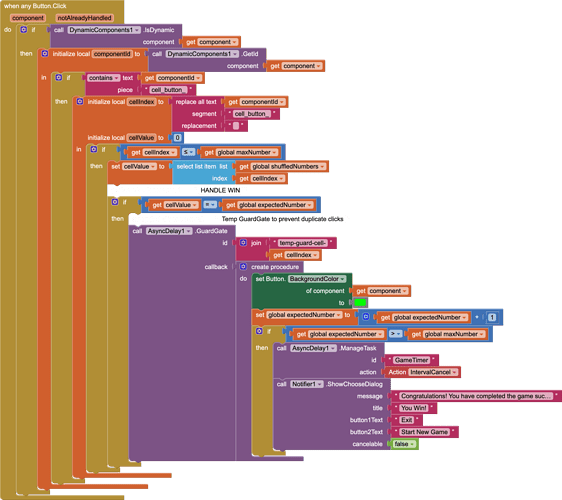

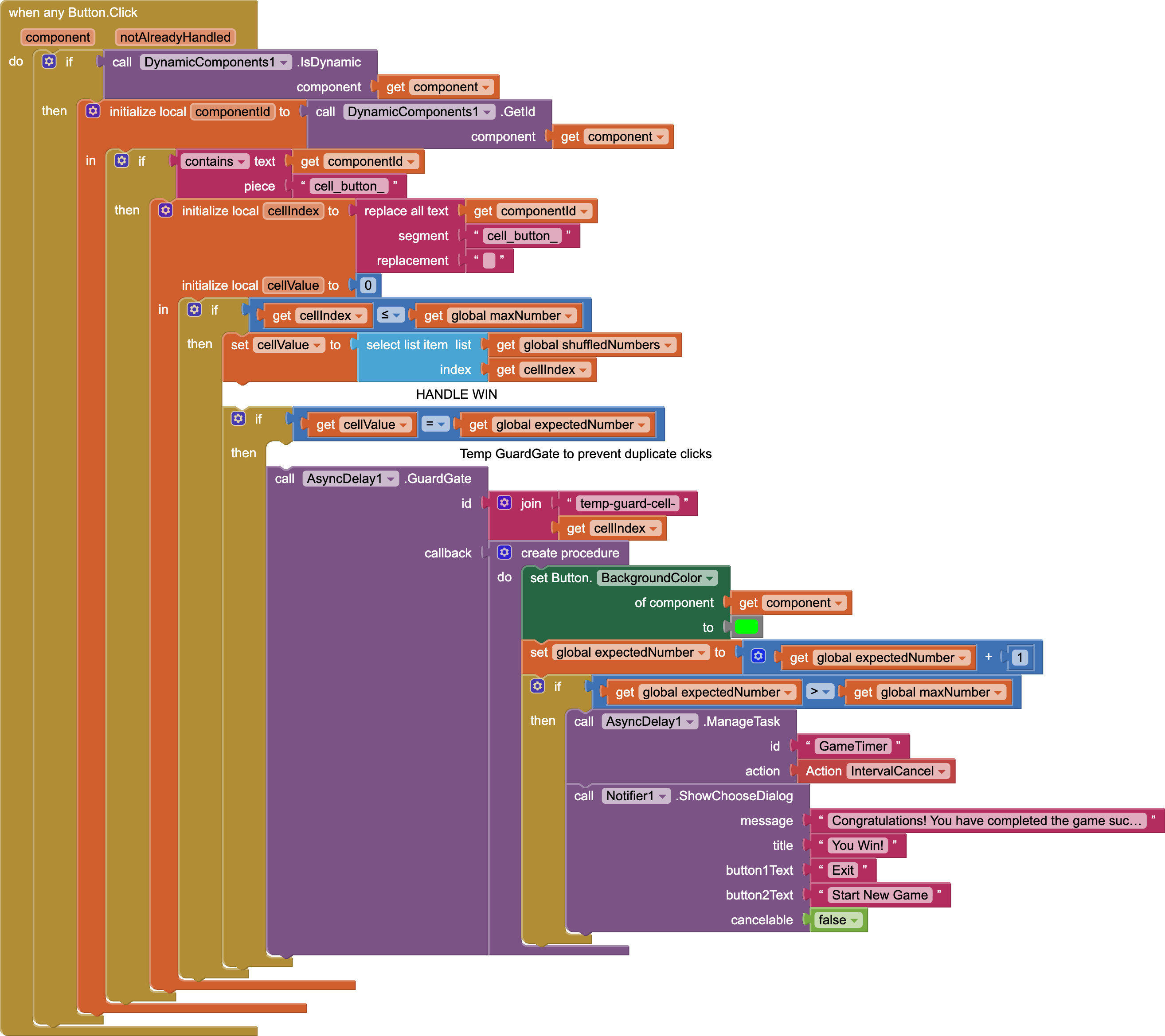

BUTTON INTERCEPTION
================================================================================
BUTTON INTERCEPTION (when any Button.Click)
================================================================================
[ User Taps A Grid Cell Button ]
│
▼
Is Component dynamic?
│
▼ YES
Extract ID String & Stripped Index
(e.g., "cell_button_14" ──► index = 14)
│
▼
Does Cell Value == global expectedNumber?
│
▼ YES
┌─────────────────────────────────────┐
│ AsyncDelay1.GuardGate Enters │
│ Target ID: "temp-guard-cell-14" │
└──────────────────┬──────────────────┘
│
┌──────────────────┴──────────────────┐
▼ ▼
[ FIRST INSTANT TAP ] [ MULTIPLE RAPID TAPS ]
• Gate: UNLOCKED • Gate: LOCKED
• Turn Button Green • Event Intercepted & Dropped
• expectedNumber = expectedNumber + 1 • Zero State Corruption
│
▼
Is expectedNumber > maxLimit?
│
▼ YES (Win State Reached)
┌──────────────────────────────────────┐
│ 1. CALL AsyncDelay: "IntervalCancel" │ ──► Instantly Freezes
│ 2. Pop "You Win!" Dialog Notification│ 'GameTimer' Thread
└──────────────────────────────────────┘
Core Extensions Used
- Dynamic Components – Utilized for structural recycler pool rendering and view recycling.
- Async Delay – A custom-tailored background optimization framework for non-blocking state loops.
- Flexbox – Handles complex, responsive grid layout child arrangements seamlessly.
Open Source & Contributions
SchulteTable.aia (427.6 KB)
Feel free to ask questions about the game
Developer: Hridoy
Architecture Pattern: Dynamic Recycler Matrix Pool
