AsyncDelay
Package: com.hridoy.asyncdelay | Version: v1.0.0 | Min API: 14 | Size: 30.36 KB
Last Updated: June 5, 2026
What is AsyncDelay?
AsyncDelay is a high-performance asynchronous execution engine for MIT App Inventor 2. It solves one of the most common pain points in App Inventor development: doing things at the right time, without freezing your app.
Out of the box, App Inventor's Clock component is limited — it can't run multiple timers independently, it has no debounce or throttle logic, and scheduling a sequence of actions requires messy nesting. AsyncDelay replaces all of that with a clean, unified toolkit.
What you can do with AsyncDelay:
- Run code after a delay without blocking your UI
- Create multiple named interval loops that run independently
- Wait for a condition to become true before continuing
- Retry failed network calls automatically with smart backoff
- Prevent buttons from firing too quickly (debounce & throttle)
- Coordinate multiple async tasks and know when they've all finished
- Schedule a series of timed steps in sequence

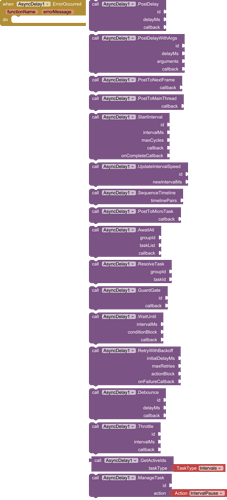

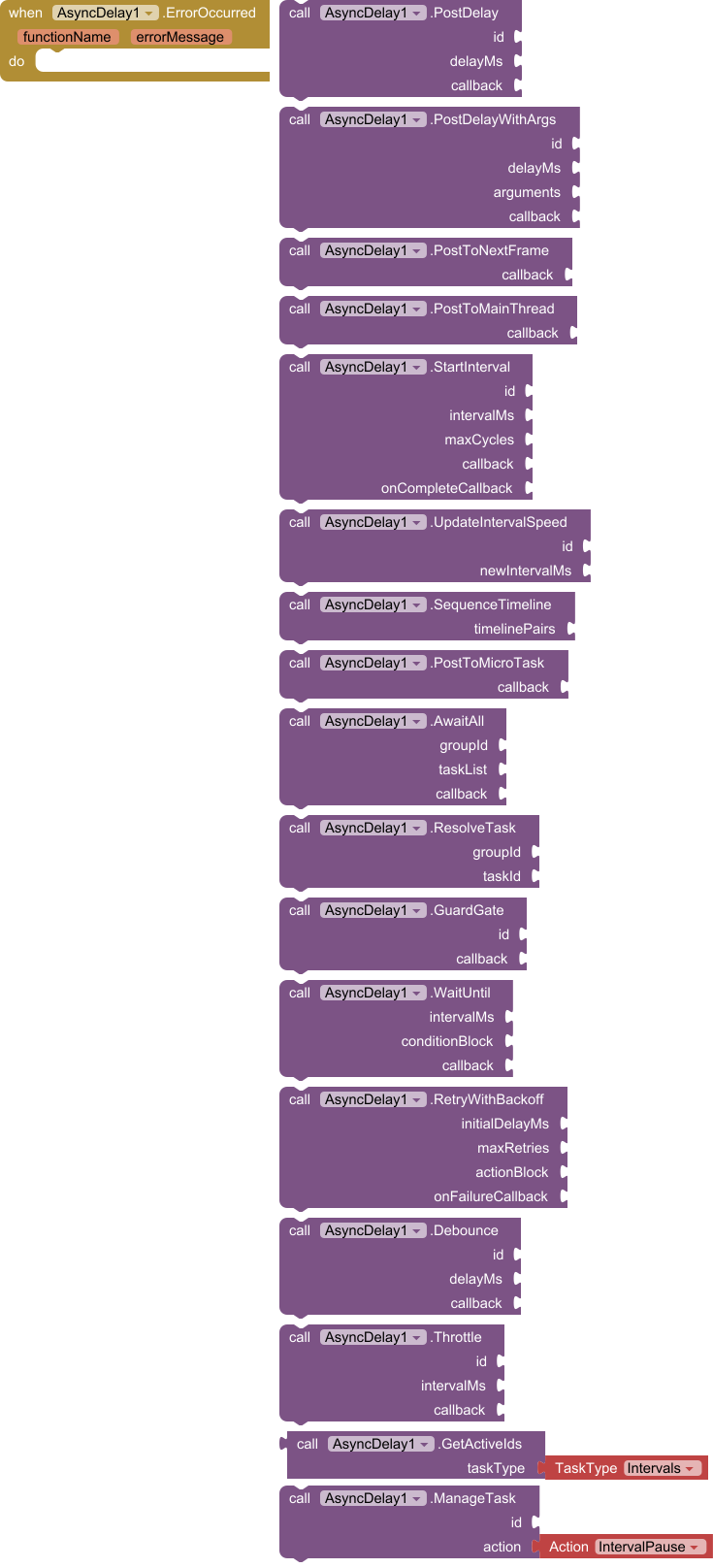

All Blocks
Quick Reference
| Method | What it does |
|---|---|
PostDelay |
Run code once, after a delay |
PostDelayWithArgs |
Run code once after a delay, passing in values |
StartInterval |
Repeat code on a timer (like a named Clock) |
UpdateIntervalSpeed |
Change the speed of a running interval |
SequenceTimeline |
Run a list of steps, each with its own delay |
WaitUntil |
Poll a condition, then act when it's true |
RetryWithBackoff |
Retry a failing task with increasing wait times |
Debounce |
Wait for input to stop before acting |
Throttle |
Limit how often an action can fire |
AwaitAll + ResolveTask |
Run a callback when multiple tasks all finish |
GuardGate |
Block or allow code paths using named gates |
PostToMainThread |
Update UI safely from a background process |
PostToNextFrame |
Sync an action to the next screen render |
PostToMicroTask |
Yield control, letting layouts render first |
ManageTask |
Pause, resume, or cancel any active task |
GetActiveIds |
List all currently running tasks of a given type |
GetRunningIntervalIds |
List all active interval loop IDs |
Event
ErrorOccurred
Fires whenever an asynchronous operation throws a runtime exception. Connect this event to a label or notifier to surface errors during development — it's your safety net across all async operations.
| Parameter | Type | Description |
|---|---|---|
functionName |
text | The method where the error occurred |
errorMessage |
text | A description of what went wrong |
Methods
1. PostDelay
Schedules a block of code to run on the main thread after a specified number of milliseconds. Use this any time you want to "do something later" without blocking the screen.
- Leave
idempty ("") for a simple fire-and-forget delay. - Provide a unique
idto make the delay cancellable and overwritable — callingPostDelaywith the same ID again resets the timer.
Callback parameters: none
| Parameter | Type | Description |
|---|---|---|
id |
text | Unique name for this delay, or "" for anonymous |
delayMs |
number | Wait time in milliseconds |
callback |
any | The procedure to run after the delay |
Example — Show a welcome message 2 seconds after the screen opens
Scenario: You want a toast notification to appear two seconds after Screen1 initializes, giving layouts time to render before drawing attention.
Block logic:
when Screen1.Initialize
call AsyncDelay.PostDelay
id: ""
delayMs: 2000
callback: (procedure
call Notifier1.ShowMessageDialog
message: "Welcome! Swipe left to get started."
title: "👋 Hello"
buttonText: "OK"
)
Why not just use Clock? You'd have to enable the Clock, handle the Tick event, then immediately disable the Clock again. PostDelay does all of that in one block, with no cleanup needed.
2. PostDelayWithArgs
Like PostDelay, but lets you pass a list of values into the callback. The values are captured at the moment of the call — even if the variables change later, the callback receives the original values.
Callback parameters: one parameter per item in your arguments list, in the same order.
| Parameter | Type | Description |
|---|---|---|
id |
text | Unique name, or "" for anonymous |
delayMs |
number | Wait time in milliseconds |
arguments |
list | Values to pass into the callback |
callback |
any | Procedure that receives those values |
Example — Animate a series of labels fading in one after another
Scenario: You have three labels (Label1, Label2, Label3) and want each one to appear 300 ms after the previous, all launched from a loop. Without argument capture, a loop variable would change before the callbacks fire.
Block logic:
// Loop i from 1 to 3
for each i from 1 to 3 step 1
call AsyncDelay.PostDelayWithArgs
id: ""
delayMs: (i × 300)
arguments: (make a list: i)
callback: (procedure [index]
set (select list item list: labelList index: index).Visible to true
)
Because the argument list is frozen at call time, index inside the callback will correctly be 1, 2, then 3 even though i has already moved on.
3. PostToNextFrame
Queues a callback to run at the very start of the next hardware display frame. Use this when you've made layout changes and need to read back a component's updated size or position — the values won't be correct until the frame has been calculated.
Callback parameters: none
| Parameter | Type | Description |
|---|---|---|
callback |
any | Procedure to run on the next frame |
Example — Read a label's width after dynamically setting its text
Scenario: You update a label's text and then need to know its rendered width to position another element next to it. Reading Label1.Width immediately after setting the text gives you the old width — you need to wait one frame.
Block logic:
set Label1.Text to "Dynamic Content"
call AsyncDelay.PostToNextFrame
callback: (procedure
set Image1.X to (Label1.Width + 8)
)
4. PostToMainThread
Schedules a block to run on the main UI thread. This is essential when you're receiving data from a background process (such as a Web component response or a Bluetooth listener) and need to update a label, button, or layout safely.
Callback parameters: none
| Parameter | Type | Description |
|---|---|---|
callback |
any | Procedure to run on the UI thread |
Example — Update a label after receiving a Web response
Scenario: Your app fetches live weather data. The response handler may fire on a background thread — directly updating UI components from there can cause crashes or visual glitches.
Block logic:
when Web1.GotText
call AsyncDelay.PostToMainThread
callback: (procedure
set LabelTemperature.Text to (call JsonParser.getTemperature responseContent)
set LabelTemperature.Visible to true
)
5. StartInterval
Creates a named, repeating timer loop identified by a unique id. Unlike a Clock component, you can run many of these simultaneously and manage each one independently.
- Set
maxCyclesto0for an infinite loop. - The
callbackreceives the current cycle number (starting at 1) on every tick. - The
onCompleteCallbackfires once whenmaxCyclesis reached. It never fires for infinite loops.
| Parameter | Type | Description |
|---|---|---|
id |
text | Unique name for this interval |
intervalMs |
number | Time between ticks in milliseconds |
maxCycles |
number | How many times to run (0 = infinite) |
callback |
any | Procedure run on every tick; receives currentCycle |
onCompleteCallback |
any | Procedure run when the loop finishes |
Example — Countdown timer that updates a label and shows "Time's up!" when done
Scenario: A quiz app needs a 10-second countdown. Each second the label updates, and when the countdown finishes a dialog appears.
Block logic:
call AsyncDelay.StartInterval
id: "quizCountdown"
intervalMs: 1000
maxCycles: 10
callback: (procedure [currentCycle]
set LabelTimer.Text to join (10 - currentCycle) "s remaining"
)
onCompleteCallback: (procedure
call Notifier1.ShowMessageDialog
message: "Time's up! Moving to the next question."
title: "⏰"
buttonText: "OK"
)
To stop the timer early (e.g. the user answers before time runs out):
call AsyncDelay.ManageTask
id: "quizCountdown"
action: IntervalCancel
6. UpdateIntervalSpeed
Changes the tick rate of an already-running interval without stopping it or resetting the cycle count. Useful for animations that need to speed up or slow down dynamically.
| Parameter | Type | Description |
|---|---|---|
id |
text | ID of the running interval to modify |
newIntervalMs |
number | New time between ticks in milliseconds |
Example — Speed up a loading animation as a task nears completion
Scenario: A spinner animation runs at 200 ms per frame normally, but you want it to accelerate to 80 ms when the app knows the loading is almost done.
Block logic:
// When upload reaches 80%
when ProgressBar1.Progress > 80
call AsyncDelay.UpdateIntervalSpeed
id: "spinnerLoop"
newIntervalMs: 80
7. SequenceTimeline
Executes a chain of timed steps from a structured list. Each item in the list is a two-item sub-list: [delayMs, callbackProcedure]. Steps fire in order, each one waiting delayMs milliseconds after the previous step finishes.
The callback receives currentIndex — the position of the currently running step.
| Parameter | Type | Description |
|---|---|---|
timelinePairs |
list | A list of [delayMs, procedure] pairs |
Example — Animate an onboarding intro sequence
Scenario: When a new user opens the app for the first time, you want to reveal UI elements one at a time with pauses between them for visual impact.
Block logic:
call AsyncDelay.SequenceTimeline
timelinePairs: (make a list:
(make a list: 0 (procedure [i] set LabelWelcome.Visible to true))
(make a list: 800 (procedure [i] set LabelTagline.Visible to true))
(make a list: 600 (procedure [i] set ButtonGetStarted.Visible to true))
(make a list: 400 (procedure [i] call AnimationUtils.fadeIn ButtonGetStarted))
)
Each step waits for the previous one plus its own delayMs before firing.
8. PostToMicroTask
Yields execution to the bottom of the current message queue — lower priority than PostToNextFrame. Use this when you need layouts to fully render before your code continues, without tying execution to a specific frame cycle.
Callback parameters: none
| Parameter | Type | Description |
|---|---|---|
callback |
any | Procedure to run after yielding |
Example — Read layout dimensions after a dynamic arrangement change
Scenario: You programmatically change the number of columns in a TableArrangement and then need to measure child widths. A microtask yield lets the layout pass complete first.
Block logic:
set TableArrangement1.Columns to 3
call AsyncDelay.PostToMicroTask
callback: (procedure
set globalCellWidth to (TableArrangement1.Width / 3)
)
9. AwaitAll
Sets up a group that waits for multiple named tasks to all complete before running a final callback. You define the task IDs upfront; each task calls ResolveTask when it finishes. The callback fires automatically once every task in the group has resolved.
Callback parameters: none
| Parameter | Type | Description |
|---|---|---|
groupId |
text | Unique name for this group |
taskList |
list | List of task ID strings to wait for |
callback |
any | Procedure to run when all tasks resolve |
Example — Wait for user profile, settings, and inventory to all load before showing the home screen
Scenario: Your app loads three independent data sources on startup. You want to show the home screen only after all three are ready.
Block logic:
call AsyncDelay.AwaitAll
groupId: "appStartup"
taskList: (make a list: "profileLoaded" "settingsLoaded" "inventoryLoaded")
callback: (procedure
call Screen1.navigateTo HomeScreen
)
// In your profile fetch success handler:
call AsyncDelay.ResolveTask groupId: "appStartup" taskId: "profileLoaded"
// In your settings fetch success handler:
call AsyncDelay.ResolveTask groupId: "appStartup" taskId: "settingsLoaded"
// In your inventory fetch success handler:
call AsyncDelay.ResolveTask groupId: "appStartup" taskId: "inventoryLoaded"
The home screen only opens after all three ResolveTask calls have been made, in any order.
10. ResolveTask
Marks a specific task inside an AwaitAll group as complete. When all tasks in the group have been resolved, the group's callback fires automatically.
| Parameter | Type | Description |
|---|---|---|
groupId |
text | The ID of the AwaitAll group this task belongs to |
taskId |
any | The ID of the task being marked complete |
See the AwaitAll example above for a complete usage pattern.
11. GuardGate
Only allows the callback to execute if the gate with the given id is currently open. If the gate is locked, the callback is silently dropped. Gates start unlocked by default; use ManageTask with GateLock / GateUnlock to control them.
Callback parameters: none
| Parameter | Type | Description |
|---|---|---|
id |
text | The gate identifier to check |
callback |
any | Procedure to run if the gate is open |
Example — Prevent duplicate form submissions
Scenario: A user taps a "Submit" button. You want to prevent the submit logic from running again while the request is in flight.
Block logic:
// Lock the gate as soon as submit starts
call AsyncDelay.ManageTask id: "submitGate" action: GateLock
call AsyncDelay.GuardGate
id: "submitGate" // This will now be locked — subsequent taps are dropped
callback: (procedure
call Web1.PostText url: apiUrl text: formData
)
// In Web1.GotText (response received):
call AsyncDelay.ManageTask id: "submitGate" action: GateUnlock
The gate blocks any rapid re-taps while waiting for a server response, and re-opens automatically once the response arrives.
12. WaitUntil
Repeatedly polls a condition block at the specified interval. The moment the condition returns true, the callback fires. The condition block receives checkCount — how many times it has been checked so far.
Use this to wait for something you don't control: a Bluetooth connection, a variable set by another component, or an asset that loads asynchronously.
| Parameter | Type | Description |
|---|---|---|
intervalMs |
number | How often to check the condition (ms) |
conditionBlock |
any | Procedure returning true or false; receives checkCount |
callback |
any | Procedure to run once the condition is true |
Example — Wait for a Bluetooth device to connect before sending data
Scenario: The user taps "Connect," and your app waits for BluetoothClient.IsConnected to become true before sending an initialization command.
Block logic:
call AsyncDelay.WaitUntil
intervalMs: 500
conditionBlock: (procedure [checkCount]
return BluetoothClient1.IsConnected
)
callback: (procedure
call BluetoothClient1.SendText text: "INIT"
set LabelStatus.Text to "Device ready"
)
The check runs every 500 ms and stops automatically once connected — no manual cleanup required.
13. RetryWithBackoff
Runs an action and, if it fails, retries it after an increasing delay (exponential backoff). The first retry waits initialDelayMs, the second waits initialDelayMs × 2, the third waits initialDelayMs × 4, and so on. If all retries are exhausted, onFailureCallback fires.
The actionBlock receives currentRetry (starting at 1). To signal a failure and trigger a retry, call the retry trigger from inside the action block.
| Parameter | Type | Description |
|---|---|---|
initialDelayMs |
number | Wait time before the first retry |
maxRetries |
number | Maximum number of attempts |
actionBlock |
any | Procedure to attempt; receives currentRetry |
onFailureCallback |
any | Procedure to run if all retries fail |
Example — Retry a failed API request up to 4 times
Scenario: Your app posts data to a server. Network conditions are unreliable, so you want to retry automatically with spacing between attempts rather than hammering the endpoint.
Block logic:
call AsyncDelay.RetryWithBackoff
initialDelayMs: 1000
maxRetries: 4
actionBlock: (procedure [currentRetry]
set LabelStatus.Text to join "Attempt " currentRetry "..."
call Web1.PostText url: apiUrl text: payload
// In Web1.GotText, if response code is not 200 → trigger retry
)
onFailureCallback: (procedure
set LabelStatus.Text to "Upload failed after 4 attempts. Check your connection."
)
Retry delays will be: 1 s → 2 s → 4 s → 8 s.
14. Debounce
Delays a callback until input has stopped for delayMs milliseconds. Every time the debounced call is triggered, the timer resets. The callback fires only once, after the burst of input ends.
Classic use case: search-as-you-type — you don't want to fire a server query on every keystroke, only when the user pauses.
Callback parameters: none
| Parameter | Type | Description |
|---|---|---|
id |
text | Unique name for this debounce |
delayMs |
number | Silence period before the callback fires |
callback |
any | Procedure to run after input pauses |
Example — Search a database only after the user stops typing
Scenario: A search box queries a local SQLite database. Querying on every character change is wasteful — debouncing waits until the user finishes typing.
Block logic:
when TextBox1.TextChanged
call AsyncDelay.Debounce
id: "searchDebounce"
delayMs: 400
callback: (procedure
call DatabaseSearch TextBox1.Text
)
If the user types "hello" quickly, only one database call is made — 400 ms after the last keystroke.
15. Throttle
Limits an action to fire at most once per interval window. Unlike debounce (which waits for input to stop), throttle lets the first call through immediately and then silently drops any calls that arrive within the window.
Use throttle for buttons, scroll events, or sensor readings where you want regular updates but not an overwhelming flood.
Callback parameters: none
| Parameter | Type | Description |
|---|---|---|
id |
text | Unique name for this throttle |
intervalMs |
number | Minimum time between allowed executions |
callback |
any | Procedure to run when the window is open |
Example — Prevent a "Like" button from being spammed
Scenario: A social feed has a heart button. You want it to register at most once every 2 seconds, no matter how fast the user taps.
Block logic:
when ButtonLike.Click
call AsyncDelay.Throttle
id: "likeThrottle"
intervalMs: 2000
callback: (procedure
call Web1.PostText url: likeEndpoint text: postId
set ButtonLike.Image to "heart_filled.png"
)
16. GetActiveIds
Returns a list of currently tracked task IDs filtered by type. Use this to inspect the state of your app's async operations at runtime — handy for debugging or for building pause-all / cancel-all functionality.
Returns: list
| Parameter | Type | Options |
|---|---|---|
taskType |
TaskType | Intervals, Delays, Debounces, Throttles, LockedGates |
Example — Cancel all pending delays when navigating away from a screen
when Screen1.BackPressed
set pendingDelays to call AsyncDelay.GetActiveIds taskType: Delays
for each delayId in pendingDelays
call AsyncDelay.ManageTask
id: delayId
action: DelayCancel
17. ManageTask
A unified control panel for managing the lifecycle of any active async operation. Pass in the target id and the action to perform.
| Parameter | Type | Description |
|---|---|---|
id |
text | ID of the task to manage |
action |
Action | One of the supported actions below |
Supported Actions:
| Action | What it does |
|---|---|
IntervalPause |
Freezes an interval loop without losing the cycle count |
IntervalResume |
Resumes a paused interval |
IntervalCancel |
Permanently stops and removes an interval |
DebounceCancel |
Cancels a pending debounced callback |
ThrottleCancel |
Releases a throttle lock immediately |
DelayCancel |
Cancels a scheduled PostDelay or PostDelayWithArgs |
GateLock |
Closes a guard gate — future GuardGate calls with this ID are dropped |
GateUnlock |
Opens a guard gate — future GuardGate calls with this ID pass through |
Example — Pause and resume a game loop when the app goes to background
Scenario: Your game runs its physics and rendering on an interval called "gameLoop". When the user leaves the app (screen loses focus), you pause it. When they return, you resume.
Block logic:
when Screen1.OtherScreenClosed
call AsyncDelay.ManageTask id: "gameLoop" action: IntervalPause
when Screen1.Initialize
call AsyncDelay.ManageTask id: "gameLoop" action: IntervalResume
The cycle count is preserved across the pause — the loop continues exactly where it left off.
Glossary
| Term | Meaning |
|---|---|
| Callback | A procedure block passed into a method, called automatically when the time or condition is right |
| Debounce | Delay execution until input stops — fires once after a burst |
| Throttle | Allow execution at most once per time window — drops extra calls |
| Backoff | Increasing delay between retries to avoid overwhelming a server |
| Gate | A named on/off switch that controls whether a block of code is allowed to run |
| AwaitAll | A coordination pattern that waits for multiple independent tasks to finish |
| Frame | A single rendering pass of the Android display — typically ~16 ms at 60 fps |
| Main Thread | The UI thread; all component property changes must happen here |
Download
Open Source
Tips & Best Practices
Always give intervals a meaningful ID. IDs like "healthBar", "countdownTimer", and "syncLoop" are far easier to debug than "timer1" or "loop".
Use debounce for text input, throttle for buttons. Debounce waits for the user to stop — throttle just slows the rate. They solve different problems.
Connect ErrorOccurred during development. Route it to a visible label or Notifier so exceptions surface immediately rather than silently disappearing.
Use AwaitAll instead of nesting delays. Deeply nested PostDelay chains are hard to read and maintain. AwaitAll + ResolveTask expresses the same intent far more clearly.
PostToMainThread before touching UI from Web responses. Even if it seems to work without it, updating UI from a non-main thread is undefined behavior on Android and can cause intermittent crashes on real devices.
