WavySlider - Sine wave slider

[Joejsanz]

WavySlider

Sine wave slider

Customizable:

• Left color (progress), Right color and Thumb.
• Wave length and Height.
• Speed.

---

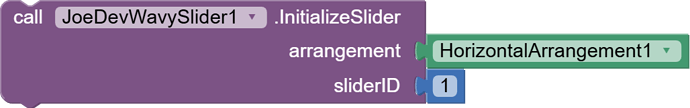

InitializeSlider

Initializes the slider within an HVArrangement.

---

SetSliderRange

Sets the range (min, max) and increment step of the slider.

Increment values ​​can be integers or floats.

• min: 0
max: 100

Increments can be any int number, if it's 3, it will jump like this:
0, 3, 6, 9, 12 ...
Same with float values, if it's 0.4:
0, 0.4, 0.8, 1.2 ...

---

SetSliderColors

Sets the colors of the slider, only AI2 and RGB colors.

---

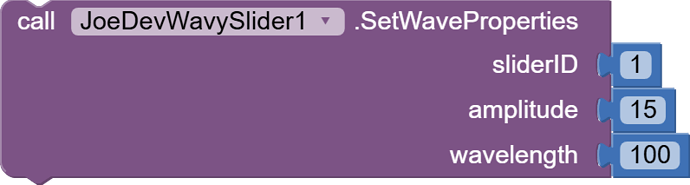

SetWaveProperties

Sets the amplitude (wave height) and wavelength of the progress, values ​​in integers.

---

SetWaveSpeed

Sets the speed of the wave, values ​​in integers.

---

GetSliderMinValue

Gets the minimum value.

---

GetSliderMaxValue

Gets the maximum value.

---

SetSliderThumbPosition

---

GetThumbPosition

Get the current thumb position.

---

SliderStopTracking

Fired when the slider stops being tracked.

---

SliderMaxValue

Fired when the slider reaches its maximum value.

---

Update v1.0.2 Mar 08, 2025.

• Added a new parameter: fromUser to the SliderValueChanged event.

SliderValueChanged

Fired when the slider value changes.

Now the SliderValueChanged event detects whether the slider is manipulated manually or by code.

For example:

If it is being manipulated by the user (with the thumb) the parameter fromUser will return true or programmatically (by a timer) it will return false.

---

aia project:
WavySlider.aia (17.1 KB)

Extension v1.0.2.
joejsanz.joedevwavyslider.aix (13.5 KB)

---

minSdk: 21
maxSdk: 34
JDK: 11

Built using: FAST-CLI v2.6.0

---

Thanks.

[Anke]

As with the Slider component, are 100 values ​​distributed over the respective interval? If so, shouldn't it then be "float min: 0.0, max: 10" if increment = 0.1?

[Joejsanz]

Not necessarily, if you put a range of 100, of course it will.

By putting 0.01, you increase the decimals, you can use any number.

This is what I have to calculate:

data.minValue = min;
data.maxValue = max;
data.increment = increment;
data.seekBar.setMax((int) ((max - min) / increment));

And in the value change event the formula is used:

double value = data.minValue + progress * data.increment;

[Anke]

[Anke]

... but

[Joejsanz]

I've seen the error and it's not just in that number.
I've left the computer for now, but I'll fix it tomorrow when I have access.

[Patryk_F]

What happens if we give min- 0, max- 10 and increment- 0.3?

[Joejsanz]

@Patryk_F

min- 0, max- 10 and increment- 0.3?

It will increase from 0.3 to 0.6. 0.9... until reaching 9.9.
The same if you put the -, it will reach -9.9.

[Joejsanz]

Update

@Joejsanz

• Fixed a bug with the value obtained from the thumb position when using decimals.
• Added a function to get the value of the current thumb position.

GetThumbPosition

Get the current thumb position.

---

aia project:
WavySlider.aia (17.1 KB)

Extension:
Version 1.0.1 - Jan 8, 2025
joejsanz.joedevwavyslider.aix (13.3 KB)

Created with Fast. v2.2.0
fast-cli

minSdk: 21, maxSdk: 34, JDK: 11

[Joejsanz]

Update v1.0.2 Mar 08, 2025.

@Joejsanz

• Added a new parameter: fromUser to the SliderValueChanged event.

SliderValueChanged

Fired when the slider value changes.

Now the SliderValueChanged event detects whether the slider is manipulated manually or by code.

For example:

If it is being manipulated by the user (with the thumb) the parameter fromUser will return true or programmatically (by a timer) it will return false.

---

Extension v1.0.2.
joejsanz.joedevwavyslider.aix (13.5 KB)

This update was to help prevent interference between the Player's SeekTo function when used in the SliderValueChanged event and SetSliderThumbPosition when used in a timer.
Since using both would cause the music to crash.
