Subject: SendMessageDirect stopped working since yesterday in new APK builds (works in old builds)

[Aram_Kheranyan]

Hello everyone,

I'm facing a critical issue with the Texting component's SendMessageDirect block that started just yesterday.

The Problem: My app has been functioning perfectly for months. However, starting from yesterday, any new APK I build fails to send SMS via SendMessageDirect. The app simply freezes or hangs when the block is triggered.

The strange part is that if I install an older APK of the same project (built a few days ago), it still works perfectly on the same device. This confirms that the device, SIM card, and network are all fine. The issue seems to be strictly related to the new builds generated by the App Inventor server since yesterday.

Device Details:

• Device: Xiaomi (MIUI)

• Android Version: 10

• App Inventor Version: Latest (nb197)

What I've tried:

1. Verified that all permissions (SEND_SMS, Read Phone State) are granted.

2. Enabled "Send SMS in background" and "Service SMS" in Xiaomi's "Other Permissions" settings.

3. Added the AskForPermission block for android.permission.SEND_SMS on Screen Initialize, but it didn't solve the issue.

4. Tested with the regular SendMessage block (the one that opens the SMS app), and it works fine. Only SendMessageDirect is broken.

5. Checked for RCS/Chat features and confirmed they are disabled.

It feels like something changed in the way the build server handles the Manifest or SDK targeting in the last 24 hours. Is anyone else experiencing this? Is there a fix or a specific workaround for apps that require background SMS sending?

I am using this for a private industrial project with 100+ devices, so SendMessageDirect is essential for our workflow.

Any urgent help would be greatly appreciated!

[Taifun]

@Aram_Kheranyan

The app simply freezes or hangs when the block is triggered.

Use logcat to find out whats going on

Capturing Device Logs using adb logcat

ADB is a command-line utility that that can be used to control your device over USB from a computer. It will allow you to install / uninstall and or view logs on your device. This could be very handy when there are issues with a specific app and you like to view the logs for information that may lead to identify the cause of error. In this post, we’ll discuss how to install and use ADB. Installation: ADB comes with Android SDK. However, you can download ONLY the ADB files from HERE . EDIT: …

Taifun

[Aram_Kheranyan]

Thank you so much for your guidance! I've managed to get the Logcat, and here is the specific error causing the crash:

java.lang.IllegalArgumentException: One of either RECEIVER_EXPORTED or RECEIVER_NOT_EXPORTED is required

It seems the latest App Inventor build server update (targeting SDK 34) has broken the standard Texting component because it's missing the required flags for Runtime Receivers in Android 14.

I've attached the Logcat screenshot for reference. I hope the MIT team can fix this soon, as it's affecting many users who rely on the SendMessageDirect block. Thanks again for the help with ADB!"

[ewpatton]

Please provide the whole stack trace.

[Aram_Kheranyan]

Hello Evan, here is the stack trace from the logcat when calling SendMessageDirect on Android 14 (SDK 34/35):

Plaintext

java.lang.IllegalArgumentException: com.google.appinventor.components.runtime: Targeting S+ (version 31 and above) requires that one of FLAG_IMMUTABLE or FLAG_MUTABLE be specified when creating a PendingIntent.
at android.app.PendingIntent.checkFlags(PendingIntent.java:408)
at android.app.PendingIntent.getBroadcastAsUser(PendingIntent.java:675)
at android.app.PendingIntent.getBroadcast(PendingIntent.java:662)
at com.google.appinventor.components.runtime.Texting.sendSmsDirect(Texting.java:551)

It seems the Texting component is missing the PendingIntent flags required for newer Android versions.

[TIMAI2]

You running any (older) extensions in your project ?

[Aram_Kheranyan]

"I am not using any extensions. To clarify, an APK I built 2 days ago works perfectly on the same device. However, a new APK built today from the same project fails with the PendingIntent error when calling SendMessageDirect. This confirms that the issue started with a recent update on the MIT App Inventor server side." "To be 100% sure the issue is not with my specific project, I created a brand new, empty project. I added only the Texting component and a single button to call SendMessageDirect. Even in this completely blank project, it fails with the same error on Android 14. This confirms the issue is within the built-in Texting component itself, not my app's logic or any extensions."

[ewpatton]

Which server are you using to build this? sendSmsDirect no longer exists in the code base with this latest release.

[Aram_Kheranyan]

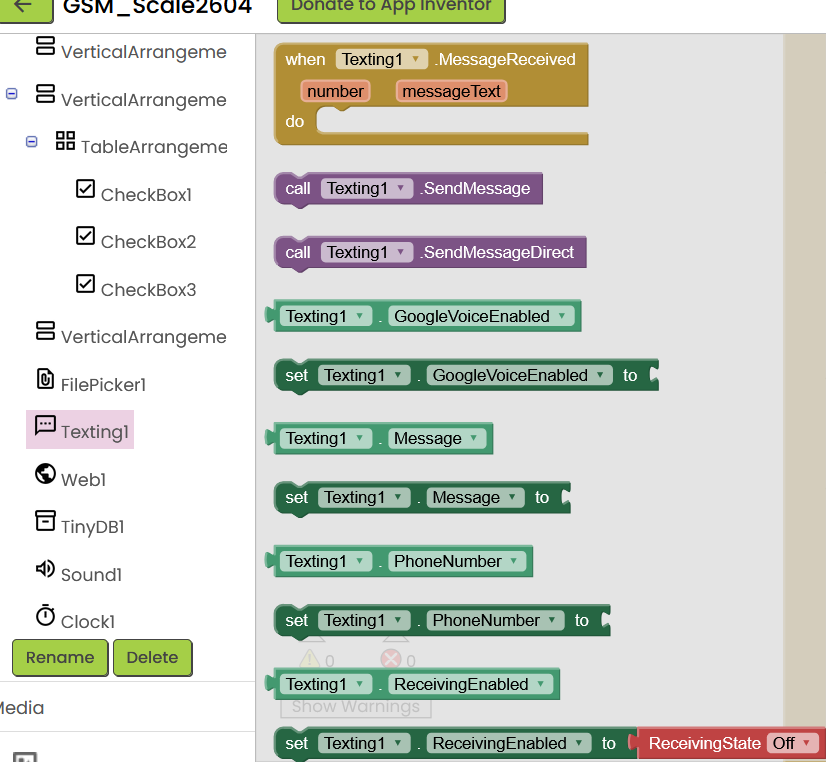

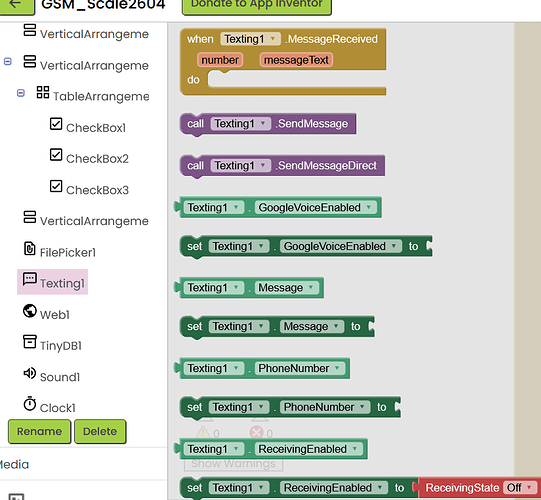

"I am using the official server: ai2.appinventor.mit.edu. The SendMessageDirect block is still present in my Blocks Editor and I can add it to my project. If it was removed from the code base, why is the block still available in the UI? My project relies on sending SMS automatically for a beekeeping monitor. If this is deprecated, what is the recommended way to send background SMS now?"

[Boban]

This might help.

While using texting component Runtime Error: can only use lower 16 bits for...

newsms.aia (43.7 KB)

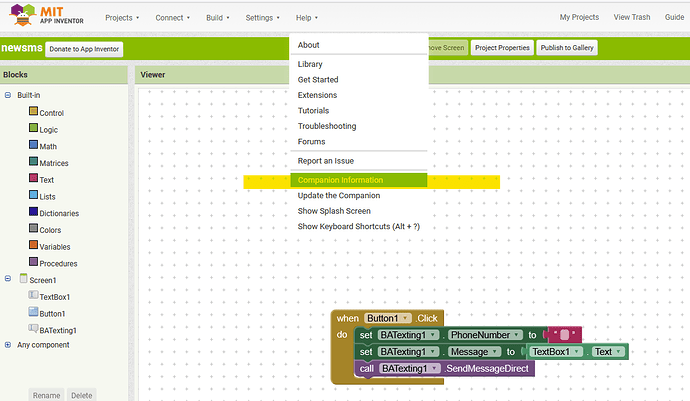

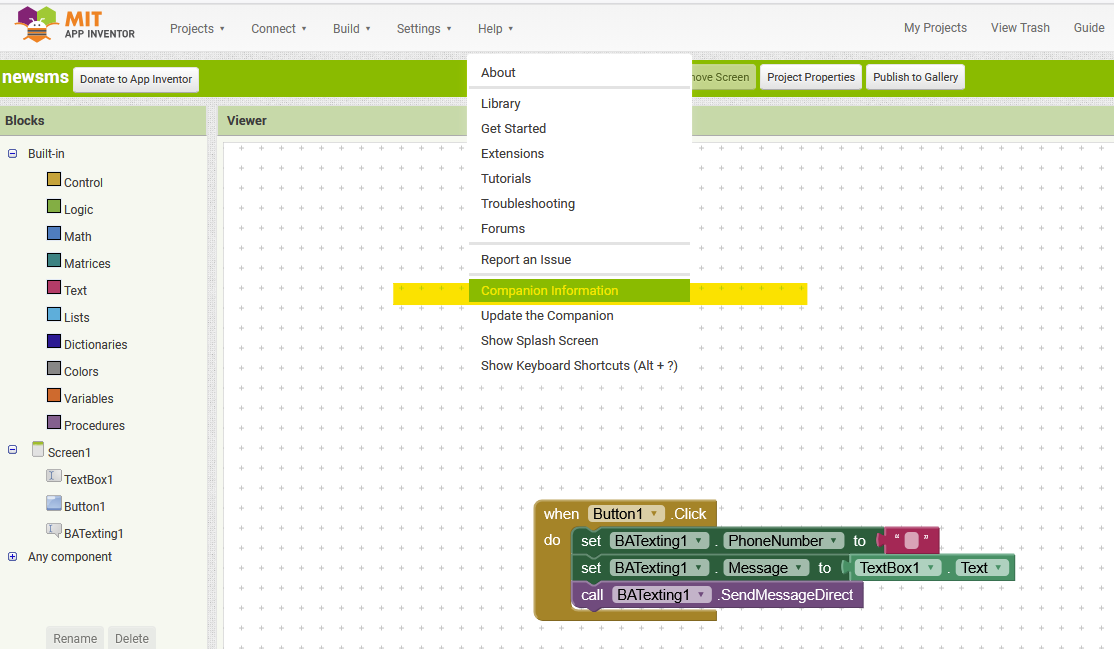

Also grab this companion instead if you want to live test without needing to build and install every time.

[Aram_Kheranyan]

"Thank you so much, @Boban! Your extension fixed the issue perfectly. It turns out the official MIT Texting component was missing the internal sendSmsDirect method in the latest build, but your com.baasapps.BATexting.v3.aix works flawlessly on Android 14. This was a lifesaver for my beekeeping monitor project. I really appreciate your help and for providing the fix so quickly!"

[TIMAI2]

@Aram_Kheranyan

I am using this for a private industrial project with 100+ devices, so SendMessageDirect is essential for our workflow.

@Aram_Kheranyan

This was a lifesaver for my beekeeping monitor project.

[Aram_Kheranyan]

Exactly, @TIMAI2! I was surprised too when my beekeeping monitor app started crashing on Android 14. Even though I am a beginner, I realized that if SendMessageDirect is broken or missing in the source, it's a huge issue for many IoT and industrial projects like yours. I'm glad we found Boban's extension as a temporary (or permanent) fix. It’s important that we keep this functionality available for those of us who build internal tools and don't publish on Google Play."

[ewpatton]

I think you are just using AI to respond, which is not helpful.

The SendMessageDirect block continues to be in App Inventor. Your stack trace shows a reference to com.google.appinventor.components.runtime.Texting.sendSmsDirect(Texting.java:551). That internal function does not exist in our current production code base, so the APK you are installing is built with another system and/or an older APK from a previous version of App Inventor. Make sure to uninstall and remove any older APKs so you don't install a version built with a previous version of App Inventor.

[Aram_Kheranyan]

"Hello Evan, I apologize if my messages seem automated; I am using an AI translator because my English is not very strong. However, the issue I’m reporting is very real.

I am using the official production server (ai2.appinventor.mit.edu). I have already uninstalled the old APKs and cleared the cache, but the crash still happens with the built-in Texting component's SendMessageDirect block on Android 14. If that internal function was removed from your code base but the block is still in the Designer, that is exactly why the crash occurs—the block is calling a method that no longer exists.

Thanks to Boban's extension, my project is working now, but I wanted to report this because other users will likely face the same 'NoSuchMethodError' when using the standard component. Thank you for your time."

[ewpatton]

I just built an app for Android 15 with the block and it is working fine. I don't understand how Boban's issue actually solves this problem with the production version. @Boban can you elaborate what is going on here?

[Aram_Kheranyan]

"One more thing, Evan. I have tested this on three different Android 10 devices as well. Just two days ago, everything was working perfectly on those same devices. Now, when I build a new APK from the production server, it crashes on Android 10 too.

This proves the issue is not specific to Android 14 or 15 permissions. It shows that the current build server is generating APKs where the sendSmsDirect method is missing, even though the block is still available in the editor. This is why Boban's extension is the only thing that works right now—it brings back the code that the production server seems to have lost in the last couple of days."

[ewpatton]

Would you mind sending me your AIA file so I can run some tests on it?

[Aram_Kheranyan]

@ewpatton

"Sure, Evan. Here is the AIA file of my project. I don't have any sensitive passwords in it, so you can test it exactly as it is. As I mentioned, this logic was working perfectly on all my devices just a few days ago, but now it results in a crash with the standard Texting component. Looking forward to your findings!"

GSM_Scale2604(1).aia (7.7 MB)

[Aram_Kheranyan]

"I am confident that this AIA might work perfectly if you build it on your internal test servers. However, when I build it using the public server (ai2.appinventor.mit.edu), it crashes on my devices. Please check if there is a discrepancy between the public build server and your local environment regarding the Texting component."
