Styles Extension for MIT App Inventor: A Deep Dive into UI Customization

[Erik_Boivin]

none
.. theres 2 version i saw this started when i deleted version 1 to place version2 then that happened

[mahmoud_hooda]

@Black_Knight
add this:

@SimpleFunction(description = "Apply rotation to a view. Value ranges from 0 to 360 degrees.")
public void ApplyRotate(AndroidViewComponent view, int value) {
    View targetView = view.getView();

    // Clamp the rotation value between 0 and 360 for safety
    float rotation = Math.max(0, Math.min(360, value));

    // Set pivot point to the center of the view
    targetView.setPivotX(targetView.getWidth() / 2f);
    targetView.setPivotY(targetView.getHeight() / 2f);

    // Apply rotation
    targetView.setRotation(rotation);
}

[Black_Knight]

This fuction apply rotation to the components?

[mahmoud_hooda]

Yeah, it is

[Black_Knight]

Nice one , I will add it in the next update ,
Thanks @mahmoud_hooda

[Tom4]

Is there a way to have multiple "viewComponent" in the "call styles .SetCornerRadius"? Trying to keep from having a call block for every component that has the same radius.

[Pralaya_Ranjan_Beher]

when using this extension , app build error saying d8 error. i m using other extension recyclerlist, does it conflicts the library? if yes, then how to compile without error

[Black_Knight]

I am using material dialogs liberary but I don't know how this may cause a conflict,
I will check it again

[Muhammed_Shahim]

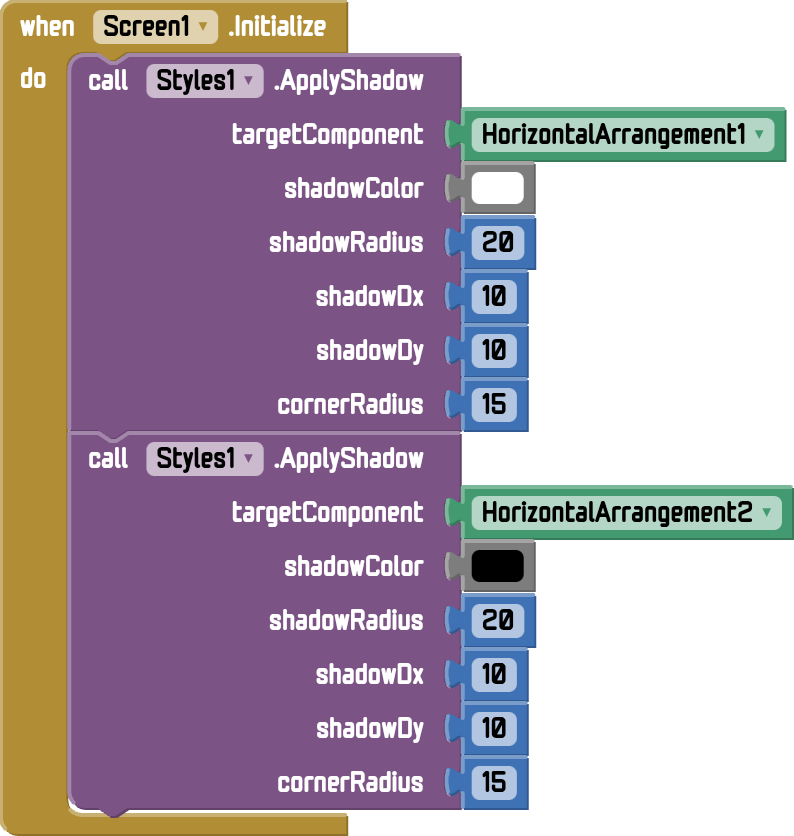

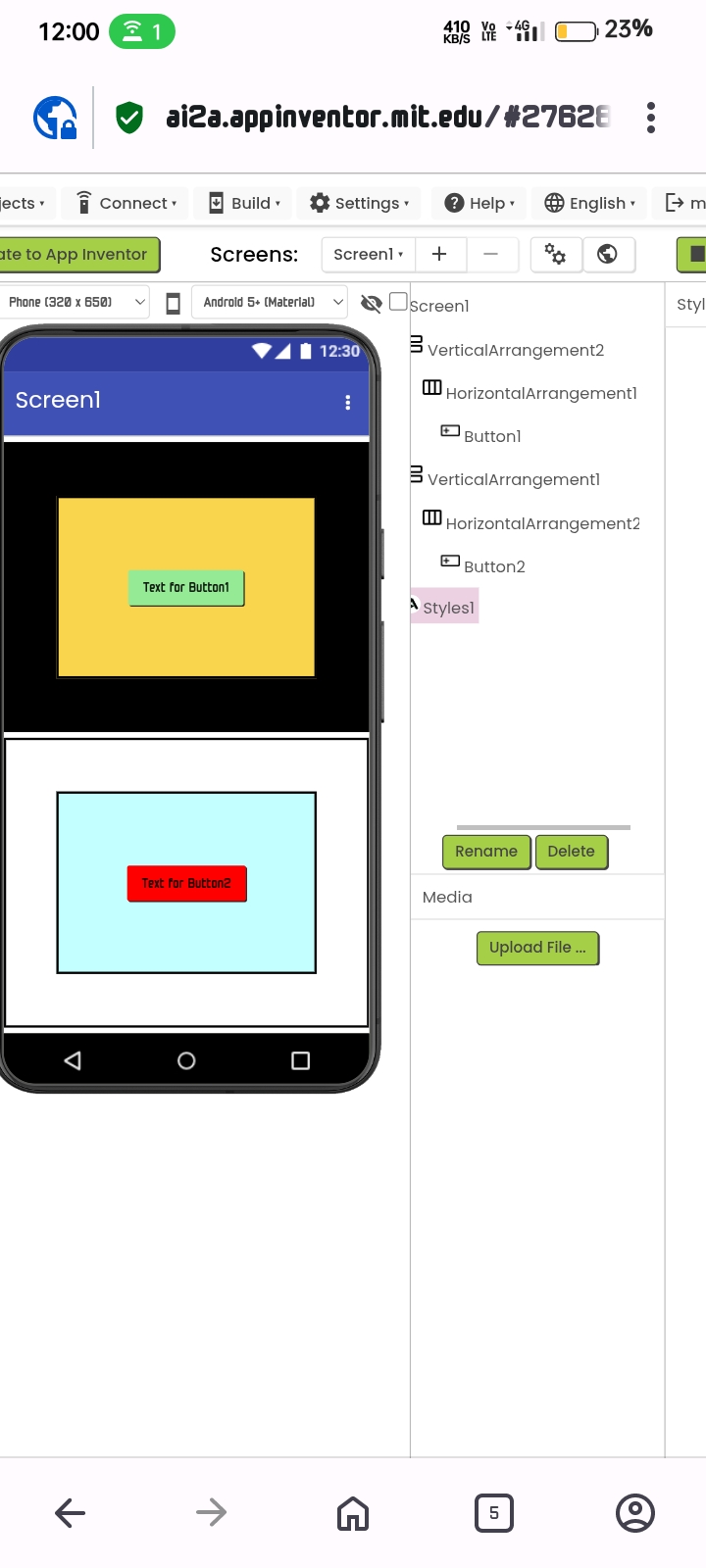

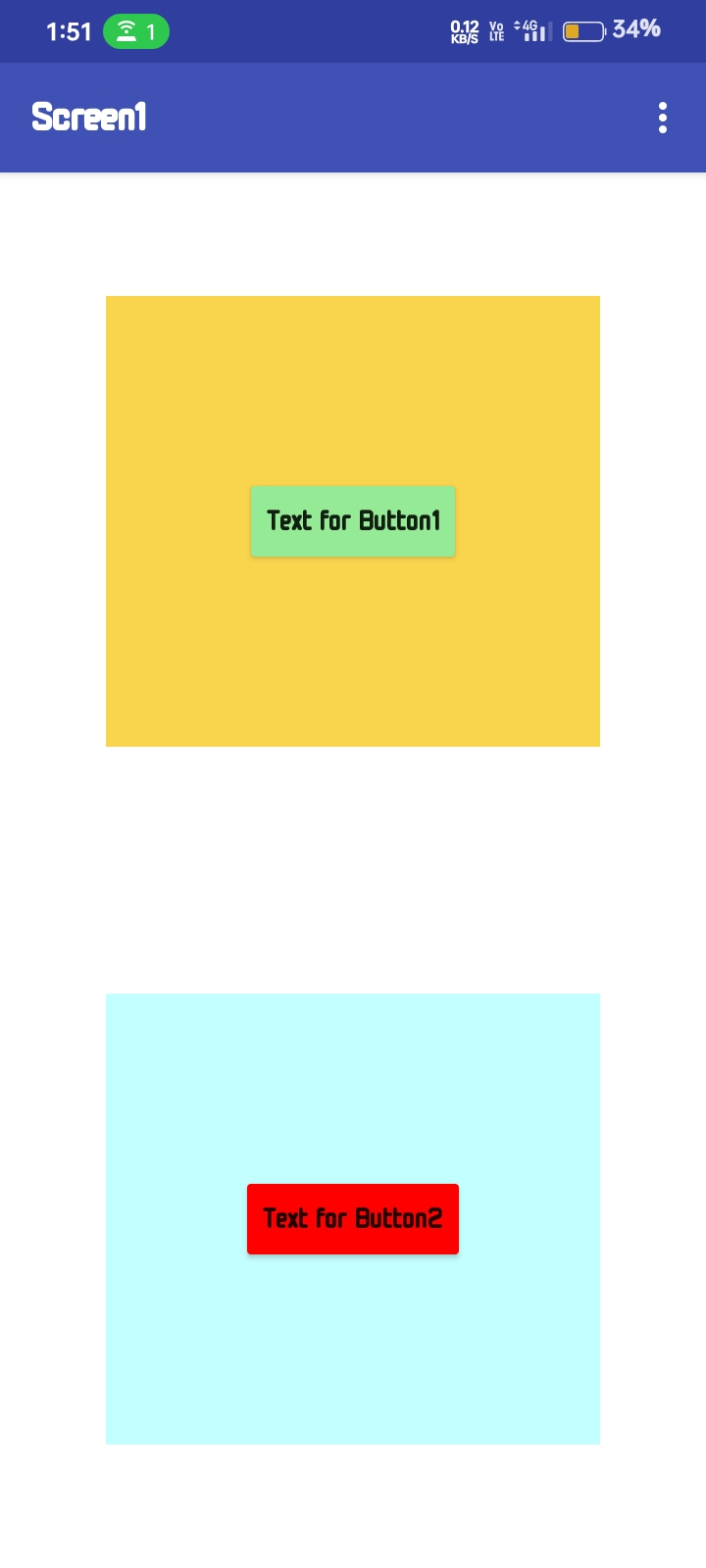

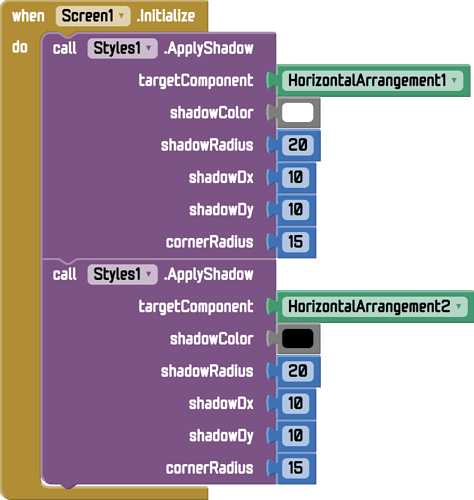

Why can't I see Shadow here?

[Black_Knight]

Hello @Muhammed_Shahim
Try to set the background color to default from the Designer Screen and try again

[Muhammed_Shahim]

It's the default color.

I've tried it many times, I've tried it with many different colors.

[Black_Knight]

Hello @Muhammed_Shahim firstly thanks for reporting this issue , I really appriciate this , and the good new is that the Applying shadow effect fixed also I have just added new block that ApplyNeumorphism

@Black_Knight

styles.aix-V3 (71.5 KB)( shadow effect fixed and Neumorphism effect added )

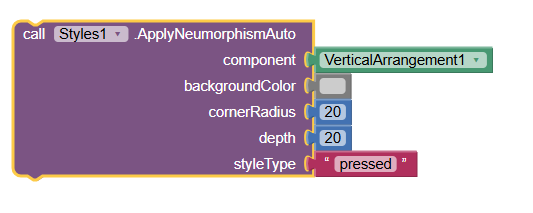

styleTypes:
"flat" "concave" "convex" "pressed"

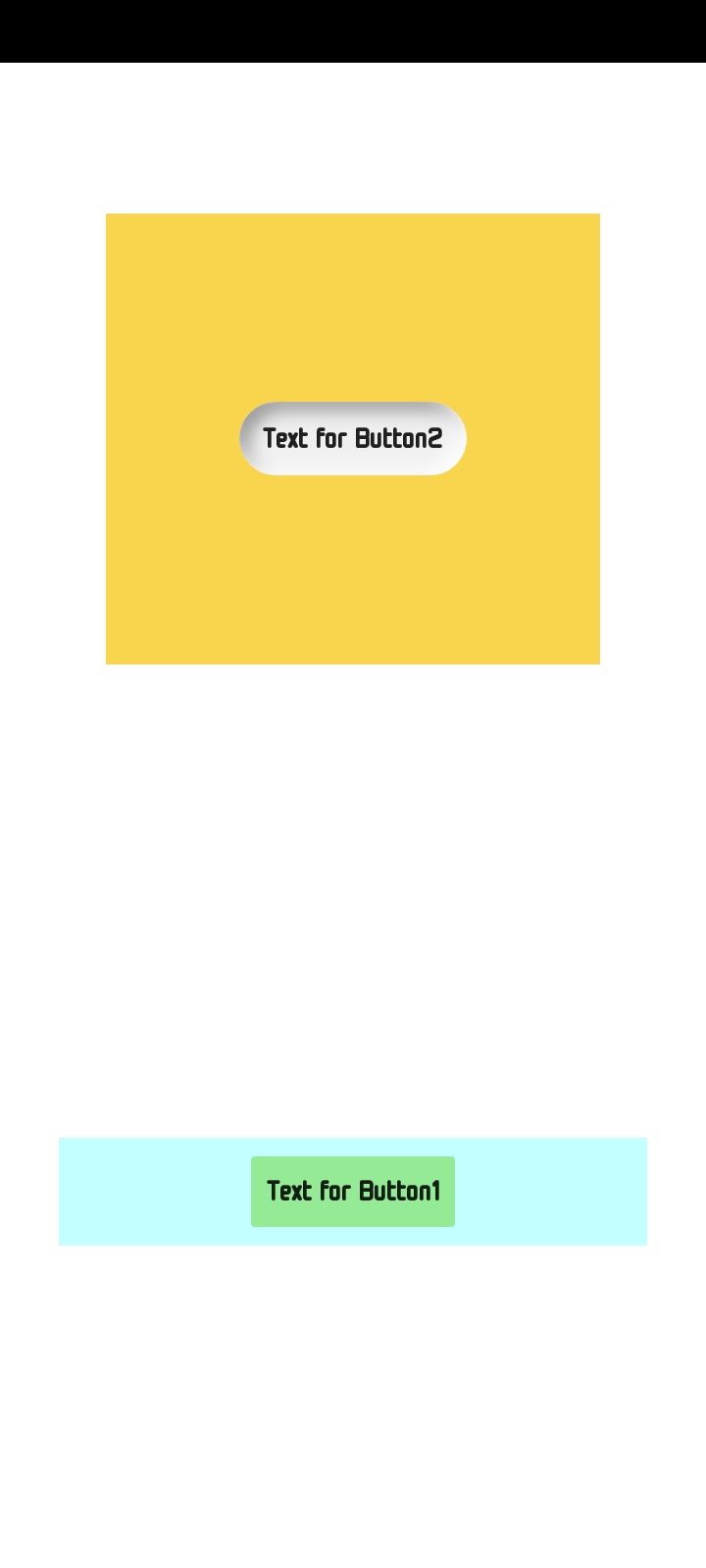

Result this :

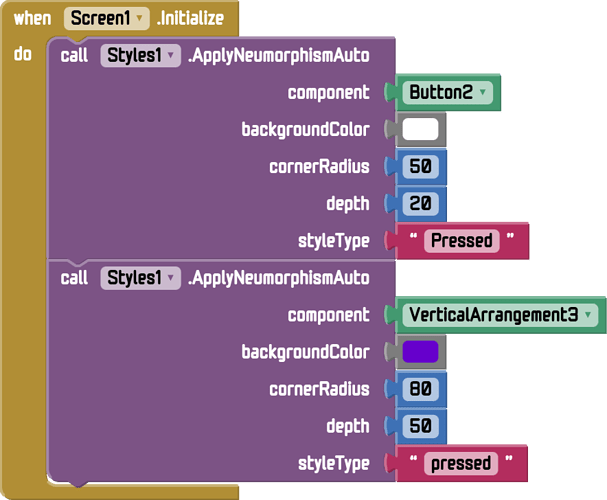

[Muhammed_Shahim]

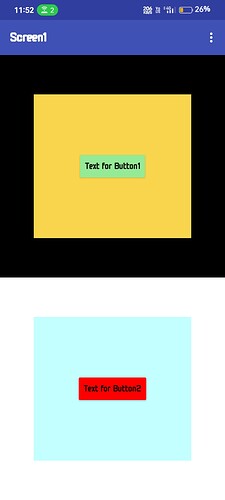

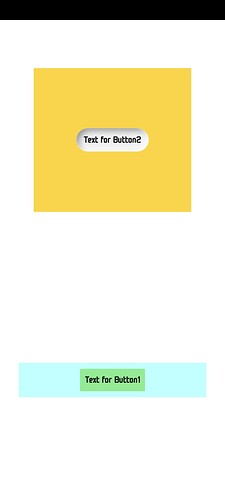

Now this is a wrong program.

This is a very good property but,
The ApplyNeumorphism button only works on components, not on layouts.

[Ahmed_Islam]

And yeah, I'M HAVING TROUBLES WITH THE "V2" EXTENSION...

WHAT IS THE MEANING OF "F"...

[TIMAI2]

If you read the documentation in the first post you could probably have figured it out.

f -> blurRadius (float)

Agreed that both the block content and the tool tip could provide more detail...
