ScrollBar
Show or hide the scroll bar of arrangements, make static arrangements scrollable, enable scheduled smooth scrolling.

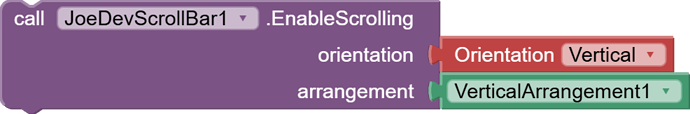

EnableScrolling

Wrap an arrangement in a ScrollView to enable scrolling.

blocks (51)
blocks (51)986×164 22.1 KB

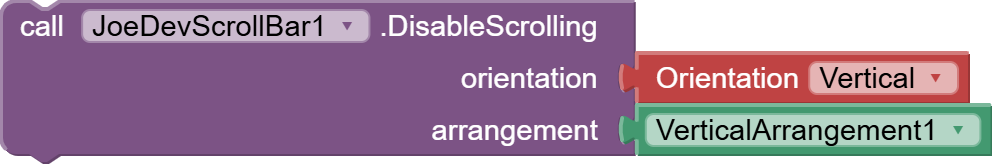

DisableScrolling

Remove ScrollView wrapping to disable scrolling.

blocks (52)
blocks (52)992×164 22.1 KB

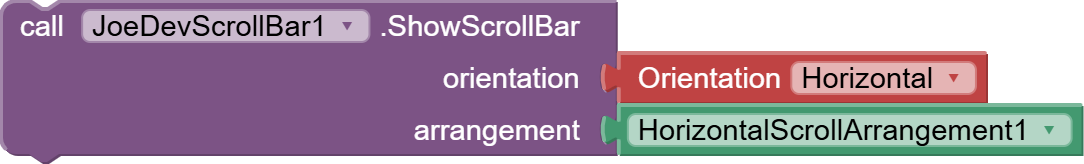

ShowScrollBar

Show scrollbar for an arrangement.

blocks (49)
blocks (49)1084×164 24 KB

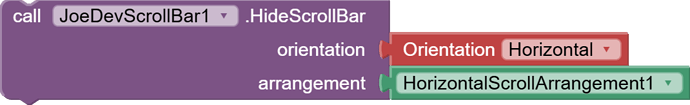

HideScrollBar

Hide scrollbar for an arrangement.

blocks (50)
blocks (50)1070×164 23.5 KB

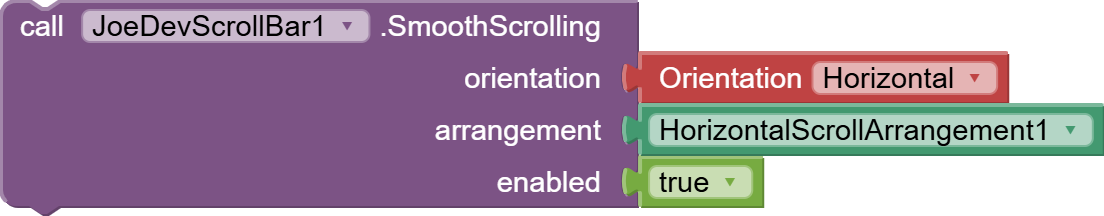

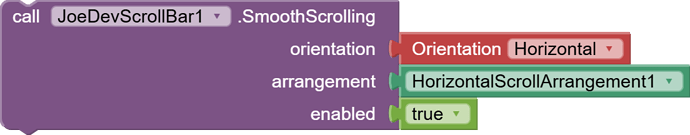

SmoothScrolling

Set smooth scrolling for an arrangement.

blocks (53)
blocks (53)1104×216 28.5 KB

  • With Smooth Scrolling = true
    Scrolling is animated and gradual.

  • With SmoothScrolling = false
    Scrolling is immediate and abrupt.

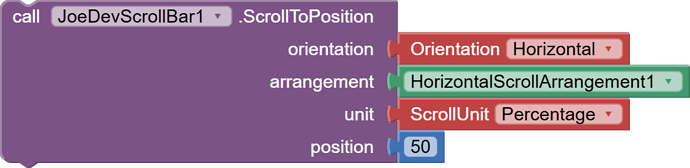

ScrollToPosition

Scroll to specific position in an arrangement. Unit as 'px' or '%'.

blocks (57)
blocks (57)1100×268 34 KB

  • Percentage values ​​can be decimals.
    For example: 33.5

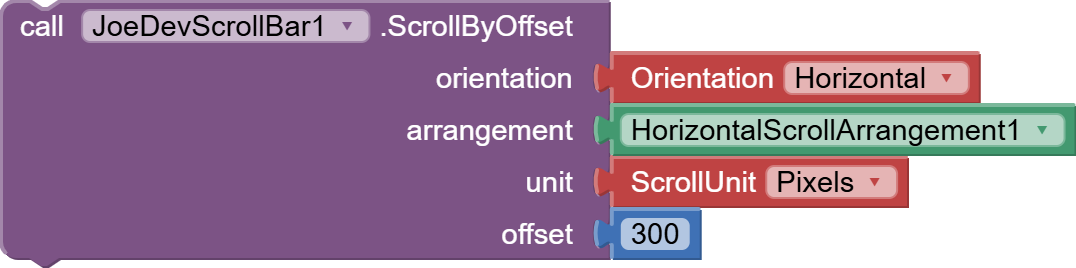

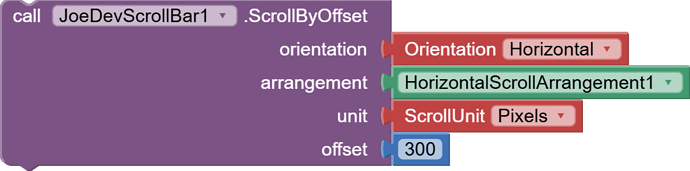

ScrollByOffset

Scroll by offset in an arrangement. Unit as 'px' or '%'.

blocks (58)
blocks (58)1076×268 33.8 KB

  • Move from the current position.

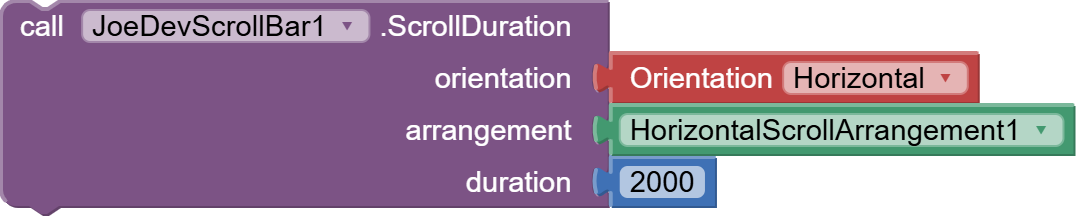

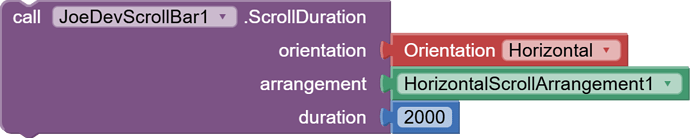

ScrollDuration

Set scroll duration for smooth scrolling in milliseconds.

blocks (54)
blocks (54)1076×216 28.3 KB

  • SmoothScrolling must be enabled for ScrollDuration to take effect.
  • ScrollDuration sets the duration of each scroll animation.
  • When you call ScrollToPosition or ScrollByOffset, the animation will last exactly the number of milliseconds you set.

v1.1 Feb 24, 2026.

ScrollBar.aia (13.8 KB)

joejsanz.joedevscrollbar.aix (10.3 KB)

JDK: 11
Minimum API Level: 21
Updated On: 2026-02-24T08:00:00Z

Built using: FAST-CLI v5.6.0-premium

Thanks.

6 Likes
2

Hi, What is offset? Are they pixels? Is there a way to scroll in percentages?
Thanks

3

Yes, they are in pixels

Yes, I'm making some name changes to the functions; all blocks will be updated with the same functionality and with the option to scroll in percentages.

4

Thanks

5

Update v1.1
