ScreenTouchEffects
Touch screen, returns the x, y position and touch effect.

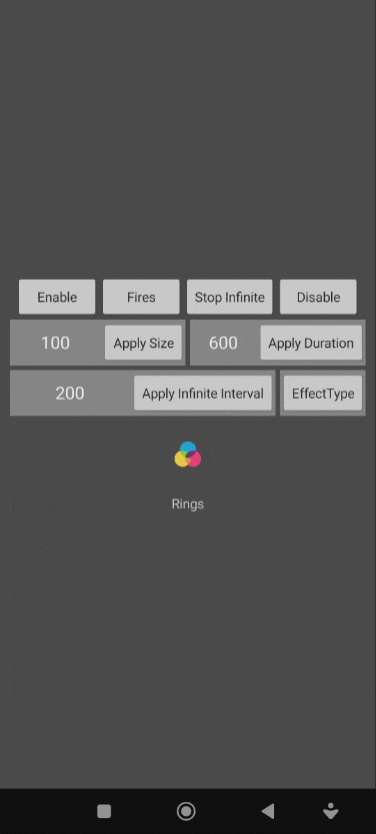

GIF_20251015_051127_904
GIF_20251015_051219_036
GIF_20251015_051319_807
GIF_20251015_050935_465

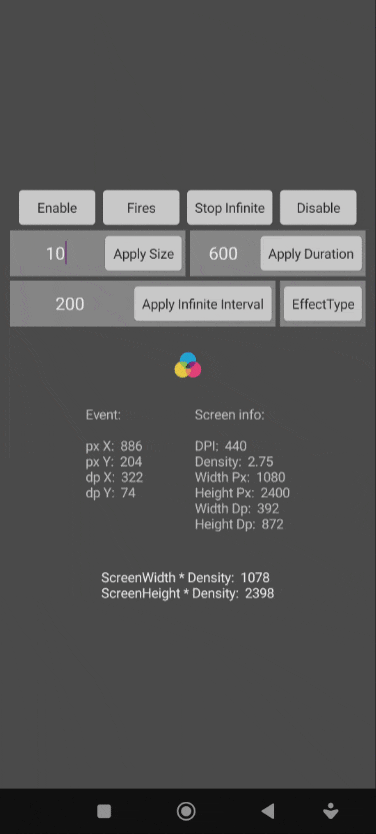

GIF_20251021_013142_637

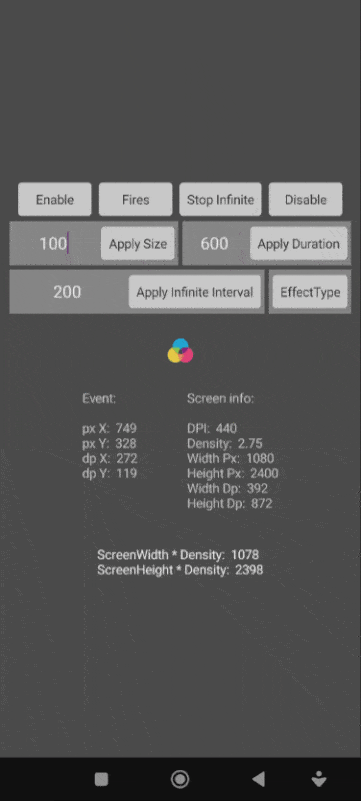

GIF_20251021_013313_015
GIF_20251021_012921_160

Converts between DP (Density-independent Pixels) and PX (Physical Pixels) using the device's display density (DPI) to maintain visual consistency across different displays.

  • On different devices:

    • MDPI (160 DPI): 50dp = 50px, 25dp = 25px

    • HDPI (240 DPI): 50dp = 75px, 25dp = 38px

    • XHDPI (320 DPI): 50dp = 100px, 25dp = 50px

    • XXHDPI (480 DPI): 50dp = 150px, 25dp = 75px

EnableTouch

Starts listening for screen touches and creates effects.

component_method (8)
component_method (8)720×60 7.84 KB

DisableTouch

Disables the touch overlay.

component_method (9)
component_method (9)726×60 8.22 KB

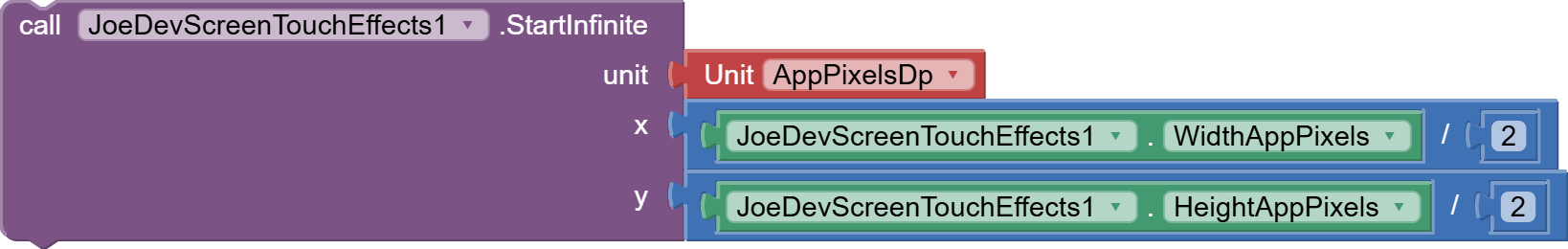

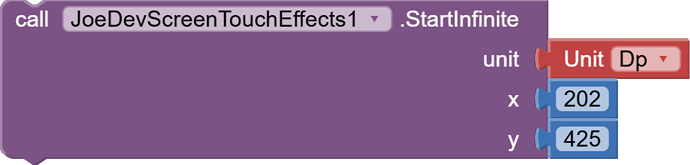

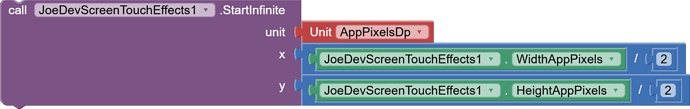

StartInfinite

Starts infinite effect at specified coordinates with specified unit.

blocks (2)
blocks (2)1638×260 40.3 KB

Unit:

  • dp = App Pixels
  • px = Device Pixels

StopInfinite

Stops the infinite effect.

component_method (10)
component_method (10)698×60 7.94 KB

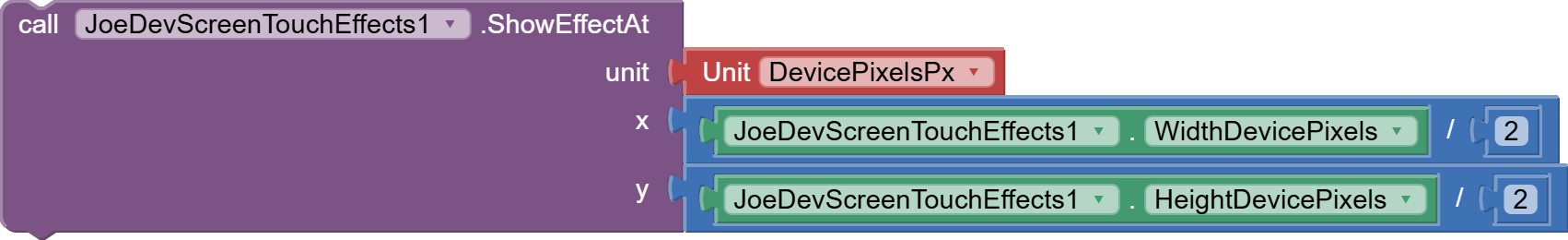

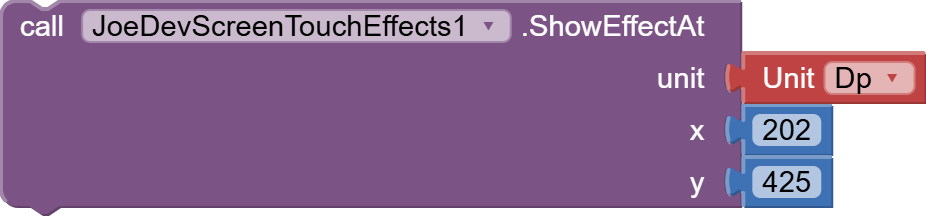

ShowEffectAt

Creates a single effect at the specified coordinates with specified unit.

blocks (1)
blocks (1)1702×260 41.6 KB

Unit:

  • dp = App Pixels
  • px = Device Pixels

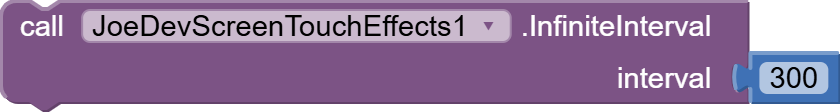

InfiniteInterval

Sets the interval between effects in infinite mode (milliseconds).

blocks (23)
blocks (23)840×112 12.4 KB

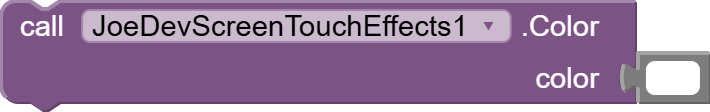

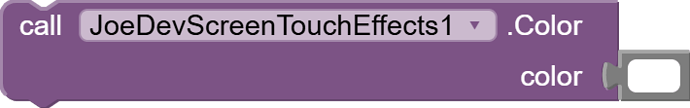

Color

Sets the effect color.

blocks (17)
blocks (17)710×112 9.82 KB

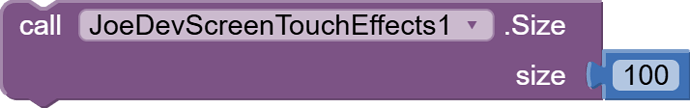

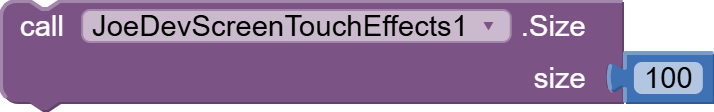

Size

Sets the size of the effect.

blocks (21)
blocks (21)714×112 10.7 KB

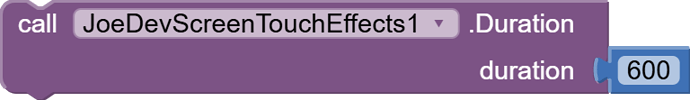

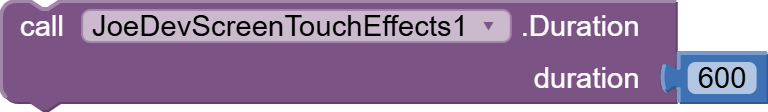

Duration

Sets the duration of the effect animation in milliseconds.

blocks (22)
blocks (22)768×112 12 KB

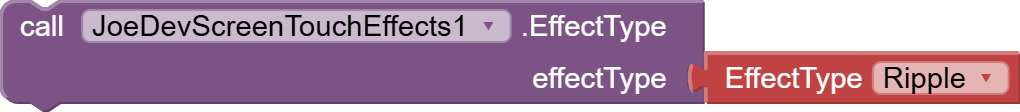

EffectType

Sets the current effect type.
Options: Ripple, Particles, Rings, Spiral, Bubble DigitalRain, Snow, SnowDetailed.

blocks (14)
blocks (14)1020×112 15.5 KB

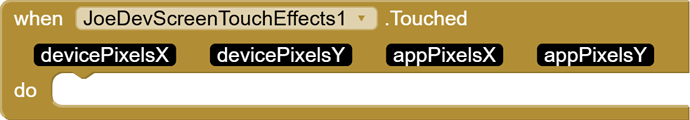

Touched

Triggered when the screen is touched. Returns coordinates in both pixels (px) and density-independent pixels (dp).

component_event
component_event982×172 17 KB

ScreenDPI

Returns the screen density in DPI.

component_set_get

DensityScale

Returns the screen density scale factor.

component_set_get (1)
component_set_get (1)718×52 7.22 KB

WidthDevicePixels

Returns screen width in pixels.

component_set_get
component_set_get790×52 7.9 KB

HeightDevicePixels

Returns screen height in pixels.

component_set_get (1)
component_set_get (1)800×52 7.86 KB

WidthAppPixels

Returns screen width in density-independent pixels (dp).

component_set_get (2)
component_set_get (2)752×52 8.05 KB

HeightAppPixels

Returns screen height in density-independent pixels (dp).

component_set_get (3)
component_set_get (3)762×52 7.76 KB

v1.3 Oct 25, 2025.

Update:

  • Changed property, function, and event names from px to device pixels and dp to app pixels.

  • New effects added:

    • Spiral
    • Bubble
    • DigitalRain
    • Snow
    • SnowDetailed

ScreenTouchEffects.aia (122.9 KB)

joejsanz.joedevscreentoucheffects.aix (20.8 KB)

JDK: 11
Minimum API Level: 21
Updated On: 2025-10-25T07:00:00Z

Built using: FAST-CLI v5.2.2-premium

Thanks.

6 Likes
2

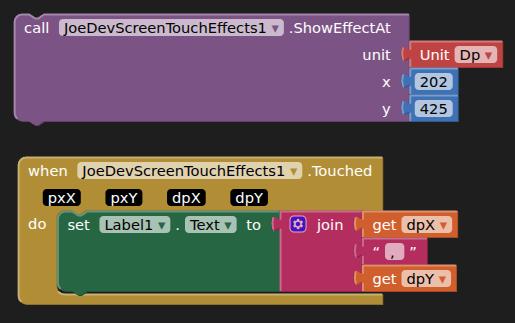

x,y returned/accepted in dpi not screen pixels ?

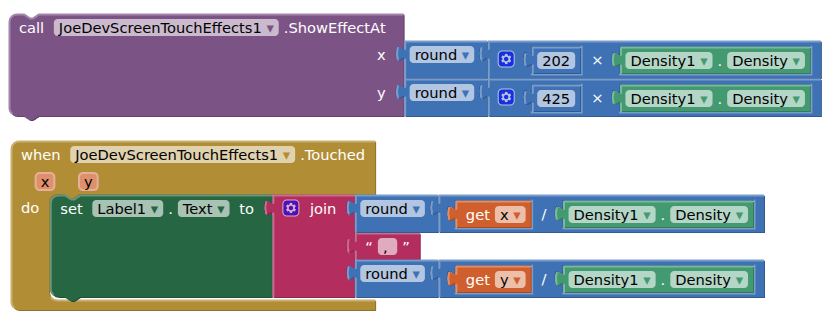

e.g. for effect in centre of screen, and to return pixel coords

image834×325 35.5 KB

1 Like
3

Yes, the values ​​entered and received were only in px.

I've updated the extension so that you can enter the value you choose between dp and px, and the event will return both values.

Update: v1.1

3 Likes
4

Hmmm, dp and px appear to be around the wrong way :upside_down_face: , with dp returning pixels and px returning dpi ?

5

That's true :grimacing: they're inverted.

I'll fix that as soon as I have time.

1 Like
6

I can't find the fault, I'm using DPI based DP-PX conversions.

7

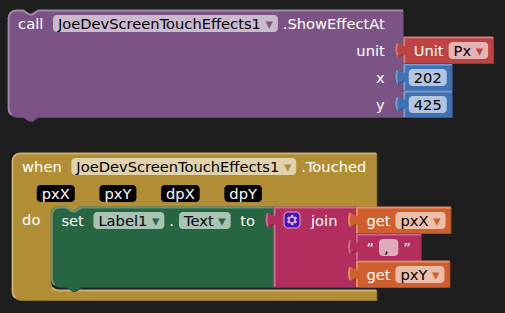

These


return the effect at pixels, not dp

I would expect these to return pixels:


but they return dp

1 Like
8

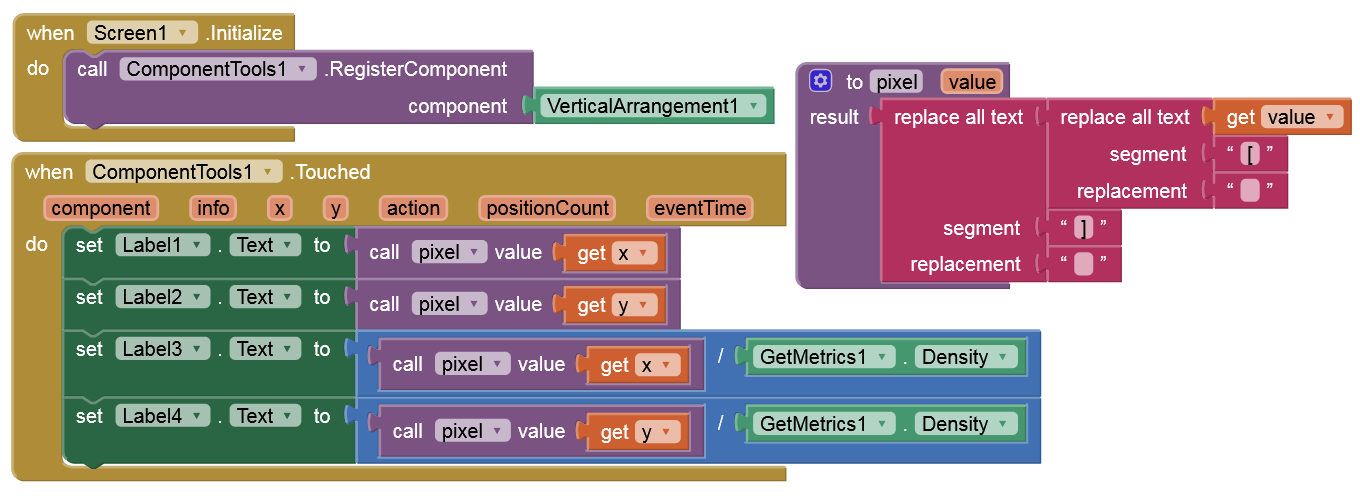

Don't we have a similar extension?

componentTools2.aia (29.7 KB)

grafik
grafik1360×497 52 KB

9

It's similar, except that in ComponentTools you pass an Arrangement to apply the touch to, and when you add a component inside the Arrangement like buttons and click on it, touch detection is not applied.

  • Although I liked that when you slide your finger across the screen it detects the position.

In my extension:

  • I'm applying rootLayout.addView(touchOverlay);
    and all touch events are captured without interfering with other components like buttons.
1 Like
10

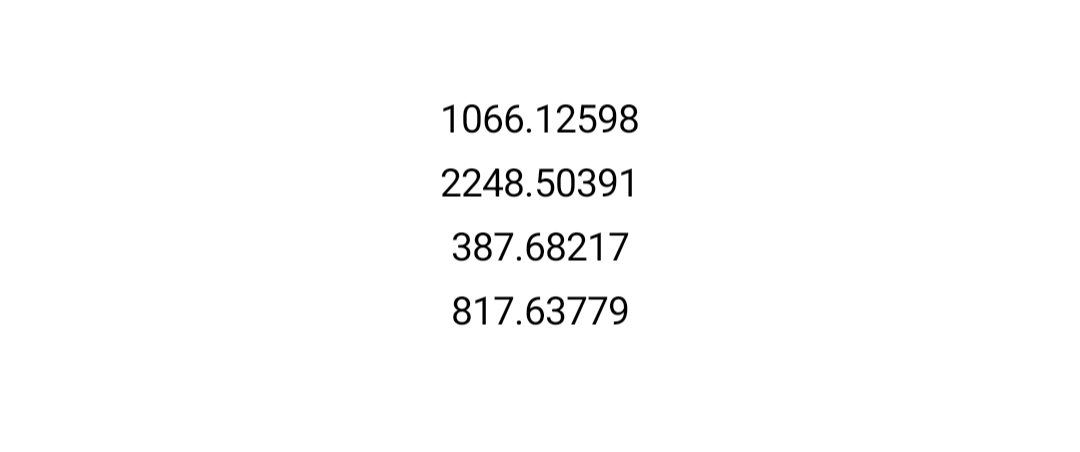

It's weird, the example Anke gave me gives me the same result as my extension on my device.

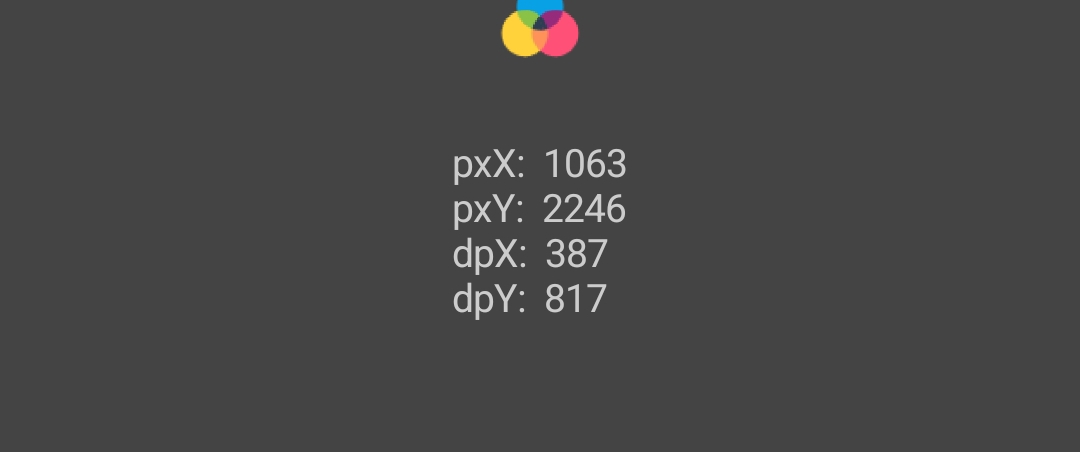

IMG_20251020_020644
IMG_20251020_0206441080×452 25.6 KB

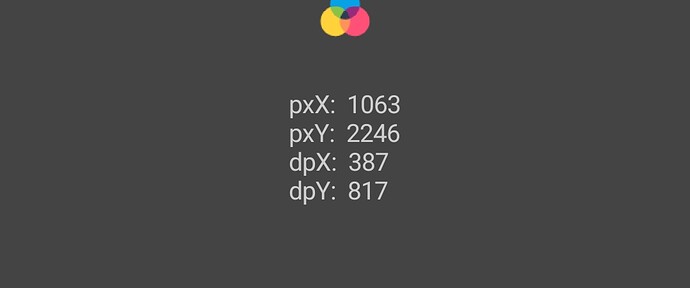

IMG_20251020_020710
IMG_20251020_0207101080×452 26.3 KB

:thinking:

1 Like
11

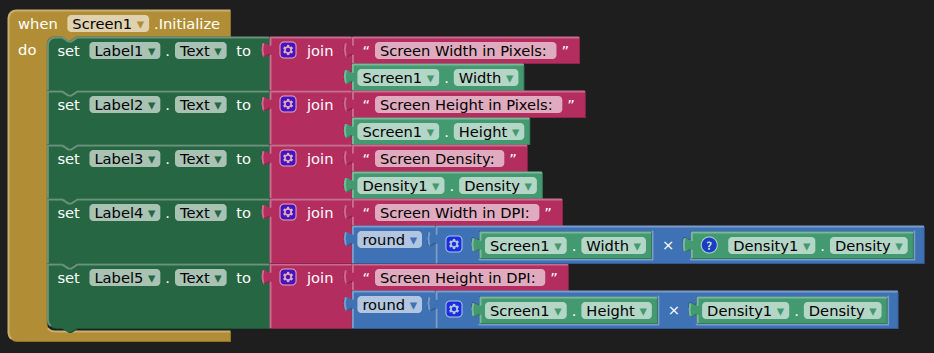

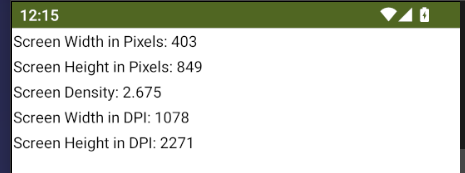

Do you agree with this?

image934×353 50.3 KB


12

I think the AI2 ScreenWidth and ScreenHeight blocks are in dp and not px.

component_set_get (6)
component_set_get (7)

I think there is that error in the documentation of those blocks.

13

Update v1.2

1 Like
14

Incorrect.



You carry on with an incorrectly labelled extension :wink:

15

Yes, I already looked in the code and it does use pixels but not real pixels, so it is limited.

16

Might be easier for others to understand if we called them "devicePixels" (the big numbers) and "appPixels" (the smaller numbers) - where appPixels relate to the Screen Height and Width values returned by the Appinventor blocks.

17

You're right, I'll change the names of the properties, functions and events where px and dp are located.

18

Update v1.3
