RulerGuides - Guides dragged from rulers and grid system.

Extensions
1
RulerGuides

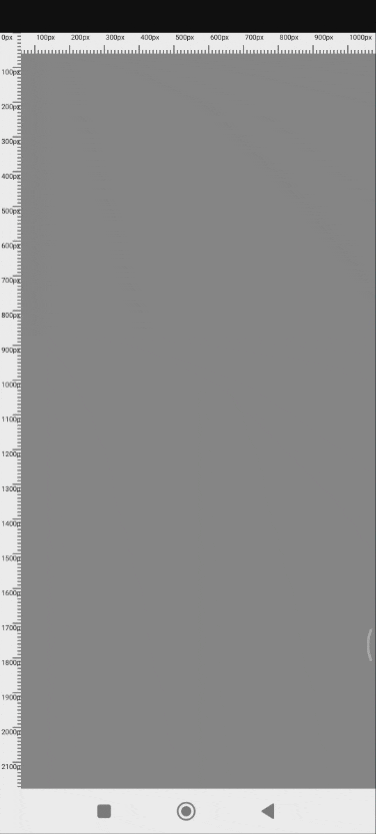

Guides appear when dragged from rulers.
Customizable colors, snapping, live coordinates and grid system.

GIF_20250701_052321_156
By sliding the guides outwards, they will be removed.

GIF_20250701_052405_538

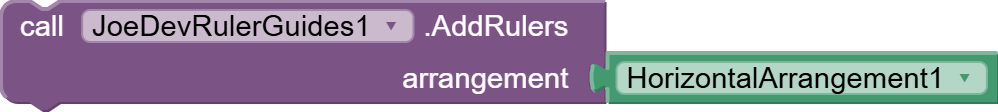

AddRulers

Add rulers with guide drag and snapping.

blocks (4)
blocks (4)998×112 15.2 KB

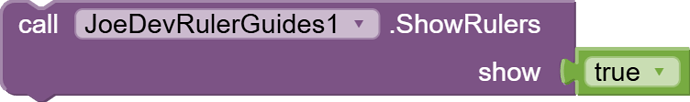

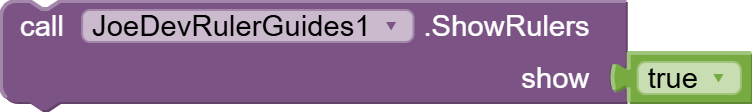

ShowRulers

Show or hide rulers

blocks (9)
blocks (9)752×112 11.8 KB

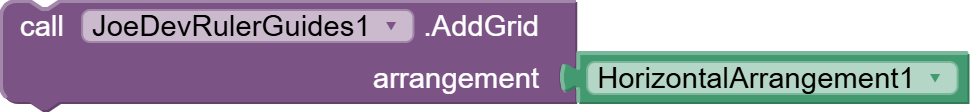

AddGrid

Add a grid system to the arrangement.

blocks (5)
blocks (5)970×112 14.8 KB

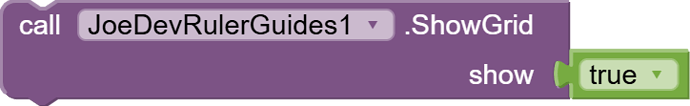

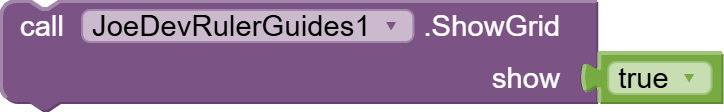

ShowGrid

Show or hide the grid.

blocks (8)
blocks (8)724×112 11.3 KB

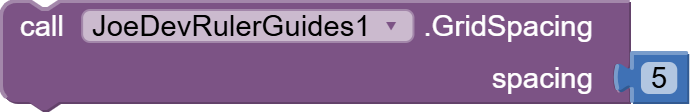

GridSpacing

blocks (6)

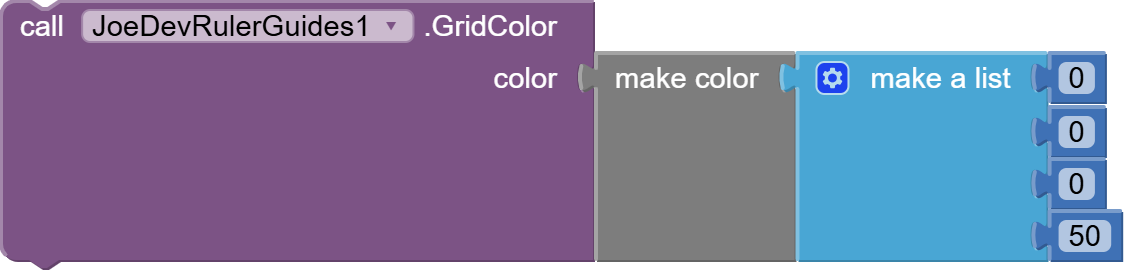

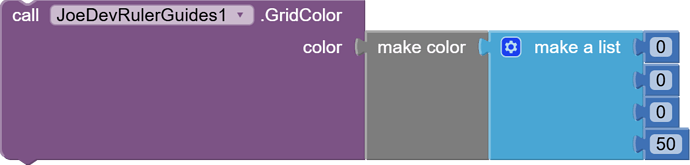

GridColor

Set grid color (with alpha).

blocks (7)
blocks (7)1124×270 24.4 KB

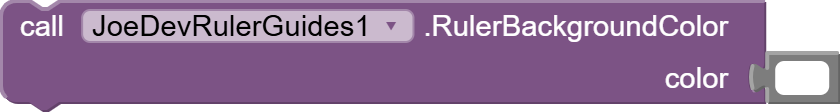

RulerBackgroundColor

blocks
blocks840×112 11.3 KB

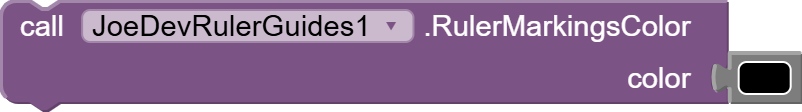

RulerMarkingsColor

blocks (1)
blocks (1)802×112 11.5 KB

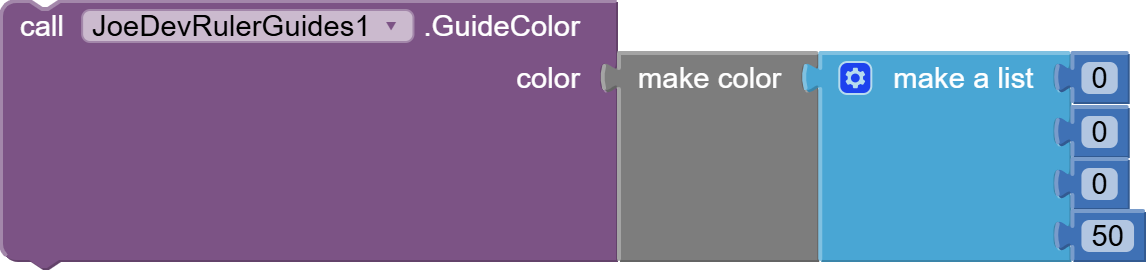

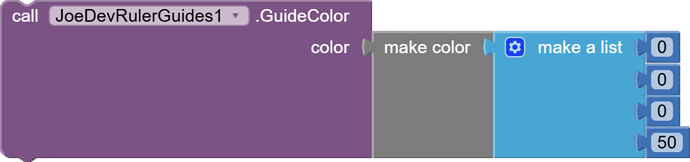

GuideColor

Set guide line color (with alpha).

blocks (2)
blocks (2)1146×270 25 KB

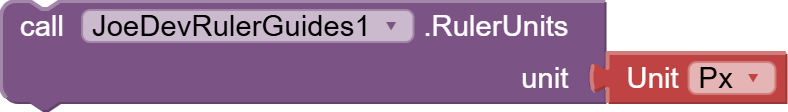

RulerUnits

Set ruler units: 'px', 'dp' or 'mm'.

blocks (3)
blocks (3)788×112 10.7 KB

v1.0 July 01, 2025.

RulerGuides.aia (17.6 KB)

joejsanz.joedevrulerguides.aix (15.0 KB)

JDK: 11
Minimum API Level: 21
Updated On: 2025-07-01T07:00:00Z

Built & documented using: FAST v3.7.0-premium

Thanks.

11 Likes
2

You're doing great, keep it up!

2 Likes
3

Good job.
I was wondering if it's possible to display the ruler on the outside?
