Hi, I need to read an HTML page of a relays for use as button label and button status


<div>
<font size="5"> Room1<span style="color:red">0 </span> </font>
<br />
<br />
<br />
<font size="5"> Room2<span style="color:red">0 </span> </font>
<br />
<br />
<br />
<font size="5">Room3<span style="color:red">0 </span> </font>
<br />
<br />
<br />
<font size="5">Room4<span style="color:red">0 </span> </font>
<br />
<br />
<br />
<font size="5">Room5<span style="color:red">0 </span> </font>
<br />
<br />
<br />
<font size="5">Room 6<span style="color:red">0 </span> </font>
<br />
<br />
<br />
<font size="5">Room 7<span style="color:red">0 </span> </font>
<br />
<br />
<br />
<font size="5">Room 8<span style="color:red">0 </span> </font>
</div>

<div>
<p hidden>
Status: 0 0  0 0  0 0  0 0
Relay1: Room 1
Relay2: Room 2
Relay3: Room 3
Relay4: Room 4
Relay5: Room 5
Relay6: Room 6
Relay7: Room 7
Relay8: Room 8
</p>
</div>

How I can read? I've don't found any solution...
Best regards

2

Use the web component, set the url property and call the Get method, then receive the html page in the GotResponse event

Taifun

1 Like
3

How I can read from <p hidden> any row? There is a component?

Thanks

4

There is a technique called Web Scraping for that.

Search this board.

5

Example:

<!DOCTYPE html>
<html>
<meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=no">
<head>
<title>DemoScrape</title>
<style>
</style>
</head>
<body>
	<h2>Some p elements</h2>
	<p>Hello</p>
	<p>World</p>
	<p>the next one is hidden</p>
	<p hidden>Greetings</p>
</body>
</html>

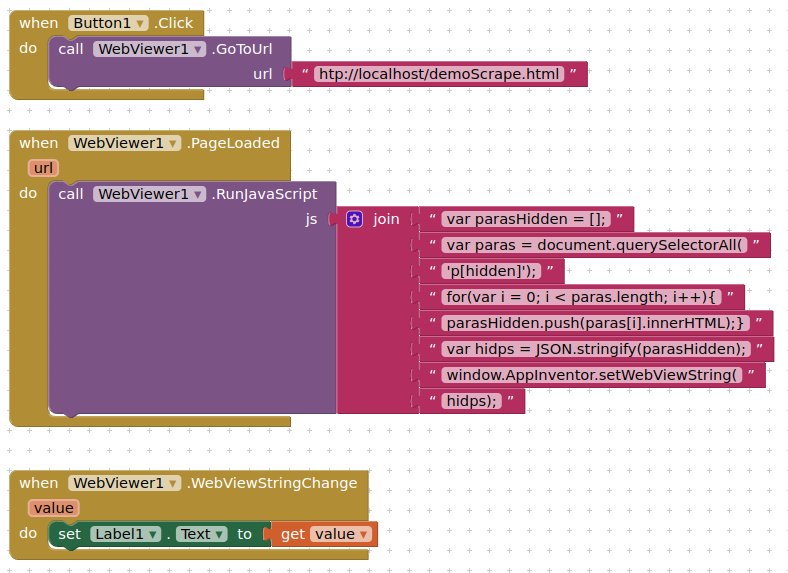

image788×573 52.8 KB

var parasHidden = [ ];
var paras = document.querySelectorAll('p[hidden]');
for(var i = 0; i < paras.length; i++) {
parasHidden.push(paras[i].innerHTML);
}
var hidps = JSON.stringify(parasHidden);
window.AppInventor.setWebViewString(hidps);


1 Like
6

Thanks I've used Web with list and segment test for retrieve what I need.

Best regards

7

Be good if you showed an example of this method here ...

8

Sorry it’s late here, tomorrow I share my solution. Maybe not the best but it is ok for the result.

Regards

9

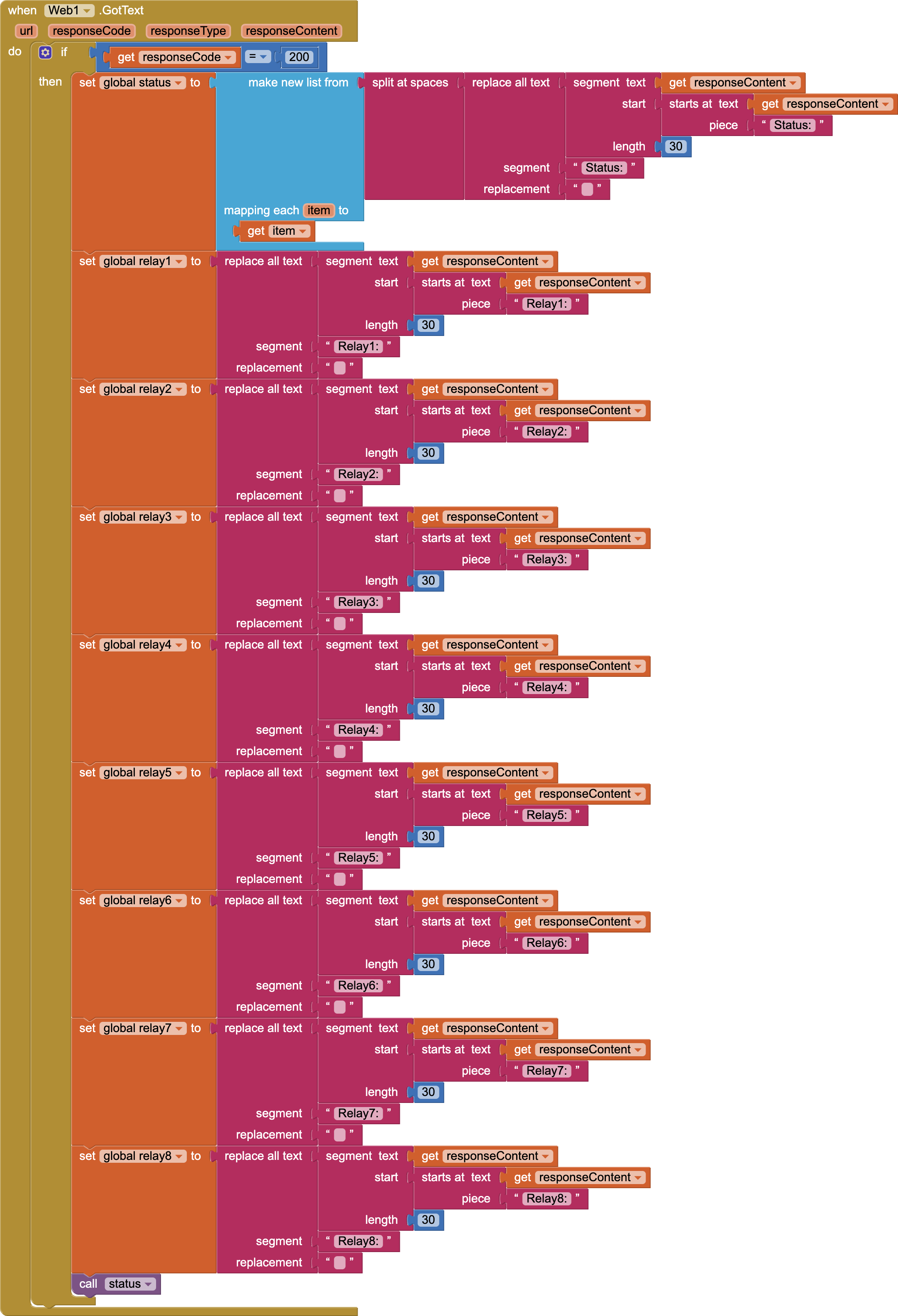

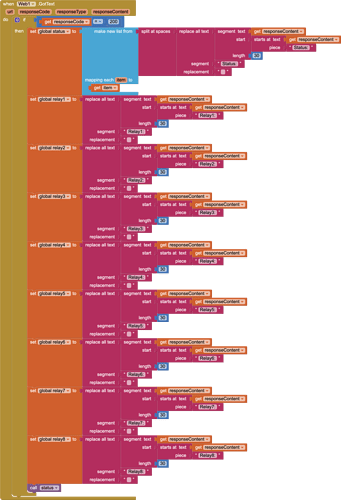

This is my solution

blocks
blocks2192×3212 830 KB

Best regards

10

Does this return the values you would see on the rendered html page ? (even though I realise your paragraph element is hidden)

11

I don't need to render this value in a webpage but retrieve from a get and use text/background of multiple buttons.

12

I don't know what that means, but if it works for you...

13

This is similar to the Taifun parse procedure, but terminates by length instead of by marker.

The returned values might need trimming of their tail ends.

14

Yes, the number of characters are always the same and I can use this procedure. I clean the unused "Ralay #:" and I remove white space.
