Hi Community,

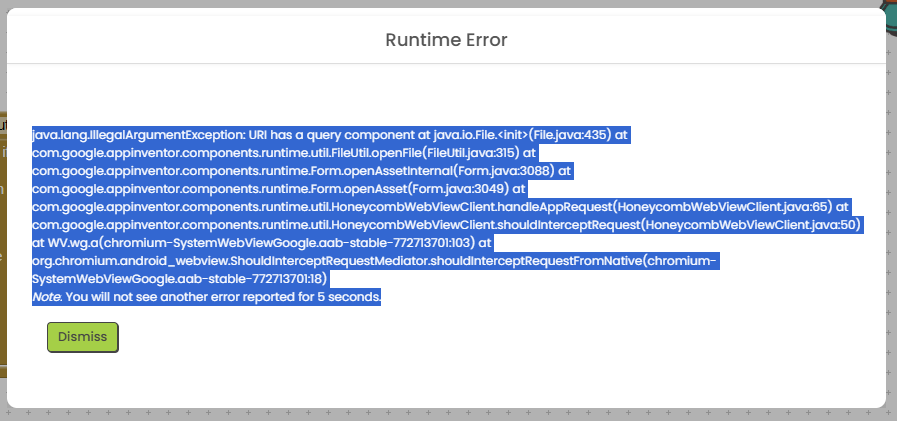

I try to pass an URL with Parameters in WebViewer. This does not work. If I omit this parameters URL can be shown. With the parameter ID I get the following runtime error. I testet HTML file on PC Browser and it works.

image897×421 41.8 KB

java.lang.IllegalArgumentException: URI has a query component at java.io.File.<init>(File.java:435) at com.google.appinventor.components.runtime.util.FileUtil.openFile(FileUtil.java:315) at com.google.appinventor.components.runtime.Form.openAssetInternal(Form.java:3088) at com.google.appinventor.components.runtime.Form.openAsset(Form.java:3049) at com.google.appinventor.components.runtime.util.HoneycombWebViewClient.handleAppRequest(HoneycombWebViewClient.java:65) at com.google.appinventor.components.runtime.util.HoneycombWebViewClient.shouldInterceptRequest(HoneycombWebViewClient.java:50) at WV.wg.a(chromium-SystemWebViewGoogle.aab-stable-772713701:103) at org.chromium.android_webview.ShouldInterceptRequestMediator.shouldInterceptRequestFromNative(chromium-SystemWebViewGoogle.aab-stable-772713701:18)
Note: You will not see another error reported for 5 seconds.

The aia file is…

TestURLParam_V01.aia (2.6 KB)

Can you please help me? Does the WebViewer Component does not support URL Parameters? Thanks in advance…

Best Regards

2

Yes, won't work with localhost because this is interpreted as a filename available in the assets.

Works when served from a normal url.

You could write some additional code to pass the parameter as a webviewstring if localhost is in the url.

1 Like
3

Thank you :slight_smile:

4

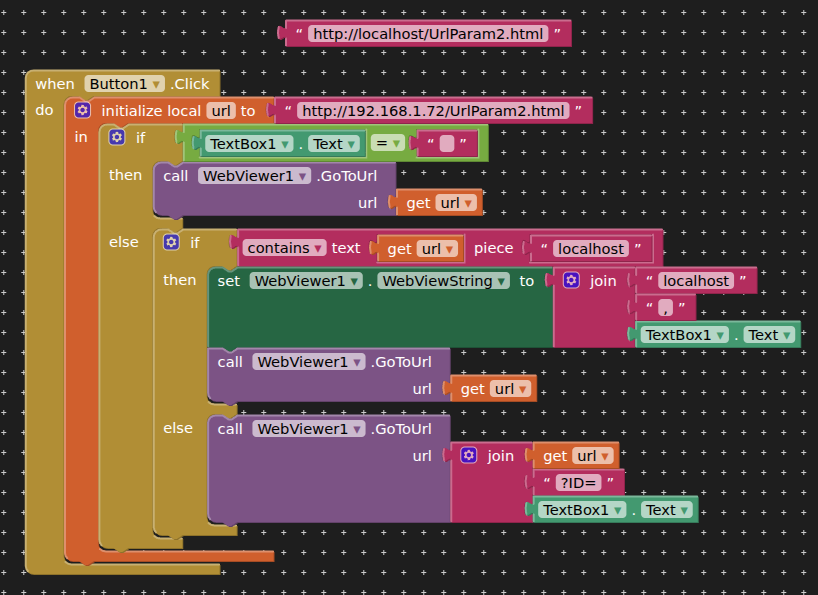

Something like this:

image818×595 54.4 KB

<!DOCTYPE html>
<html lang="de">
<head>
    <meta charset="UTF-8">
    <title>Parameter Beispiel</title>
</head>
<body>

    <h1>Willkommen, <span id="ID">ID</span>!</h1>

    <script>

        if (AppInventor) {
          var wvs = window.AppInventor.getWebViewString().split(",");
          if (wvs[0].includes("localhost")) {
          document.getElementById('ID').textContent = wvs[1];
          } else {
        	    const urlParams = new URLSearchParams(window.location.search);
                const myID = urlParams.get('ID');
                document.getElementById('ID').textContent = myID;
          }
        } else {
            const urlParams = new URLSearchParams(window.location.search);
            const myID = urlParams.get('ID');
            document.getElementById('ID').textContent = myID;
        }
    </script>
</body>
</html>

Should work in AppInventor and on computers

1 Like
5

Thanks for your AddOn :slight_smile: I put all together to my personal WiKi-Document (meanwhile I have serval ones…: JavaScript, AI2, Arduino, C++, FreeCAD, general technical stuff, VBA…
