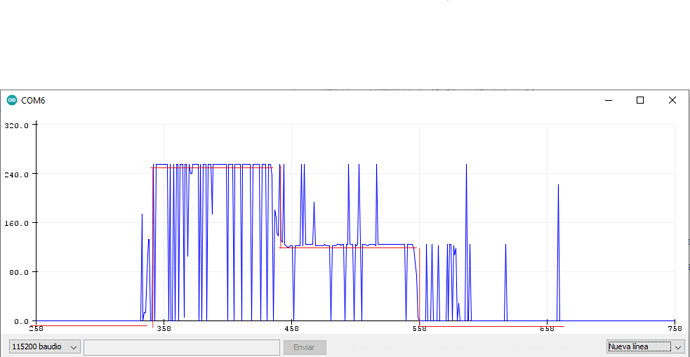

Hi! I've been having issues with the HTTP protocol for a project. I'm trying to send 5 blocks of data to an ESP32 via Wi-Fi, the problem emerges when I receive with the esp32 updated and outdated data. This is a picture of the Serial port of Arduino showing only one variable.
In red is the expected data, in blue the recieved one.
Any help is gratly appreciated
Code:
#include <WiFi.h>
WiFiServer server(80);
const char* ssid = "SSID"; //REMPLAZAR POR SSID
const char* password = "PASSWORD"; //REMPLAZAR POR CONTRA
String msj; //STRING QUE GUARDA EL MENSAJE RECIBIDO POR WIFI
//FALTA VARIABLE DE MAGNETOMETRO!
float Giroscopio[2] = {0,0}; //VARIABLE DE POSICION DE GIROSCOPIO DEL DRON // X, Y
float DatosApp[5] = {0,0,0,0,0}; //VARIABLE DE DATOS DE DIRECCION Y POTENCIA DE LA APP
void WifiStart(){
//Serial.print("Conectando a ");
//Serial.println(ssid);
WiFi.mode(WIFI_STA);
WiFi.begin(ssid,password);
while(WiFi.status() != WL_CONNECTED){
delay(500);
Serial.print(".");
}
Serial.println("Direccion IP: ");
Serial.print(WiFi.localIP());
server.begin();
}
void clasify(){
/*/Res?Slider=xx&XGyro=xx&YGyro=xx&0x=xx&0y=xx*/
String var = "";
int a = msj.indexOf("Slider=");
int b = msj.indexOf("&XGyro=");
for(int i=a+7; i<=b; i++){var += msj[i];}
DatosApp[0] = var.toFloat();
var = "";
a = msj.indexOf("&XGyro=");
b = msj.indexOf("&YGyro=");
for(int i=a+7; i<=b; i++){var += msj[i];}
DatosApp[1] = var.toFloat();
var = "";
a = msj.indexOf("&YGyro=");
b = msj.indexOf("&0x=");
for(int i=a+7; i<=b; i++){var += msj[i];}
DatosApp[2] = var.toFloat();
var = "";
a = msj.indexOf("&0x=");
b = msj.indexOf("&0y=");
for(int i=a+3; i<=b; i++){var += msj[i];}
DatosApp[3] = var.toFloat();
var = "";
a = msj.indexOf("&0y=");
b = msj.indexOf("\0");
for(int i=a+3; i<=b; i++){var += msj[i];}
DatosApp[4] = var.toFloat();
var = "";
}
void WifiConection(){
WiFiClient client = server.available();
//client.println("GET /T HTTP/1.1\n\n")
client.println("GET /Res?Slider=xx&XGyro=xx&YGyro=xx&0x=xx&0y=xx HTTP/1.1");
client.println("Host: " + String(WiFi.localIP()));
client.println("Connection: close");
client.println();
msj="";
while(client.available()){
char c = client.read();
msj += c;
}
clasify();
}
void setup() {
Serial.begin(115200);
WifiStart();
}
void loop() {
WifiConection();
Serial.println(DatosApp[0]);
delay(20);
}
APP.aia (1.4 MB)
