ThemerChat – Elevate Your Chat UI with Stunning Themes!
Transform your chat experience with beautiful, ready-to-use themes inspired by WhatsApp, Telegram, and Messenger—or create your own!
What is ThemerChat?
ThemerChat is an advanced MIT App Inventor extension designed to customize chat UIs with just a few clicks! Whether you want a WhatsApp-inspired theme, a sleek Telegram interface, or the vibrant Messenger look, ThemerChat makes it easy. Developers can fine-tune chat elements like bubble colors, text styles, timestamps, seen marks, backgrounds, and more....

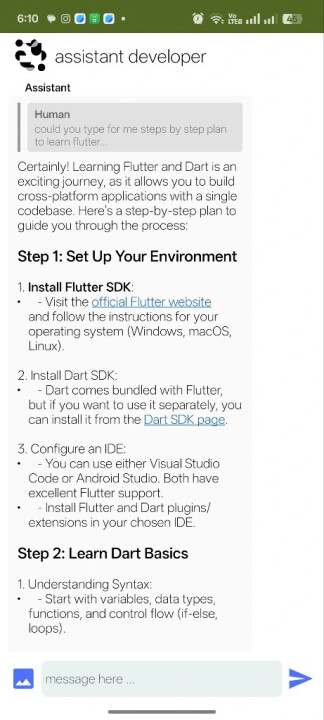

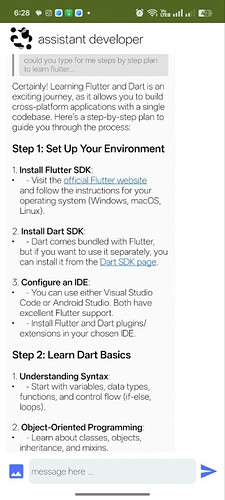

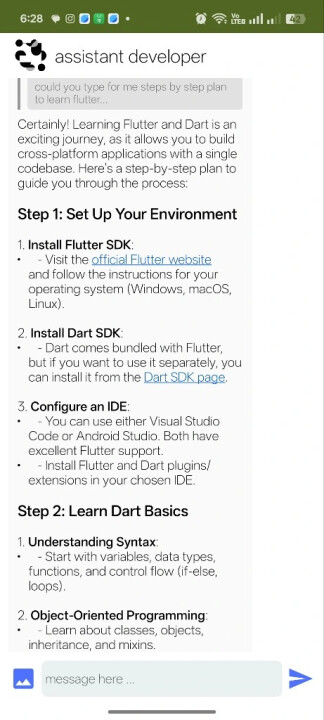

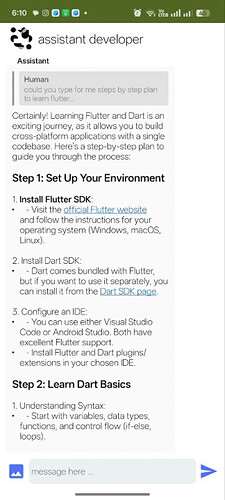

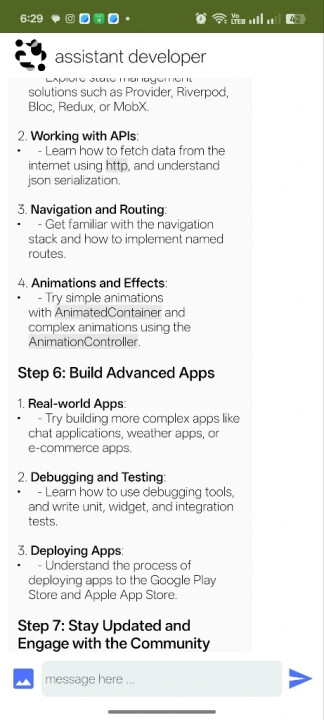

Some results:

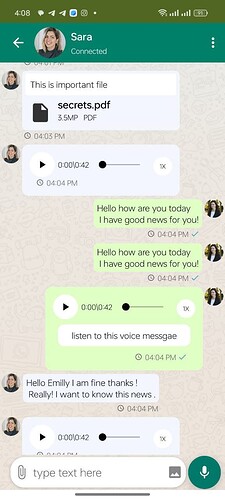

WhatsApp theme example
Telegram theme example
Video example
Blocks :
1. Overview
The ChatView Extension is a robust chat UI component designed for MIT App Inventor projects. It supports a wide range of message types and features, including:
- Multiple Message Types:
- Text Messages
- Image Messages (with or without accompanying text)
- File Messages (with or without accompanying text)
- Voice Note Messages (with or without text)
- Chat History Management:
- Save and load full chat history in JSON format
- Replace or clear chat history
- Customization & Styling:
- Customizable bubble colors, corner radii, and text sizes
- Ability to set avatar image size, shape (rounded or not), and visibility
- Customizable timestamp, clock icon, and seen/read status colors
- Background customization options (solid color, gradient, or image)
- Interactive Elements:
- Reactions (emoji-based) that can be incremented
- Message selection and gesture-based actions (swipe, tap, long press)
- Dropdown menus for message options
- Voice note playback with play/pause and seek bar support
- Asset Handling:
- Loads images and fonts from multiple sources (URLs, local file paths, or assets)
- Special handling for companion mode versus compiled APKs
2. Installation
-
Upload this MaterialIcons-Regular.ttf font file to the assets without changing the name of the file , the extension will use this font to show material icons on the message .
-
Download the Extension:
Export the extension as a.aixfile. -
Import into App Inventor:
- Open your MIT App Inventor project.
- Go to Extensions > Import extension... and upload the
.aixfile. - Once imported, the
ThemerChatcomponent appears in your Palette under Extensions.
3. Initialization & Setup
3.1. Adding ChatView to Your Screen
Place a VerticalArrangement (or another container) on your screen. Then initialize the ChatView extension using the following block (or corresponding code):
block :
ChatView1.Initialize(VerticalArrangement1);
3.2. Sending & Receiving Messages
Use the following functions to add messages:
- Send a Message (Sender):
block:
ChatView1.Send("Hello, world!", "https://example.com/avatar.png", "Your Name", "");
- Result:
- Receive a Message (Receiver):
block:
ChatView1.Receive("Hi there!", "https://example.com/avatar2.png", "Friend Name", "");
- Result:
For image, file, and voice messages, use the corresponding methods:
SendImage,SendImageWithText,ReceiveImage,ReceiveImageWithTextSendFile,SendFileWithText,ReceiveFile,ReceiveFileWithTextSendVoiceNote,SendVoiceNoteWithText,ReceiveVoiceNote,ReceiveVoiceNoteWithText
4. API Reference
4.1. Core Functions
- HexToRGB(String hexCode):
Converts a hexadecimal color code into an RGB list.
- Initialize(VerticalArrangement arrangement):
Initializes the chat view within a container.
- Send(String message, String avatarUrl, String senderName, String timestamp):
Sends a text message.
- Receive(String message, String avatarUrl, String receiverName, String timestamp):
Receives a text message.
- AddReactionById(int messageId, String reaction):
Adds or increments an emoji reaction to the message with the given ID.
- DeleteMessage(int messageIndex):
Deletes a message based on its position in the chat.
- SaveFullChatHistory():
Saves the chat history as a JSON file in the app folder.
- ReplaceChatHistoryFile(String filePath):
Replaces an existing chat history file with current history.
- GetFullChatHistoryAsJson():
Returns the complete chat history as a JSON string.
- ClearChatHistoryJson():
Clears the chat history from both UI and internal metadata.
- LoadChatHistoryFromJson(String jsonString):
Rebuilds the chat view from a JSON string.
- LoadFullChatHistory(String filePath):
Loads chat history from a JSON file.
- UpdateMessageText(int messageId, String newText):
Updates the text content of a specific message.
- ShowMessageDropdown(int messageId, YailList items):
Displays a dropdown menu for the specified message.
- GetMessageText(int messageId):
Retrieves the text from the specified message.
- GetLastMessageIndex():
Returns the index of the last message in the chat.
- ClearSelectionById(int messageId):
Clears the selection state of a message.
- DeleteAllMessages():
Deletes all messages from the chat view.
- GetSelectedMessageIds():
Returns a list of IDs for messages currently selected.
- ShowLoadingDots(String avatarUrl, String name, boolean isSender):
Displays a loading (three-dots) animation message and returns its ID.
- HideLoadingDots(int messageId):
Hides the loading indicator for the specified message.
- UpdateSeenMark(int messageId, boolean seen):
Updates the read/seen mark for a sender’s message.
- ScrollToMessage(int messageId):
Scrolls to and highlights the specified message.
4.2. Message Type Functions
- SendImage(String imagePath, String avatarUrl, String senderName, String timestamp):
Sends an image-only message.
- SendImageWithText(String message, String imagePath, String avatarUrl, String senderName, String timestamp):
Sends an image message accompanied by text.
- ReceiveImage(String imagePath, String avatarUrl, String receiverName, String timestamp):
Receives an image-only message.
- ReceiveImageWithText(String message, String imagePath, String avatarUrl, String receiverName, String timestamp):
Receives an image message with text.
- SendFile(...)/ReceiveFile(...):
Functions for sending and receiving file messages.
- SendVoiceNote(...)/ReceiveVoiceNote(...):
Functions for sending and receiving voice note messages.
- SendVoiceNoteWithText(...)/ReceiveVoiceNoteWithText(...):
Functions for sending and receiving voice notes that include text.
- UpdateFileIcon(int messageId, String status):
Updates the icon for file messages based on their status ("file", "download", or "progress").
4.3. Properties
- SentMessageColor(int color) / ReceivedMessageColor(int color):
Set the background color of sent and received message bubbles.- SentTextColor(int color) / ReceivedTextColor(int color):
Set the text color for messages.
- TimestampTextColor(int color) / TimestampIconColor(int color):
Set the colors for timestamps and clock icons.
- SenderReadStatusColor(int color) / ReceiverReadStatusColor(int color):
Set the colors for read/seen marks (for sender and receiver).
- FontFamily(String typefacePath) / FontSize(int size):
Set the font family and font size for messages.
- AvatarCornerRadius(int radius):
Get/set the corner radius for avatar images.
- RoundProfileImage(boolean round):
Enable or disable rounded avatars.
- ShowProfileImage(boolean show):
Toggle visibility of profile images.
- ShowName(boolean show):
Toggle display of sender/receiver names.
- BackgroundColor(int color) / BackgroundImage(String imagePath) / BackgroundGradient(YailList colors):
Customize the chat background with a solid color, image, or gradient.
- MessageCornerRadius(float radius):
Get/set the corner radius for message bubbles.
- MessageHorizontalPadding(int padding) / MessageVerticalPadding(int padding):
Set the padding for message bubbles.
- EnableSwipeMotion(boolean enable):
Enable or disable swipe gestures on messages.
- ShowReadStatus(boolean show):
Configure whether read/seen status is shown.
- SetCircularProgressGradient(YailList colors), PercentTextColor(int color), CircularProgressThickness(int thickness):
Customize the circular progress indicator for file or voice note loading.
4.4. Events
- MessageOptionSelected(messageId, optionId, optionText):
Fired when a dropdown menu option is selected.
- MessageSelected(messageId, selected):
Fired when a message is selected or deselected.
- SelectionCleared(messageId, selected):
Fired when a message selection is cleared.
- ProfilePicClicked(messageId):
Fired when a profile image is tapped.
- OnMessageClick(messageId, selected):
Fired when a message is tapped.
- OnMessageLongClick(messageId, selected):
Fired on a long press of a message.
- MessageSwiped(messageId, selected, direction):
Fired when a message is swiped (direction: left/right).
- ImageClicked(messageId, imageSource):
Fired when an image message is tapped.
- FileClicked(messageId, fileName, fileSize, fileType, fileSource, filePath):
Fired when a file message is tapped.
5. Customization & Themes
Developers can also create functions to apply specific themes (e.g., WhatsApp, Telegram, Messenger). Such a function might change:
- Bubble colors (sent and received)
- Text colors
- Timestamp and clock icon colors
- Read/seen mark colors
6. Asset Loading and Customization
6.1. Loading Images and Fonts
- Universal Image Loader:
The extension uses the Universal Image Loader (UIL) to load images from URLs with caching and optional rounded corners. - Local and Asset Loading:
For avatar and message images, the extension first attempts to load from the assets folder (for compiled APKs) and falls back to a local file path (using companion mode paths if necessary). - Material Icons:
The material icon font is loaded either from the companion’s shared assets or from the extension’s packaged assets.
6.2. Voice Notes
Voice note playback uses a MediaPlayer with asynchronous preparation and handles asset loading similarly to image assets.
7. Developer Notes
- Customization:
The ChatView extension provides many properties to tailor the chat UI. Developers can modify colors, fonts, dimensions, and animations to suit their application’s theme. - Gesture Handling:
The extension supports swipe, tap, and long-press gestures for message interactions, enabling message selection, deletion, and other custom actions. - Chat History:
Chat history is maintained as JSON metadata that can be saved to, loaded from, and cleared in a local file. - Extensibility:
With helper methods for loading assets, applying custom fonts, and formatting text, the extension is designed to be flexible and easy to extend.
8. Additional Resources
- Reference List:
Nostra13. (n.d.). Android-Universal-Image-Loader [Java library]. GitHub. Retrieved March 13, 2025, from GitHub - nostra13/Android-Universal-Image-Loader: Powerful and flexible library for loading, caching and displaying images on Android.. - MIT App Inventor Forums: For troubleshooting and community support.
- Asset Management: Tips on how to properly include and access assets in both companion and compiled APKs.
9. AIX File
You can purchase ThemerChat below for $5.99. You can pay with PayPal or a credit card. After successful payment, you will be automatically redirected to the download page of the extension
