[PAID] ESC/POS Thermal Printing extension (Bluetooth/Network)

Can you help me to print pdf with this extension ???

Check this:

It is not feasible with all the suggestions you mentioned, I have tried everything. Converting a PDF to an image has many tools to support this, however, none of them can extract all the pages of a PDF as images. They can only capture the visible part. Meanwhile, invoices vary in length. The biggest limitation of these add-ons is that they cannot print languages with diacritics. Currently, they only work with the English language. Therefore, there needs to be a direct way to convert to an image and easily adjust margins... in order to print languages with diacritics. Additionally, it would be beneficial to integrate the ability to print PDFs

It would be helpful to mention if you are using a tool to generate an invoice format where you get a PDF file, so it could be easier to help you out and use another alternatives, remember that characters limitations don't rely on the extension but on the thermal printer, for example there are cheap printers that only can print Chinesse and English characters, Epson printers in the other hand usually don't have those limitations. I've helped a lot of users printing Japanese (katakana, kanji), Arabic, Spanish, Portuguese, Russian...a lot more

Please send me one of those PDF files or a sketch of what you want to print, the best would be the .aia file so we could sort the problem.
Also detail: Language, Printer brand and model.

1 Like

Hello, how do I print a document with a table?

Can this extension print to a thermal printer connected via serial connection? Does it need the [[PAID] USB Connector for ESC/POS Thermal Printers] extension to do that?


No puedo imprimir códigos QR me sale ese código 1c1E01P0Hello1Q0 mi impresora que estoy usando es cbx-pos90BT Bluetooth me pueden ayudar por favor.

Do you have a link to the support page for that printer?

There are different bar coding schemes for letters vs numbers.

You might have to tell the printer which scheme you want.

I see letters in your data.

If your printer is printing Hello with out you sending it Hello, then maybe it's waking up repeatedly in response to loose power or to some initialization command it's receiving?

P.S. I searched for this printer, and its manufacturer site is only in Peruvian.

Add that to the ever growing list of languages I can't read.

1.5 Print Control Commands

•Character print commands: support double-width, double height print of AN
characters, user-defined characters and Chinese characters, the character line
spacing is adjustable.
• Graphics print commands: support the print of bit-map graphics and
download bit-map graphics with different density
• GS bar code print commands: support UPC-A, UPC-E, EAN-13, EAN-8,
CODE39, ITF25, CODABAR, CODE93, CODE 128, PDF417, QR bar code
print.
nnly

Do you send "Hello" or did the printer decide to print that on its own?

(Canned Reply: ABG- Export & Upload .aia)
Export your .aia file and upload it here.
export_and_upload_aia

este es el aia (mod edit: removed aia with paid extension)
esta es la ficha técnica de mi impresora

quiero imprimir esta palabra hello perú y no sale el qr me imprime este codigo 1C1E01P0hello perú1Q0

su ayuda por favor gracias.

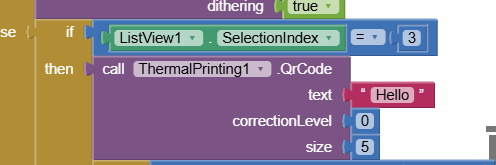

So this is where you ask to print Hello?


How do you tell it which system to use to accommodate the text "Hello"?
There are so many systems to choose from:


It's nice to have an extension to help build codes, but you still have to know what you are asking for, and its limitations.

I don't each in restaurants where I can't read the menu, for fear of asking for a plate of restaurant reviews.

P.S. I see the date of the extension in your aia has fallen behind updates to the extension by @mmnettime
