So I'm stuck at the first step of communication. Just want to send a string to HC-05 and write the full message on LCD. Currently i suspect that the usart buffer isn't filling at all, therefor probably something with the delimiter byte.
Did my best to find the problem, C code from microchip studio and app inventor are attached below.
#include "AVR lib/AVR_lib.h"
#include <avr/io.h>
#include "LCD/lcd.h"
#include "USART/USART.h"
#include <avr/eeprom.h>
#include <util/delay.h>
#include <avr/interrupt.h>
#define sklopka PB2
#define CLK PD3
#define DT PD2
//alociranje prostora u memoriji za zapis svih varijabli
uint8_t brojac;
uint8_t razina;
uint8_t trenutni_CLK;
uint8_t trenutni_DT;
uint8_t prosli_CLK;
uint8_t prosli_DT;
uint8_t snare_osjet;
uint8_t snare_luk;
uint8_t cinela_osjet;
uint8_t cinela_luk;
ISR(INT0_vect) {
_delay_ms(10);
trenutni_DT=get_pin(PIND, DT);
if(prosli_DT != trenutni_DT) {
if(prosli_DT != prosli_CLK) {
brojac--;
} else if(prosli_DT == prosli_CLK) {
brojac++;
}
}
prosli_DT=trenutni_DT;
lcd_refresh();
}
ISR(INT1_vect) {
_delay_ms(10);
trenutni_CLK=get_pin(PIND, CLK);
prosli_CLK=trenutni_CLK;
lcd_refresh();
}
ISR(INT2_vect) {
if(debounce(&PINB, sklopka, 0) == 0) {
razina++;
brojac=0;
}
lcd_refresh();
}
int ucitavanje_iz_memorije (void) {
snare_osjet = eeprom_read_byte(0);
snare_luk = eeprom_read_byte(1);
cinela_osjet = eeprom_read_byte(2);
cinela_luk = eeprom_read_byte(3);
return 0;
}
void lcd_refresh() {
lcd_clrscr();
lcd_home();
}
void inicijalizacija(){
brojac=0;
razina=0;
set_bit_reg(MCUCR, ISC00);
reset_bit_reg(MCUCR, ISC01);
set_bit_reg(GICR, INT0);
set_bit_reg(MCUCR, ISC10);
reset_bit_reg(MCUCR, ISC11);
set_bit_reg(GICR, INT1);
reset_bit_reg(MCUCSR, ISC2);
set_bit_reg(GICR, INT2);
// sklopka, CLK i DT postavljeni kao ulazni pinovi
DDRD &= ~((1 << CLK) | (1 << DT));
DDRB &= ~(1 << sklopka);
DDRB |= (1 << PB7);
// prikljucivanje priteznih otpornika
PORTD |= (1 << CLK) | (1 << DT);
PORTB |= (1 << sklopka);
prosli_CLK = get_pin(PIND, CLK);
prosli_DT = get_pin(PIND, DT);
lcd_init();
lcd_refresh();
usart_init(9600);
sei(); // globalno omogucenje prekida
}
int main(void){
inicijalizacija();
while (1){
ucitavanje_iz_memorije();
if (razina == 0) {
if (brojac < 0) brojac = 2;
if (brojac > 2) brojac = 0;
} else if (razina == 1) {
if (brojac < 0) brojac = 9;
if (brojac > 9) brojac = 0;
}
if(usart_read_all() == 1) {
set_port(PORTB, PB7, 1);
lcd_clrscr();
lcd_home();
lcd_print("%s", usart_buffer);
if(usart_buffer[0] == 'S' && usart_buffer[1] == 'O') eeprom_write_byte(0, usart_buffer[2]-48);
else if(usart_buffer[0] == 'C' && usart_buffer[1] == 'O') eeprom_write_byte(1, usart_buffer[2]-48);
else if(strcmp(usart_buffer, "Get_SO")) usart_write("CO%d", eeprom_read_byte(0));
else if(strcmp(usart_buffer, "Get_CO")) usart_write("CO%d", eeprom_read_byte(1));
}
return 0;
}
}
the usart header is here:
/*
Naslov: MIKRORAÈUNALA - Programiranje mikrokontrolera porodice
Atmel u programskom okruženju Atmel Studio 6
Autori: Zoran Vrhovski, Marko Miletiæ
USART.h
*/
#define F_CPU 8000000ul
#include <avr/io.h>
#include <avr/interrupt.h>
#include "stdbool.h"
#include <stdio.h>
void usart_init(uint32_t baut_rate);
void usart_write_int(int16_t a);
void usart_write_char(char data);
void usart_write_string(char *a);
void usart_write_float(float a);
void usart_write(char *szFormat, ...);
char usart_read_char();
bool usart_read_all();
#define end_char 0x0A // zakljuèni znak // 0x0D je znak za poèetak linije
#define MESSAGE_LENGTH 50 // maksimalna duljina poruke
char usart_buffer[MESSAGE_LENGTH];

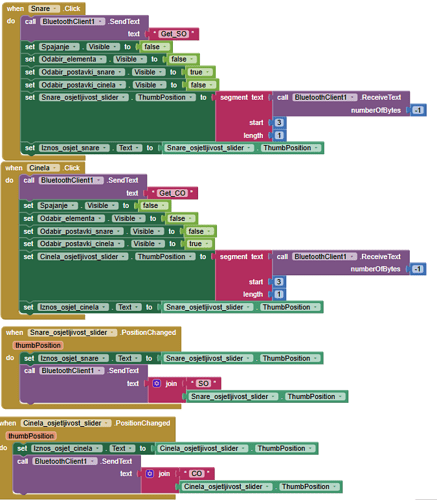

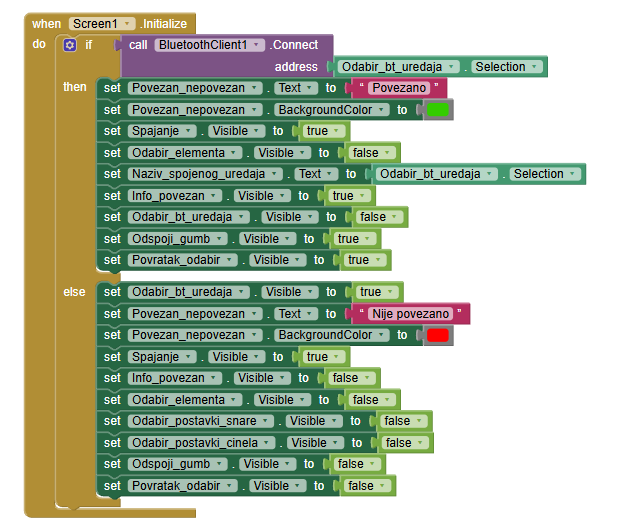

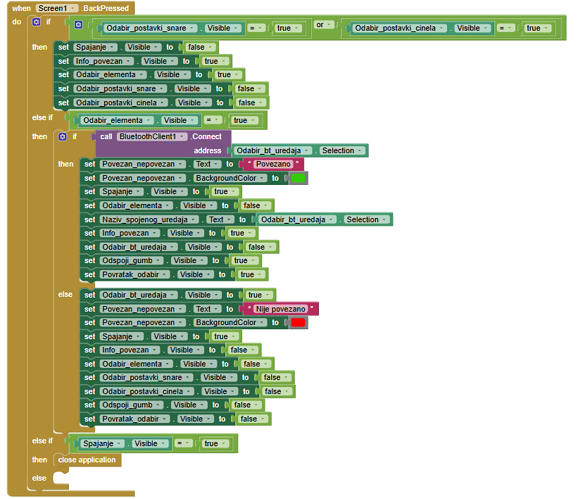

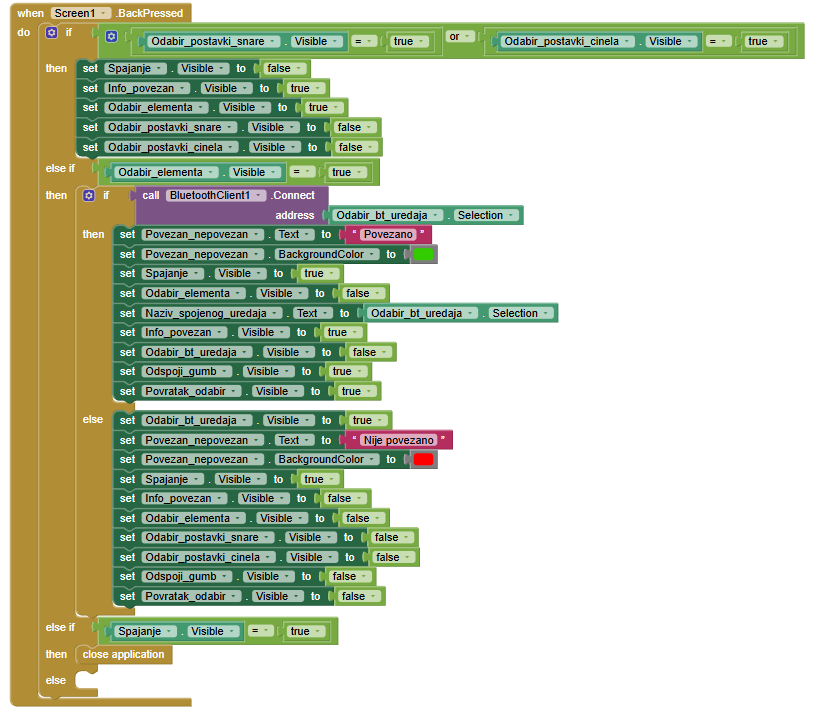

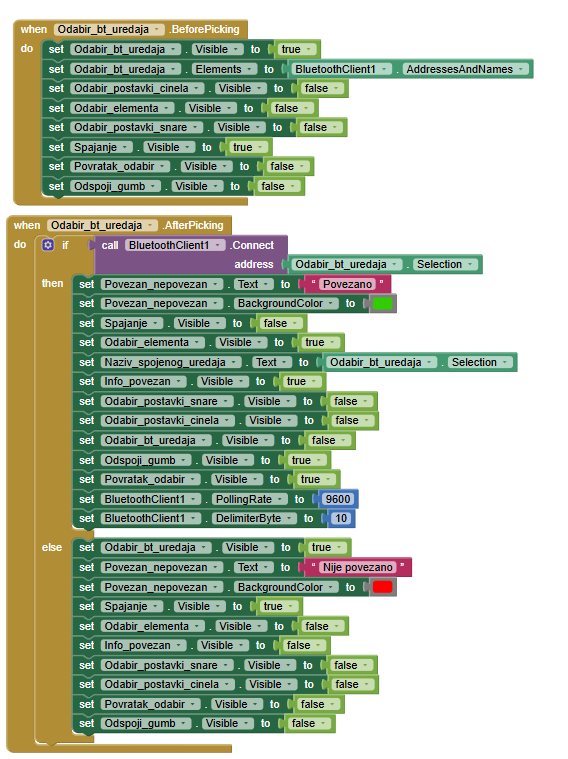

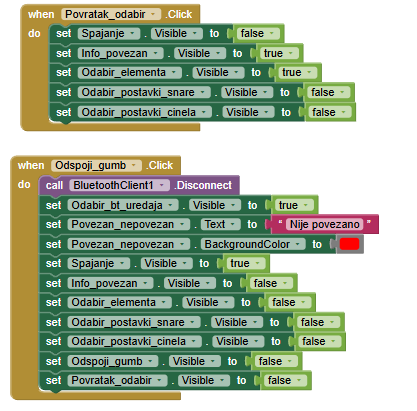

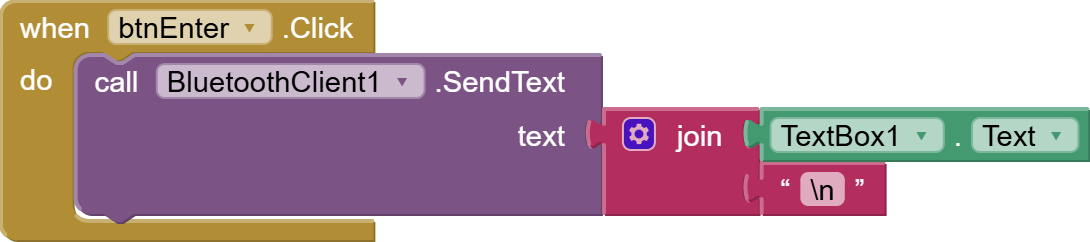

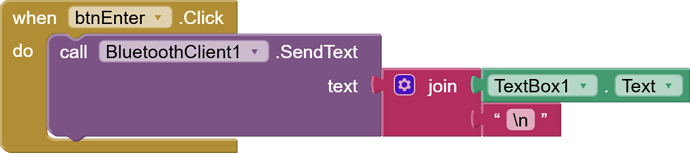

and the blocks from ai are here:
