MaterialDialog Extension
Blocks
Overview
The MaterialDialog extension enhances dialog and toast functionalities for MIT App Inventor. It enables the creation of custom dialogs, bottom sheets, full-screen WebView dialogs, and provides advanced toast and view clickability features.
Functions and Events
1. CreateDialogFromView
Description: Creates a custom dialog using an existing AndroidViewComponent.
Parameters:
dialogId
(String): Unique identifier for the dialogandroidViewComponent
(AndroidViewComponent): Component for dialog contentcancelable
(boolean): Dismissible by outside touchanimationType
(int): Animation type for the dialogpaddingDp
(int): Padding around dialog content in DP
Note: Ensure that the
androidViewComponent
is properly configured before >creating the dialog to achieve the desired layout.
Example:
AlphaDialog1.CreateDialogFromView("myDialog", VerticalArrangement1, true, 1, 10)
2. CreateTitleDialog
Description: Creates a dialog with title, message, and up to three buttons.
Parameters:
dialogId
(String): Unique identifier for the dialogtitle
(String): Dialog titlemessage
(String): Dialog messagepositiveButtonText
(String): Text for positive button (optional)negativeButtonText
(String): Text for negative button (optional)neutralButtonText
(String): Text for neutral button (optional)cancelableOnTouchOutside
(boolean): Dismissible by outside touchisIndeterminateProgress
(boolean): Show indeterminate progress barrgbColor
(String): RGB color string (currently unused)
Important: Handle the
OnButtonClick
event to respond to user interactions with the dialog buttons.
Events:
OnButtonClick
: Triggered on button click. ProvidesdialogId
andbuttonType
.
Example:
AlphaDialog1.CreateTitleDialog("myDialog", "Confirmation", "Are you sure?", "Yes", "No", "Cancel", true, false, "")
3. DeleteDialog
Description: Removes a dialog from memory and dismisses if showing.
Parameters:
dialogId
(String): Identifier of dialog to delete
Caution: Make sure to delete dialogs that are no longer needed to free up memory.
Example:
AlphaDialog1.DeleteDialog("myDialog")
4. Show
Description: Displays a previously created dialog.
Parameters:
dialogId
(String): Identifier of dialog to show
Note: Ensure that the dialog has been created before calling this method.
Example:
AlphaDialog1.Show("myDialog")
5. Dismiss
Description: Dismisses a currently showing dialog.
Parameters:
dialogId
(String): Identifier of dialog to dismiss
Tip: Use this method to programmatically close dialogs when needed.
Example:
AlphaDialog1.Dismiss("myDialog")
6. OnDismiss
Event: Triggered when a dialog is dismissed.
Parameters:
dialogId
(String): Identifier of dismissed dialog
Usage: Use this event to perform cleanup or update UI after a dialog is dismissed.
7. OnShow
Event: Triggered when a dialog is shown.
Parameters:
dialogId
(String): Identifier of shown dialog
Tip: This event is useful for performing actions right after a dialog becomes visible.
8. OnCreateDialogError
Event: Triggered on dialog creation error.
Parameters:
errorMessage
(String): Description of the error
Important: Always handle this event to catch and respond to dialog creation errors.
9. LongLength
Property: Represents long duration for toasts (1).
10. ShortLength
Property: Represents short duration for toasts (0).
Note: Use these properties to set consistent toast durations across your app.
11. ShowToast
Description: Displays a toast message using an AndroidViewComponent.
Parameters:
androidViewComponent
(AndroidViewComponent): Component for toast contenti
(int): Toast duration (0 for short, 1 for long)
Tip: Custom toasts allow for more complex layouts than standard text-only toasts.
Example:
AlphaDialog1.ShowToast(Label1, AlphaDialog1.LongLength)
12. WrapContent
Property: Controls whether toast content should wrap (true) or not (false).
Note: Set this property before showing a toast to control its layout behavior.

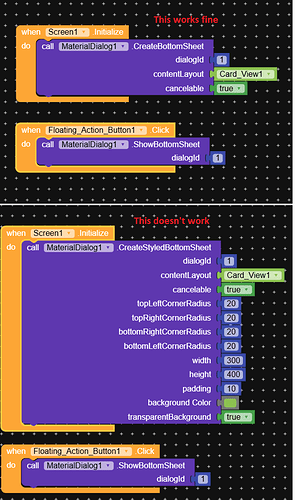

13. CreateBottomSheet
Description: Creates a Bottom Sheet dialog with custom content.
Parameters:
dialogId
(String): Unique identifier for the Bottom SheetcontentLayout
(AndroidViewComponent): Component for Bottom Sheet contentcancelable
(boolean): Dismissible by outside tap
Usage: Bottom Sheets are great for displaying additional information without >leaving the current screen.
Example:
AlphaDialog1.CreateBottomSheet("myBottomSheet", VerticalArrangement1, true)
14. ShowBottomSheet
Description: Displays a Bottom Sheet dialog.
Parameters:
dialogId
(String): Identifier of Bottom Sheet to show
Note: Ensure the Bottom Sheet has been created before calling this method.
Example:
AlphaDialog1.ShowBottomSheet("myBottomSheet")
15. DismissBottomSheet
Description: Closes a Bottom Sheet dialog.
Parameters:
dialogId
(String): Identifier of Bottom Sheet to dismiss
Tip: Use this to programmatically close Bottom Sheets when needed.
Example:
AlphaDialog1.DismissBottomSheet("myBottomSheet")
16. OnBottomSheetDismissed
Event: Triggered when a Bottom Sheet is dismissed.
Parameters:
dialogId
(String): Identifier of dismissed Bottom Sheet
Usage: Use this event to update your app's state after a Bottom Sheet is closed.
17. CreateWebViewDialog
Description: Creates a full-screen WebView dialog.
Parameters:
dialogId
(String): Unique identifier for the dialogurl
(String): URL to load in WebViewcancelable
(boolean): Dismissible by outside tapanimationType
(int): Animation type for dialoguserAgent
(String): Custom UserAgent string (optional)
Important: Ensure the URL is properly formatted and accessible before creating the WebView dialog.
Events:
AfterPageLoaded
: Triggered when WebView finishes loading. ProvidesdialogId
andurl
.
Example:
AlphaDialog1.CreateWebViewDialog("webDialog", "https://www.example.com", true, 1, "MyCustomUserAgent")
18. EvaluateJSInDialogWebView
Description: Executes JavaScript in a dialog's WebView.
Parameters:
dialogId
(String): Identifier of dialog with WebViewjsCode
(String): JavaScript code to execute
Caution: Be careful when executing JavaScript code, especially with user-provided input.
Events:
AfterEvaluation
: Triggered after JS evaluation. ProvidesdialogId
andresult
.
Example:
AlphaDialog1.EvaluateJSInDialogWebView("webDialog", "document.getElementById('myElement').innerHTML")
19. MakeWholeViewClickable
Description: Makes an entire AndroidViewComponent clickable.
Parameters:
viewComponent
(AndroidViewComponent): Component to make clickableviewId
(String): Unique identifier for the viewclickable
(boolean): Enables/disables click eventslongClickable
(boolean): Enables/disables long-click events
Note: This function adds a visual feedback (gray overlay) on click, enhancing user interaction.
Events:
ViewClicked
: Triggered on view clickViewLongClicked
: Triggered on view long-click
Example:
AlphaDialog1.MakeWholeViewClickable(HorizontalArrangement1, "myLayout", true, true)
20. AfterPageLoaded
Event: Triggered after WebView in dialog loads a page.
Parameters:
dialogId
(String): Identifier of dialog with WebViewurl
(String): Loaded URL
Usage: Use this event to perform actions after a page has finished loading in the WebView.
21. AfterEvaluation
Event: Triggered after JS evaluation in WebView dialog.
Parameters:
dialogId
(String): Identifier of dialog with WebViewresult
(String): Result of JS evaluation
Tip: This event is useful for handling the results of JavaScript execution in the WebView.
22. ViewClicked
Event: Triggered when a view made clickable is clicked.
Parameters:
viewId
(String): Identifier of clicked view
Note: Use this event to respond to clicks on views made clickable with
MakeWholeViewClickable
.
23. ViewLongClicked
Event: Triggered when a view made clickable is long-clicked.
Parameters:
viewId
(String): Identifier of long-clicked view
Tip: Long-click events can be used to provide additional options or actions for a view.
Aix file
MaterialDialog.aix (2.3 MB)
