ListViewer - Customizable Font, Alignment, Divider Size & Color

ListViewer
Customizable Font, Alignment, Divider Size & Color.


SetListItems


AddItem

Using only this block will not add the format you set when initializing the list, so it would be better to use the color, size, etc. formats in a procedure.


RemoveItem

blocks - 2025-03-16T004223.244


UpdateItem

It is not necessary to apply the format here, since it will be updated with the format of the item it is going to replace because it already exists in that index.


SortListItems

component_method (62)


AttachToHVArrangement

The HVArrangement where the list will be displayed.


SetItemAlignment

Alignment options: left, center, right.

Applies to all content.


SetItemAlignmentByIndex

Alignment options: left, center, right.

Applies individually.


SetListBackgroundColor

This changes the background of the list, not the background of the item.


SetItemTextSize

Change text size individually.

This only changes the size of the text individually, if you need to change the size of the entire content you can count the length of the list and count by 1 in a loop passing it through the function so that it updates the entire content.

  • You can use the property block: ListCount.
Example


SetItemTextColor

Change the color of the text individually.

Same as above, you can apply it to this if you want to change the text color of all content at once.


SetItemBackgroundColor

Changes the background color of the item individually.


SetAllItemsBackgroundColor

Changes the background color of all items.


SetItemCornerRadius

Changes the radius of the item's corners individually.


SetItemSize

blocks - 2025-03-16T005427.385


SetAllItemSize


SetDividerColor

It has gray color by default.


SetDividerHeight

It has 2 pixels by default


SetHorizontal

In this mode, there are no lines or spacing, and if the heights are different for each item, they won't appear centered.
For the item to appear centered, they must all be the same height.

  • I'll check that later to fix it.

SetScrollBarVisible

Not visible by default


SetItemFont

Only fonts in .ttf (TrueType Font) format can be used.

  • Fonts must be uploaded to the app assets to be used.

ListCount

component_set_get (8)


Update v1.1 Mar 16, 2025.

  • AI2 colors can now be used.
  • Function to change text size.
  • Function to add text fonts (ttf).
  • Function to align text to left, center, or right (by index or all at once).
  • Function to change the height of the divider.

Colors can be set to hexadecimal and native AI2 colors.

  • For now the list doesn't accept images, maybe in a future update.

Download the AIA project to see how it works.


Note:
Before updating the extension...

  • If you've used some blocks, I recommend making a copy so you don't lose anything, because I've changed some names.

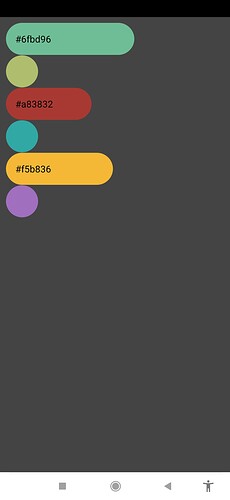

Screenshots





aiaProject:
ListViewer.aia (49.8 KB)

Extension v1.1
Mar 16, 2025.
joejsanz.joedevlistviewer.aix (20.5 KB)


minSdk: 21
maxSdk: 34
JDK: 11

Built using: FAST-CLI v2.7.0


Thanks.

13 Likes

Very nice extension!

2 Likes

Thank you so much

1 Like

Looks awesome :ok_hand::clap::+1::heart_eyes::sparkling_heart::sunglasses:

1 Like

Thank you so much

1 Like

Thanks for your efforts. Very good extension.

Thank You so much @husnain

How to set the text size and custom font for a list?

I don't think I put that option in because I only did it to get colors.

I'll review the code tonight and make some changes so it accepts those options.

1 Like

thank you joe

1 Like

I've already implemented that and added other features, but I didn't have enough time to publish it.

I'll post the update when I get back.

But if you've used some blocks, I recommend making a copy so you don't lose anything, because I've changed some names.

2 Likes

Update v1.1 Mar 16, 2025.

If you've used some blocks, I recommend making a copy so you don't lose anything, because I've changed some names.

1 Like
