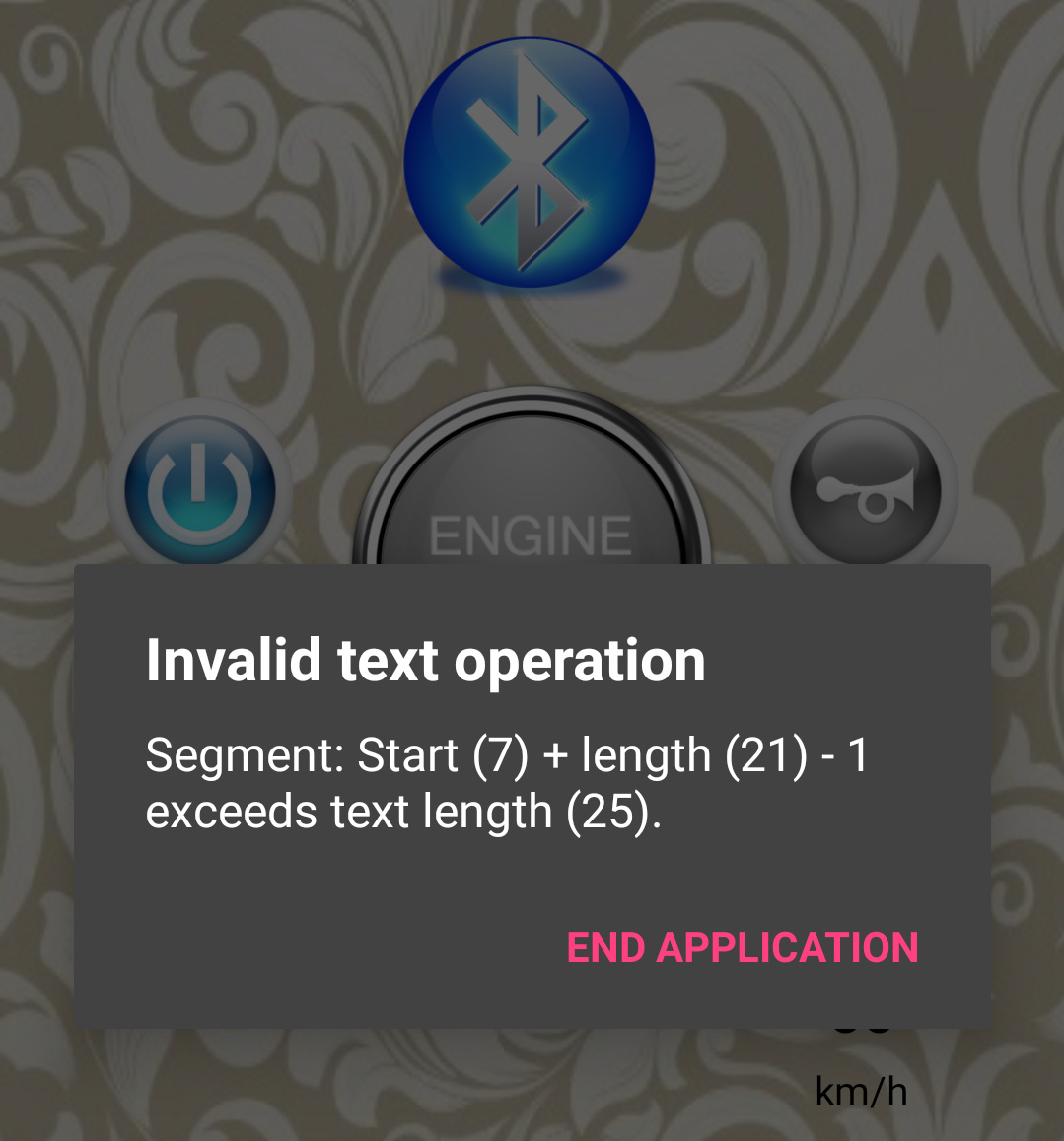

Invalid text operation

Hello everyone, I'm from Indonesia.

I was just starting to learn to be able to make a project, but I found the error message. and i don't know where to start to fix it.

please help me to solve this problem..



Thanks :santai:

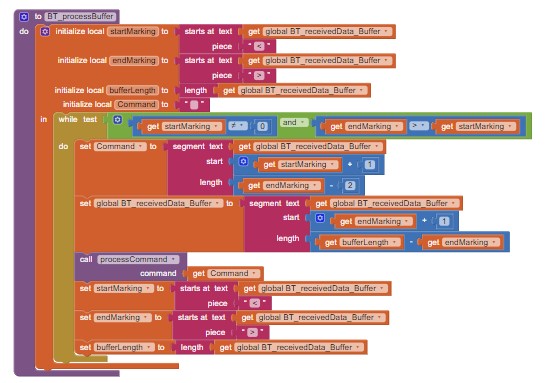

unfortunately your screenshots are too small to see anything...
your text length is 25 and you are trying to get a partial text, which starts at position 7 and the length is 20... which means, the available length from position 7 to the end of your string can only be 18 or less...
solution: adjust the start position or the length...


Trying to push the limits! Snippets, Tutorials and Extensions from Pura Vida Apps by Taifun.

Your command length calculation is wrong.
The segment length should be (endMarking - startMarking) - 1.

Thank you for the help. then how do I change it to be correct?

sorry i just learned about this.

Please download and post each of those event block(s)/procedures here ...
(sample video)

well. thank you for helping. I really want to learn this ..

I'll come back to ask if there is something I don't know. :tersenyum:

sorry in advance, I tried to give the procedure, but I want to give the file that I created as a whole. so that I can study every detail of the mistakes I made.

I uploaded a file to Google Drive, maybe you want to download it and tell me every mistake I made in creating this project?

this is the download link :

actually I wanted to make a motorcycle control system, which can be controlled via a smartphone, at the same time I wanted to learn, because I liked it, but I almost gave up because of my lack of knowledge about this. I hope there is encouragement for me to continue learning.

Sharing our mistakes is a primary function of this board.
If your code is super secret, find some one to sign a Non Disclosure Agreement.
Otherwise, export the .aia file and upload it here.

P.S. Your google Drive link does not work.

Sorry. maybe I made a mistake while uploading files to Google Drive ..

Motorcycle_sensor.aia (3.6 MB)

I tried to fix the upload error :
this is for programming the arduino if needed

arduino file :

If I may know, where are you from ?

Anyway, if you want to try to enter the application ... enter the default password 123456

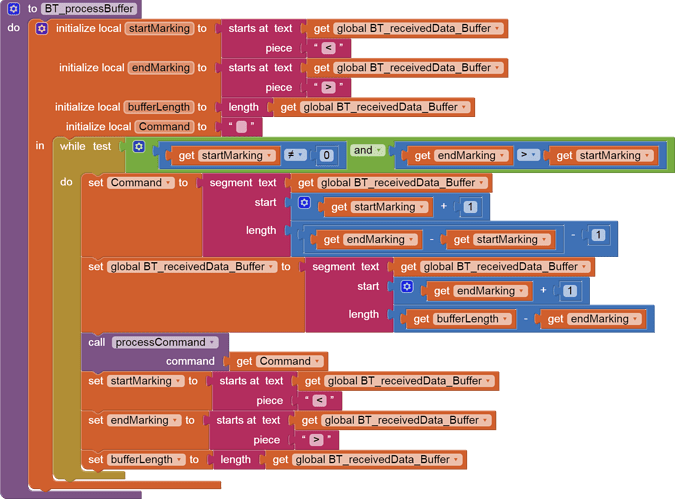

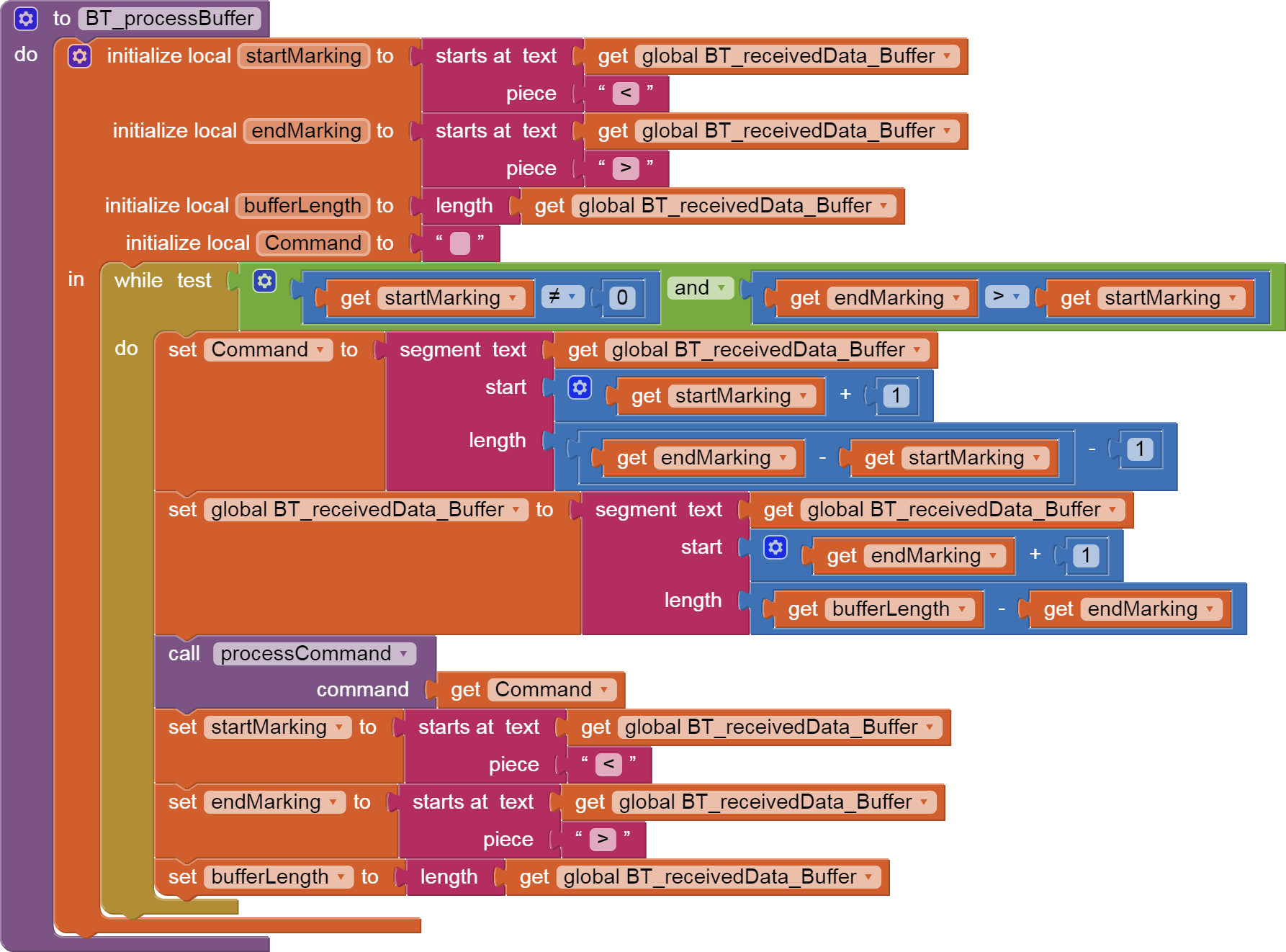

here is a draggable replacement for your procedure, with the change I suggested to extracting the command ...

I notice now that the next step in this procedure has a weakness if the buffer ends in '>'.
The procedure would try to take a segment of length 0, which is beyond the capability of the segment() block.

I did not fix that.

I am a time traveller from the late 1940s, the long way.

well. thank you time traveler :tersenyum:
