ImageLoader - Zoom, rotate, position, bring to front, send to back, flip, restore image, and delete

[Joejsanz]

ImageLoader within an arrangement.
Thumb manipulation on all layers: zoom, rotate, and position.
Bring to front, send to back, restore image, and delete.

---

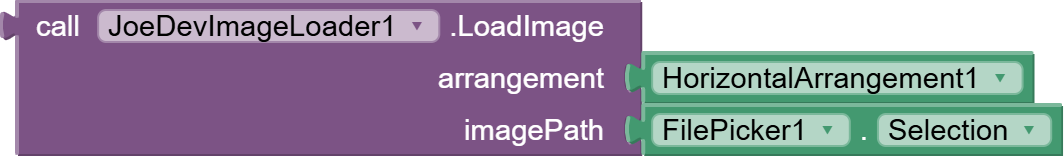

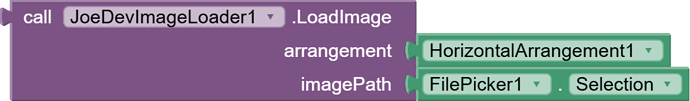

LoadImage

Loads an image from the device and displays it in an Arrangement.
Returns the image ID.

Example

---

RemoveImage

Delete the image by passing its id.

---

BringToFront

Bring the image to the front by passing its id.

---

SendToBack

Send an image to the back by passing its id.

---

ResetImage

Resets the transformation of an image by passing its id.

---

GetLastTouchedImageId

Returns the ID of the last touched image

---

ImageTouched

Triggered when an image is touched.

---

Update v1.1 June 17, 2025.

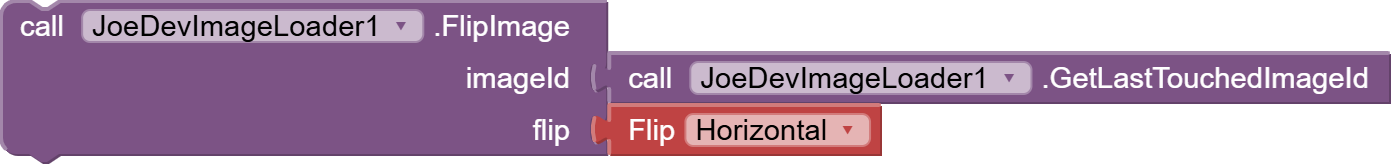

FlipImage

Flip an image vertically or horizontally.

• Mirror mode.

---

RotateImage

Rotate an image by specific degrees.

---

ResetRotation

Resets the rotation of an image.

This sets the image to degree 0

---

GetImageRotation

Get current rotation angle of an image in degrees.

---

ImageRotated

Triggered when an image is rotated, returns the current rotation angle in degrees.

---

Update v1.2 June 22, 2025.

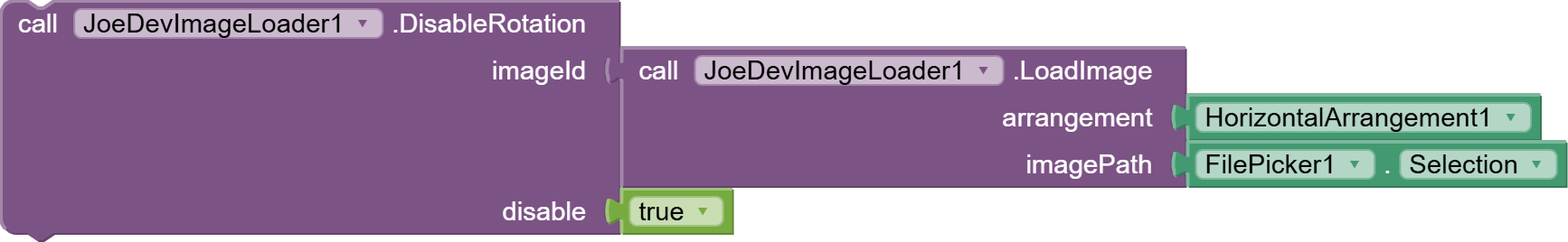

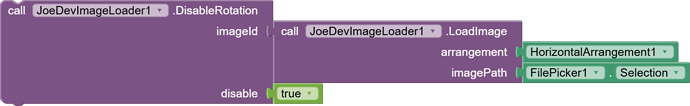

DisableRotation

Disable or enable rotation for a specific image.

---

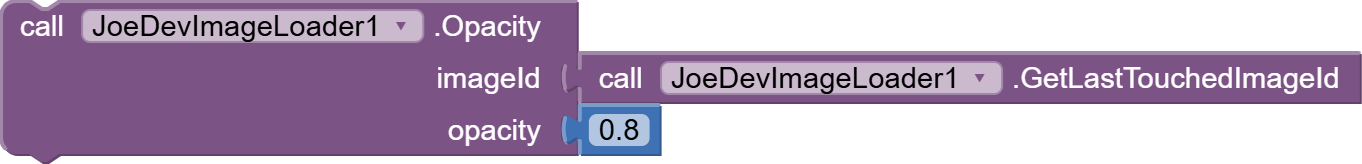

Opacity

Set image opacity (0-1).

---

v1.2 June 22, 2025.

Features:

• Disable rotation and set opacity.

ImageLoader.aia (35.5 KB)

joejsanz.joedevimageloader.aix (13.9 KB)

---

JDK: 11
Minimum API Level: 21
Updated On: 2025-06-22T07:00:00Z

Built & documented using: FAST v3.7.0-premium

---

Thanks.

[TIMAI2]

Very nice

One request, ability to reset rotation after resizing, it is a bit fiddly to do it manually.

[Joejsanz]

@TIMAI2

One request, ability to reset rotation after resizing

If guide lines appeared when passing through degrees 0, 90, 180 and 270, would that be okay?

[TIMAI2]

Will the image snap to them ?

[Joejsanz]

@TIMAI2

snap

That's what I had in mind, that it would give a snap just when it approached certain types of degrees to align, but I'm better off leaving the reset function.

[Joejsanz]

Update v1.1 June 17, 2025.

@Joejsanz

FlipImage

Flip an image vertically or horizontally.

• Mirror mode.

---

RotateImage

Rotate an image by specific degrees.

---

ResetRotation

Resets the rotation of an image.

This sets the image to degree 0

---

GetImageRotation

Get current rotation angle of an image in degrees.

---

ImageRotated

Triggered when an image is rotated, returns the current rotation angle in degrees.

---

v1.1 June 17, 2025.

ImageLoader.aia (20.2 KB)

joejsanz.joedevimageloader.aix (12.9 KB)

[hotatp]

Very nice
Can I save the edited image? I can't find a way to do it.

[Joejsanz]

@hotatp

I can't find a way to do it.

It is not possible in the published version

I haven't updated the extensions yet, but try this:
ImageLoader.aia (34.7 KB)

[Joejsanz]

Update June 19, 2025.

@Joejsanz

• Fixed a detail that prevented screenshots with any extension from being taken.

ImageLoader.aia (34.7 KB)

joejsanz.joedevimageloader.aix (13.3 KB)

[albert_choong]

Hi
I like your extension.

Is it possible to just pinch and zoom without the image rotating while it zooms in... Could I like disable rotation.

[hotatp]

Thanks very much.

[Joejsanz]

Update v1.2 June 22, 2025

@Joejsanz

DisableRotation

Disable or enable rotation for a specific image.

---

Opacity

Set image opacity (0-1).

---

v1.2 June 22, 2025.

Features:

• Disable rotation and set opacity.

ImageLoader.aia (35.5 KB)

joejsanz.joedevimageloader.aix (13.9 KB)

[albert_choong]

Thanks for the update to disable rotation!
