Thanks, the problem now is only in chart entry as now I can call the R4 on Res text box and it is working but on chart not working only reading the volatge values
Thanks, the problem now is only in chart entry as now I can call the R4 on Res text box and it is working but on chart not working only reading the volatge values
Your graph went up like your examples but then it went down.
The code to locate the peak Rg did not take into account a descending section.
Revise the section of code that finds the rising section to limit the extraction to just the points with ascending y values.
P.S. Because your y values are locally noisy, you might need to set a minimum threshold to determine ascending and descending.
Also, research smoothing techniques like a Kalman filter.
So, please, is it available in the Chartmaker extension?
how I can apply it
I don't support extensions.
It will be hours before I get to open aia files.
As an alternative to smoothing the data, pick an incremental value epsilon just bigger than the biggest noise wiggle in R readings, and use that to judge if R is increasing as you sweep through the readings list.
Don't fall off the edge of the list.
1 Like
SystemTime is milliseconds from 1970.
That's a really big number.

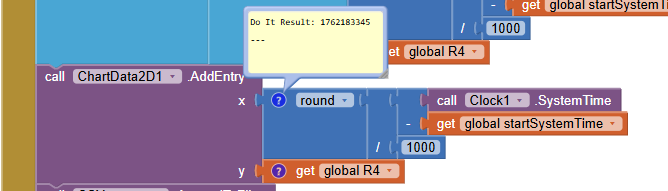

That tells me you never got a chance to set global startSystemTime to the value of Clock1.SystemTime when you started collecting timestamped data.
So it was left at 0.
I see in Screen1 you have two Clock Timers.
You left them both enabled in the Designer.

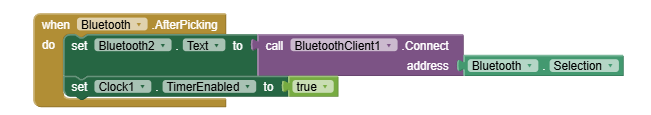

It is safer to leave them disabled in the Designer and only enable them after you have done preparatory work like setting the global start Time.
You might have disabled one Clock in your Screen Initialize block, but did you disable the other? And what if you entered the Screen through closing another Screen, bypassing Screen Initialize? Did you disable clocks there too?
Again, leave those Clocks disabled in the Designer.
It's like selling lit fireworks by mail order.
Here is another place you start the data gathering without setting the start time:

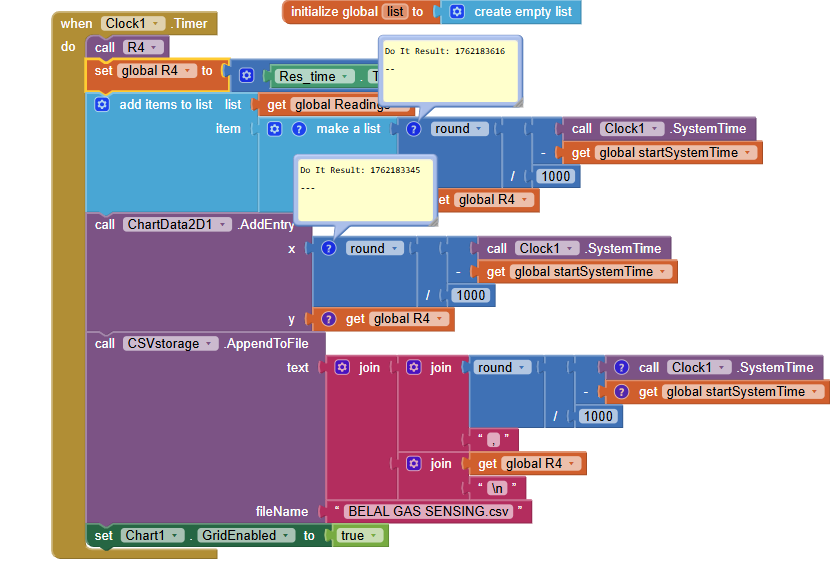

In Clock1.Timer in Screen1,

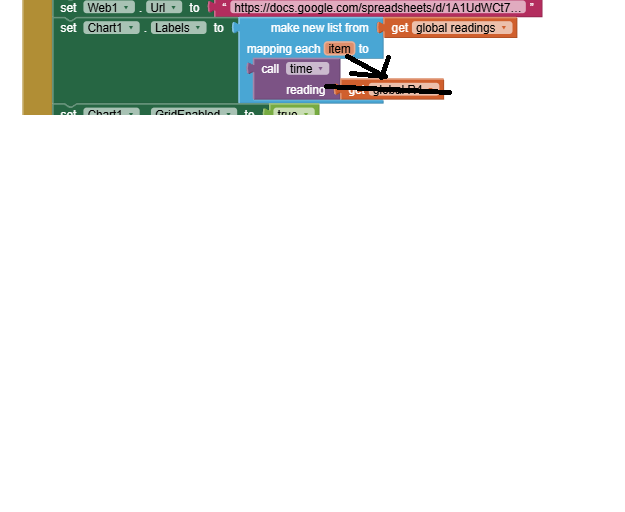

Chart1.Labels needed a list of the times (item 1) from the pairs in global readings.
Instead, you took a number (R4) and tried to extract item 1 from it?
Thanks, it is now reading the R4 but making ups and down 30k to zero and again 30k.
BELALFINALPROJECT3 (4).aia (340.3 KB)
Why are you reading from Bluetooth twice in each clock timer cycle, once in the timer event code and once in the R4 procedure you call in the timer?
1 Like
Thanks I will check it maybe this is the problem
Almost, working, but still reading voltage
Please here, how can I filter the data to get only R4 which is 30k in the video
Thanks, it is now working; I set the interval time to 500 ms.
So there's nothing left to look at?
1 Like
Actually, tomorrow I will check the real time sensing by testing the sensor toward gases as I need to check the gauge and analyze code of Rgas and R air for baseline, so I will need your help, thank you so much, without your help I couldn't do it
