How do I send long strings to BLE from AI2?

If you do need to process long strings and have to chop them up, it would probably be easier to define them as a char array rather than a C++ String, as you can stipulate 'lengths' of strings in characters and not require delimiters for strtok() to find - unless of course the real data actually arrives with convenient delimiters. Note that String Object uses more memory though.

For Serial1, #include <SoftwareSerial.h> needs to be added to the Sketch, because you also output to the Arduino Serial Monitor and the Uno only has one Serial channel. :owl:

Hi ChrisWard !

First Thank you very very very much !!!
I answer you with delay… and Google translate… sorry.
MitSendReceiveBLE.aia (163.2 KB) MitSendReceiveHC05.aia (169.9 KB)

"What is all that play one time, play 2x, play 3x? (with delays in between)? »

 > When Arduino sends message sometimes data is lost, I don't know why. With delays It's better but not perfect .If Arduino plays twice, that's fine. So I play 3 times to be sure !!!

"Do you just require to send the integer values ar and jr to the App?"

>  For the project, I will need to send a dozen integer values like: ar = 11, aj = 22, ak = 333, an = 2313, ap = 54, at = 6574 ...

"….floats or integers?"

 > Integers, I declare "int: xx »

"…. Uno only has one Serial channel."

> I use Mega.

I try what you sent me today and I will tell you tonight.
Have a good day !

Which library do you use?
#include <BLEDevice.h>
#include <BLEServer.h>
#include <BLEUtils.h>
#include <BLE2902.h>

They are inter-related, <BLEServer.h> is being used in the Sketch for your Test.

Good evening Chris,
Yes I saw. I spend all my time trying to find solutions! first with your sketch and also with tutorials found here! I row !

with all informations I take here, I'm learning a lot!
I will allow myself to show you what I managed to do! And if that can help other people, that will be cool!

There are some good links plus tips on my website:
https://www.professorcad.co.uk/appinventortips#TipsArduino
https://www.professorcad.co.uk/appinventortips#TipsBluetooth

Hello,

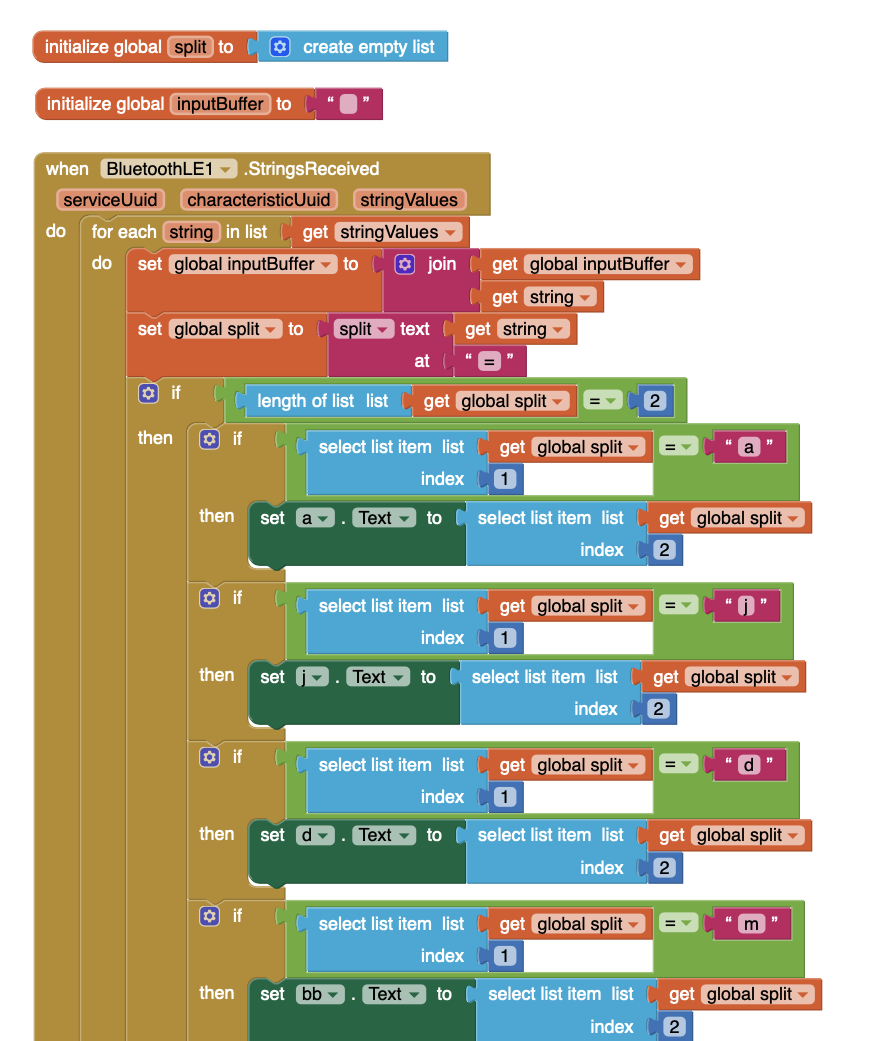

I finally managed to receive the strings and split them properly!
Thanks to ChrisWard and ABG for helping me.
Now, I must succeed in sending strings of more than 20 characters from the app to the arduino!
I continue to move forward ... slowly ... but I move forward!

And message from arduino :
Serial1.println("a=" + String(a) );
delay(100);
Serial1.println("j=" + String(j) );
delay(100);
Serial1.println("d=" + String(d) );
delay(100);
Serial1.println("m=" + String(m) );

I give you my first remarks on sending Strings :
example 1:
If I send data like this, I only get the first twenty characters:
d = 29 & b = 12 & y = 2020 & h = 1

example 2:

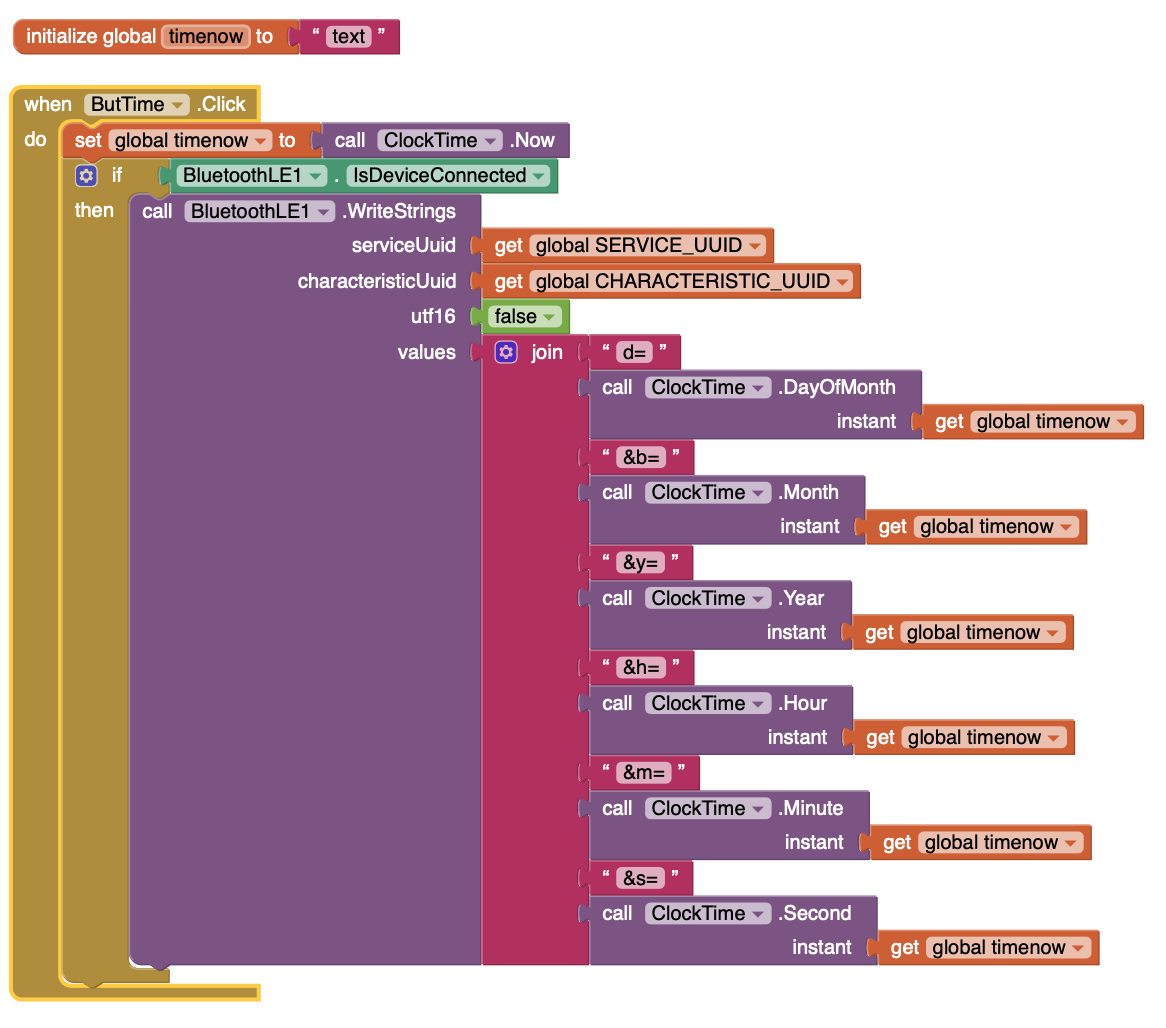

If I send data like this, I receive all characters in monitoring serial arduino : d=29&b=12&y=2020&h=15&m=25&s=12

But my "decoupeur" only sees the first twenty characters too

void decoupeur(String inputString){

  char inputChar[inputString.length()+1] ;
  inputString.toCharArray(inputChar,inputString.length()+1);
    char* command = strtok(inputChar, "&");
    // boucle sur toutes les commandes
    while (command != 0)
    {
        char* valueCommand = strchr(command, '=');
        if (valueCommand != 0)
        {
            *valueCommand = 0;
            ++valueCommand;
              if(String(command) == "d"){
                ddBase = String(valueCommand).toFloat();
              }
              if(String(command) == "b"){
                bbBase = String(valueCommand).toFloat();
              }
              if(String(command) == "y"){
                yyBase = String(valueCommand).toFloat();
              }
              if(String(command) == "h"){
                acc = String(valueCommand).toFloat();
              }
              if(String(command) == "m"){
                jrec = String(valueCommand).toFloat();
              }
              if(String(command) == "s"){
                setPar = String(valueCommand).toFloat();
              }
        }
        command = strtok(0, "&");
    }

}

You do not need those delays! Just manage the Loop properly with elapsed milliseconds.

First of all, as I have said before, send only values, no labels. That alone saves bytes.

So your string could be less characters:

29|12|2020|01|00|00

However, you could send the values as individual packets and not need the decoupeur procedure at all, just a code for Substring + Switch to work with on receipt of data.

why it's better with millis ?

A delay() blocks everything.

You are a difficult one to help Sledge because you have no stated goal - what, at the end of the day, will be the purpose of your App? Where do the long strings come from and what are they for?

Hi ChrisWard,
yes I know ! me too !!! I don't know where I'm going :slight_smile:
I try to understand by doing experiments.
I have a display project but for now I am experimenting.
I have a new question:

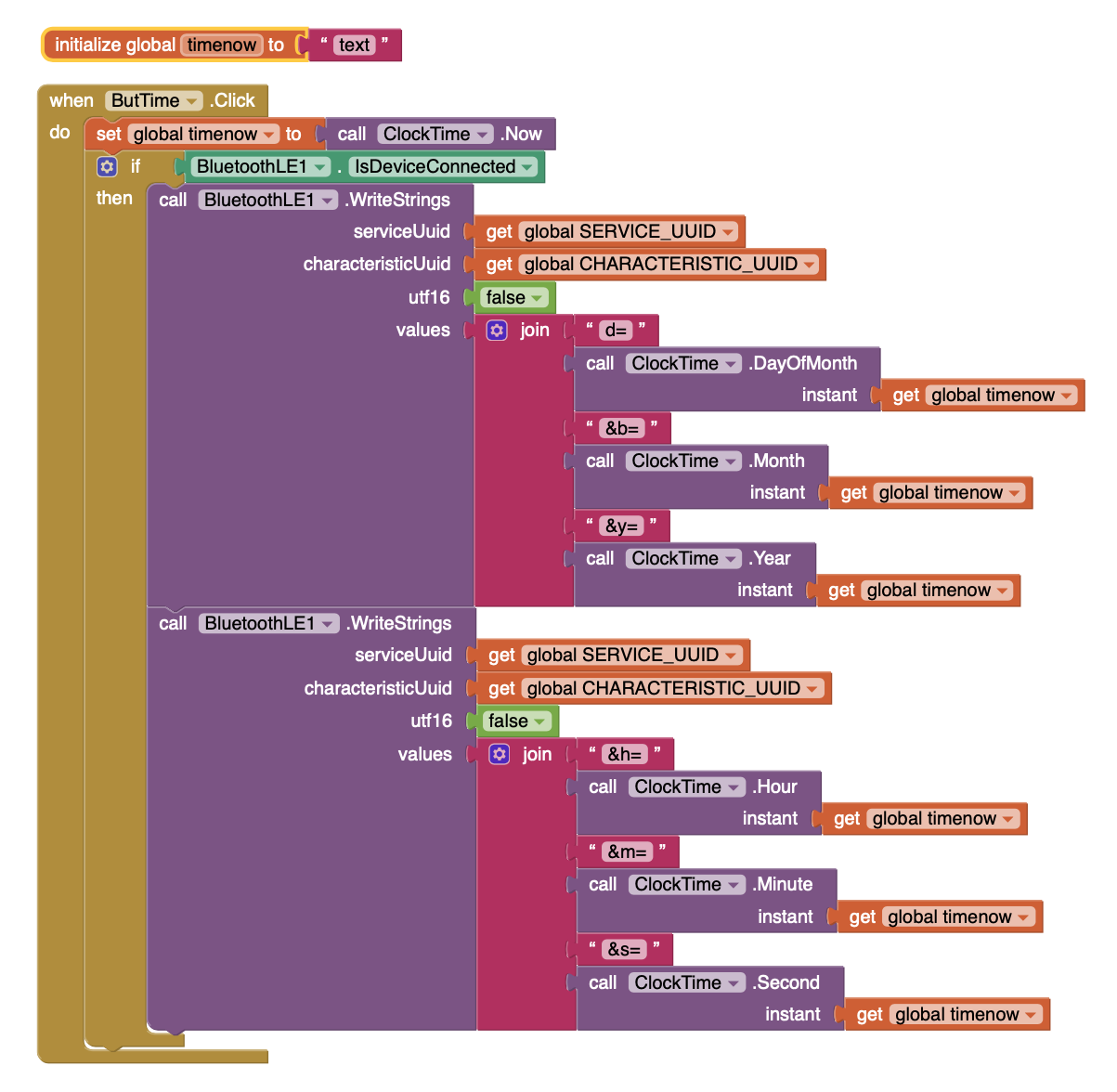

I see I can send 2 packets of strings to arduino.
How can I combine them into one dans l'arduino ?

Sorry... How can I combine them into one IN arduino ?
