[FREE] TableViewer - fully style customized to show table data

[shyong112]

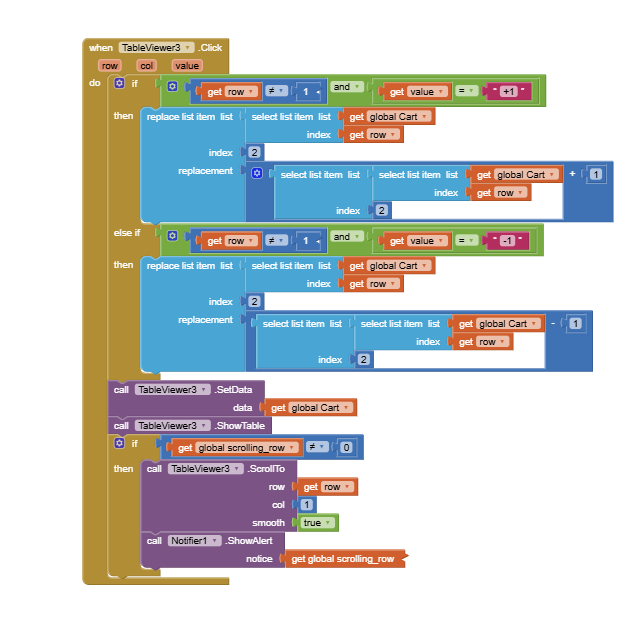

After executing the ShowTable block, can the screen remain in the same position?

[Kevinkun]

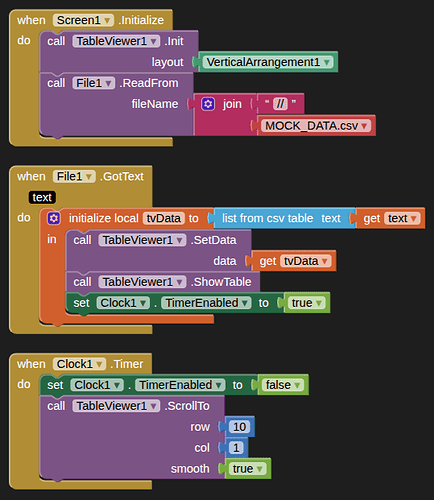

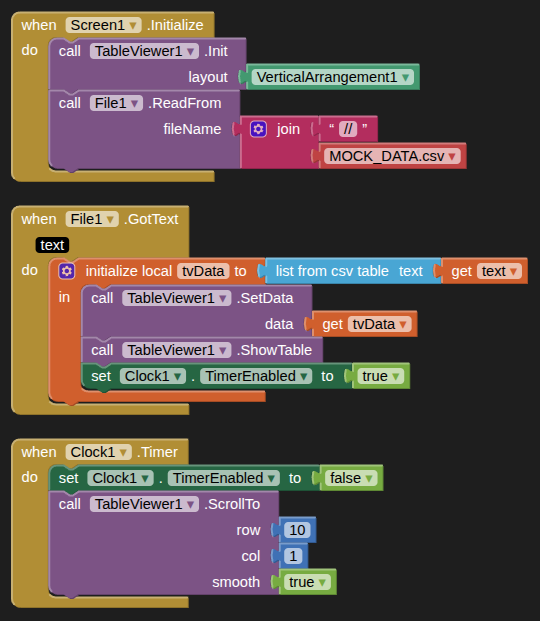

call ScrollTo again, smooth set to false

[shyong112]

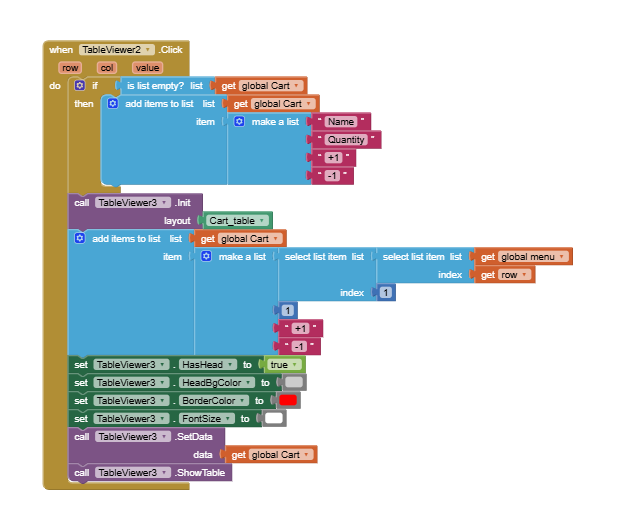

Is it possible to change the cell background color without using [ShowTable]?

[Kevinkun]

two ways. Pay attension to the red circles.

[shyong112]

Thanks, this is exactly the answer I wanted

[shyong112]

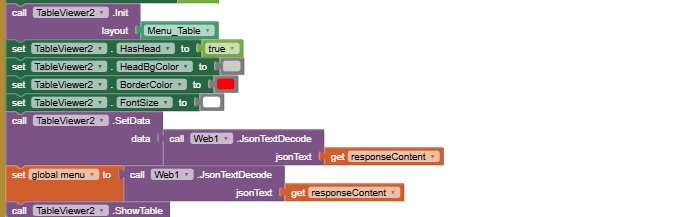

Is it possible to read the cell background color?

[Kevinkun]

How did you set the style of the table?

[shyong112]

I think I found a way to use the return value. I don't know JS language, so I don't know if this method is correct.

[Kevinkun]

yes, but only if you set the bg color with js, otherwise it returns empty string.

[shyong112]

Yes, when no color is read, an empty string "" will be returned.

[nictek]

when i tried making a table, it didn’t work and this is what happened;

I don't know how to do it, can you guys help me thanks !

[TIMAI2]

Please show your relevant blocks

[sol_roll]

it seems you feed wrong input to initializing the extension you use...

[TIMAI2]

@nictek

I don't know how to do it

Here are the very basics:

Designer: you need the extension and a layout, here I use a VerticalArrangement.

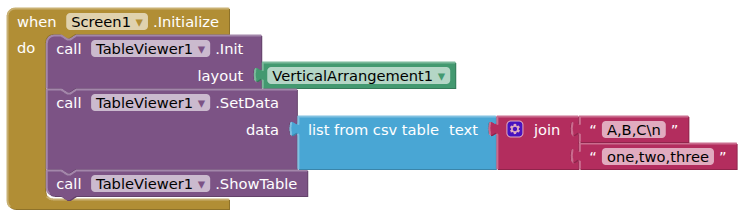

Blocks: Init the Tableviewer with your layout, set some data, show the table.

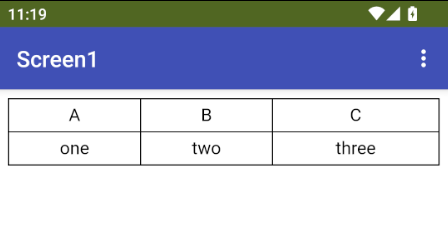

Companion Screen: you should see your table.

Aia: download this aia project to test.

tvdemo1.aia (27.1 KB)
