Hi Community!

Many of you know my previous extension for Google Sign-In. It worked great, but Google is cracking down on "WebView" logins (Error 403: Disallowed User Agent).

So, I built something completely new.

Introducing SigningWithGoogleNative — a rock-solid, native implementation using the official Google Play Services SDK.

SigningWithGoogleNative

Native Google Sign-In & Firebase Sync for App Inventor

Android Compatibility

Support Level	Version	API Level
Minimum	Android 5.0 (Lollipop)	API 21
Target	Android 14+	API 34+
Architecture	Universal	arm, x86

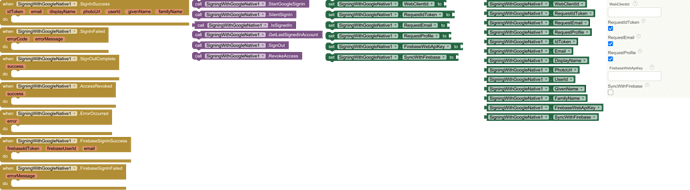

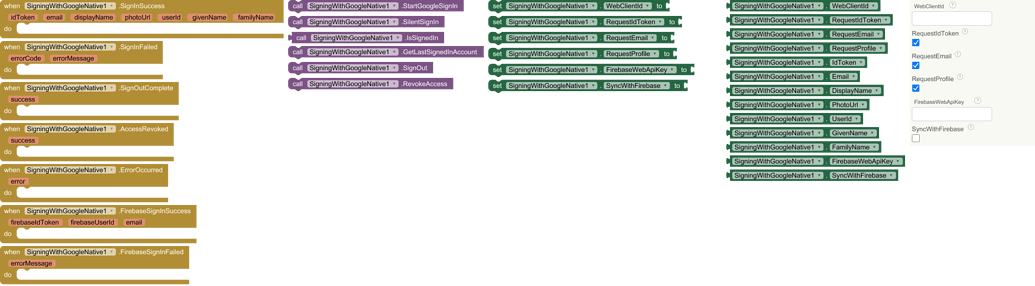

Blocks

preview

Setup

Phase 1: The Foundation (Firebase & Google Cloud)

Before touching App Inventor, we need to tell Google "This app is allowed to sign people in."

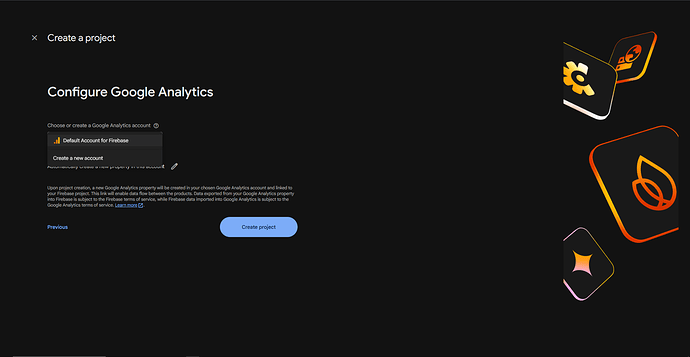

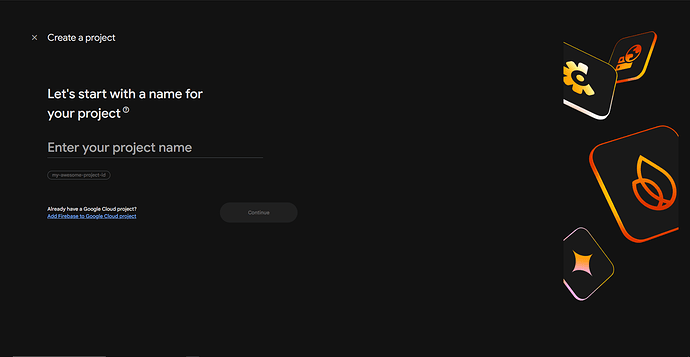

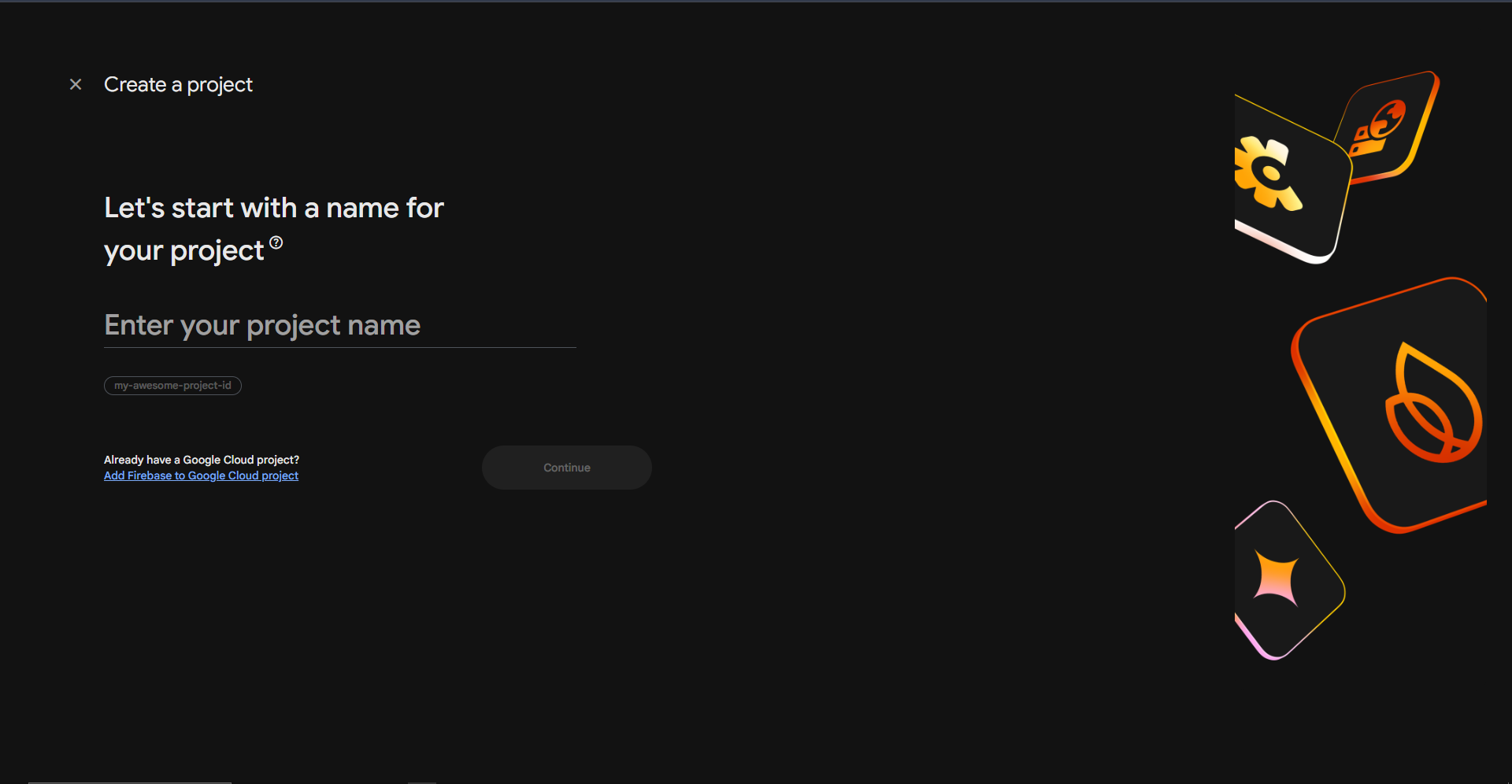

Step 1: Create a Firebase Project

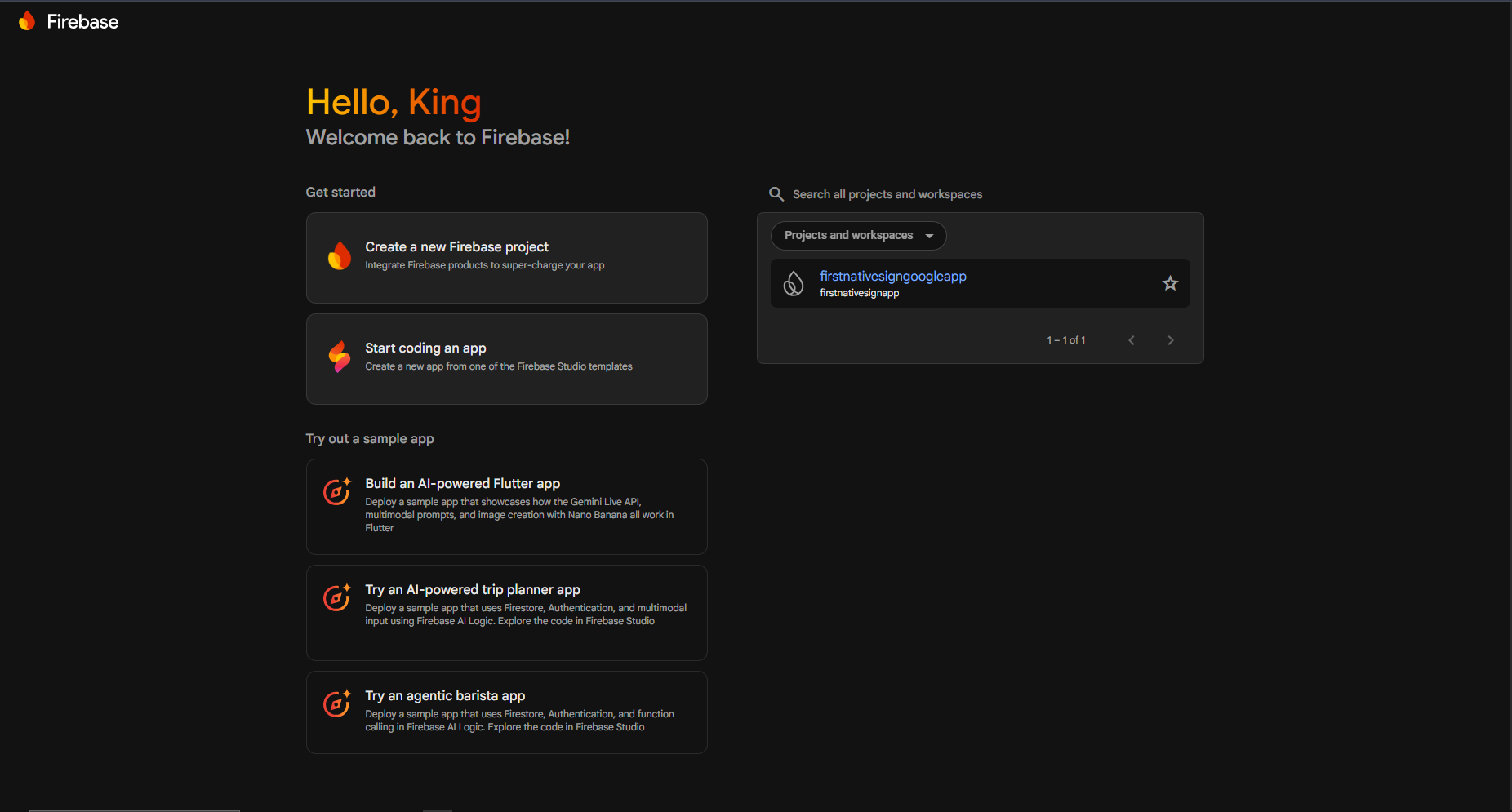

1. Go to console.firebase.google.com.

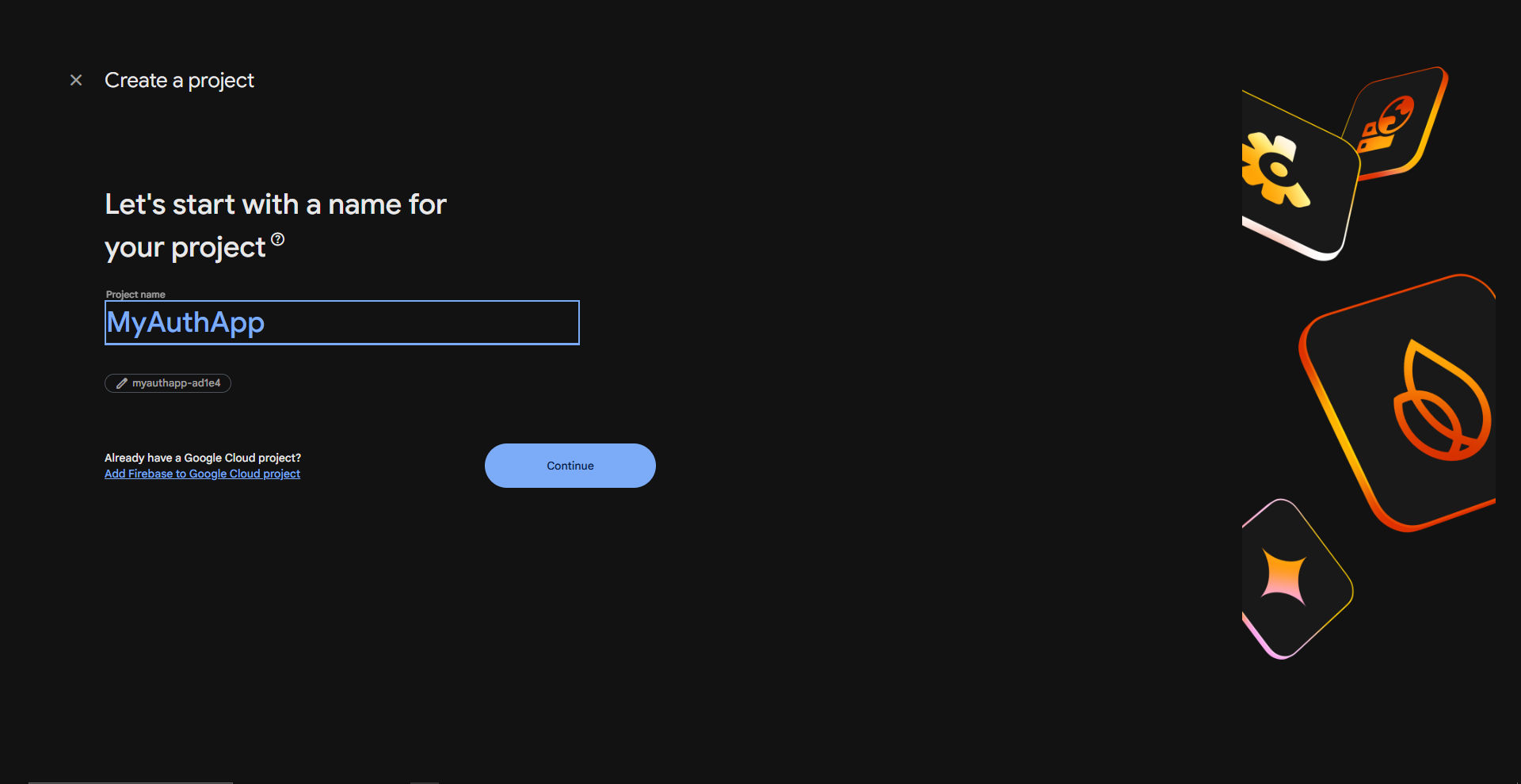

2. Click "Add Project" → Name it (e.g., MyAuthApp).

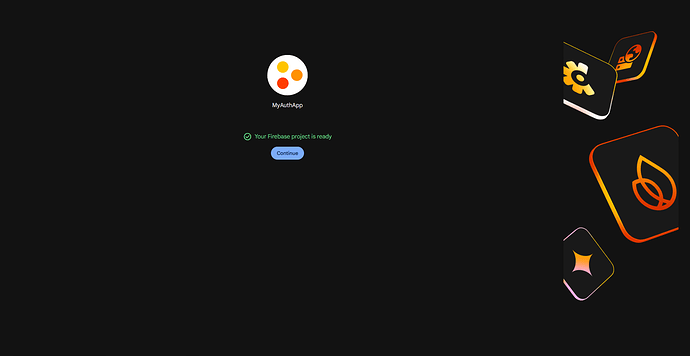

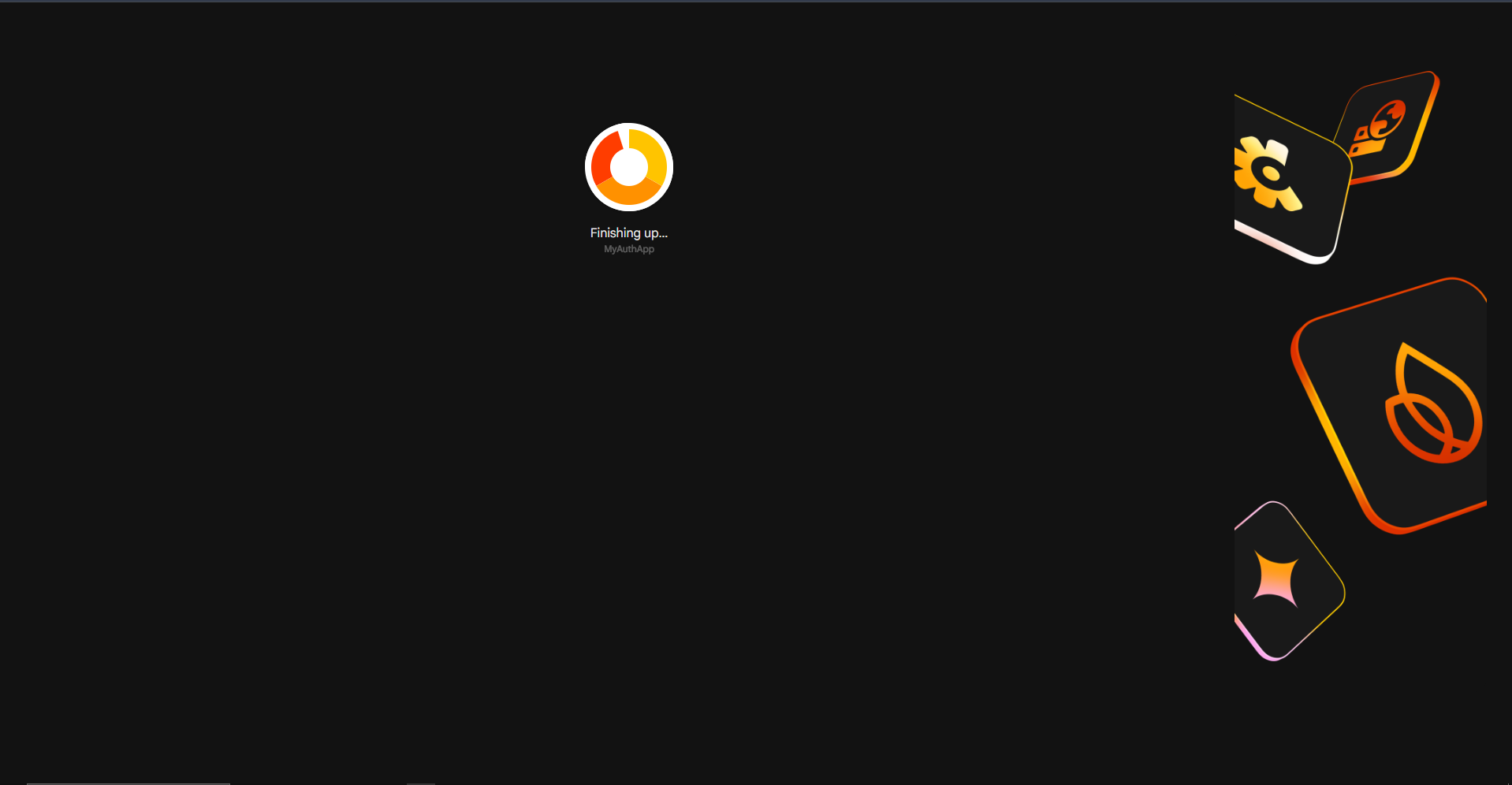

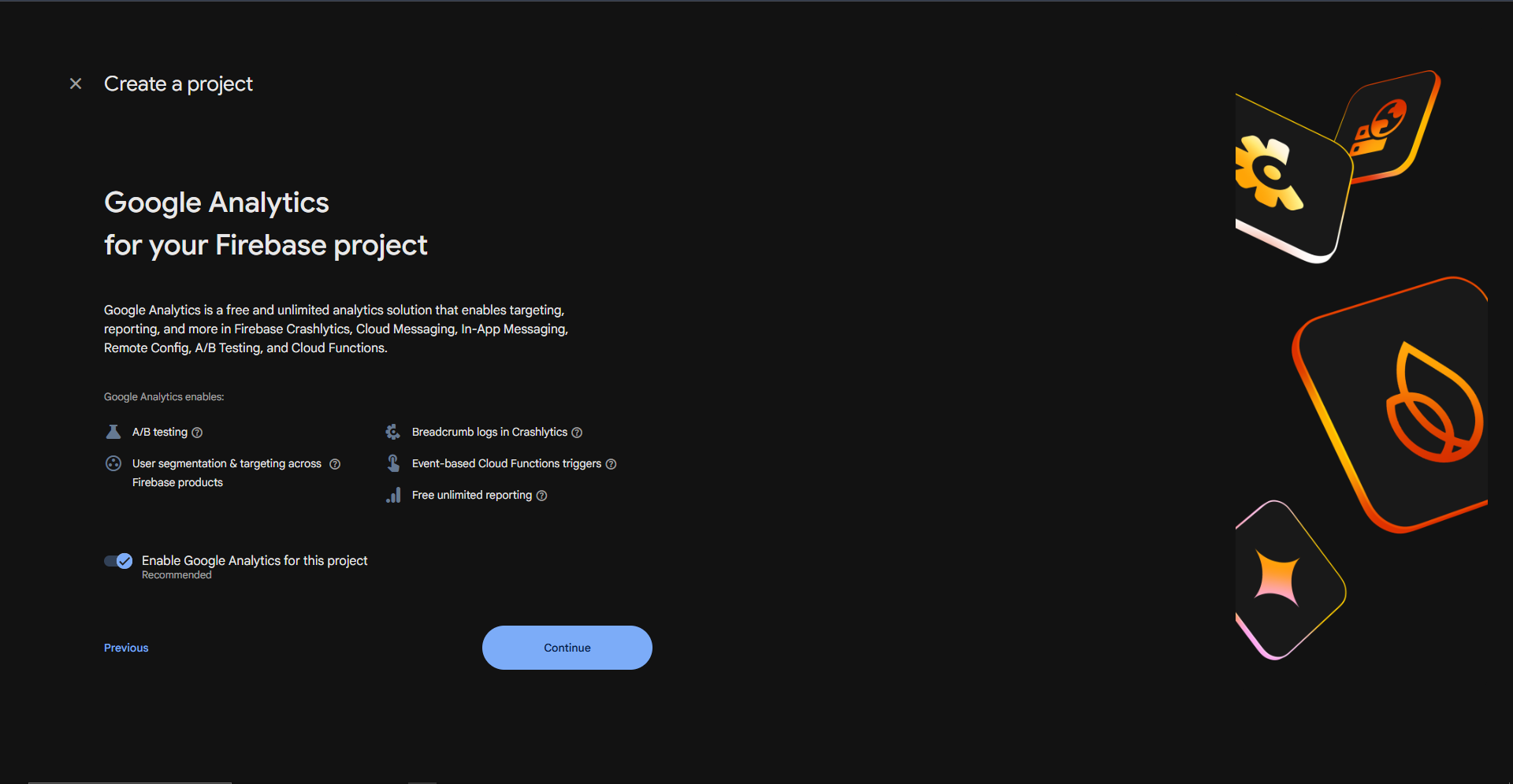

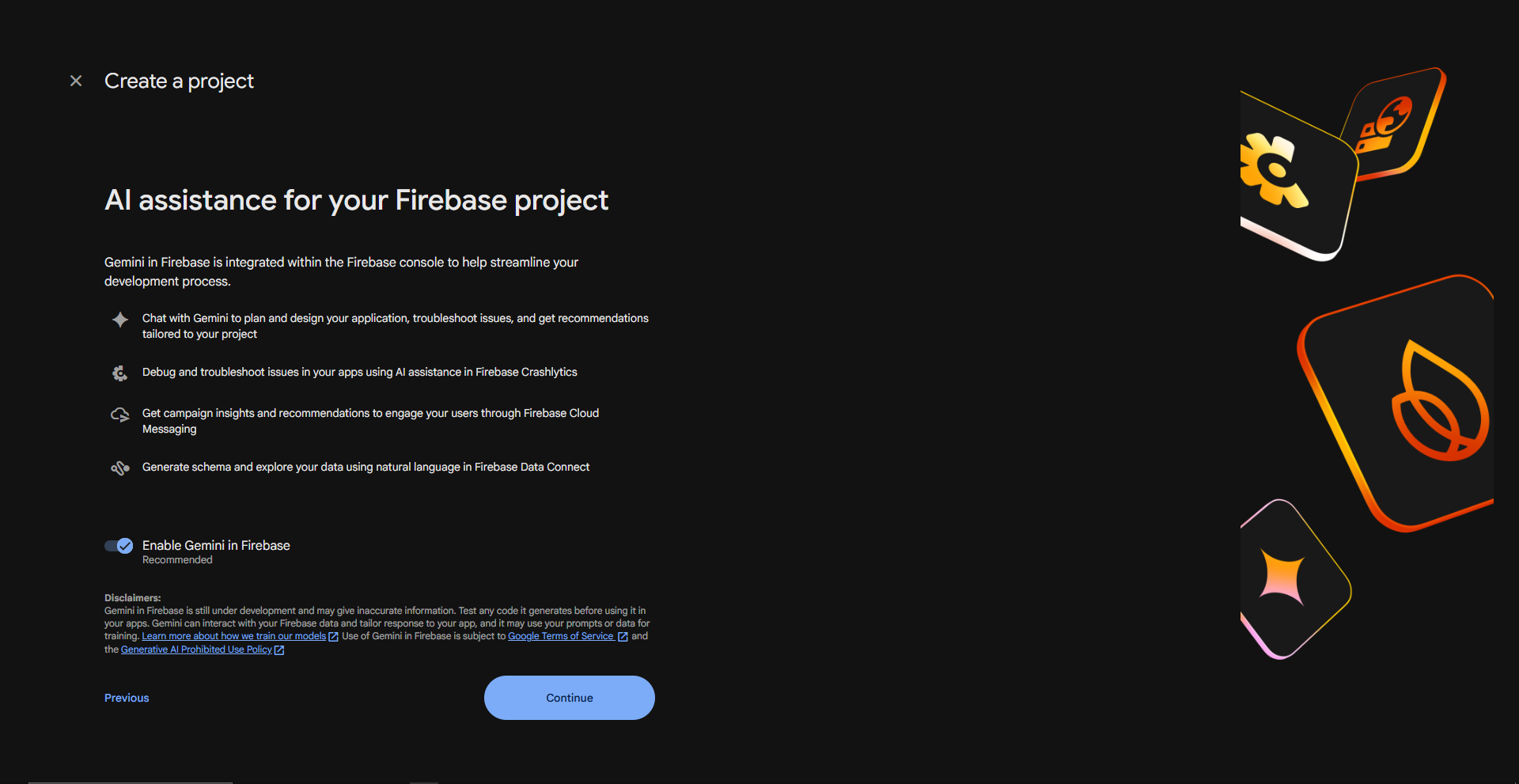

3. Click Continue until it's created.

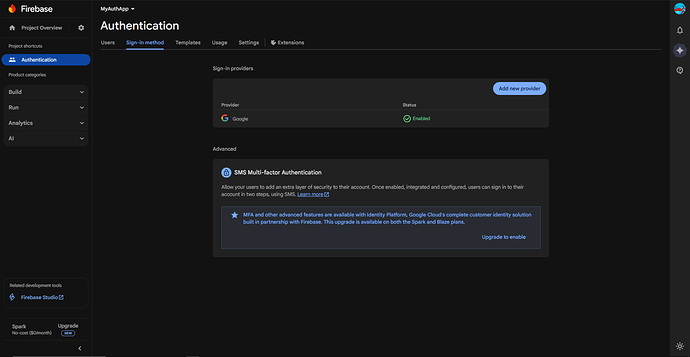

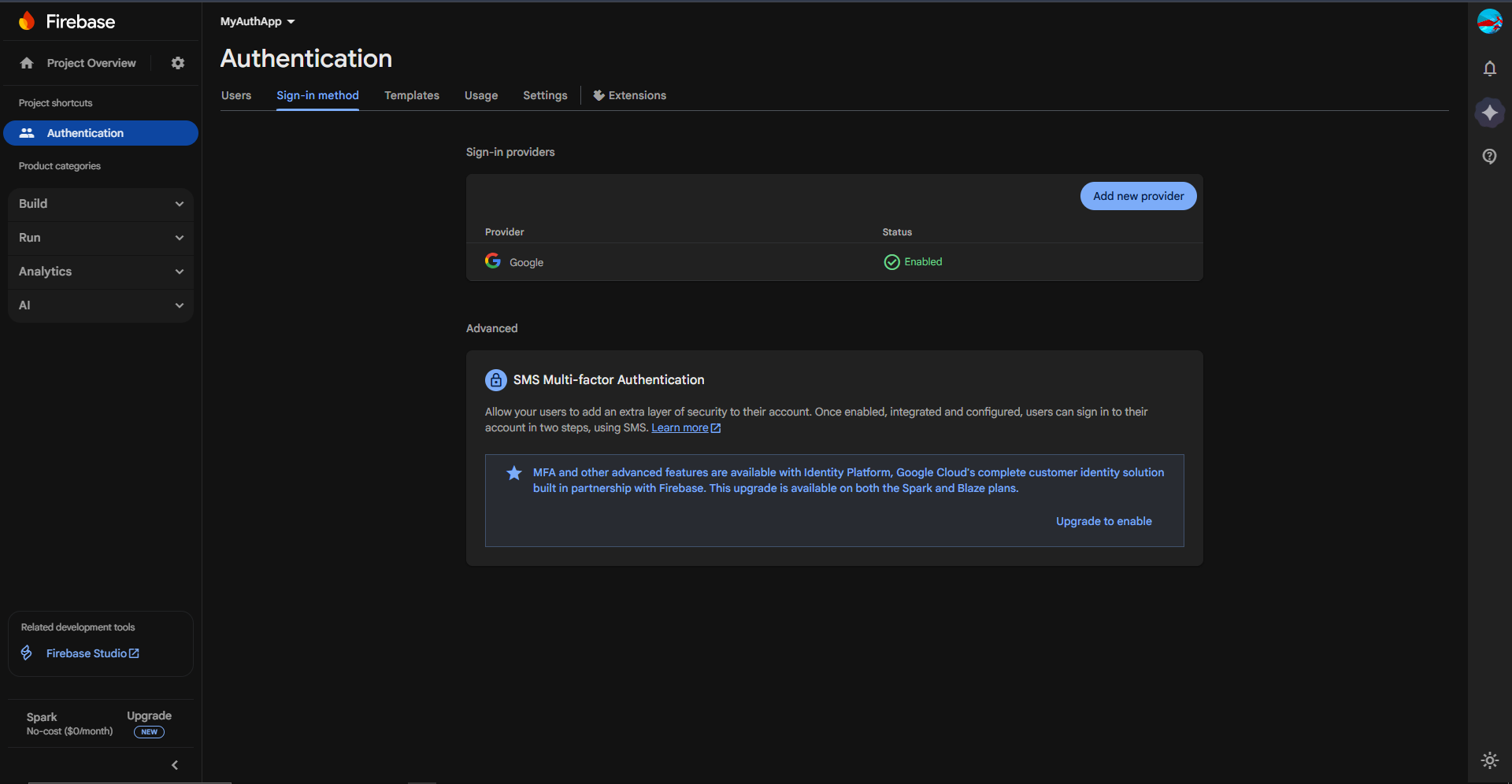

Step 2: Enable Google Sign-In

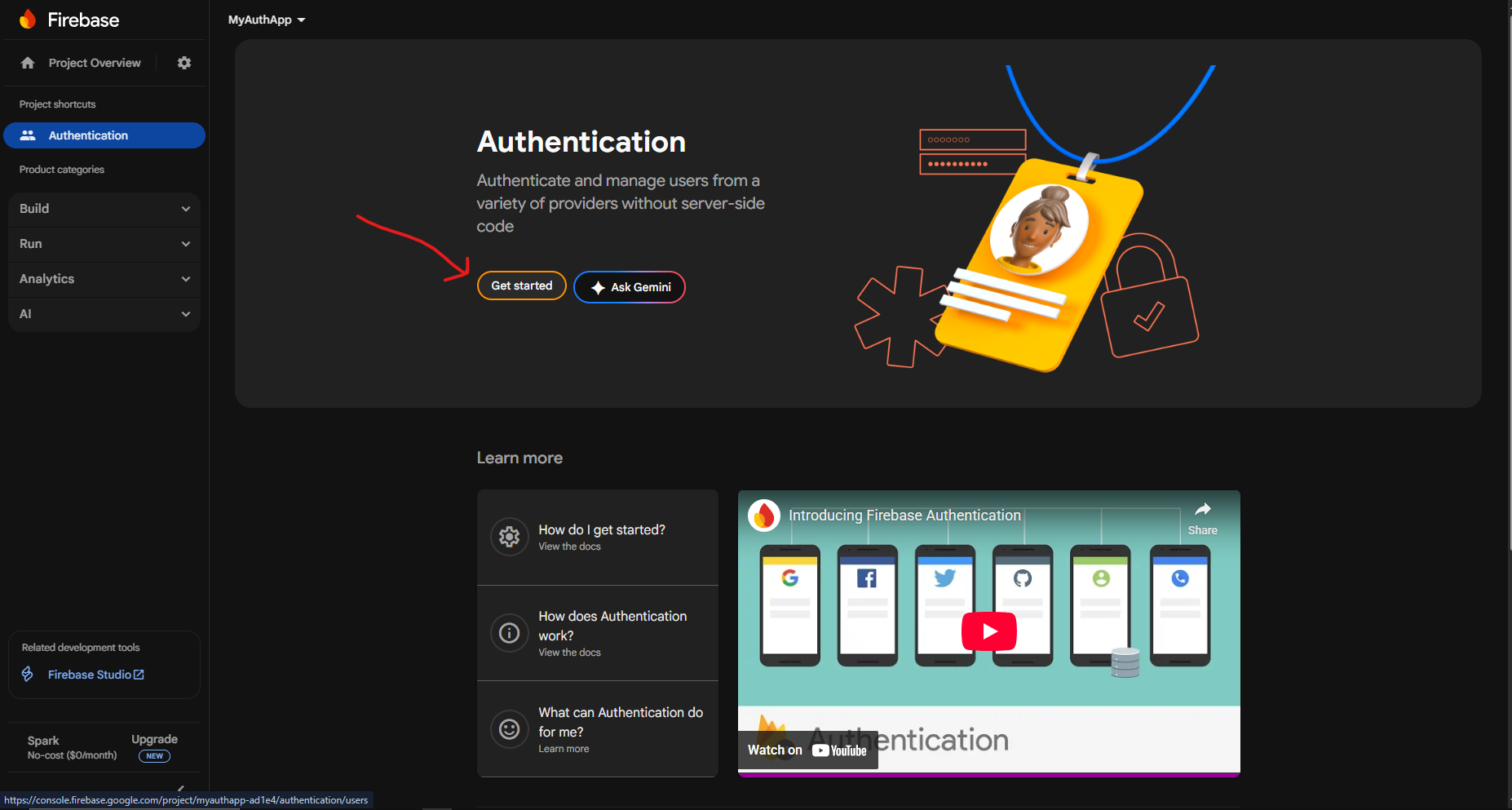

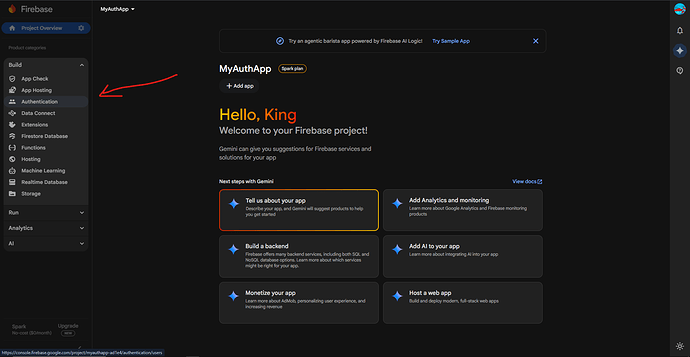

1. In your new project, go to Build (left menu) → Authentication.

2. Click "Get Started".

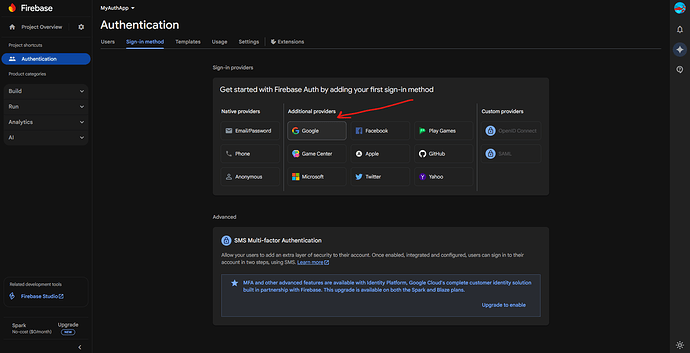

3. Select "Google" from the list.

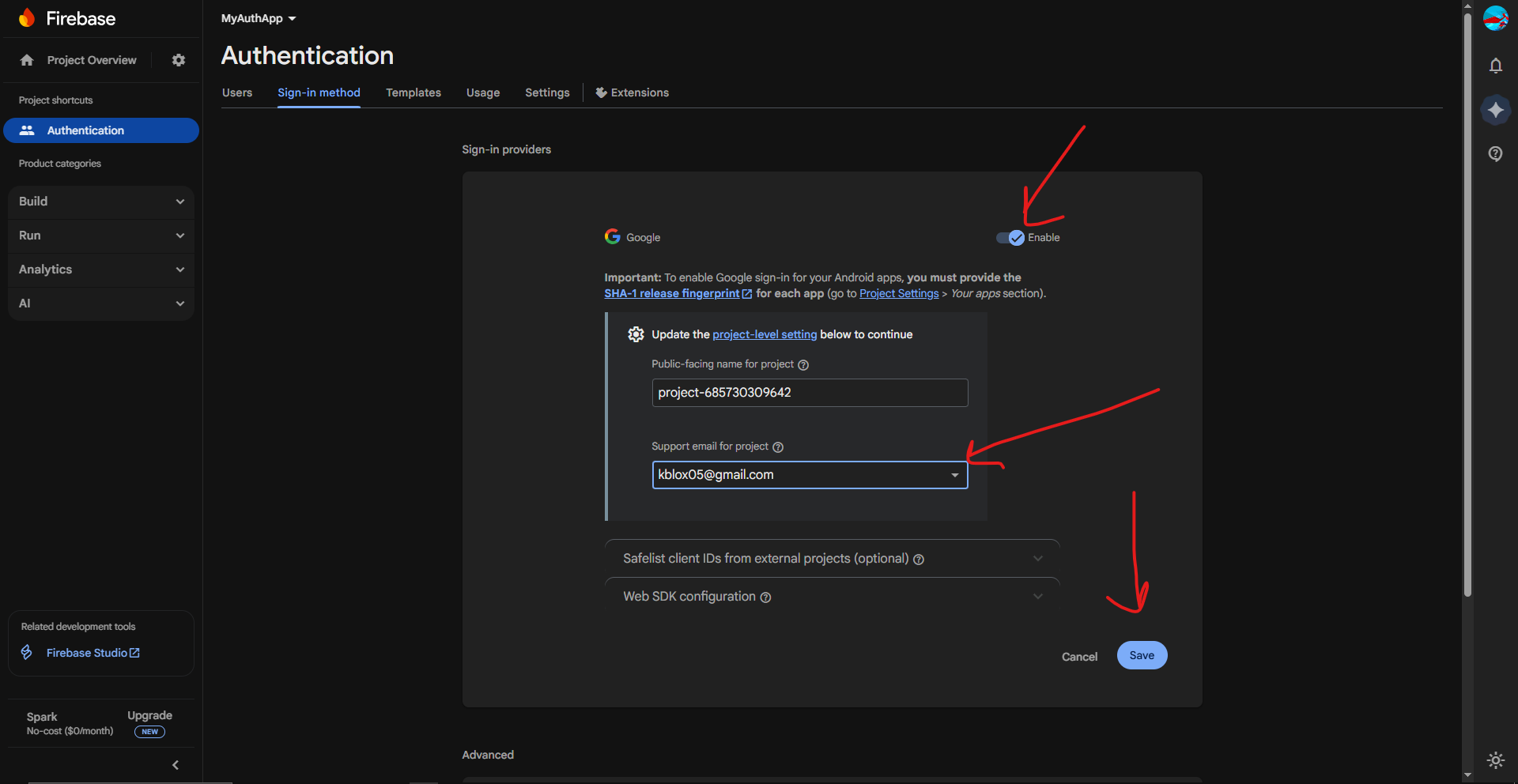

4. Switch Enable to ON.
5. Select your email for "Project support email".
6. Click Save.

Step 3: Get the Web Client ID (Critical!)

Google automatically created this for you in Step 2. We just need to find it.

1. Go to Project Settings ( Gear icon next to "Project Overview").
2. Scroll down to the bottom. You won't see an Android app yet. That's fine.

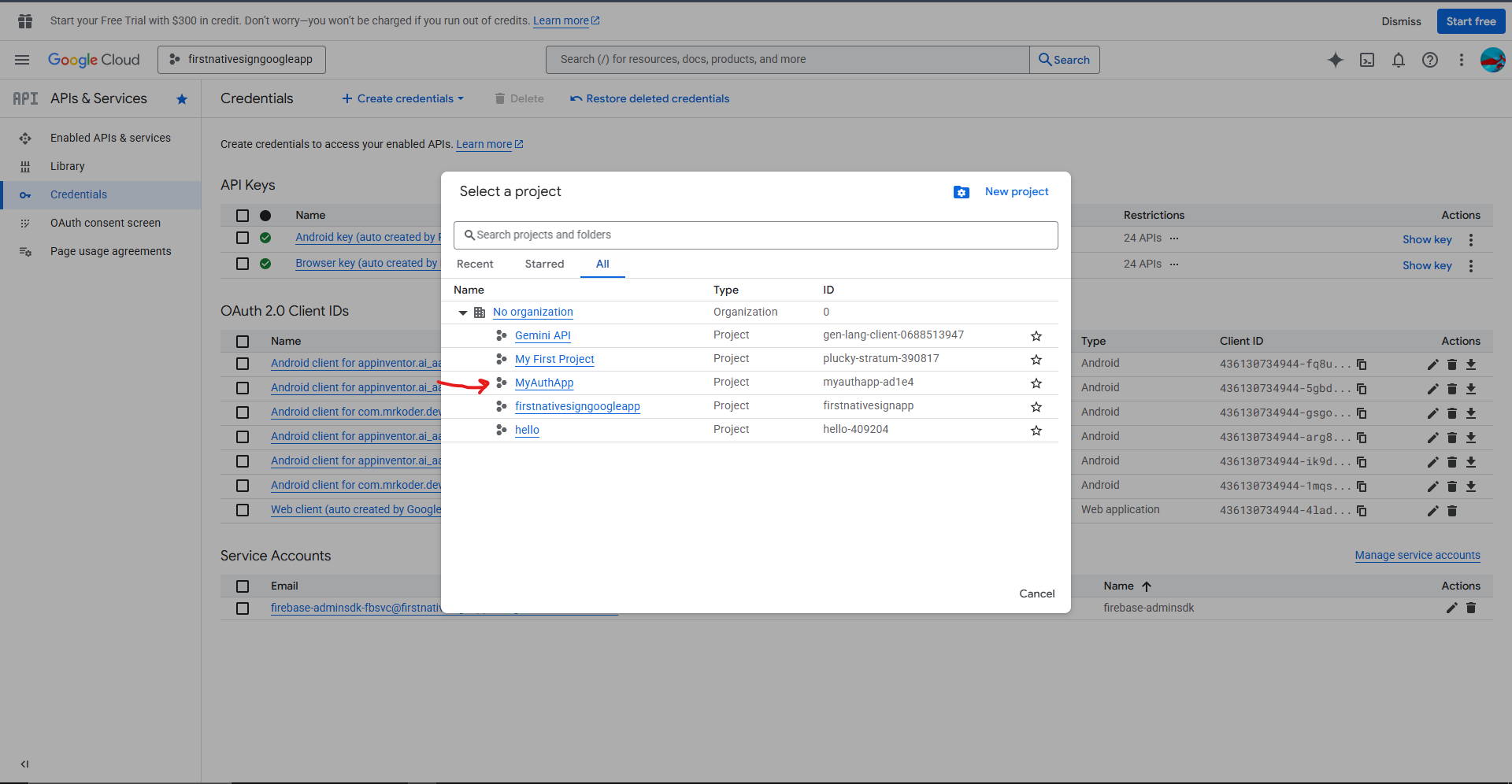

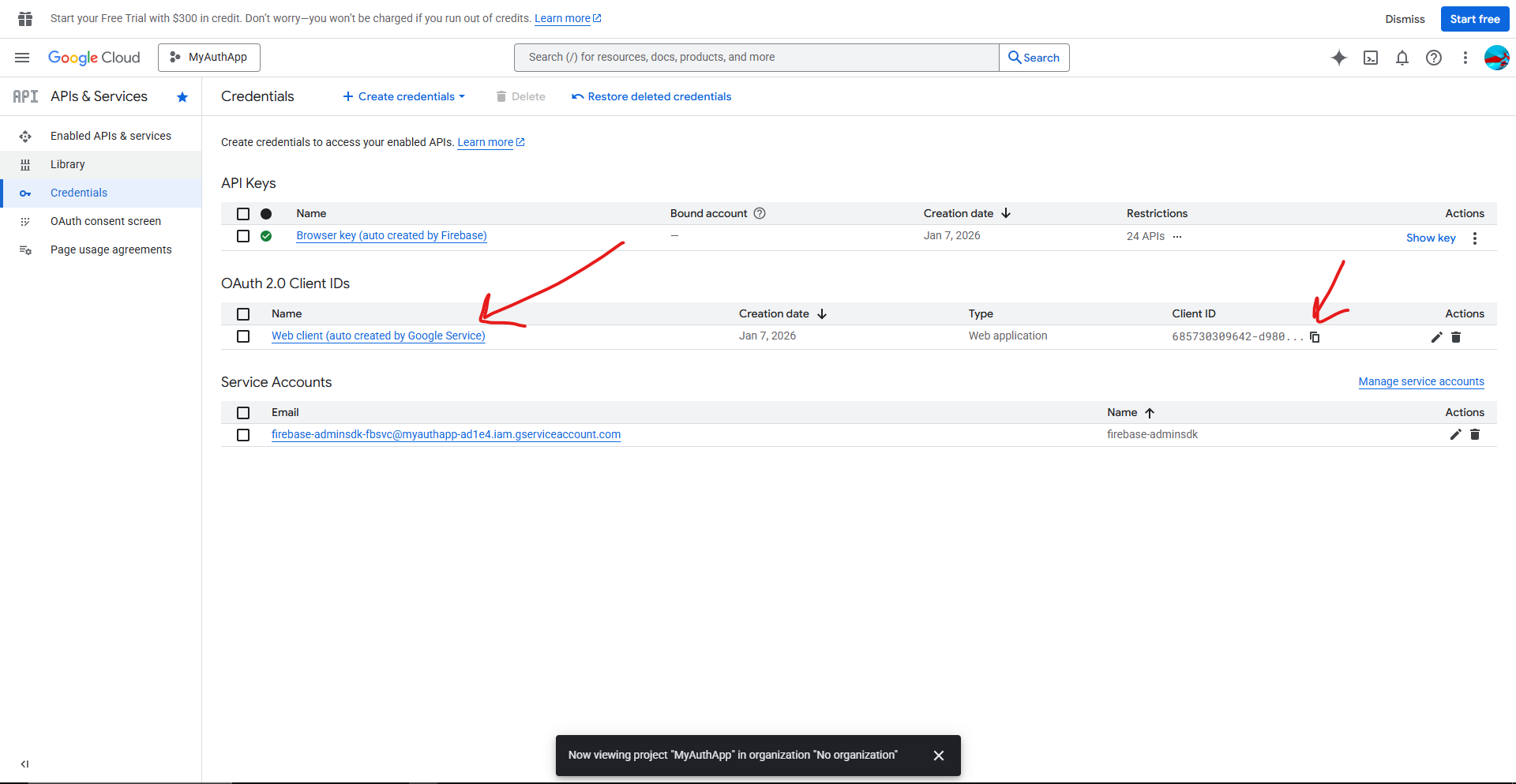

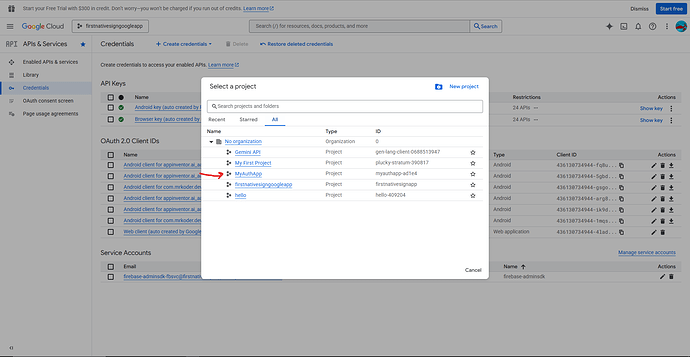

3. Go to console.cloud.google.com/apis/credentials (Make sure you select your Firebase project at the top!).

4. Look for "OAuth 2.0 Client IDs".

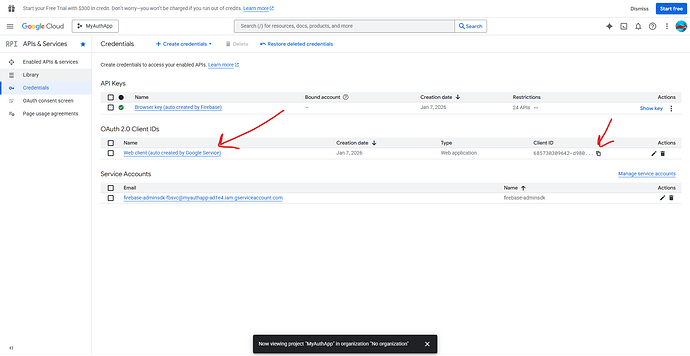

5. Find the one named "Web client (auto created by Google Service)".
6. Copy the Client ID. It ends in .apps.googleusercontent.com

Phase 2: The Handshake (Linking Your App)

Google needs to know your specific App Inventor app is the one asking for access. It uses a "fingerprint" called SHA-1.

Step 4: Get Your SHA-1 Fingerprint

The "Identity Card" of your app depends on where you build it.

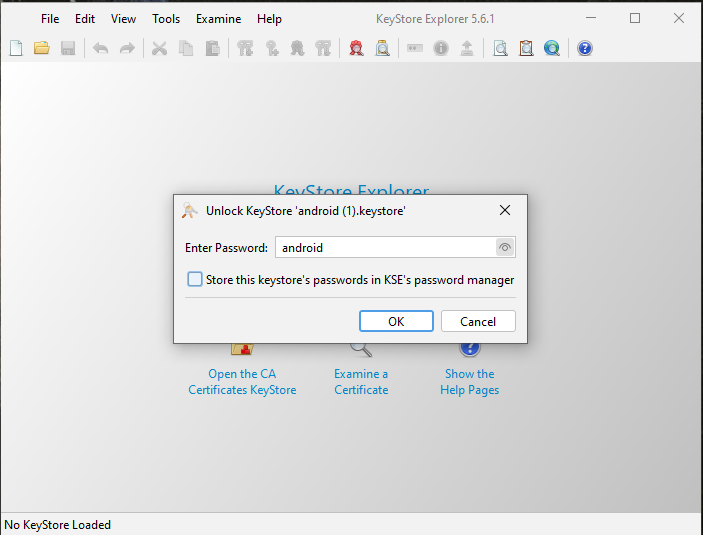

Step 4: Get Your SHA-1 Fingerprint (Easier Method)

We recommend using Keystore Explorer to avoid typing commands.

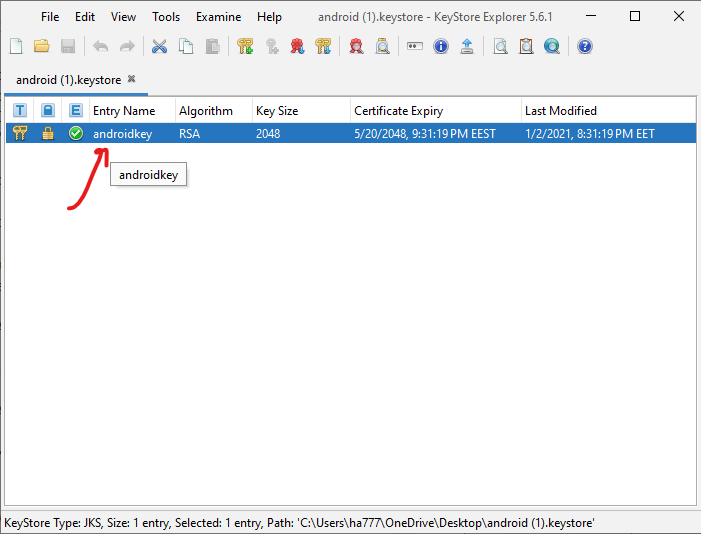

1. Open Keystore Explorer.
2. Click "Open an existing KeyStore".

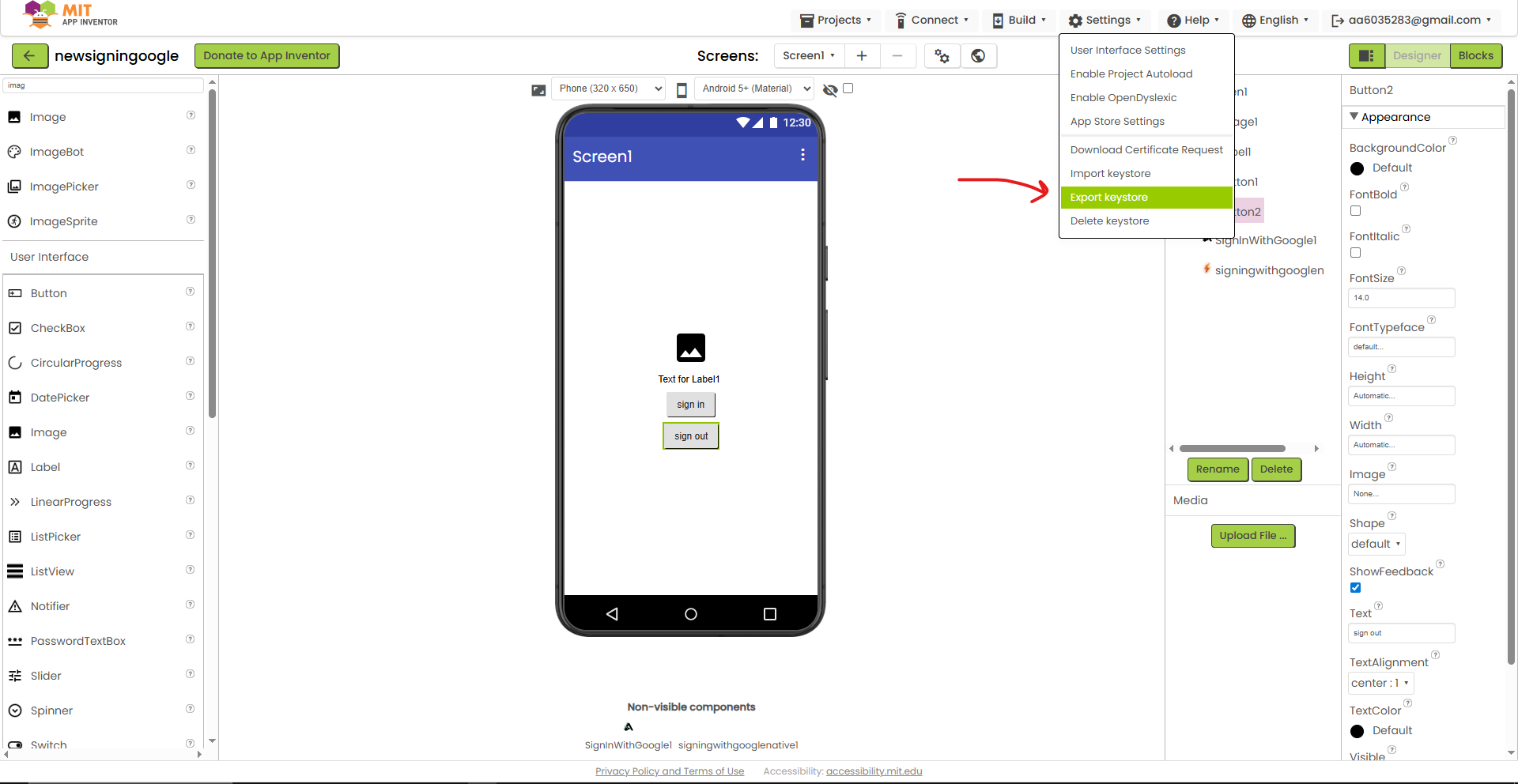

3. Select your android.keystore file (downloaded from App Inventor).

• Password is usually: android



4. Double-click the key entry (androidkey).

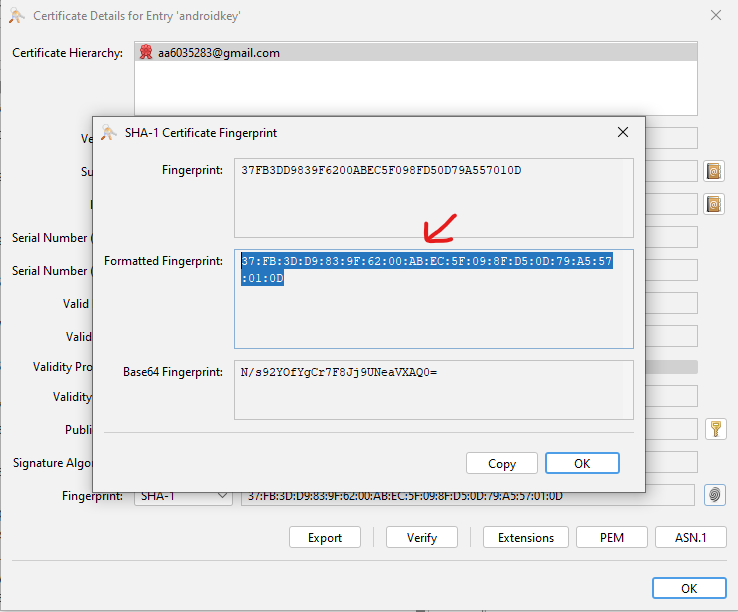

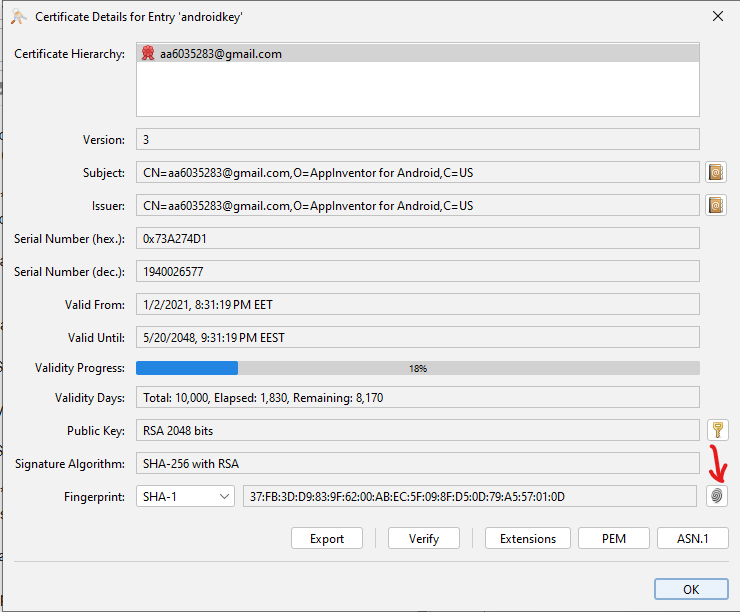

5. Look for "SHA-1 Fingerprint".




6. Copy it (e.g., 37:FB:3D...).

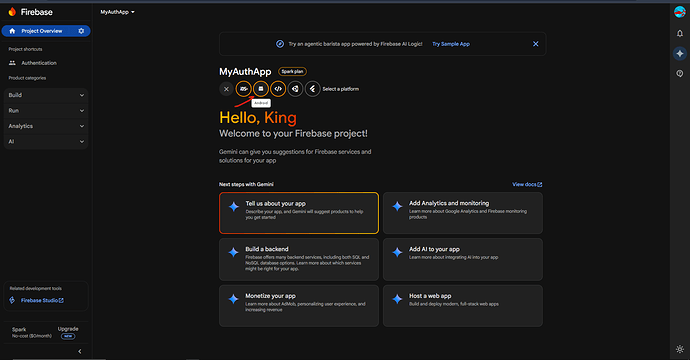

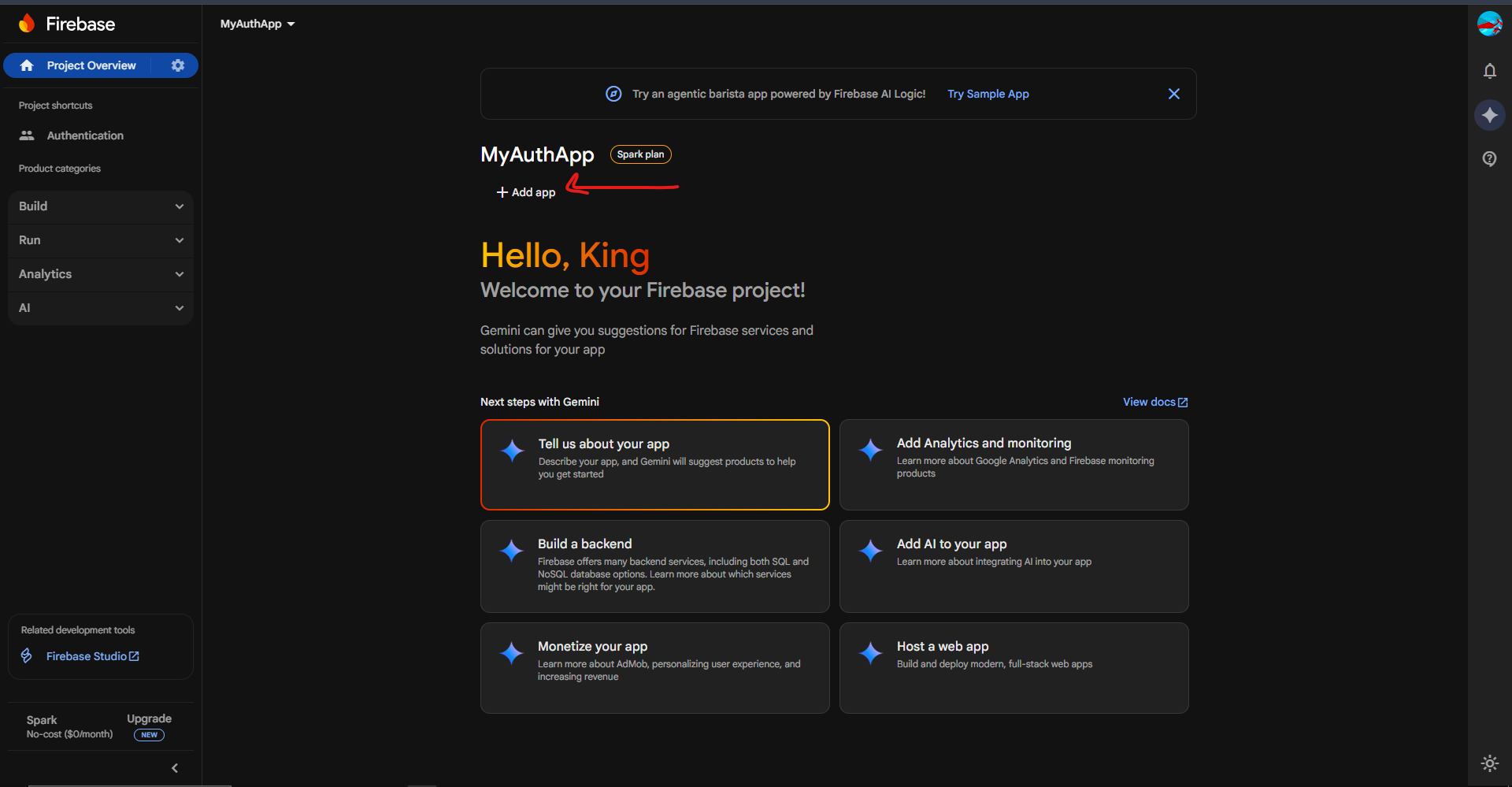

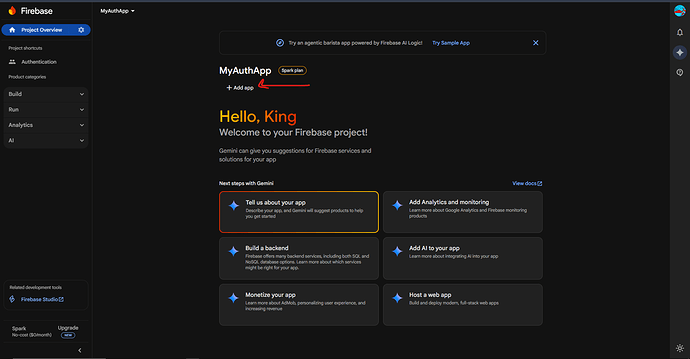

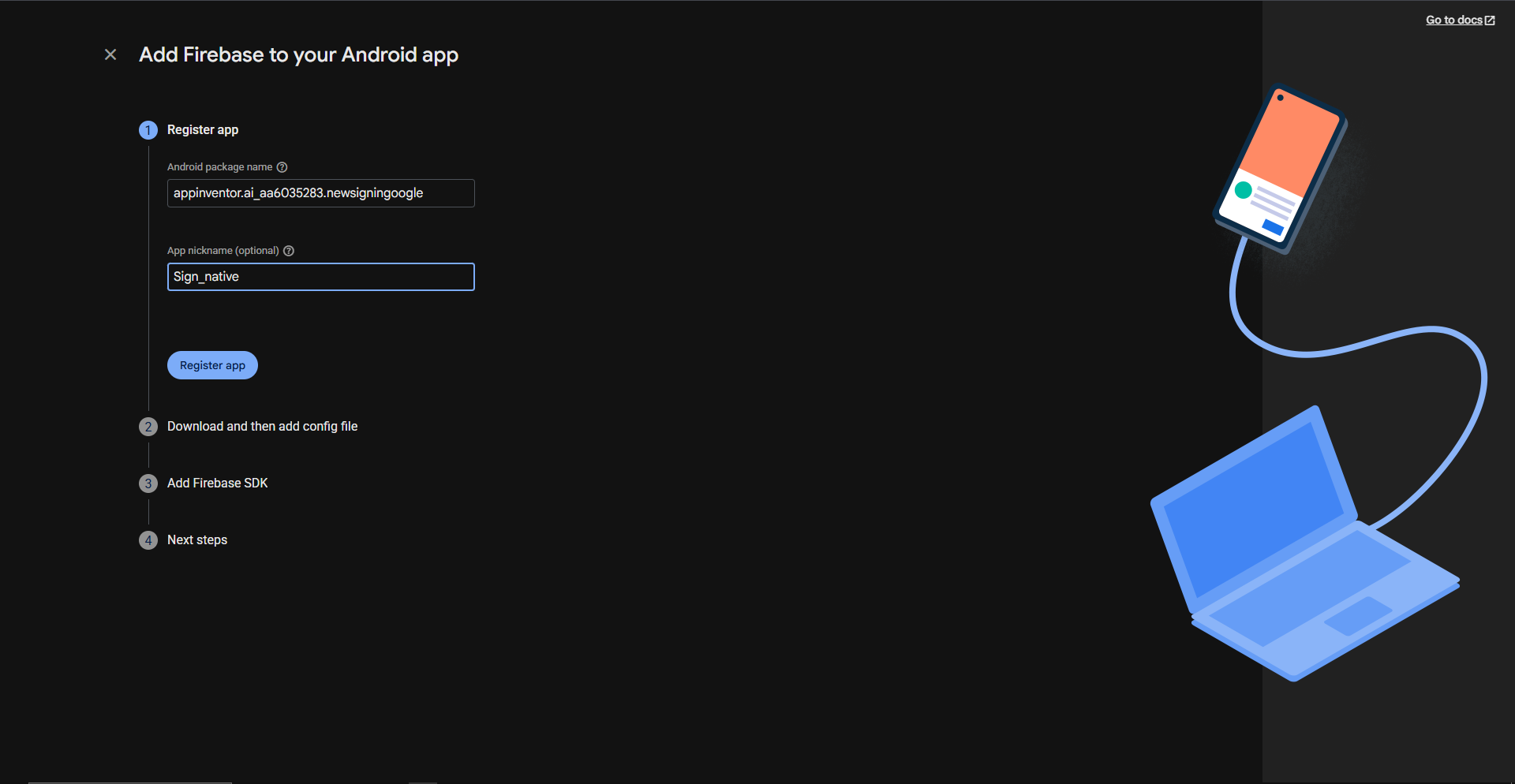

Step 5: Register App in Firebase

1. Back in Firebase Console → Project Settings.







2. Scroll to "Your apps". Click the Android icon ().

3. Package name: Must match your App Inventor project (e.g., appinventor.ai_yourname.ProjectName).
   myEmail is : aa6035283@gmail.com
   myproject_name : newsigningoogle
   so package name wil be : appinventor.ai_aa6035283.newsigningoogle

4. App nickname: Anything you want.

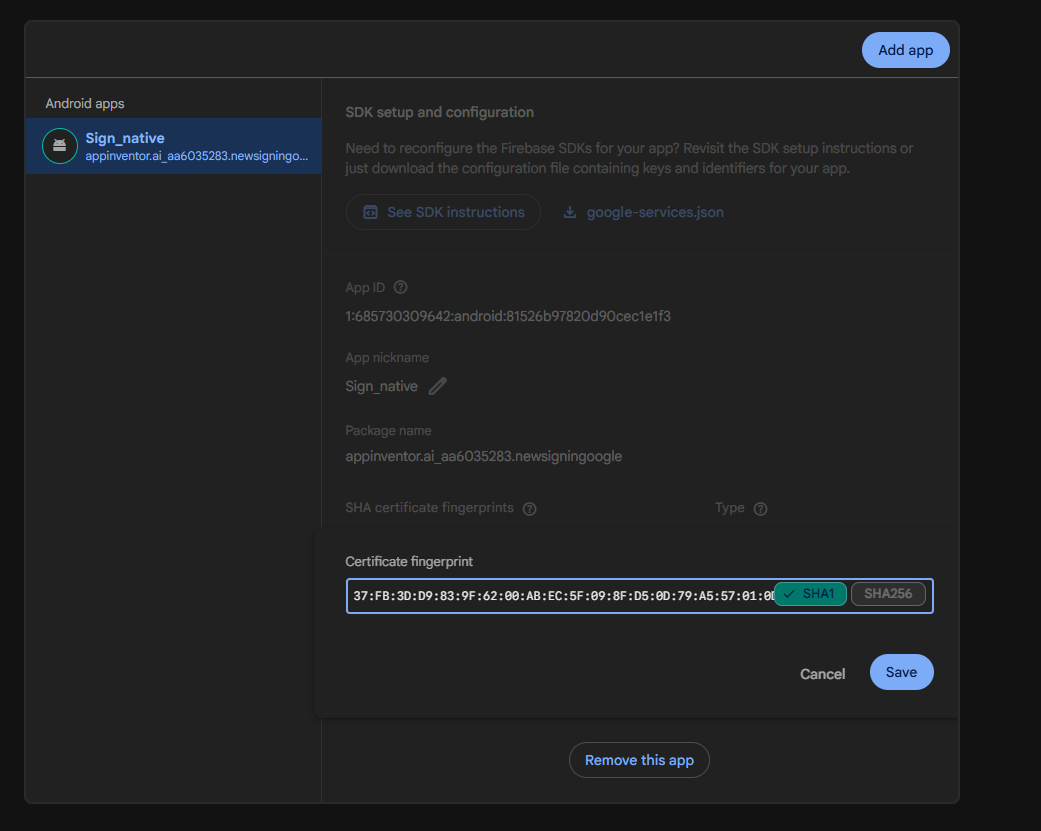

5. Debug signing certificate SHA-1: Paste the SHA-1 you got in Step 4.
6. Click Register app.






Phase 3: The Extension (App Inventor)

Now we connect the pieces.

Step 6: Properties Setup

Import the extension and set these properties in the Designer:

Property	Value	Why?
WebClientId	[Your Client ID from Step 3]	Tells Google which server to talk to.
FirebaseWebApiKey	[From Firebase Settings]	Allows the extension to talk to Firebase.
SyncWithFirebase	True	Automatically logs the user into Firebase.

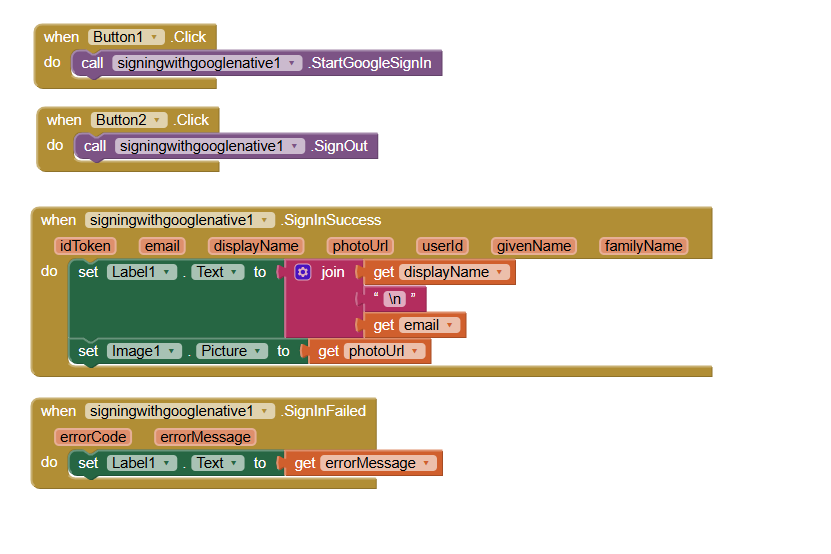

Step 7: The Blocks

Here is the exact logic you need.

1. Start Sign-In

Connect your "Sign In with Google" button to this block:

2. Handle Success (Google)

This fires immediately after the user picks an account.

3. Handle Success (Firebase)

This fires a moment later, confirming they are logged into your database. !

(Use the firebaseUserId here to save user data to Realtime DB!)

4. The "Logout" Button

When they click "Log Out" :

Why use this?

• 100% Native: Uses the standard Android "Account Picker" bottom sheet.

• Auto-Magic Firebase Sync: Just tick one box, and it logs the user into
  Firebase Authentication automatically. No complex blocks needed!


• One-Tap Login: If the user is on their phone, they just tap their name. No typing passwords.

• Secure: Uses standard OAuth 2.0 flows supported by Google.

• Easy Setup: Zero "WebView" errors.

---

Download

com.mrkoder.nativesignin.google.dev.signingwithgooglenative.aix (1.2 MB)

---

Difference from my old extension? My old extension used a browser window. This uses the system dialog. It is faster, safer, and looks 100x more professional.

Support the Developer

If you find this extension helpful, you can buy me a coffee!

Pay Mr Koder using PayPal.Me

Let me know what you think!
