[FREE] ChatKaroUI Extension - Advance Chat with text, images and messages support

🧩 ChatKaroUI

ChatKaroUI is a customizable advance chat component extension with text, images and messages support based on LinearLayout, FrameLayout and ScrollView.

Mit AI2 Community | Kodular Community

:memo: Specifications


:mag_right: Use Place: An extension for MIT App Inventor 2, Kodular, Niotron, Android Builder.
:bust_in_silhouette: Author: Prem_Gupta
:package: Package: com.prem.chatkaroui
:floppy_disk: Size: 49.05 KB
:gear: Version: 2.0
:iphone: Minimum API Level: 14
:date: Built On: 2025-09-01T18:30:00Z
:date: Updated On: 2025-09-28T18:30:00Z
:link: Help URL: Telegram
:computer: Built & documented using: FAST v5.1.0
:arrow_down: Latest Aix: Download Link v2.0 (49.1 KB)

Old Version Aix

Download Link v1 (42.0 KB)
Download Link v1.1 (42.4 KB)

:arrow_down: Latest Aia: Download Link v1.1 (233.0 KB)

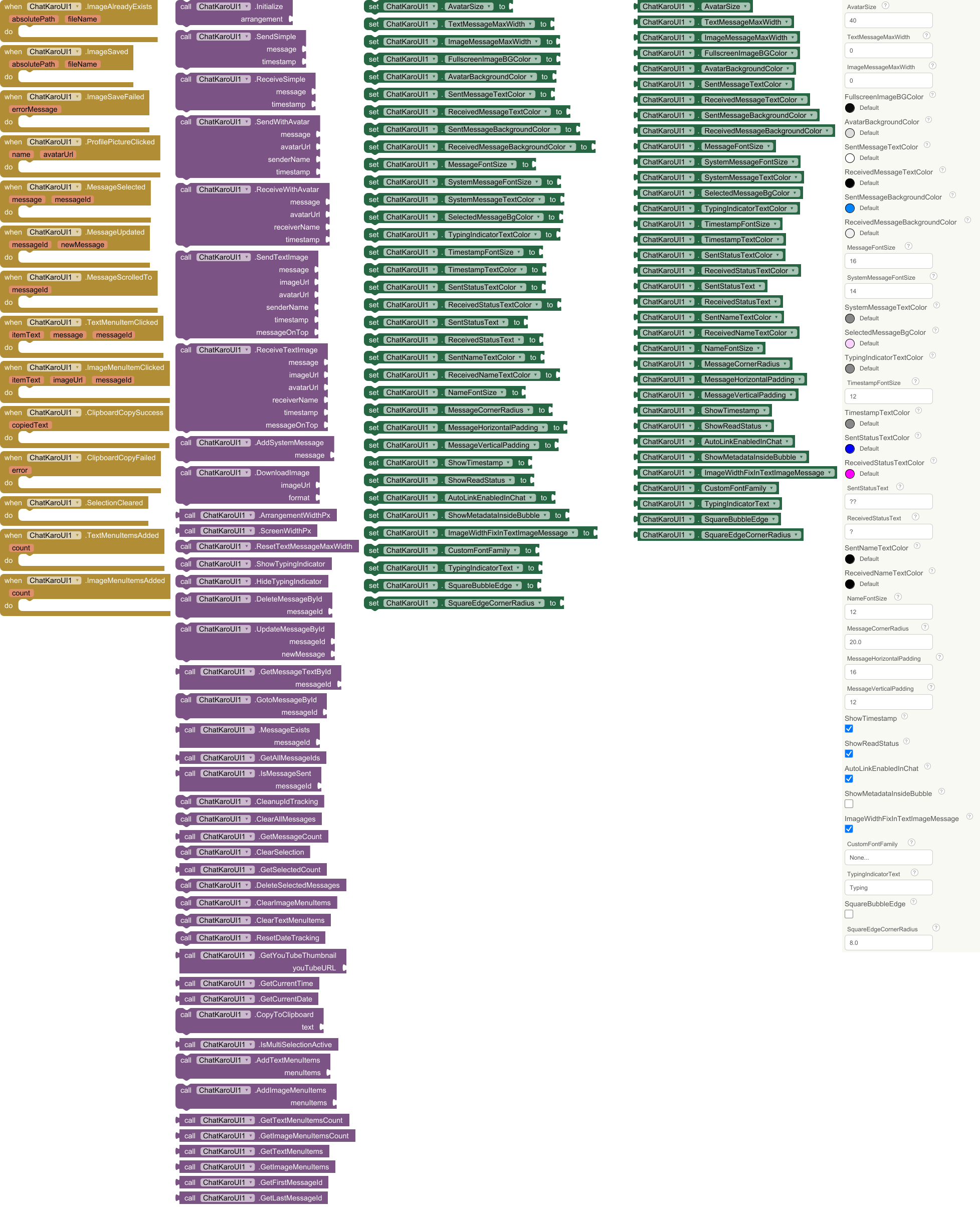

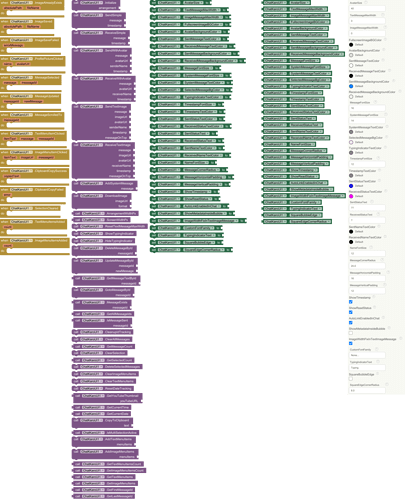

Blocks


Total Blocks of Extension:

Events:

ChatKaroUI has total 8 events.

1. ImageMenuItemClicked


Triggered when image menu item is clicked

Parameter Type
itemText text
imageUrl text

2. ImageAlreadyExists


Called when the image already exists and was not re-saved.

Parameter Type
absolutePath text
fileName text

3. ImageSaved


Called when an image is saved successfully. Returns absolute path and file name.

Parameter Type
absolutePath text
fileName text

4. ImageSaveFailed


Called when saving an image fails. Returns the error message.

Parameter Type
errorMessage text

5. ProfilePictureClicked


Triggered when profile picture is clicked

Parameter Type
name text
avatarUrl text

6. MessageSelected


Triggered when message is selected

Parameter Type
message text
index number

7. ClipboardCopySuccess


Fires when text is successfully copied to clipboard

Parameter Type
copiedText text

8. ClipboardCopyFailed


Fires when copying to clipboard fails

Parameter Type
error text

Methods:

ChatKaroUI has total 25 methods.

1. Initialize


Initialize the chat UI in a VerticalArrangement. This must be called before adding any messages.

Parameter Type
arrangement component

2. SendSimple


Send a simple message without avatar or name

Parameter Type
message text
timestamp text

3. ReceiveSimple


Receive a simple message without avatar or name

Parameter Type
message text
timestamp text

4. SendWithAvatar


Send a message with avatar and sender name

Parameter Type
message text
avatarUrl text
senderName text
timestamp text

5. ReceiveWithAvatar


Receive a message with avatar and sender name

Parameter Type
message text
avatarUrl text
receiverName text
timestamp text

6. SendTextImage


Send a message with both text and image

Parameter Type
message text
imageUrl text
avatarUrl text
senderName text
timestamp text
messageOnTop boolean

7. ReceiveTextImage


Receive a message with both text and image

Parameter Type
message text
imageUrl text
avatarUrl text
receiverName text
timestamp text
messageOnTop boolean

8. AddSystemMessage


Add system systemMessage (e.g., 'User joined')

Parameter Type
message text

9. DownloadImage


Downloads an image from the URL, saves it to chat images folder under ASD as PNG or JPG. Fires ImageSaved, ImageAlreadyExists or ImageSaveFailed.

Parameter Type
imageUrl text
format text

10. ResetTextMessageMaxWidth


Reset max width to 80% of screen width

11. ShowTypingIndicator


Show typing indicator

12. HideTypingIndicator


Hide typing indicator

13. DeleteMessage


Delete message by position (1-based index)

Parameter Type
index number

14. ClearAllMessages


Clear all messages

15. GetMessageCount


Get total message count

  • Return type: number

16. ClearSelection


Clear message selections

17. GetSelectedCount


Get number of selected messages

  • Return type: number

18. DeleteSelectedMessages


Delete selected messages

19. AddImageMenuItem


Add custom item to image menu

Parameter Type
itemText text

20. ClearImageMenuItems


Clear custom image menu items

21. ResetDateTracking


Reset date tracking for new conversations

22. GetYouTubeThumbnail


Get YouTube thumbnail URL from a full URL or video ID.

  • Return type: text
Parameter Type
youTubeURL text

23. GetCurrentTime


Get current timestamp formatted as hh:mm a

  • Return type: text

24. GetCurrentDate


Get current date formatted as yyyy-MM-dd

  • Return type: text

25. CopyToClipboard


Copy text to clipboard

Parameter Type
text text

Setters: & Getters:

ChatKaroUI has total 33 setter properties and total 31 getter properties.

1. AvatarSize



Get and Set avatar size in DP

  • Input type: number

2. TextMessageMaxWidth



Get and Set max width for text messages in DP

  • Input type: number

3. ImageMessageMaxWidth



Get and Set max width for image messages in DP

  • Input type: number

4. FullscreenImageBGColor



Get and Set background color for fullscreen image viewer

  • Input type: number

5. AvatarBackgroundColor



Get and Set background color for avatars

  • Input type: number

6. SentMessageTextColor



Get and Set text color for sent messages

  • Input type: number

7. ReceivedMessageTextColor



Get and Set text color for received messages

  • Input type: number

8. SentMessageBackgroundColor



Get and Set background color for sent messages

  • Input type: number

9. ReceivedMessageBackgroundColor



Get and Set background color for received messages

  • Input type: number

10. MessageFontSize



Get and Set font size for messages

  • Input type: number

11. SystemMessageFontSize



Get and Set font size for messages

  • Input type: number

12. SystemMessageTextColor



Get and Set text color for system systemMessages

  • Input type: number

13. SelectedMessageBgColor



Get and Set background color for message selection

  • Input type: number

14. TypingIndicatorTextColor



Get and Set text color for typing indicator

  • Input type: number

15. TimestampFontSize



Get and Set text size for timestamps

  • Input type: number

16. TimestampTextColor



Get and Set text color for timestamps

  • Input type: number

17. SentStatusTextColor



Get and Set text color for sent status

  • Input type: number

18. ReceivedStatusTextColor



Get and Set text color for received status

  • Input type: number

19. SentStatusText



Get and Set status text for sent messages

  • Input type: text

20. ReceivedStatusText



Get and Set status text for received messages

  • Input type: text

21. SentNameTextColor



Get and Set text color for sender names in sent messages

  • Input type: number

22. ReceivedNameTextColor



Get and Set text color for sender names in received messages

  • Input type: number

23. NameFontSize



Get and Set font size for sender names

  • Input type: number

24. MessageCornerRadius



Get and Set corner radius for message bubbles

  • Input type: number

25. MessageHorizontalPadding



Get and Set horizontal padding inside message bubbles

  • Input type: number

26. MessageVerticalPadding



Get and Set vertical padding inside message bubbles

  • Input type: number

27. ShowTimestamp



Get and Set whether timestamps are shown

  • Input type: boolean

28. ShowReadStatus



Get and Set whether read status indicators are shown

  • Input type: boolean

29. AutoLinkEnabledInChat



Get and Set the current state of link detection

  • Input type: boolean

30. ShowMetadataInsideBubble



Get and Set whether metadata is shown inside bubble

  • Input type: boolean

31. ImageWidthFixInTextImageMessage



Get and Set whether metadata is shown inside bubble

  • Input type: boolean

32. CustomFontFamily



Sets the custom font family for messages. Provide the path to the font file (e.g., 'myfont.ttf').

  • Input type: text

Use Some ChatUI Extension OS Code:

Thank You @White_Tiger :sparkling_heart::rocket:

Want to Donate:

Thank you for reading this.
Hope this helps ! :grin:

7 Likes

Well done. Could do with a couple of simple examples and blocks usage examples.

3 Likes

Thank You @TIMAI2
Aix & Aia Updated in Post 1.

New update released :rocket:
