[F/OS] CanvasLayers - powerful tools for the Canvas component

Passos_0213 · December 6, 2023, 10:12pm

CanvasLayers

A comprehensive multi-layer canvas extension for MIT App Inventor 2 with drawing, selection, effects, and export tools.

Specifications


Package	`com.iagolirapassos.canvaslayers`
Size	84.94 KB
Version	1.4
Minimum API	14
Updated	2026-02-17
Built with	FAST v5.5.0

Overview

CanvasLayers is a powerful extension that transforms your Canvas component into a professional-grade layer-based drawing application. It consists of 5 integrated components that work together seamlessly:

Component	Description
CanvasLayers	Core layer management and effects
CanvasExportTools	Image and PDF export functionality
CanvasEffectsTools	Filters and visual effects
CanvasDrawingTools	Shape creation and manipulation
CanvasPickerTools	Dialogs and layer picker interface

Initial Setup

Before using any tools, you MUST initialize all components:

When Screen1.Initialize
  // 1. Configure main extension
  call CanvasLayers1.SetCanvas(Canvas1)
  call CanvasLayers1.AddLayer("Background", true, -1)

  // 2. Initialize all tools with the main extension
  call CanvasDrawingTools1.Initialize(CanvasLayers1)
  call CanvasSelectionTools1.Initialize(CanvasLayers1)
  call CanvasEffectsTools1.Initialize(CanvasLayers1)
  call CanvasExportTools1.Initialize(CanvasLayers1)
  call CanvasPickerTools1.Initialize(CanvasLayers1)

  // 3. Connect drawing tools for real-time preview
  call CanvasLayers1.SetDrawingTools(CanvasDrawingTools1)

Component Details

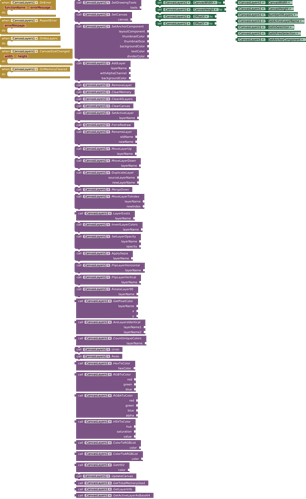

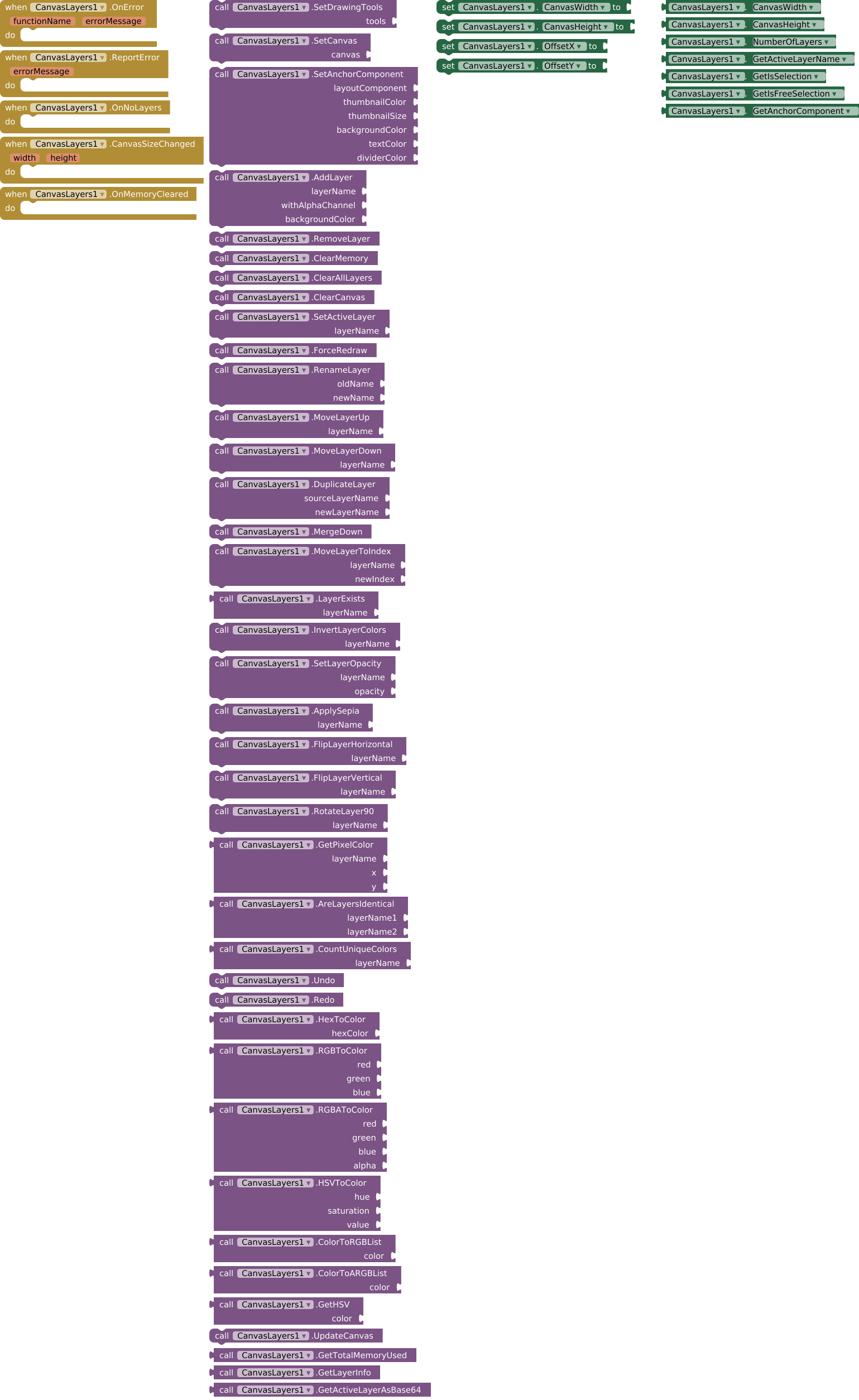

`CanvasLayers` – Core Component

The heart of the extension that manages layers, undo/redo stacks, and basic operations.

Properties

Getter	Type	Description
`CanvasWidth`	number	Current canvas width
`CanvasHeight`	number	Current canvas height
`NumberOfLayers`	number	Total layers count
`GetActiveLayerName`	text	Name of active layer
`GetIsSelection`	boolean	Rectangular selection active
`GetIsFreeSelection`	boolean	Freeform selection active
`GetAnchorComponent`	component	Layer picker anchor

Setter	Type	Description
`CanvasWidth`	number	Set canvas width
`CanvasHeight`	number	Set canvas height
`OffsetX`	number	Set drawing X offset
`OffsetY`	number	Set drawing Y offset

Key Methods

Method	Description
`AddLayer(name, alpha, color)`	Create new layer
`RemoveLayer()`	Delete active layer
`ClearMemory()`	Free up bitmap resources
`MergeDown()`	Merge active layer with layer below
`DuplicateLayer(source, newName)`	Clone existing layer
`MoveLayerToIndex(name, index)`	Reorder layers
`InvertLayerColors(name)`	Color inversion effect
`SetLayerOpacity(name, 0-255)`	Transparency control
`ApplySepia(name)`	Sepia filter
`FlipLayerHorizontal/Vertical(name)`	Mirror layer
`RotateLayer90(name)`	90° rotation

Events

Event	Parameters	Description
`OnError`	functionName, errorMessage	Error occurred
`ReportError`	errorMessage	Custom error
`OnNoLayers`	–	No layers remain
`CanvasSizeChanged`	width, height	Canvas resized
`OnMemoryCleared`	–	Memory freed

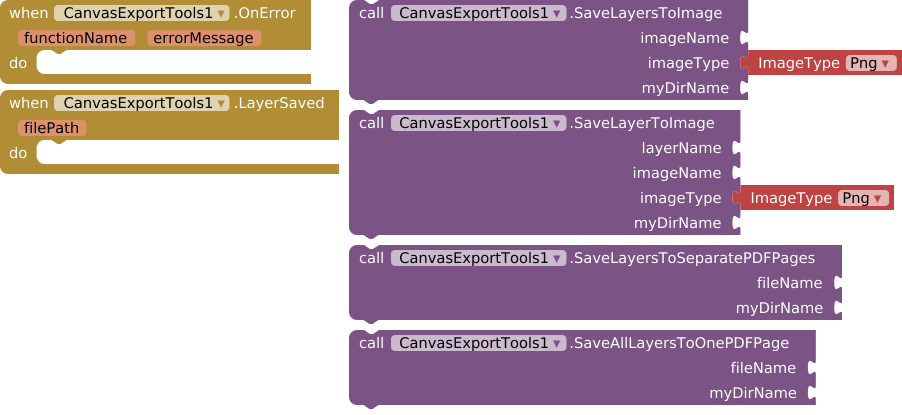

`CanvasExportTools` – Export Component

Save your work as images or PDF documents.

Export Methods

Method	Description
`SaveLayersToImage(name, type, dir)`	Save all visible layers
`SaveLayerToImage(layer, name, type, dir)`	Save specific layer
`SaveLayersToSeparatePDFPages(file, dir)`	Multi-page PDF
`SaveAllLayersToOnePDFPage(file, dir)`	Single-page PDF

ImageType options: Png, Jpeg, Webp

Events

Event	Parameters	Description
`LayerSaved`	filePath	Export completed

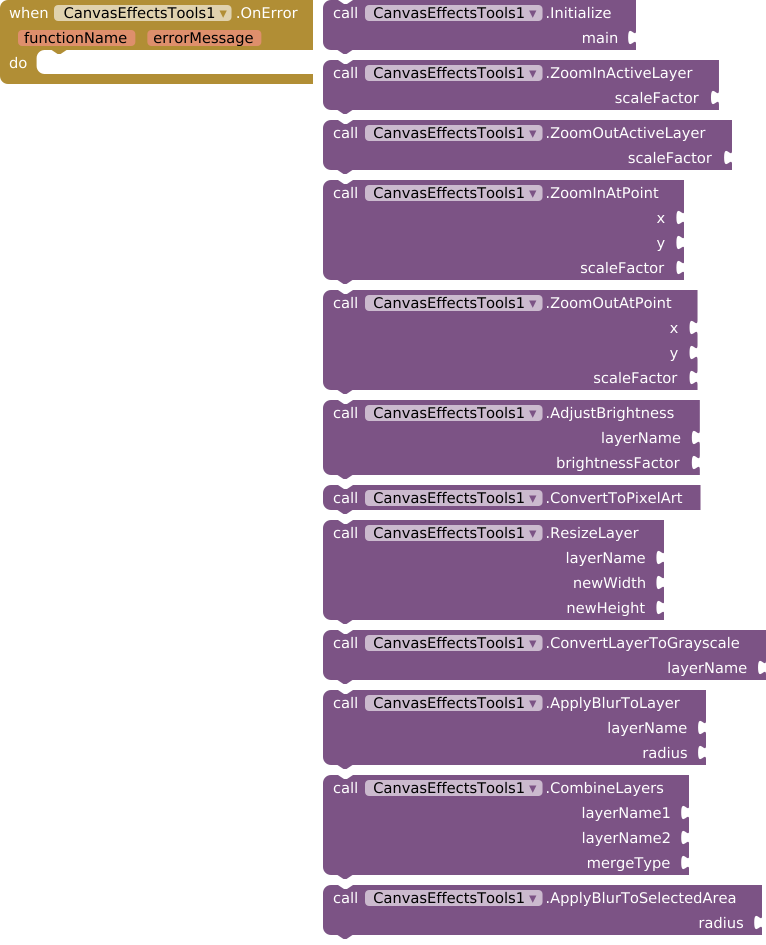

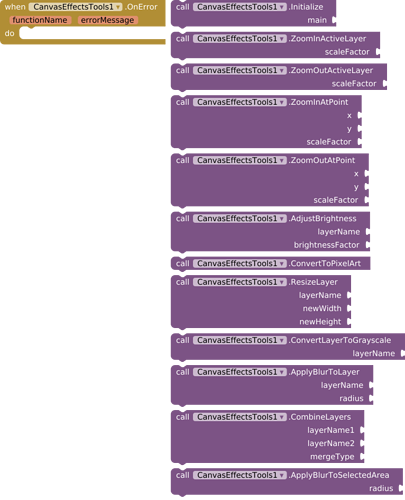

`CanvasEffectsTools` – Effects Component

Apply filters and transformations to your layers.

Effect Methods

Method	Description
`ZoomIn/OutActiveLayer(factor)`	Scale layer
`ZoomIn/OutAtPoint(x, y, factor)`	Zoom at specific point
`AdjustBrightness(layer, factor)`	Brightness control
`ConvertToPixelArt()`	Pixelate active layer
`ResizeLayer(layer, width, height)`	Resize layer
`ConvertLayerToGrayscale(layer)`	Black & white
`ApplyBlurToLayer(layer, radius)`	Gaussian blur
`ApplyBlurToSelectedArea(radius)`	Blur selection only
`CombineLayers(layer1, layer2, type)`	Merge with blend mode

`CanvasDrawingTools` – Drawing Component

Create, manipulate, and select shapes with real-time preview.

Shape Creation

Method	Description
`StartShape(type, x, y, color, width, filled)`	Begin shape
`StartTextAtPoint(x, y, text, color, size)`	Create text
`UpdateShape(x, y)`	Resize during drag
`DrawShape()`	Finalize and draw
`CancelShape()`	Abort creation
`AddPointToPolygon(x, y)`	Add polygon vertex

ShapeType options: Rectangle, RoundRect, Oval, Line, Arrow, Polygon, Star, Text, Image, FreePath

Special Effects

Method	Description
`DrawLinearGradient(l, t, r, b, start, end, horiz)`	Gradient rectangle
`DrawRadialGradient(cx, cy, r, center, edge)`	Gradient circle
`DrawGlow(cx, cy, r, color, alpha)`	Glow effect
`AddImageToActiveLayer(path)`	Import image

Selection Tools

Method	Description
`StartSelection(x, y)`	Begin rectangular selection
`StartFreeformSelection(x, y)`	Begin freehand selection
`UpdateSelection(x, y)`	Adjust during drag
`EndSelection(type)`	Complete selection
`ClearSelection()`	Hide selection box
`SelectAll()`	Select entire layer
`CopySelectedArea()`	Copy rectangular area
`CutSelectedArea()`	Cut rectangular area
`CopyFreeSelectedArea()`	Copy freeform area
`CutFreeSelectedArea()`	Cut freeform area
`PasteCopiedArea()`	Paste at last position
`PasteCopiedAreaAtPoint(x, y)`	Paste at specific point

SelectionType options: Rectangle, Free, All, None

Basic Drawing

Method	Description
`DrawPixelOnActiveLayer(x, y, color, size)`	Square pixel
`DrawPointOnActiveLayer(x, y, color, size)`	Circular point
`DrawLineOnActiveLayer(x1,y1,x2,y2,color,width)`	Line
`DrawWithBrushTexture(texturePath, size)`	Pattern brush
`DrawWithShinyBrush(color, size)`	Glossy brush
`Erase(x, y, radius)`	Eraser tool
`FloodFill(x, y, color, tolerance)`	Fill area

Line & Arrow Tools

Method	Description
`StartLine(x, y, color, width)`	Begin line
`UpdateLine(x, y)`	Adjust endpoint
`DrawLine()`	Finalize line
`StartArrow(x, y, color, width)`	Begin arrow
`UpdateArrow(x, y)`	Adjust endpoint
`DrawArrow()`	Finalize arrow

Grid System

Method	Description
`DrawGrid(hSpacing, vSpacing)`	Show grid overlay
`RemoveGrid()`	Hide grid

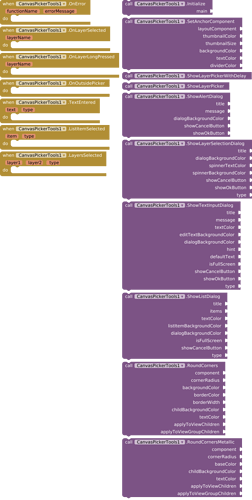

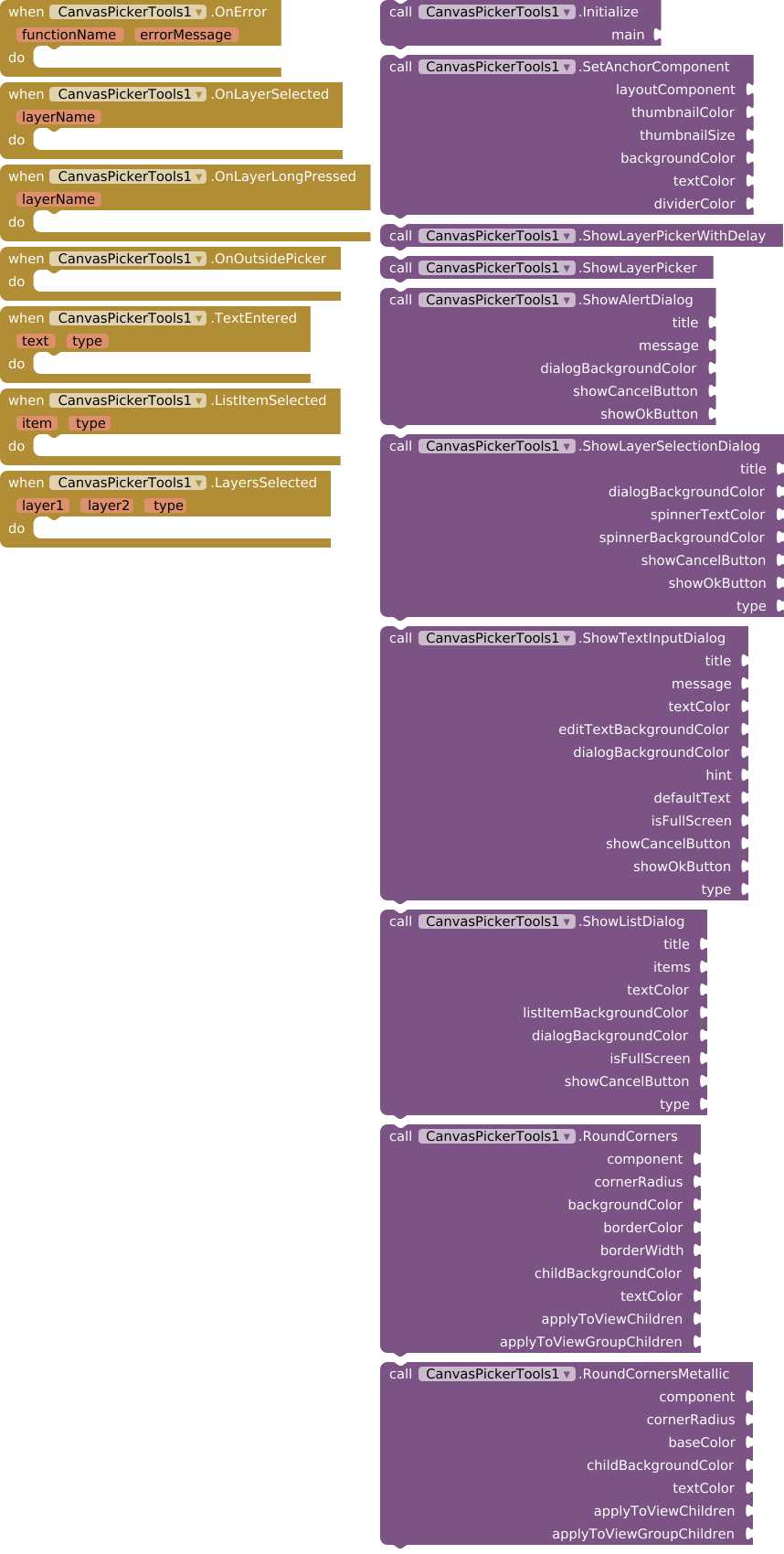

`CanvasPickerTools` – UI Component

Dialog and picker interfaces for layer management.

Layer Picker

Method	Description
`SetAnchorComponent(comp, thumbColor, size, bgColor, textColor, divider)`	Configure picker
`ShowLayerPicker()`	Display layer list
`ShowLayerPickerWithDelay()`	Show after short delay

Dialog Methods

Method	Description
`ShowAlertDialog(title, message, bgColor, showCancel, showOk)`	Simple alert
`ShowLayerSelectionDialog(title, bgColor, textColor, spinnerBg, showCancel, showOk, type)`	Two-layer selector
`ShowTextInputDialog(title, message, textColor, editBg, dialogBg, hint, default, fullScreen, showCancel, showOk, type)`	Text input
`ShowListDialog(title, items, textColor, itemBg, dialogBg, fullScreen, showCancel, type)`	List selection

Visual Effects

Method	Description
`RoundCorners(comp, radius, bg, border, width, childBg, text, applyToChildren, applyToGroups)`	Rounded corners
`RoundCornersMetallic(comp, radius, baseColor, childBg, text, applyToChildren, applyToGroups)`	Metallic effect

Picker Events

Event	Parameters	Description
`OnLayerSelected`	layerName	Layer chosen
`OnLayerLongPressed`	layerName	Long press on layer
`OnOutsidePicker`	–	Clicked outside
`TextEntered`	text, type	Dialog input
`ListItemSelected`	item, type	List choice
`LayersSelected`	layer1, layer2, type	Two layers chosen

Example Projects

Simple Drawing App

When Screen1.Initialize
  // Setup
  call CanvasLayers1.SetCanvas(Canvas1)
  call CanvasLayers1.AddLayer("Sketch", true, -1)
  call CanvasDrawingTools1.Initialize(CanvasLayers1)
  call CanvasLayers1.SetDrawingTools(CanvasDrawingTools1)

When Canvas1.TouchDown
  x y
  call CanvasDrawingTools1.StartPathAtPoint(x, y, -16776961, 5)

When Canvas1.TouchMove
  x y
  call CanvasDrawingTools1.AddPointToPath(x, y)

When Canvas1.TouchUp
  x y
  call CanvasDrawingTools1.DrawShape()

Layer Management

When ButtonAdd.Click
  call CanvasLayers1.AddLayer("New Layer", true, -1)

When ButtonDelete.Click
  if call CanvasLayers1.NumberOfLayers() > 1
    call CanvasLayers1.RemoveLayer()
  else
    call Notifier1.ShowAlert("Can't remove last layer")

When Spinner1.AfterSelecting
  selection
  call CanvasLayers1.SetActiveLayer(selection)

Export to Image

When ButtonSave.Click
  call CanvasExportTools1.SaveLayersToImage(
    "my_drawing",
    "png",
    "MyApp"
  )

When CanvasExportTools1.LayerSaved
  path
  call Notifier1.ShowAlert("Saved to: " + path)

Helper Enums

Enum	Values
ImageType	`Png`, `Jpeg`, `Webp`
ShapeType	`Rectangle`, `RoundRect`, `Oval`, `Line`, `Arrow`, `Polygon`, `Star`, `Text`, `Image`, `FreePath`
SelectionType	`Rectangle`, `Free`, `All`, `None`

Links

GitHub Repository: github.com/iagolirapasssos/extend-canvas
Report Issues: Use GitHub Issues
License: MIT

Files

AIX: (V3) com.iagolirapassos.canvaslayers.aix (84.9 KB)
AIA: (V3) CanvasLayers.aia (656.2 KB)

Made with ❤️ for the MIT App Inventor community

Kumaraswamy · December 7, 2023, 11:24am

It would be nicer if you present your blocks in a different way with images. An average user isnt aware of such technical things, AndroidViewComponent.

Passos_0213 · December 7, 2023, 11:43am

Suggestion: It would be nice if the platform offered a security mechanism for AIA and AIX files.

Passos_0213 · December 7, 2023, 8:15pm

Is there anything else left for the post to be published?

Taifun · December 7, 2023, 8:26pm

I think, we can publish it...
this is a nice to have...

Taifun

Taifun · December 7, 2023, 8:28pm

Passos_0213 · December 29, 2023, 4:40pm

NEWS

AIX has been released completely free. Private support will be provided for a payment of $5.00.

Passos_0213 · January 2, 2024, 1:33am

Wait for version 2!

Kivanc_Mutlu · January 2, 2024, 4:28am

hi,
Can you say to me your contack number ?
Thanks

Passos_0213 · January 2, 2024, 4:30am

Telegram group Telegram: Contact @mitappinvnetorandbrothers

CanalDTodoUnPoco_PC · May 2, 2024, 8:00pm

its possible to make blur effect zoom with this?

Kevinkun · May 23, 2024, 7:07am

you need to get the width and height of the image, and set the canvas with same ratio.

Passos_0213 · January 19, 2026, 12:19am

@TIMAI2 The project is now open source, in case you want to contribute to or modify the original project.

GitHub: GitHub - iagolirapasssos/CanvasLayers: CanvasLayers is a custom extension for Kodular Creator that enhances the functionality of the standard Canvas component. This guide will explain how to integrate and utilize CanvasLayers in your Kodular Creator projects.

TIMAI2 · January 19, 2026, 12:42am

OK that is good. I wanted a clearMemory method which is in the legacy version "ExtendedCanvas".

Can you share the source code java for that ?

Passos_0213 · January 19, 2026, 1:39am

Passos_0213 · February 17, 2026, 4:43am
