ArrangementCapture - Capture image, rename, delete, flash effect

Extensions
, ,
1
ArrangementCapture
Capture image, rename, delete, flash effect.

GIF_20250304_030846_370

SetArrangement

Sets the arrangement to capture.

blocks (93)
blocks (93)1150×112 17.7 KB

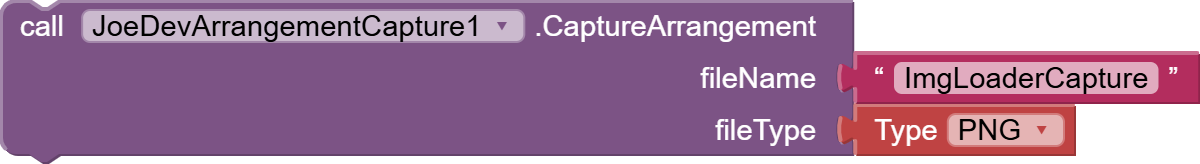

CaptureArrangement

Captures the image of the specified arrangement and saves it to the specified file.

blocks (95)
blocks (95)1184×112 17.3 KB

CaptureExists

Checks if a capture exists.

blocks (94)
blocks (94)1108×104 16.1 KB

DeleteCapture

Deletes a capture.

blocks (97)
blocks (97)1100×112 16.5 KB

ListCaptures

Lists all captures.

component_method (58)
component_method (58)746×52 8.43 KB

RenameCapture

Renames a capture.

component_method (59)
component_method (59)796×164 14.5 KB

GetArrangementDimensions

Gets the dimensions of the arrangement.

component_method (61)
component_method (61)950×52 10.1 KB

GetFilePath

Gets the file path of a capture.

blocks (96)
blocks (96)1170×104 16.6 KB

CaptureSucceeded

Fired when the arrangement capture is successful.

component_event (33)
component_event (33)842×172 13.1 KB

#CaptureFailed
Fired when the arrangement capture fails.

component_event (35)
component_event (35)774×172 13.4 KB

CaptureDeleted

Fired when a capture is deleted.

component_event (34)
component_event (34)796×172 14.7 KB

CaptureRenamed

Triggered when a capture is renamed.

component_event (36)
component_event (36)822×172 14.6 KB

Update v1.0.1 Mar 04, 2025.

  • Added a flash when taking a capture

aia project:
ArrangementCapture.aia (17.5 KB)

Extension v1.0.1.
joejsanz.joedevarrangementcapture.aix (10.4 KB)

minSdk: 21
maxSdk: 34
JDK: 11

Built & documented using: FAST-CLI v2.4.2

Thanks.

Github

6 Likes
2

You missed out the (all important...) SetArrangement block (item #1)

3

It's true, you're right, I lost my mind, in a few hours after I get home I will put that block, thank you.

4

Update v1.0.1 Mar 04, 2025.

1 Like
