[FREE] Progresso: Progress Bar Extension - Create awesome linear and circular progress bars

[Schist]

Thanks a lot!

[nobodyevenreadsnames]

Hey, creator of the extension,
I am facing two key issues with this and don't know what I'm doing wrong:
First, the Animate Progress block seems to be broken and creating an infinite loop of the cycle getting from 0 to 100 once the first cycle is done manually.
Second, the Percentage Text isn't showing even after correctly using any needed blocks and booleans. Does it need a innate label to be in?
Thanks.

[The_K_Studio]

@nobodyevenreadsnames

First, the Animate Progress block seems to be broken and creating an infinite loop of the cycle getting from 0 to 100 once the first cycle is done manually.

Make sure to run it only once until it completes, if running the function multiple times will repeat the animation.

@nobodyevenreadsnames

Second, the Percentage Text isn't showing even after correctly using any needed blocks and booleans. Does it need a innate label to be in?

These 2 properties has to be set true in order to show the text and enable it as percentage: TextVisible and PercentageText

[nobodyevenreadsnames]

Wow, thanks for the really fast response!
Look at my code:

Optional settings for the text are unused here, yet it still doesn't show.
And I'm sorry, but I don't know how to work with the Animate Progress block, I want it to play from 0 or at least the previously set value into the new one, not from 0 to max. Along with the previous issue.

[The_K_Studio]

Progress bar properties has to be set before creating the progress bar. Make sure that text color is not WHITE since background is also WHITE.

@nobodyevenreadsnames

I want it to play from 0 or at least the previously set value into the new one, not from 0 to max.

For this action animate progress is not suitable as it just animates the progress from 0 to max within specified duration. To animate the custom value of progress you need to use update progress to update it with a new progress value. You may also use Clock component to update the progress at a specified interval of time.

[nobodyevenreadsnames]

Thanks, worked like a charm!
I'll experiment with the clock later on my own

[nico]

If it was possible to be able to change the text in the middle of the progress bar, that would be great!

Nico

[The_K_Studio]

Okay, will update.

[The_K_Studio]

Update

v2.2 updated with CustomText and Clear functions.

v3.0 updated with id feature to create customised progress bars dynamically.

[nico]

Thank you so much !

[anglaro]

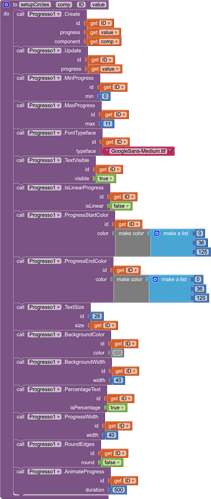

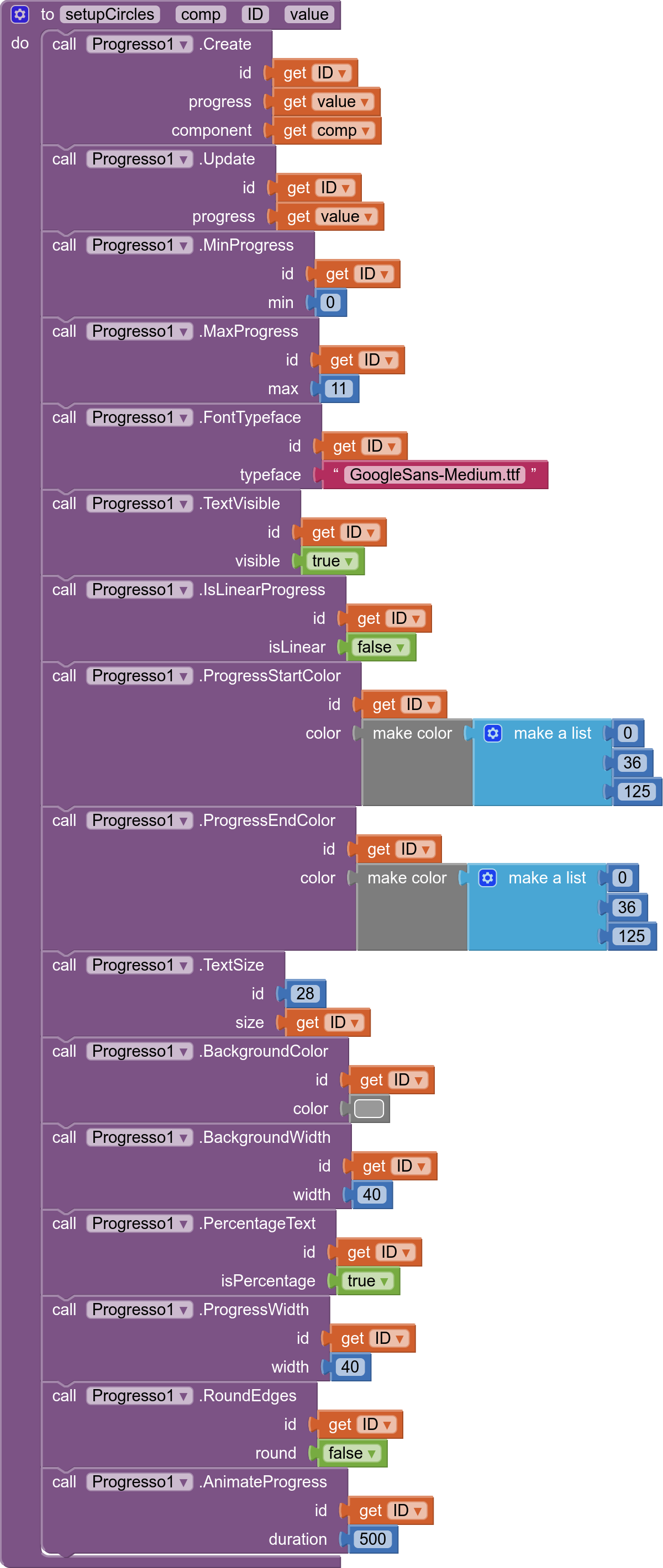

Hey everyone can you help me? Im new to this extention, here are my blocks:

But it seems like Im unable to use my custom typeface ttf font I uploaded to app inventor
I also want to apply a range of 0 to11 but it seems that precetage is animating till 100% when in reality the initial value is 2. How can I fix this?

[The_K_Studio]

Hi, you are not supposed to use update and animate progress functions at a time.

Animate function is used to animate the progress from 0 to 100%

After creating the progress with customisation then you are supposed to use update function to update the progress.

And for font typeface it will work in Apk.

[anglaro]

Thank you, It works
