[Free]DjSurfaceView extension

Extensions
1

With this extension you can take Photos or Videos from Screen content.

  • use front or rear camera
  • record fullscreen or custom in portrait or landscape mode
  • add Effects: 14 cam effects
  • take Photo. Stored to the ASD
  • take video. Stored to the ASD
  • method to copy the created files to the public /Movies /Pictures folder
  • method to delete all
  • Delete a specific file from the ASD
  • Clear all DJ_VID files from the ASD to save space
  • This is more or less a helper extension for my DjGifSprite extension, designed to generate video clips.

Update -> Effects now working!

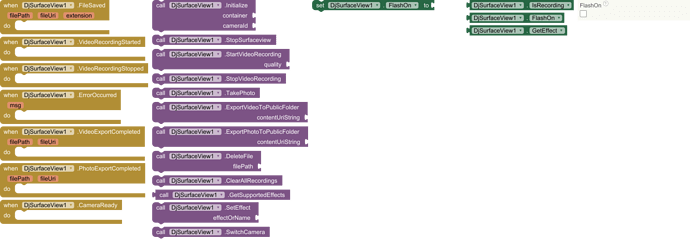

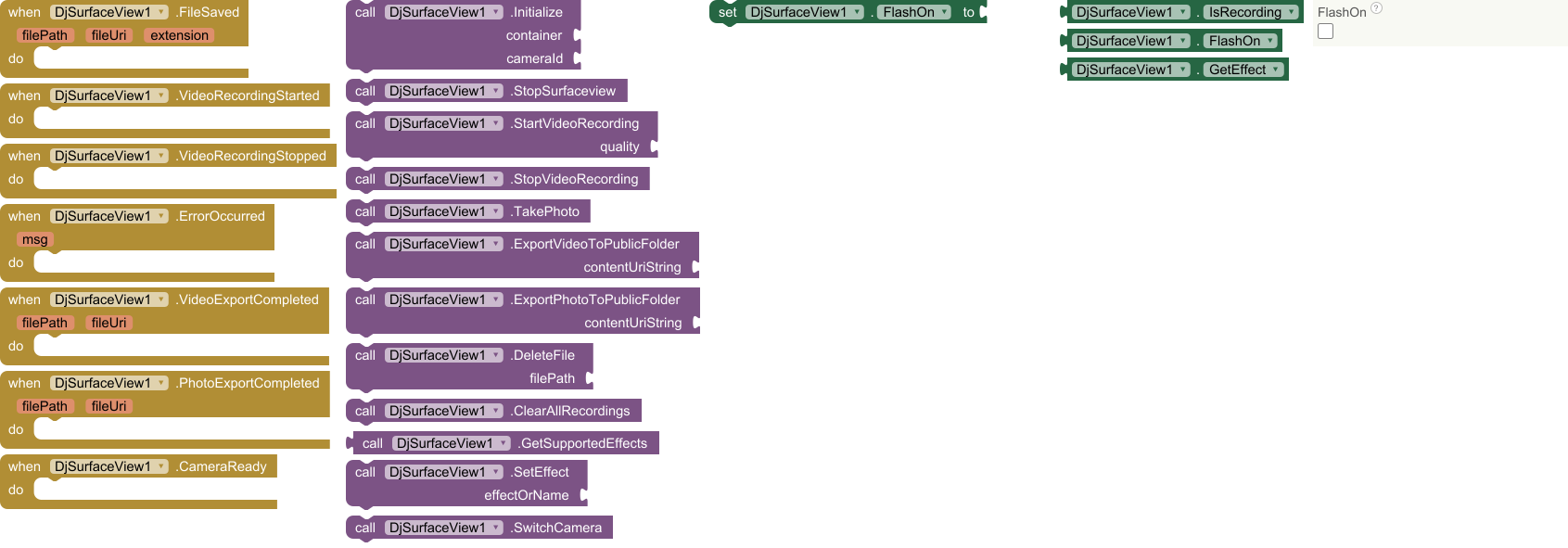

blocks
blocks1691×591 129 KB
strong text
com.django.djsurfaceview.aix (36.9 KB)
DjSurfaceViewDemo.aia (695.3 KB)

:laptop: Built & documented using: FAST v6.0.0-premium

7 Likes
2

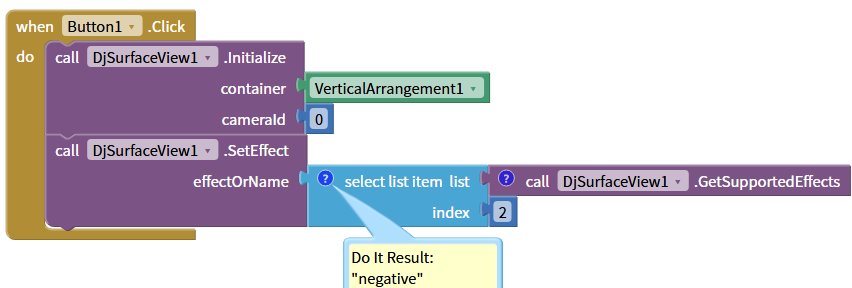

how to use setEffect?
this is not working, no any effect applied.

image852×288 24.6 KB

3

So your devices camera doesnt provide any effects. Sorry. I have a china tab too from selintech that doesnt provide any effects too. My samsung tablet has a bunch of effects.
Question: Does the camera app of your device provide any effects like Sepia or grayscale or something?I dont think so.

4

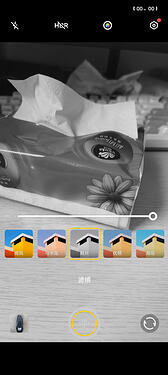

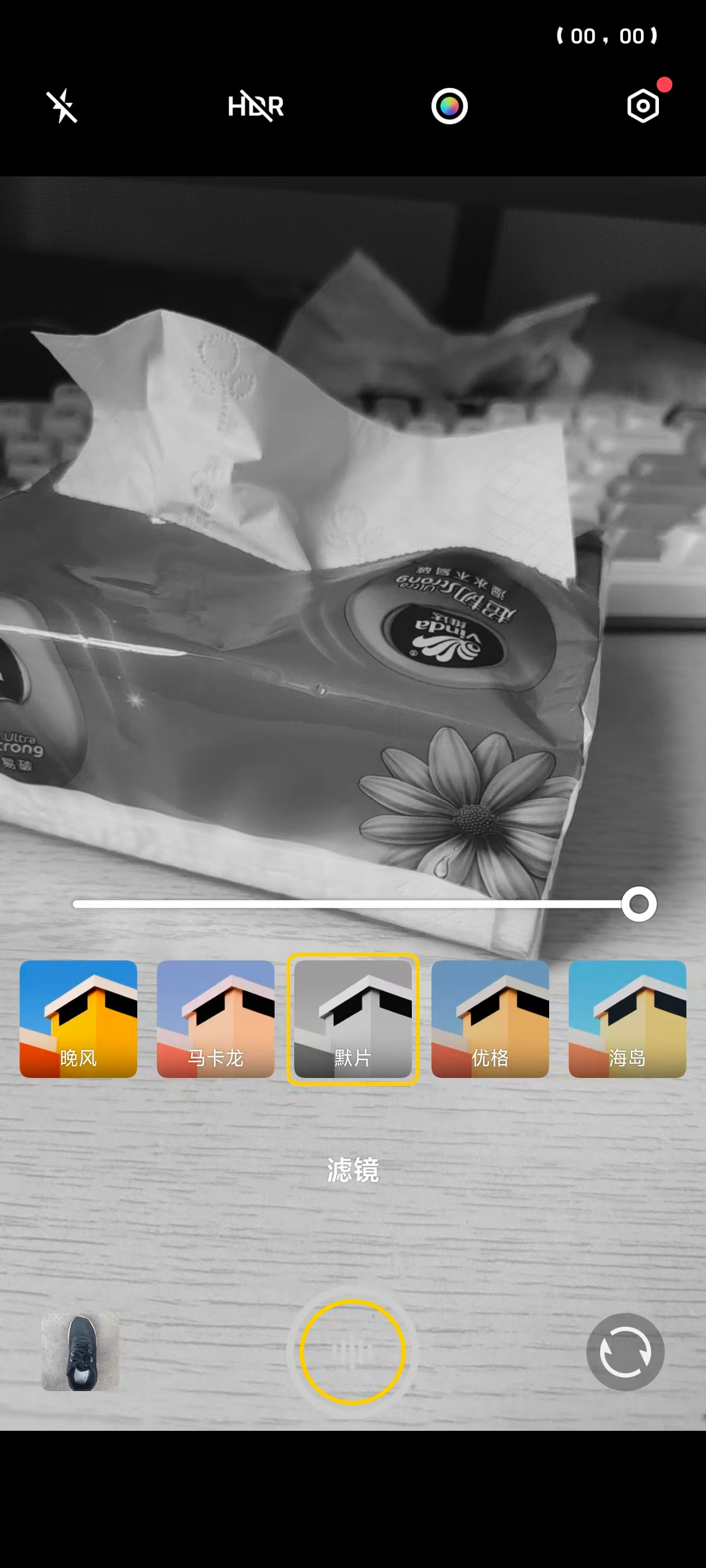

Do you mean this?

70291e9c0af5f4d164f7093dfa6add86
70291e9c0af5f4d164f7093dfa6add861260×2800 268 KB

5

FWIW, I don't see any effects being listed when testing the aia in companion either.

6

The effect list will be getted when you open the surfaceview. It is called within the CameraReady event.

7

Nope, tried that, no effects even then.

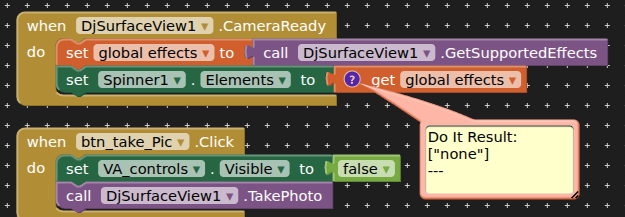

This is with surface view on

image625×217 30.4 KB

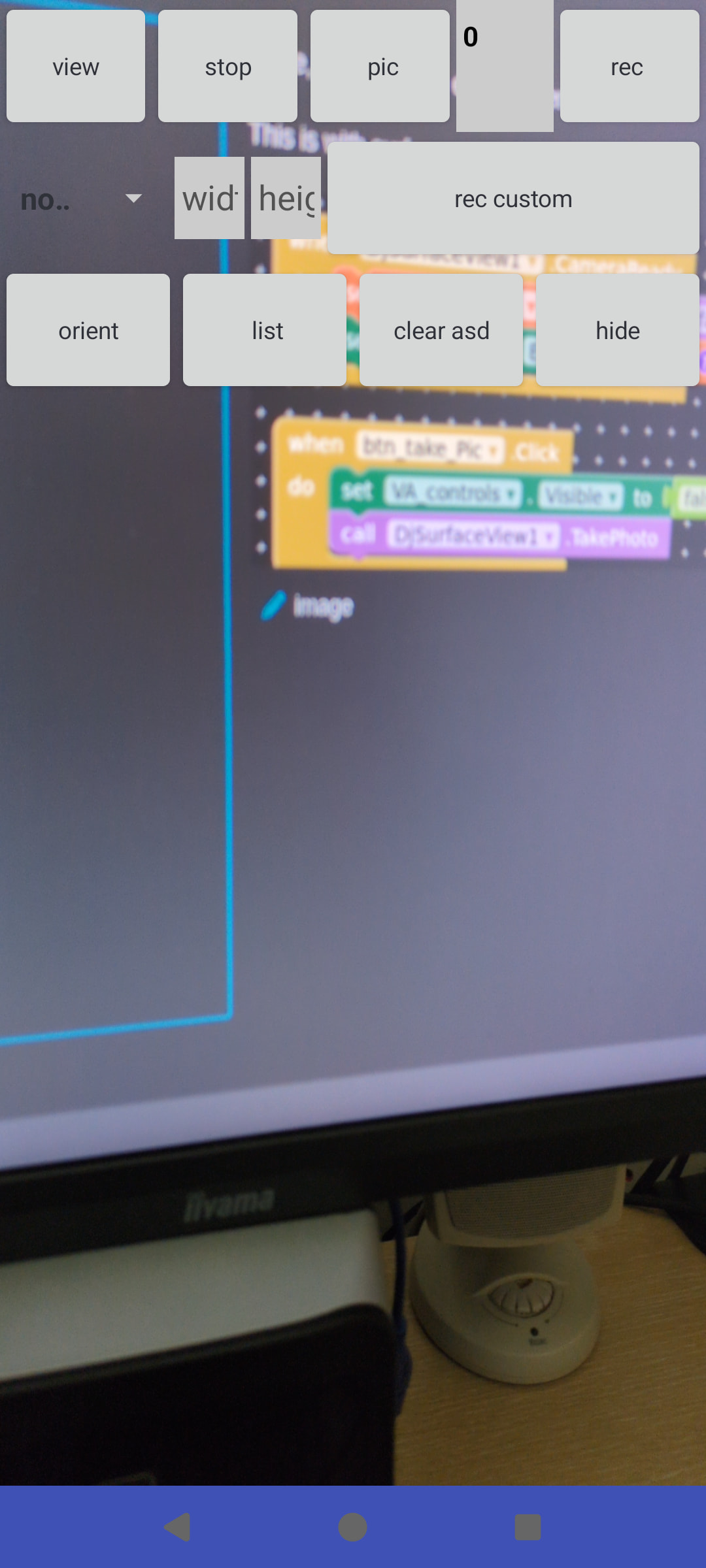

Also your demo aia layout looks a bit odd on my Android 16...

Screenshot_20260608-112053
Screenshot_20260608-1120531080×2400 256 KB

8

I will check it this evening.
Edit:
I found the problem. I got 3 Samsung devices that cooperate perfect with the old Camera API I am using in this extension. Unfortunately other manufactorers dont support this API anymore. So to fix this, I would have to rewrite the complete extension to use the modern Camera2 API... :confused:
I will add a note to the first post
@Tim

The purpose of this aia is to show the functionality of my extension, no meant to reflect my designing skills :wink:

9

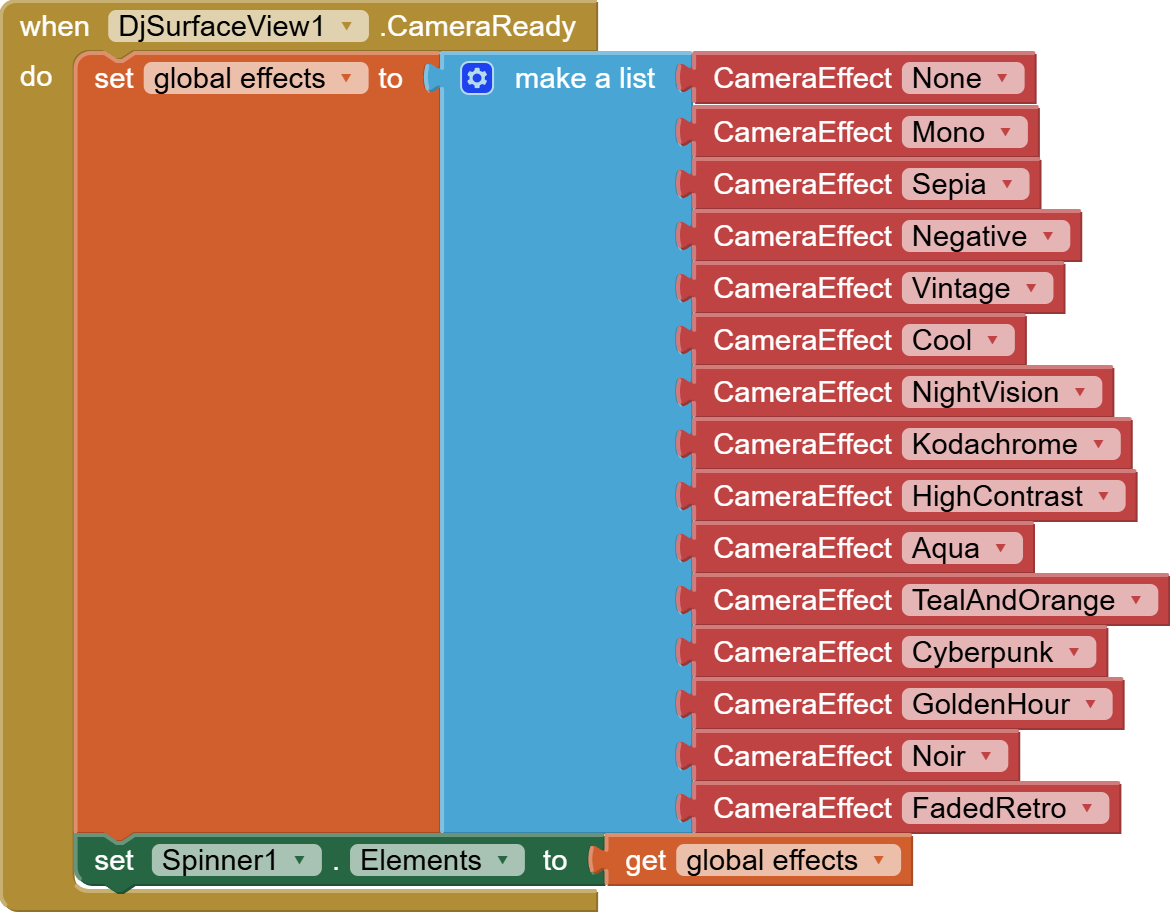

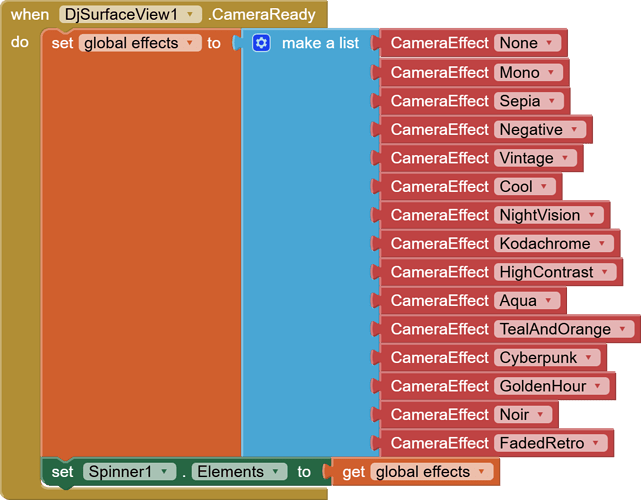

Update: 14 different Effects are working now. aix and aia updated in first post

blocks (58)
blocks (58)1170×912 116 KB
