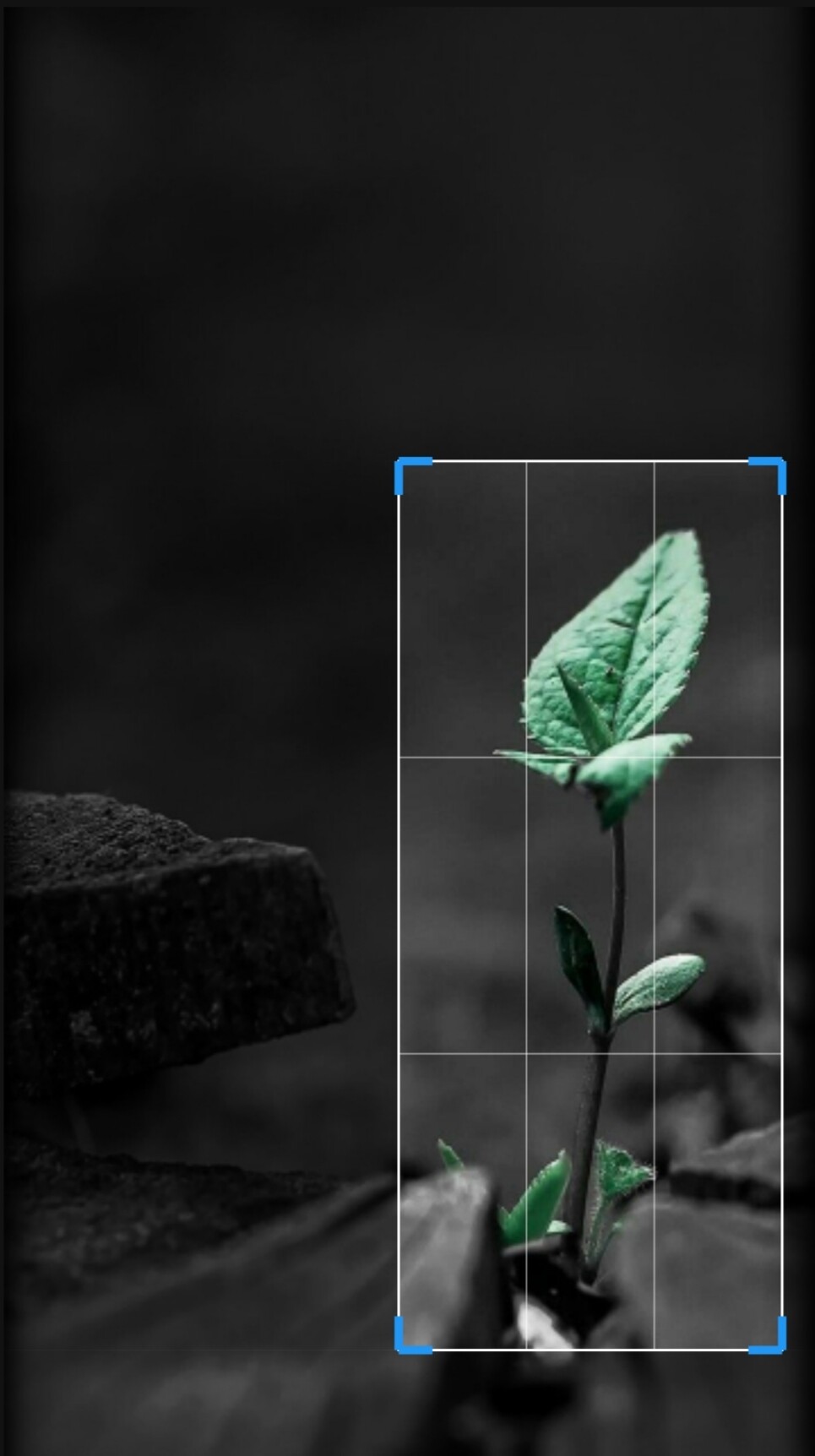

Crop view retrieving the actual height and width of the uploaded file.
You will need vknow360's FFmpeg extension to apply the cropping coordinates provided by this tool.

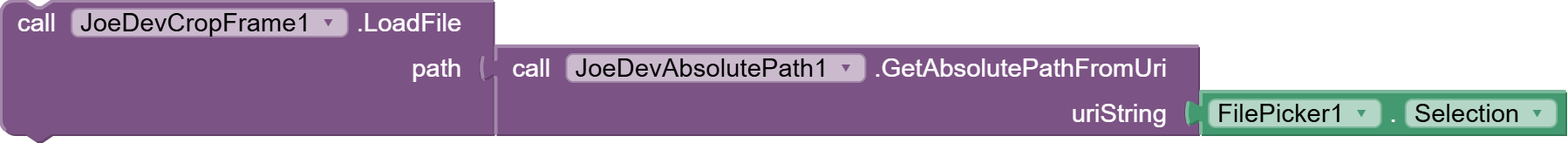

LoadFile
Loads the path of an image or video and retrieves its actual size (width x height).
The frame and the CropChanged event will use those actual coordinates.
- The frame will operate in real-image coordinates, not screen coordinates.
- If the LoadFile function is not used, the coordinates obtained will be screen coordinates.

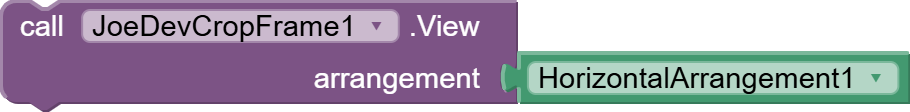

View
Embed the crop frame as an overlay within an Arrangement.
Width
Returns the actual width of the uploaded file.
Height
Returns the actual height of the uploaded file.

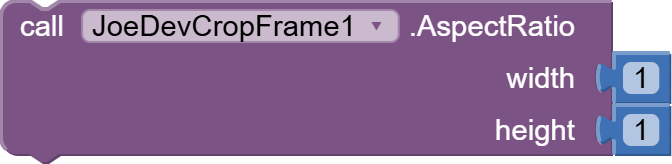

AspectRatio
Sets the aspect ratio. 0 and 0 for free-form.
Remove
Remove the cropping overlay from the container.
CornerColor
Specifies the color of the frame corners.
BorderColor
Specifies the color of the frame lines.

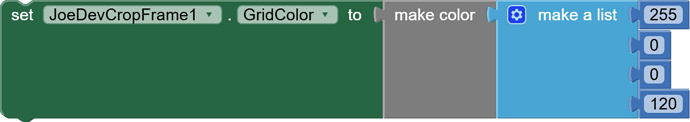

GridColor
Specifies the color of the internal grid.
For better visualization, use transparency with rgba.

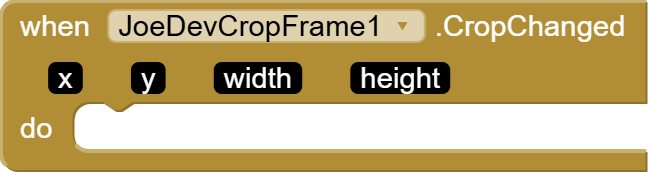

CropChanged
Returns x, y, width, and height in the actual coordinates of the loaded image or video.
v1.0 September 28, 2026.
CropFrame.aia (1.3 MB)
joejsanz.joedevcropframe.aix (12.6 KB)
JDK: 17
Minimum API Level: 14
Updated On: 2026-09-28T07:00:00Z
Built using: FAST-CLI v7.2.0-premium
